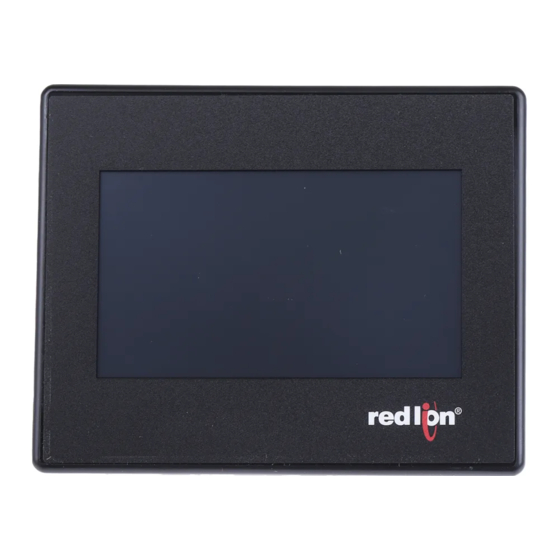

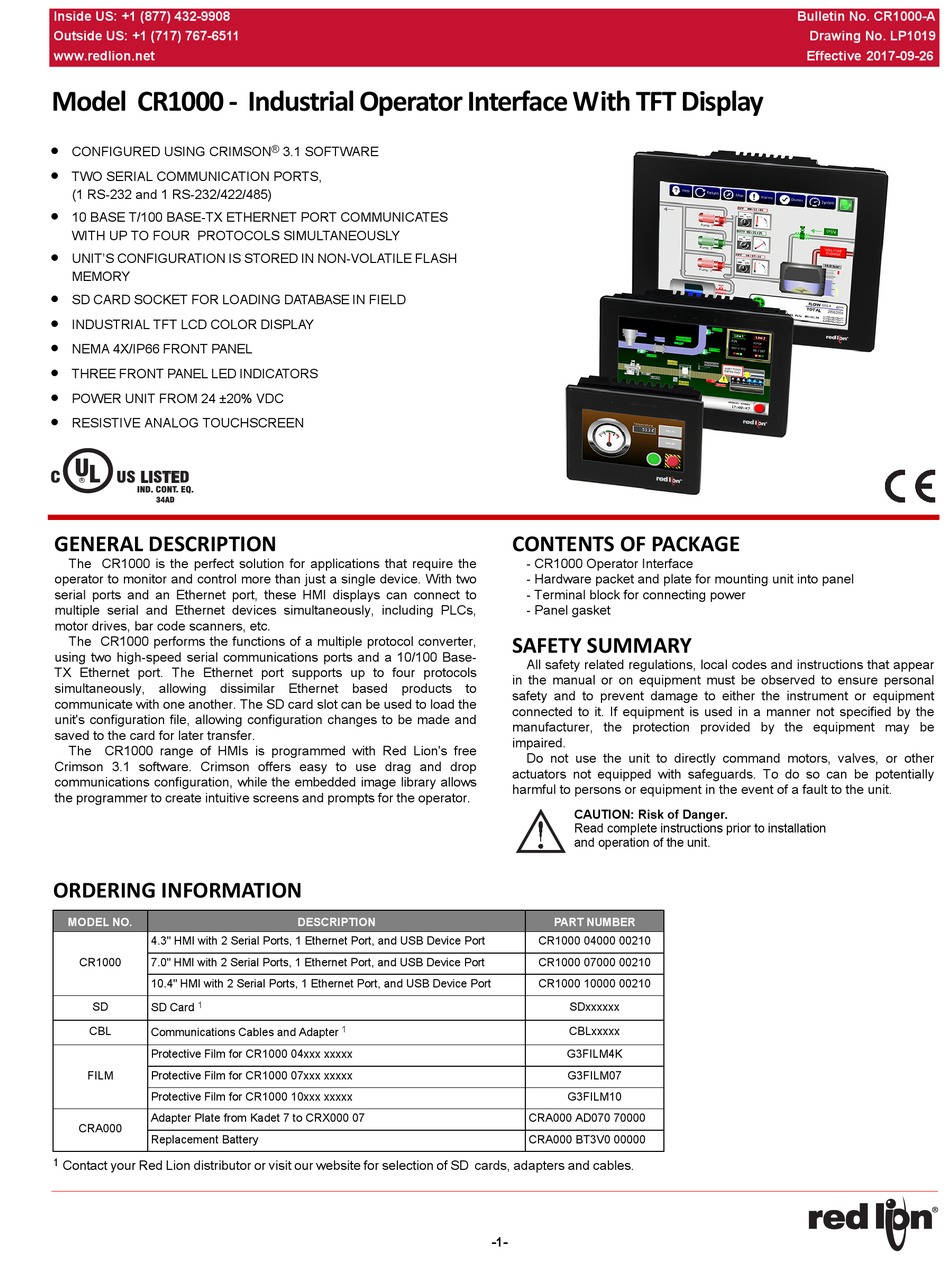

Model CR1000 ‐ Industrial Operator Interface With TFT Display
CONFIGURED USING CRIMSON
•
TWO SERIAL COMMUNICATION PORTS,
•
(1 RS-232 and 1 RS-232/422/485)
• 10 BASE T/100 BASE-TX ETHERNET PORT COMMUNICATES
WITH UP TO FOUR PROTOCOLS SIMULTANEOUSLY
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE FLASH
•
MEMORY
• SD CARD SOCKET FOR LOADING DATABASE IN FIELD
INDUSTRIAL TFT LCD COLOR DISPLAY
•
NEMA 4X/IP66 FRONT PANEL
•
THREE FRONT PANEL LED INDICATORS
•
• POWER UNIT FROM 24 ±20% VDC
RESISTIVE ANALOG TOUCHSCREEN
•
U L
C US LISTED
IND. CONT. EQ.
34AD
GENERAL DESCRIPTION
The CR1000 is the perfect solution for applications that require the
operator to monitor and control more than just a single device. With two
serial ports and an Ethernet port, these HMI displays can connect to
multiple serial and Ethernet devices simultaneously, including PLCs,
motor drives, bar code scanners, etc.
The CR1000 performs the functions of a multiple protocol converter,
using two high-speed serial communications ports and a 10/100 Base-
TX Ethernet port. The Ethernet port supports up to four protocols
simultaneously, allowing dissimilar Ethernet based products to
communicate with one another. The SD card slot can be used to load the
unit's configuration file, allowing configuration changes to be made and
saved to the card for later transfer.
The CR1000 range of HMIs is programmed with Red Lion's free
Crimson 3.1 software. Crimson offers easy to use drag and drop
communications configuration, while the embedded image library allows
the programmer to create intuitive screens and prompts for the operator.
ORDERING INFORMATION
MODEL NO.
4.3" HMI with 2 Serial Ports, 1 Ethernet Port, and USB Device Port
CR1000 7.0" HMI with 2 Serial Ports, 1 Ethernet Port, and USB Device Port
10.4" HMI with 2 Serial Ports, 1 Ethernet Port, and USB Device Port
SD 1
SD Card
CBL
Communications Cables and Adapter
Protective Film for CR1000 04xxx xxxxx
FILM Protective Film for CR1000 07xxx xxxxx
Protective Film for CR1000 10xxx xxxxx
Adapter Plate from Kadet 7 to CRX000 07
CRA000
Replacement Battery
1
Contact your Red Lion distributor or visit our website for selection of SD cards, adapters and cables.
®
3.1 SOFTWARE
DESCRIPTION
1
CONTENTS OF PACKAGE
- CR1000 Operator Interface
- Hardware packet and plate for mounting unit into panel
- Terminal block for connecting power
- Panel gasket
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the unit to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit.
WARNING - EXPLOSION HAZARD - DO NOT D CAUTION: Risk of Danger.
Read complete instructions prior to installation EQUIPMENT UNLESS POWER HAS BEEN SW
OR AREA IS KNOWN TO BE NON-HAZARDOU and operation of the unit.
PART NUMBER
CR1000 04000 00210
CR1000 07000 00210
CR1000 10000 00210
SDxxxxxx
CBLxxxxx
G3FILM4K
G3FILM07
G3FILM10
CRA000 AD070 70000
CRA000 BT3V0 00000
-1-
Bulletin No. CR1000-A
Drawing No. LP1019
Effective 2017-09-26
