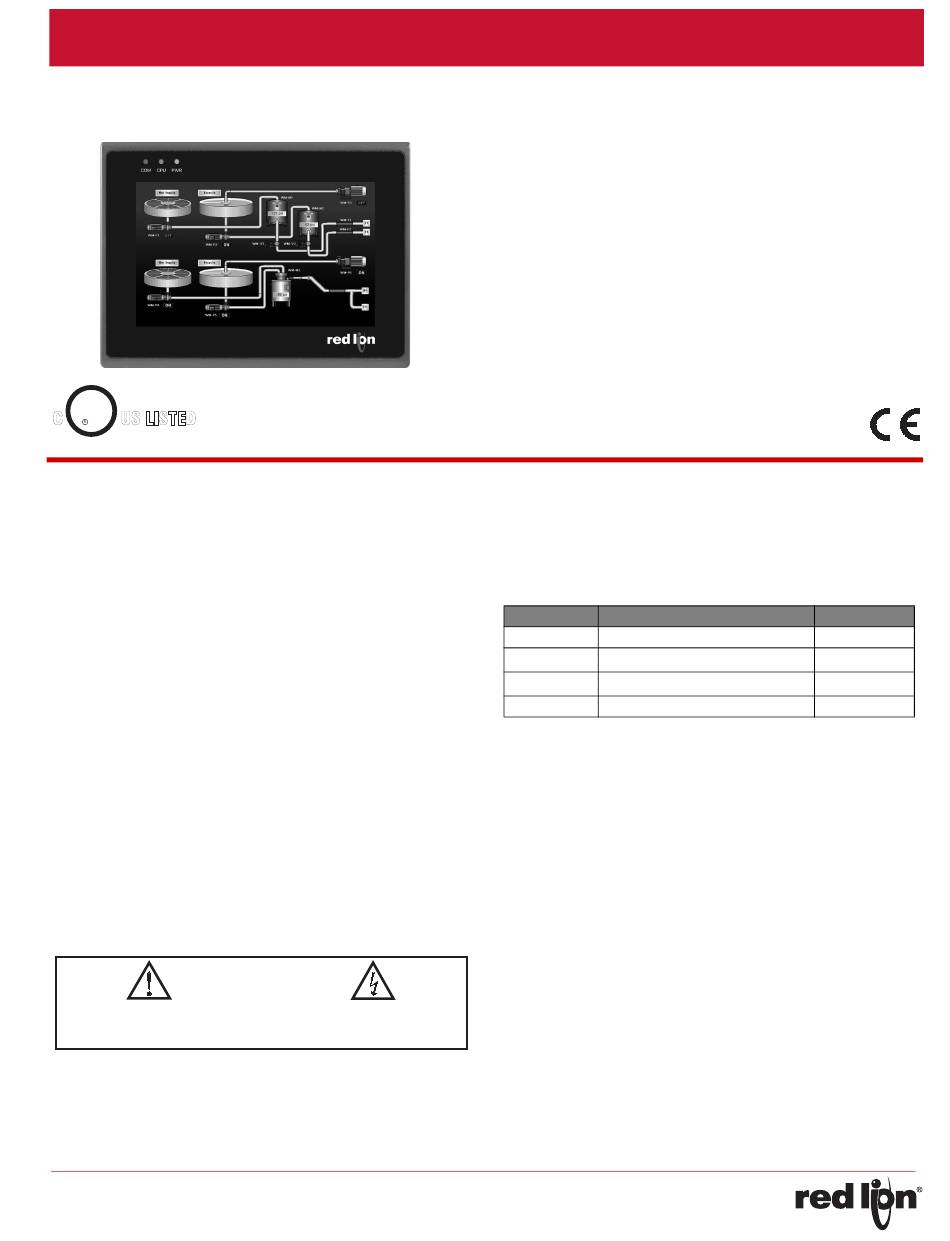

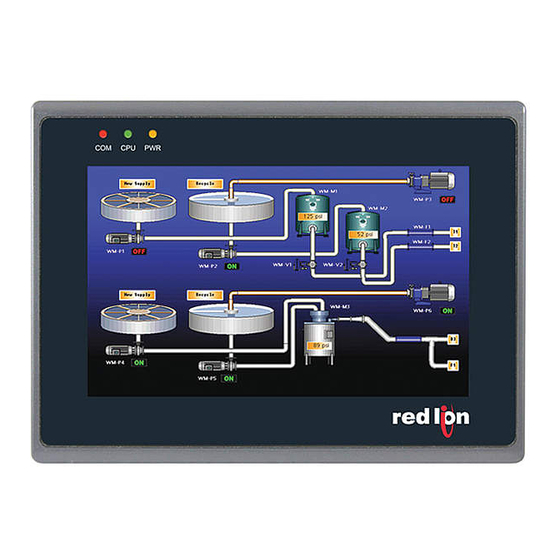

MODEL G307K2 ‐ KADET 2 OPERATOR INTERFACE WITH 7" TFT DISPLAY
U L
C US LISTED
IND. CONT. EQ.
22SV
GENERAL DESCRIPTION
The G307K2 is the perfect solution for applications that require the
operator to monitor and control more than just a single device. With three
serial ports and an Ethernet port, the 7" Kadet 2 can connect to multiple
serial and Ethernet devices simultaneously, including PLCs, motor
drives, bar code scanners, etc.
The G307K2 performs the functions of a multiple protocol converter,
using three high-speed RS-232/422/485 communications ports and a 10
Base-T Ethernet port. The Ethernet port supports up to four protocols
simultaneously, allowing dissimilar Ethernet based products to
communicate with one another.
The SD card slot can be used to load the unit's configuration file,
allowing configuration changes to be made and saved to the card for
later transfer.
The G3 Kadet 2 range of HMIs is programmed with Red Lion's free
Crimson 3 software. Crimson offers easy to use drag and drop
communications configuration, while the embedded image library allows
the programmer to create intuitive screens and prompts for the operator.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
CONFIGURED USING CRIMSON
•
• THREE SERIAL COMMUNICATIONS PORTS
(1 RS-232 AND 2 RS-232/422/485 PORTS)
10 BASE-T/100 BASE-TX ETHERNET PORT COMMUNICATES
•
WITH UP TO FOUR PROTOCOLS SIMULTANEOUSLY
• UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE FLASH
MEMORY
• SD CARD SOCKET FOR LOADING DATABASE IN FIELD
7-INCH TFT LCD 32k COLOR 800 X 480 PIXEL DISPLAY
•
NEMA 4/IP65 FRONT PANEL
•
• THREE FRONT PANEL LED INDICATORS
POWER UNIT FROM 24 ±20% VDC
•
RESISTIVE ANALOG TOUCHSCREEN
•
CONTENTS OF PACKAGE
- G307K2 Operator Interface.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
- Spare fuse.
ORDERING INFORMATION
MODEL NO.
G307K2 7" TFT Operator Interface
1
SD
SD Card
CBL
Communications Cables and Adaptor
G3FILM Protective Film
1
Contact your Red Lion distributor or visit our website for selection of SD
cards, adapters and cables.
Note: If replacing Model G306K000, see Tech Note TNG3K6.
-1-
Bulletin No. G307K2-F
Drawing No. LP0889
Released 2015-11-23
®
3 SOFTWARE
DESCRIPTION PART NUMBER
G307K200
SDxxxxxx
1
CBLxxxxx
G3FILM7K
