Page 11: Powerlite Eb-L250F/Eb-L255F User's Guide

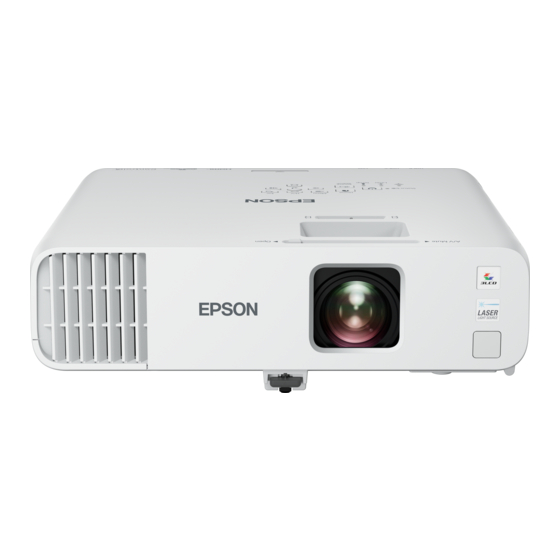

PowerLite EB-L250F/EB-L255F User's Guide Welcome to the PowerLite EB-L250F/EB-L255F User's Guide. For a printable PDF copy of this guide, click here. Note: Availability of products in this guide varies by country.
Page 12: Introduction To Your Projector
• Use Epson iProjection (Windows/Mac) to simultaneously project up to four images from network computers or mobile devices using the Epson iProjection app • Projection from an iOS device, Android device, or Chromebook with the free Epson iProjection app; visit epson.com/iprojection...
Page 13: Product Box Contents
• Powerful 16 W speaker system with audio out port for connecting external speakers • Epson's Direct Power On and Auto Power On features for quick and easy setup • Epson Content Management software for signage includes preset overlay filters, customizable options, playlist and scheduling functions with supplemental web app control •...
Page 14: Additional Components
Make sure your projector box included all of these parts: Projector Remote control Remote control batteries (2 AA alkaline) Power cord HDMI cable Cable cover Safety wire attachment set Parent topic: Projector Features Additional Components Depending on how you plan to use the projector, you may need to obtain additional components. Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector.
Page 15: Optional Equipment And Replacement Parts
This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options. Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.
Page 16: Warranty And Registration Information (U.s. And Canada)
Warranty and Registration Information (Latin America) Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector. Register your product online at latin.epson.com/support, search for your product, and select Register.
Page 17: Notations Used In The Documentation
• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to Get Help."...
Page 18 Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to Get Help." Projector software...
Page 19: Projector Part Locations
USB device; insert the USB device into the projector to project your playlist content without using a cable connection. You can download the latest software and documentation from the Epson web site. Go to epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support...
Page 20: Projector Parts - Front/Top
Projector Parts - Front/Top Air intake vent Lens cover Foot release lever Front adjustable foot Lens Remote control receiver Air filter/intake vent Control panel Focus ring Zoom ring Horizontal keystone slider Air exhaust vent...
Page 21: Projector Parts - Rear
A/V Mute slide lever/lens cover Parent topic: Projector Part Locations Projector Parts - Rear AC input RS-232C port L and R audio ports Audio1 and Audio2 ports Audio Out port Air intake vent Speaker HDMI1 and HDMI2 ports Computer1 and Monitor Out/Computer2 ports Video port Remote receiver LAN (network) port...
Page 22: Projector Parts - Base
USB-A port USB-B port Wireless LAN module cover screw Parent topic: Projector Part Locations Projector Parts - Base Front adjustable foot Ceiling/wall mount holes (9) Rear feet Security cable attachment point Note: Use M4×9mm screws for mounting the projector.
Page 23: Projector Parts - Control Panel
Parent topic: Projector Part Locations Projector Parts - Control Panel Source Search button (searches for connected video sources) Enter button (selects options) Vertical keystone adjustment buttons (displays the adjustment screen and adjusts screen shape) and arrow buttons Esc button (cancels/exits functions) Volume buttons (adjust speaker volume), horizontal keystone adjustment buttons, and arrow buttons Menu button (accesses projector menu system)
Page 24: Projector Parts - Remote Control
Projector Parts - Remote Control Power button HDMI/Video button (cycles through connected HDMI and video sources)
Page 25 Computer button Keystone button (displays the Geometry Correction screen) Effect button (displays the Overlay Effect menu in Content Playback mode) Numeric buttons Auto button (automatically adjusts position, tracking, and sync settings) Num button (when held down, switches numeric buttons to number function) Menu button (accesses projector menu system) Arrow buttons (move through on-screen options and control wireless mouse functions) Enter button (selects options and controls wireless mouse functions)
Page 26: Setting Up The Projector
Setting Up the Projector Follow the instructions in these sections to set up your projector for use. Projector Placement Projector Connections Installing Batteries in the Remote Control Projector Placement You can place the projector on almost any flat surface to project an image. You can also install the projector in a ceiling mount if you want to use it in a fixed location.
Page 27 Front Rear Front ceiling...
Page 28: Projection Distance
Rear ceiling You can mount the projector to the ceiling at any horizontal or vertical angle. Note: When you install the projector in a fixed location, turn on the Fixed Installation setting in the projector's Installation menu. Parent topic: Projector Placement Related references Installation Settings - Installation Menu Projection Distance...
Page 29 Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here...
Page 30 16:9 Aspect Ratio Image or Screen Screen or image size Projection distance (1) Offset from lens center (2) Wide to Tele Wide to Tele 40 inches 46 to 75 inches 0.8 inches (2 cm) (117 to 191 cm) 50 inches 58 to 94 inches 1.2 inches (3 cm) (147 to 240 cm)
Page 31 16:9 Aspect Ratio Image or Screen Screen or image size Projection distance (1) Offset from lens center (2) Wide to Tele Wide to Tele 400 inches 472 to 765 inches 9.8 inches (25 cm) (1200 to 1943 cm) 450 inches 532 to 861 inches 11 inches (28 cm) (1351 to 2186 cm)
Page 32 16:10 Aspect Ratio Image or Screen Screen or image size Projection distance (1) Offset from lens center (2) Wide to Tele Wide to Tele 150 inches 172 to 278 inches –0.4 inches (–1 cm) (436 to 707 cm) 200 inches 229 to 371 inches –0.4 inches (–1 cm) (582 to 943 cm)
Page 33 4:3 Aspect Ratio Image or Screen Screen or image size Projection distance (1) Offset from lens center (2) Wide to Tele Wide to Tele 50 inches 64 to 104 inches 0 inches (0 cm) (162 to 265 cm) 60 inches 77 to 125 inches 0 inches (0 cm) (195 to 318 cm)
Page 34: Projector Connections
4:3 Aspect Ratio Image or Screen Screen or image size Projection distance (1) Offset from lens center (2) Wide to Tele Wide to Tele 441 inches 574 to 929 inches –1.6 inches (–4 cm) (1458 to 2360 cm) Parent topic: Projector Placement Projector Connections See these sections to connect the projector to a variety of projection sources.
Page 35: Connecting To A Computer For Vga Video And Audio
(Make sure the HDMI audio playback device on your computer's audio settings is set to EPSON PJ.) Note: If you have problems hearing audio through the HDMI connection, you can use one of the projector's audio ports instead to play sound.
Page 36 Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options. Note: To project an image source connected to the Computer2/Monitor Out port, set Monitor Out Port to Computer2 in the projector's Signal I/O menu.
Page 37: Connecting To A Computer For Usb Video And Audio
6. Connect the other end to the Audio port that corresponds to the Computer port you are using. Parent topic: Connecting to Computer Sources Related references Input Signal Settings - Signal I/O Menu Connecting to a Computer for USB Video and Audio If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0).
Page 38: Connecting To Video Sources
• Windows 10/Windows 8.x: Click EPSON_PJ_UD when it appears on the desktop, then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software. • Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.
Page 39: Connecting To An Hdmi Video Source
Connecting to an HDMI Video Source If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality. Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage the projector.
Page 40: Connecting To A Composite Video Source
Connecting to a Composite Video Source If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable. You can play sound through the projector's speaker system by connecting a commercially available RCA audio cable.
Page 41: Connecting External Output Devices
Connecting External Output Devices See these sections to connect the projector to external output devices. Connecting to an External Computer Monitor Connecting to External Speakers Parent topic: Projector Connections Connecting to an External Computer Monitor If you connected a computer to the projector's Computer1 port, you can also connect an external monitor to the projector.
Page 42: Connecting To External Speakers
Connecting to External Speakers You can connect the projector to external self-powered speakers and control the volume using the projector's remote control. You can also connect the projector to an amplifier with speakers. Set the Audio Out Device setting to AV System in the projector's Signal I/O menu. When an audio/video system is not connected to the projector, audio is output from the external speakers even if Audio Out Device is set to AV System.
Page 43: Connecting To External Usb Devices
Connecting to External USB Devices Follow the instructions in these sections to connect external USB devices to the projector. USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector Parent topic: Projector Connections USB Device Projection...
Page 44: Connecting A Usb Device Or Camera To The Projector
Connecting a USB Device or Camera to the Projector You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content. 1. If your USB device came with a power adapter, plug the device into an electrical outlet. 2.
Page 45: Disconnecting A Usb Device Or Camera From The Projector
Disconnecting a USB Device or Camera From the Projector When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector. 1. If the device has a power button, turn off and unplug the device. 2.
Page 46 1. Remove the battery cover. 2. Insert the batteries with the + and – ends facing as shown. Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
Page 47 3. Replace the battery cover and press it down until it clicks into place. Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.
Page 48: Using The Projector On A Network
CD, if included, or download the software and manuals as necessary. Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.
Page 49: Selecting Wired Network Settings
2. Connect the other end of the cable to the projector's LAN port. Parent topic: Wired Network Projection Selecting Wired Network Settings Before you can project from computers on your network, you must select the network settings for the projector using its menu system. Note: Make sure you already connected the projector to your wired network using the LAN port.
Page 50 3. Select the Network menu and press Enter. 4. Select Network Settings and press Enter. 5. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the projector on a network. 6. Set the Priority Control Interface setting to Wired LAN. 7.
Page 51 10. To prevent display of the IP address on the standby screen, turn off IP Address Display in the Wired LAN menu. 11. Select Return and press Enter to return to the Network Settings menu. 12. Select Network Projection and press Enter. You see a screen like this: 13. Set the Epson iProjection setting to On.
Page 52: Wireless Network Projection
Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software. Connecting Directly to a Smartphone or Tablet...
Page 53: Connecting Directly To A Smartphone Or Tablet
You can display a QR code on the screen and use it to connect a single smartphone or tablet to your projector with the Epson iProjection app. 1. Download the latest version of the Epson iProjection app from the App Store or Google Play and install it on your smartphone or tablet.
Page 54 4. Select On as the Wireless LAN Power setting. 5. Select the Network menu and press Enter. 6. Select Network Settings and press Enter. 7. Set the Priority Control Interface setting to Wireless LAN.
Page 55 Note: The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software to access the projector. 11. Select On as the Epson iProjection setting. 12. Select the following settings as necessary: •...
Page 56: Using Quick Wireless Connection (Windows)
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.) • Keyword Interrupt Display lets you select whether to display a projector keyword on the projected image when accessing the projector using Epson iProjection.
Page 57 1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows) software. Note: See the online Epson iProjection Operation Guide for instructions. 2. Turn on the projector. 3. Press the LAN button on the remote control.
Page 58: Selecting Wireless Network Settings Manually
After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer. 9. Run your presentation as necessary. 10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.
Page 59 4. Select On as the Wireless LAN Power setting. 5. Select the Network menu and press Enter. 6. Select Network Settings and press Enter. 7. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the projector on the network.
Page 60 10. Select the Wireless LAN menu and press Enter. 11. Select Search Access Point and press Enter. The projector searches for wireless networks. 12. Select the network you want to connect to and enter the password, if necessary. Note: If you need to assign the SSID manually, select SSID to enter the SSID. The SSID and password are case-sensitive.
Page 61 18. Turn on the Projector Keyword setting if you want to prevent access to the projector by anyone not in the room with it. Note: The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software to access the projector. 19. Set the Epson iProjection setting to On.
Page 62: Wireless Lan Menu Settings
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. • Keyword Interrupt Display lets you select whether to display a projector keyword on the projected image when accessing the projector using Epson iProjection.
Page 63 Setting Options Description SSID Up 32 alphanumeric characters Manually set the SSID (network name) of the wireless LAN system the projector is connecting to Security WPA2/WPA3-PSK Selects the type of security used on the wireless network WPA2/WPA3-EAP WPA2/WPA3-PSK: uses WPA3-PSK WPA2/WPA3 personal mode;...
Page 64 The DNS server resolves the host name IPv6 Enables IPv6 to allow monitoring and control of the projector over a network using Epson Web Control and PJLink. When enabled, the following settings are available: Auto Configuration: selects whether to automatically assign...
Page 65: Selecting Wireless Network Settings In Windows
Selecting Wireless Network Settings in Windows Before connecting to the projector, select the correct wireless network on your computer. 1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar. 2. Do one of the following: •...
Page 66 1. Press the Menu button. 2. Select the Network menu and press Enter. 3. Select Network Settings and press Enter. 4. Do one of the following: • To connect directly to a wireless device (Simple AP mode), select Passphrase, press Enter, and enter a passphrase from 8 to 63 characters long.
Page 67: Installing The Wireless Lan Module
Registering Digital Certificates from a Web Browser Installing the Wireless LAN Module To use multiple wireless connection methods at the same time, install the optional Epson 802.11b/g/n wireless module in the projector. Do not install any other type of wireless module.
Page 68 2. Insert the wireless LAN module into a USB-A port. 3. Attach the wireless LAN module cover and secure it using the screw you removed. The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.
Page 69: Wireless Network Projection From A Mobile Device Or Windows Computer (Screen Mirroring)
Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) You can send images to your projector from mobile devices such as laptops, smartphones, and tablets using Miracast technology or from a Windows computer. If your device supports Miracast, you do not need to install any additional software.
Page 70 1. Press the Menu button. 2. Select the Management menu and press Enter. 3. Set the Wireless LAN Power setting to On.
Page 71 4. Select the Network menu and press Enter. 5. Select Network Settings and press Enter. 6. Select Priority Control Interface and press Enter. 7. Choose one of the following options: • If you are casting images over a wired LAN, select Wired LAN. •...
Page 72: Connecting For Screen Mirroring With A Windows 8.X/Windows 10 Computer
• Screen Mirroring Info displays connection information when projecting from a Screen Mirroring source. 12. When you finish selecting settings, select Return and press Enter to return to the Network Settings screen. 13. Select Set, and follow the on-screen instructions to save your settings and exit the menus. Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)
Page 73: Connecting For Screen Mirroring With Miracast
Related references Network Settings - Network Menu Related tasks Selecting Screen Mirroring Settings Connecting for Screen Mirroring with Miracast If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images and sound. 1. Select the Screen Mirroring settings on your projector as necessary. 2.
Page 74: Setting Up Projector Network E-Mail Alerts
Setting Up Projector Network E-Mail Alerts You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector. Note: If the Standby Mode setting is set to Communication On in the Operation menu, you can receive e-mail alerts even if the projector is in standby mode (the power is off).
Page 75 4. Select the Mail Notification menu and press Enter. 5. Turn on Mail Notification. 6. Enter the IP address for the SMTP Server setting. Note: Do not use 127.x.x.x (where x is a number from 0 to 255). 7. Select a type of Authentication for the SMTP server. 8.
Page 76: Network Projector E-Mail Alert Messages
• The email address entered as the From setting • Epson Projector on the subject line • The name of the projector experiencing a problem • The IP address of the affected projector •...
Page 77: Controlling A Networked Projector Using A Web Browser
Controlling a Networked Projector Using a Web Browser Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely. Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later, Microsoft Edge, Google Chrome, and Safari on networks that do not use a proxy server for connection.
Page 78 In normal mode:...
Page 79 In Content Playback mode: 4. To control projection remotely, select the Basic Control option from the Web Control screen. Note: If you see a log in window, enter your user name and password. (The default user name is EPSONREMOTE and the default password is guest.)
Page 80 Selects the USB Display source Selects the Screen Mirroring source A/V Mute button control Freeze button control Closed captioning control (not available in all countries) Displays a QR code for connecting with iOS or Android devices using the Epson iProjection...
Page 81: Using Crestron Connected
Crestron Connected lets you control and monitor your projector using a web browser. Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software when you use Crestron Connected. For additional information on Crestron Connected, contact Crestron.
Page 82: Setting Up Crestron Connected
Setting Up Crestron Connected To set up your projector for monitoring and control using a Crestron Connected system, make sure your computer and projector are connected to the network. Note: If you want to use the Crestron Connected system when the projector is turned off, you need to adjust the Standby Mode setting in the Operation menu.
Page 83: Controlling A Networked Projector Using Crestron Connected
Enter. 5. Set the Crestron Connected setting to On to allow the projector to be detected. Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson Projector Management software. 6. When you are finished selecting settings, select Return and press Enter to return to the Network Settings menu.
Page 84: Registering A Digital Certificate On The Projector
2. Type the projector's IP address into the browser's address box and press the computer's Enter key. You see the Epson Web Control screen: 3. Select Crestron Connected to view the configuration page. Please see your network administrator for setting up the configuration page.
Page 85: Importing A Web Server Certificate Using The Projector Menus
Importing a Web Server Certificate Using the Projector Menus Registering Digital Certificates from a Web Browser Digital Certificate Types Parent topic: Using the Projector on a Network Importing a Web Server Certificate Using the Projector Menus You can create your web server certificate and import it using the projector menus and a USB flash drive.
Page 86 Note: You can also register the digital certificates in the projector's Network menu. However, be sure to register just once or the certificate may not install correctly. 1. Make sure your digital certificate file is compatible with projector registration. 2. Make sure the projector is turned on. 3.
Page 87: Digital Certificate Types
7. Click the Choose File button, select the certificate file, and click Open. Note: The button name may vary depending on the browser you are using. 8. Enter a password in the Password box and click Send. 9. When you finish registering the certificate, click Apply to finalize your changes and complete the registration.
Page 88: Art-Net Channel Definitions
Specification Description Format PKCS#12 Extension PFX, P12 Encryption Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512 Key length 512/1024/2048/4096 bit Common name Network host name Organization Optional Password Up to 64 alphanumeric characters; required Parent topic: Registering a Digital Certificate on the Projector Art-Net Channel Definitions Art-Net is an Ethernet communication protocol based on the TCP/IP protocol.
Page 89 Channel/Function Operation Parameters Description 3 Switch source Non-operational 0 to 7 (default is 0) Switches to the specified source HDMI1 8 to 15 HDMI2 16 to 23 Non-operational 24 to 31 Non-operational (DVI-D) 32 to 39 Non-operational (Display 40 to 47 Port) 48 to 55 Non-operational (SDI)
Page 90 Channel/Function Operation Parameters Description 10 Content playback Non-operational 0 to 3 (default is 0) Plays the specified playlist Playlist 1 4 to 7 Playlist 2 8 to 11 Playlist 3 12 to 15 Playlist 4 16 to 19 Playlist 5 20 to 23 Playlist 6 24 to 27...
Page 91 Channel/Function Operation Parameters Description 10 Content playback Playlist 16 64 to 67 Playlist 17 68 to 71 Playlist 18 72 to 75 Playlist 19 76 to 79 Playlist 20 80 to 83 Playlist 21 84 to 87 Playlist 22 88 to 91 Playlist 23 92 to 95 Playlist 24...
Page 92 Channel/Function Operation Parameters Description 10 Content playback Playlist 41 164 to 167 Playlist 42 168 to 171 Playlist 43 172 to 175 Playlist 44 176 to 179 Playlist 45 180 to 183 Playlist 46 184 to 187 Playlist 47 188 to 191 Playlist 48 192 to 195 Playlist 49...
Page 93: Using Basic Projector Features
Using Basic Projector Features Follow the instructions in these sections to use your projector's basic features. Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Setting the Date and Time Adjusting the Image Height Image Shape Resizing the Image with the Zoom Ring Adjusting the Image Position Using Screen Position...
Page 94 1. Open the projector's lens cover. 2. Connect the power cord to the projector's power inlet. 3. Plug the power cord into an electrical outlet.
Page 95 The projector's power light turns blue. This indicates that the projector is receiving power. Note: With Direct Power On turned on, the projector turns on as soon as you plug it in. If you enable the Auto Power On setting in the projector's Operation menu, the projector turns on when it detects a signal or cable connection from the selected port.
Page 96: Using The Home Screen
Related references Feature Settings - Operation Menu Projector Light Status Using the Home Screen You can select input sources and other frequently used options from the Home screen. 1. To display the Home screen, do one of the following: • Press the Home button on the control panel or remote control. •...
Page 97: Turning Off The Projector
Lets you select the following common projector settings (these settings may vary depending on other selected settings): • Color Mode • Brightness Level • Volume • Geometry Correction (H/V-Keystone and Quick Corner are available) • Aspect Moves to the previous or next page if there are more available input sources Displays the projector name and the projector keyword Displays the current time Note: The Home screen closes after 10 minutes of inactivity.
Page 98 2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the laser turns off, and the Status light turns off. Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).
Page 99: Selecting The Language For The Projector Menus
4. Close the projector's lens cover. Parent topic: Using Basic Projector Features Related references Administration Settings - Management Menu Projector Light Status Selecting the Language for the Projector Menus If you want to view the projector's menus and messages in another language, you can change the Language setting.
Page 100: Setting The Date And Time
3. Select the Management menu and press Enter. 4. Select the Language setting and press Enter. 5. Select the language you want to use and press Enter. 6. Press Menu or Esc to exit the menus. Parent topic: Using Basic Projector Features Setting the Date and Time You can set the date and time for the projector.
Page 101 You see a screen like this: 4. Select the Date & Time setting and press Enter. 5. Select Date, press Enter, and use the displayed keyboard to enter today's date. 6. Select Time, press Enter, and use the displayed keyboard to enter the current time. 7.
Page 102: Adjusting The Image Height
Adjusting the Image Height If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet. 1. Turn on the projector and display an image. 2.
Page 103: Image Shape
Image Shape You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.
Page 104: Correcting Image Shape With The Keystone Buttons
Correcting Image Shape with the Keystone Buttons You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides. Note: You can use the keystone buttons to correct the image up to 30° left, right, up, or down. Note: If you change the Screen Type setting or adjust the image position, your image adjustments are reset.
Page 105 3. Press a keystone button on the projector's control panel to adjust the image shape. After correction, your image is slightly smaller. Note: If the projector is installed out of reach, you can also correct the image shape with the remote control by pressing the Keystone button or using the H/V-Keystone settings in the projector menus.
Page 106: Correcting Image Shape With Quick Corner
Correcting Image Shape with Quick Corner You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides. Note: If you change the Screen Type setting or adjust the image position, your image adjustments are reset.
Page 107 3. Select the Installation menu and press Enter. Note: You can also press the Keystone button on the remote control to display the Geometry Correction screen. 4. Select the Geometry Correction setting and press Enter. 5. Select the Quick Corner setting and press Enter. Note: You may see a confirmation screen.
Page 108 You see the Quick Corner adjustment screen: Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes. 6. Use the arrow buttons on the projector or remote control to select the corner of the image you want to adjust.
Page 109: Correcting Image Shape With Arc Correction
7. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the area selection screen. Note: You can also use the numeric buttons on the remote control to adjust the image shape. If one of the directional arrows on the screen turns gray, you cannot adjust the shape any further in that direction.
Page 110 3. Select the Installation menu and press Enter. 4. Select the Geometry Correction setting and press Enter. 5. Select the Arc Correction setting and press Enter. Then select Yes and press Enter again.
Page 111 You see the Arc Correction adjustment screen: Note: To reset your adjustments, press the Esc button for at least 2 seconds to display a reset screen, and select Yes. 6. Use the arrow buttons on the projector or the remote control to select the corner or side of the image you want to adjust.
Page 112: Correcting Image Shape With Point Correction
8. When you are finished, press Esc. Parent topic: Image Shape Correcting Image Shape with Point Correction You can use the projector's Point Correction feature to fine-tune the image shape using points on a grid. This is useful for adjusting overlapping areas in multiple projected images that do not line up correctly. 1.
Page 113: Resizing The Image With The Zoom Ring
6. Press the arrow buttons on the projector or remote control to move to the point on the grid that you want to adjust. Then press Enter. 7. Press the arrow buttons as necessary to correct the image shape. 8. Press Esc to return to the previous screen and select another point to correct, if necessary. 9.
Page 114: Adjusting The Image Position Using Screen Position
1. Turn on the projector and display an image. 2. To enlarge or reduce the image size, rotate the projector's zoom ring. Parent topic: Using Basic Projector Features Adjusting the Image Position Using Screen Position You can adjust the image position if there are margins between the edge of the image and the projected screen frame.
Page 115 3. Select the Installation menu and press Enter. 4. Select Screen Position and press Enter. 5. Use the arrow buttons on the remote control or projector to adjust the position of the image.
Page 116: Focusing The Image Using The Focus Ring
6. When you are finished, press the Menu button. Parent topic: Using Basic Projector Features Focusing the Image Using the Focus Ring You can correct the focus using the focus ring. 1. Turn on the projector and display an image. 2.
Page 117 Make sure that you aim the remote control at the projector's receivers within the angles listed here. 19.7 feet (6 m) 30°...
Page 118: Selecting An Image Source
With cable cover installed: 19.7 feet (6 m) 20° 30° 10° Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.
Page 119 1. Make sure the connected image source you want to use is turned on. 2. For video image sources, insert a DVD or other video media and press its play button, if necessary. 3. Do one of the following: • Press the Source Search button on the projector or remote control until you see the image from the source you want.
Page 120: Projection Modes
Note: Your Home screen may look different from the illustration shown here. A checkmark appears on the image from the current input source. You can see thumbnail previews of most input sources (except the USB input source when in Content Playback mode). The displayed order of the input sources changes.
Page 121: Changing The Projection Mode Using The Menus
1. Turn on the projector and display an image. 2. Hold down the A/V Mute button on the remote control for 5 to 10 seconds. The image disappears briefly and reappears flipped top-to-bottom. 3. To change projection back to the original mode, hold down the A/V Mute button for 5 to 10 seconds again.
Page 122: Image Aspect Ratio
3. Select the Installation menu and press Enter. 4. Select the Projection setting and press Enter. 5. Select a projection mode and press Enter. 6. Press Menu or Esc to exit the menus. Parent topic: Projection Modes Image Aspect Ratio The projector can display images in different width-to-height ratios called aspect ratios.
Page 123: Changing The Image Aspect Ratio
Changing the Image Aspect Ratio You can change the aspect ratio of the displayed image to resize it. Note: Set the Screen Type setting in the projector's Installation menu before changing the aspect ratio. Note: This setting is available only when the Scale setting is turned off or the Scale Mode setting is set to Full Display.
Page 124: Color Mode
Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect ratio and resolution of your input signal. Aspect ratio setting Description Auto Automatically sets the aspect ratio according to the input signal and the Resolution setting. Full Displays images using the full width of the projection area, but does not maintain the aspect ratio.
Page 125: Changing The Color Mode
Changing the Color Mode You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment. 1. Turn on the projector and switch to the image source you want to use. 2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.
Page 126: Adjusting The Hue, Saturation, And Brightness
Parent topic: Color Mode Adjusting the Hue, Saturation, and Brightness You can adjust the hue, saturation, and brightness settings for individual image colors. 1. Turn on the projector and switch to the image source you want to use. 2. Press the Menu button. 3.
Page 127: Adjusting Gamma
5. Select the color to adjust and press Enter. 6. Do the following as necessary for each setting: • To adjust the overall hue of the color (bluish, greenish, reddish), adjust the Hue setting. • To adjust the overall vividness of the color, adjust the Saturation setting. •...
Page 128 Note: Project a still image to adjust the gamma; you cannot adjust it properly when projecting a movie or other moving video. Medical images may not reproduce correctly depending on your operating environment and screen. 1. Turn on the projector and switch to the image source you want to use. 2.
Page 129 You see a screen like this: When you select a smaller value, you can reduce the overall brightness of the image to make the image sharper. When you select a larger value, the dark areas of images become brighter, but the color saturation for lighter areas may become weaker.
Page 130: Adjusting The Image Resolution
You see a screen like this: 8. Press Menu or Esc to exit the menus. Parent topic: Using Basic Projector Features Adjusting the Image Resolution You can adjust the image resolution to project a clear image with an emphatic texture and material feel. 1.
Page 131 3. Select the Image menu and press Enter. 4. Select Image Enhancement and press Enter. 5. Select Image Preset Mode and press Enter. 6. Select the preset option and press Enter. Note: The following settings saved in the preset option are applied to the image: •...
Page 132: Adjusting The Projector's Brightness Level
• Adjust the Deinterlacing setting to convert interlaced-to-progressive signals for certain video image types (only displayed when the current signal is interlaced [480i/576i/1080i]). • Adjust the Super-resolution setting to reduce blurring when projecting low-resolution images. • Adjust the Detail Enhancement setting to create a more emphatic texture and material feel of the image.
Page 133 4. Select Light Source Brightness Control and press Enter. 5. If you want to maintain the brightness at a specific level, select the Maintain Brightness setting and select On. 6. If you turn on Maintain Brightness, select the Maintain Brightness Level setting and check the Estimated Remains information.
Page 134: Constant Brightness Usage Hours
Related references Administration Settings - Management Menu Related tasks Saving a Scheduled Event Constant Brightness Usage Hours If you turn on the Maintain Brightness setting, the number of hours the projector can maintain constant brightness is displayed as the Estimated Remains setting. Display level Estimated remaining hours 10000 or more hours...
Page 135 Display level Estimated remaining hours 0 to 1999 hours Light source life span The estimated life span of the light source varies depending on the Brightness Level setting and whether the Maintain Brightness setting is on or off. Maintain Brightness off Brightness Level setting Hours 100%...
Page 136: Turning On Dynamic Contrast
sooner than the estimated light source operation time. If Maintain Brightness is turned on, and you have exceeded the usage hours listed here, you may not be able to select a high Maintain Brightness Level setting. Parent topic: Adjusting the Projector's Brightness Level Turning On Dynamic Contrast You can turn on the Dynamic Contrast setting to automatically optimize the image luminance.
Page 137: Controlling The Volume With The Volume Buttons
4. Select the Dynamic Contrast setting, choose one of the following options, and press Enter: • Normal to adjust brightness at the standard speed. • High Speed to adjust brightness as soon as the scene changes. 5. Press Menu or Esc to exit the menus. Parent topic: Using Basic Projector Features Controlling the Volume with the Volume Buttons...
Page 138 Note: The projector may take longer than five seconds to start up in the following conditions: • When projecting from the one of the projector's USB ports • When projecting with Screen Mirroring 1. Turn on the projector. 2. Press the Menu button. 3.
Page 139: Projecting A Pc Free Presentation
Projecting a PC Free Presentation You can use your projector's PC Free feature whenever you connect a USB device that contains compatible files. This lets you quickly and easily display the contents of the files and control their display using the projector's remote control. Note: Make sure Content Playback is disabled in the projector's Operation menu.
Page 140: Supported Pc Free File Types
Parent topic: Projecting a PC Free Presentation Supported PC Free File Types You can project these types of files using the projector's PC Free feature. Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble projecting from media formatted for non-Windows file systems, try formatting the media for Windows instead.
Page 141: Starting A Pc Free Slideshow
File type and Details extension Motion JPEG Supports only AVI 1.0 movie (.avi) Make sure the file is not: • Saved with a video codec other than Motion JPEG • Saved with an audio codec other than LPCM or IMA ADPCM •...
Page 142 Note: You can change the slideshow operation options or add special effects by highlighting Option at the bottom of the screen and pressing Enter. Note: Make sure Content Playback is disabled in the projector's Operation menu. 1. Press the USB button on the projector remote control until the PC Free file list appears. The PC Free screen appears.
Page 143: Starting A Pc Free Movie Presentation
3. Do one of the following: • To display an individual image, press the arrow buttons to highlight the image and press Enter. (Press the Esc button to return to the file list screen.) • To display a slide show of all the images in a folder, press the arrow buttons to highlight the Slideshow option at the bottom of the screen and press Enter.
Page 144 The PC Free screen appears. 2. Do the following as necessary to locate your files: • If you need to display files inside a subfolder on your device, press the arrow buttons to highlight the folder and press Enter. • To move back up a folder level on your device, highlight Back to Top and press Enter.
Page 145: Pc Free Display Options
Parent topic: Projecting a PC Free Presentation Related tasks Connecting a USB Device or Camera to the Projector PC Free Display Options You can select these display options when using the projector's PC Free feature. Setting Options Description Display Order Name Order Displays files in name order Date Order...
Page 146: Projecting In Content Playback Mode
You can also add color or effects to the projected image. Switching to Content Playback Mode Projecting a Playlist in Content Playback Mode Creating a Playlist Using Epson Web Control Adding Effects to the Projected Image Using Spotlight Mode Parent topic:...
Page 147 1. Turn on the projector. 2. Press the Menu button. 3. Select the Operation menu and press Enter. 4. Select the Content Playback setting and press Enter. 5. Select the On setting and press Enter. You see a confirmation prompt. 6.
Page 148: Projecting A Playlist In Content Playback Mode
You can project playlists that contain images and movies in Content Playback mode. 1. Create a playlist and export it to a USB device using the Epson Projector Content Manager software. Note: See the Epson Projector Content Manager Operation Guide for more information.
Page 149: Creating A Playlist Using Epson Web Control
Related tasks Connecting a USB Device or Camera to the Projector Creating a Playlist Using Epson Web Control You can create playlists using a web browser and save them to a USB flash drive connected to a projector on a network when the projector is in Content Playback mode.
Page 150: Adding Effects To The Projected Image
You can play the playlist from the Remote or Playlist screen. If you want to specify when the playlist starts and finishes, schedule the playlist using the Epson Projector Content Manager software. See the Epson Projector Content Manager Operation Guide for details.
Page 151 3. Select the Shape Filter setting and adjust the options as necessary. • Shape: select a circle, rectangle, or other shape effect Note: You can add your images as customized shapes using the Epson Projector Content Manager software. See the Epson Projector Content Manager Operation Guide for details.
Page 152: Using Spotlight Mode
Related references Administration Settings - Management Menu Using Spotlight Mode You can use spotlight mode to project a virtual spotlight and customize the position, size, shape and width of the light. 1. Press the Menu button on the projector or remote control.
Page 153 2. Select the Management menu and press Enter. 3. Select the User Button setting and press Enter. 4. Select the Spotlight setting and press Enter. The Spotlight function is assigned to the User button on the remote control. 5. Press the User button on the remote control. The projected image becomes a spotlight.
Page 154 6. Press the Effect button on the remote control to change the overlay effect and shape filter for the spotlight. Parent topic: Projecting in Content Playback Mode...
Page 155: Adjusting Projector Features
Adjusting Projector Features Follow the instructions in these sections to use your projector's feature adjustments. Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Using Multiple Projectors Projecting Multiple Images Simultaneously Projector Security Features Creating a User Pattern to Display Copying Menu Settings Between Projectors Scheduling Projector Events...
Page 156: Stopping Video Action Temporarily
Note: You can also stop projection using the A/V Mute slide lever on the projector. Parent topic: Adjusting Projector Features Related references Feature Settings - Operation Menu Stopping Video Action Temporarily You can temporarily stop the action in a video or computer presentation and keep the current image on the screen.
Page 157: Using Multiple Projectors
Note: This feature is unavailable if the Scale setting in the Image menu is enabled. 1. Press the E-Zoom + button on the remote control. The center of the projected image is enlarged. 2. Use the following buttons on the remote control to adjust the zoomed image: •...
Page 158: Projector Identification System For Multiple Projector Control
Parent topic: Adjusting Projector Features Projector Identification System for Multiple Projector Control You can operate multiple projectors using one remote control for more elaborate presentations. To do this, you assign an identification number to each projector and to the remote control. Then you can operate all the projectors at once or individually.
Page 159: Setting The Remote Control Id
Note: If you don't know the projector's ID, aim the remote control at the projector and press the ID button to temporarily display the projector's ID on the screen. Parent topic: Projector Identification System for Multiple Projector Control Setting the Remote Control ID The remote control's ID is set to zero by default so it can operate any compatible projector.
Page 160: Adjusting Color Uniformity
Adjusting Color Uniformity If the color tone is uneven on each screen, adjust the color tone balance in the Multi-Projection menu of each projector. (The color tone may not be uniform even after performing color uniformity.) Note: Set the Color Mode setting in each projector's Image menu to Multi-Projection before you start projecting.
Page 161 2. Select the Color Uniformity setting and press Enter. 3. Select On as the Color Uniformity setting and press Enter, then press Esc. 4. Select Adjustment Level and press Enter. 5. Select an adjustment level and press Esc. 6. Select Start Adjustments and press Enter.
Page 162 7. Select the area you want to adjust and press Enter. 8. Select Red, Green, or Blue and press the left arrow button to weaken the color tone or the right arrow button to strengthen the color tone. Note: The adjustment screen changes each time you press Enter.
Page 163: Blending The Image Edges
Blending the Image Edges You can use the projector's Edge Blending feature to create a seamless image from multiple projectors. 1. Press the Menu button. 2. Select the Multi-Projection menu and press Enter. 3. Select the Edge Blending setting and press Enter.
Page 164 5. Select the edge you want to blend on each projector and press Enter. You see a screen like this: 6. Select the Blending setting and select On. 7. Press Esc to return to the previous screen. 8. Select the Blend Start Position setting and adjust the point where edge blending begins. Note: If you created a unified image area using the Edge Blending feature, set the Blend Start Position setting to 0.
Page 165: Matching The Image Colors
12. When the edges are blended, turn off the Line Guide and Pattern Guide settings on each projector to check the final settings. 13. When you are finished, press the Menu button. If the blended area does not overlap exactly, correct the shape of the blended area using Point Correction.
Page 166 You see this screen: 4. Press the left or right arrow button to select Adjustment Level 8. Note: There are several adjustment levels and you can adjust each level individually. 5. Press the left or right arrow buttons to adjust the Brightness setting. 6.
Page 167: Adjusting The Black Level
Adjusting the Black Level When two images overlap, the overlapping area can appear differently from the areas that do not overlap. You can use the projector's Black Level setting to make the difference less noticeable. Note: You cannot adjust the black levels while projecting a test pattern, and you may not be able to adjust the black levels correctly if the Geometry Correction settings are set too high.
Page 168 2. Select the Multi-Projection menu and press Enter. 3. Select the Black Level setting and press Enter. Note: The Black Level setting is displayed only if Edge Blending is enabled and at least one (top, bottom, left, right) edge is set to On. 4.
Page 169 6. Adjust the brightness and tone of the areas that do not overlap to match the areas that overlap using the displayed adjustment sliders. Then press the Esc button. 7. Repeat the previous two steps as needed until all areas match. 8.
Page 170: Adjusting Rgbcmy
14. Use the arrow buttons to select an adjustment point and press Enter. Note: You can change the number of adjustment points displayed by changing the Points setting in the Area Correction menu. The selected point turns orange. 15. Use the arrow buttons to move the point. 16.
Page 171 2. Select the Image menu and press Enter. 3. Select the RGBCMY setting and press Enter. 4. Select the color you want to adjust and press Enter.
Page 172: Scaling An Image
You see this screen: • To adjust the overall hue of the color, adjust the Hue setting. • To adjust the overall vividness of the color, adjust the Saturation setting. • To adjust the overall brightness of the color, adjust the Brightness setting. 5.
Page 173 1. Press the Menu button. 2. Select the Multi-Projection menu and press Enter. 3. Select the Scale setting and press Enter. You see this screen: 4. Turn on the Scale setting. 5. Select the Scale Mode setting and select one of these options: •...
Page 174: Projecting Multiple Images Simultaneously
• Full Display to adjust the image to the projector's screen size as you scale the image 6. If you selected Auto as the Scale setting, you can skip the remaining steps. If you selected Manual, adjust each of the following options as necessary: •...
Page 175 Note: While you use the split screen feature, other projector features may not be available and some settings may be automatically applied to all images. Note: You cannot use split screen with certain input source combinations. You cannot perform split screen projection in Content Playback mode or when you enable the Scale or Edge Blending options.
Page 176 Note: You can also select Split Screen from the Home screen. You are prompted for the number of screens. 2. Select 2 Screens or 4 Screens, depending on the number of input sources you want to project. If you selected 2 Screens, the currently selected input source moves to the left side of the screen. If you selected 4 Screens and used the split screen feature to project four images before, the projected images are arranged in the same order as they were previously.
Page 177: Input Sources For Split Screen Projection
8. To exit the split screen feature, press the Split or Esc button. Input Sources for Split Screen Projection Split Screen Projection Restrictions Parent topic: Adjusting Projector Features Input Sources for Split Screen Projection You can choose most input source combinations for split screen projection, but the following combinations are not supported: •...
Page 178: Projector Security Features
Projector Security Features You can secure your projector to deter theft or prevent unintended use by setting up the following security features: • Password security to prevent the projector from being turned on, and prevent changes to the startup screen and other settings. •...
Page 179 1. Hold down the Freeze button on the remote control for about 5 seconds or until you see this menu. 2. Press the down arrow to select Password and press Enter. You see the prompt "Change the password?". 3. Select Yes and press Enter.
Page 180: Selecting Password Security Types
Selecting Password Security Types After setting a password, you see this menu, allowing you to select the password security types you want to use. If you do not see this menu, hold down the Freeze button on the remote control for about five seconds or until the menu appears.
Page 181: Entering A Password To Use The Projector
• You see a "wrong password" message and a prompt to try again. Enter the correct password to proceed. • If you have forgotten the password, make note of the Request Code: xxxxx number that appears on the screen and contact Epson Support.
Page 182: Saving A User's Logo Image To Display
• If you continue to enter an incorrect password many times in succession, the projector displays a request code and a message to contact Epson Support. Do not attempt to enter the password again. When you contact Epson Support, provide the displayed request code and proof of ownership for assistance in unlocking the projector.
Page 183 2. Press the Menu button, select the Management menu, and press Enter. 3. Select the User's Logo setting and press Enter. 4. Select Start Setting and press Enter. You see a prompt asking if you want to use the displayed image as a user's logo. Note: When you select User's Logo, adjustments such as Geometry Correction, E-Zoom, Aspect, Scale, and Screen Type are temporarily canceled.
Page 184: Locking The Projector's Buttons
8. Select the Display menu and press Enter. 9. Select when you want to display the User's Logo screen: • To display it whenever there is no input signal, select No-Signal Screen and set it to Logo. • To display it whenever you turn the projector on, select Startup Screen and set it to On. To prevent anyone from changing the User's Logo settings without first entering a password, set a password and enable User's Logo security.
Page 185: Unlocking The Projector's Buttons
3. Select the Control Panel Lock setting and press Enter. 4. Select one of these lock types and press Enter: • To lock all of the projector's buttons, select Full Lock. • To lock all buttons except the power button, select Except for Power. You see a confirmation prompt.
Page 186: Creating A User Pattern To Display
When the cable cover is installed: Parent topic: Projector Security Features Creating a User Pattern to Display You can transfer an image to the projector and then display it as a pattern to aid in presentations when you use the Pattern Display feature. This transferred image is called the User Pattern. Note: Once you save a user pattern, you cannot restore the default pattern.
Page 187 2. Press the Menu button, select the Management menu, and press Enter. 3. Select the User Pattern setting and press Enter. You see a prompt asking if you want to use the displayed image as a User Pattern. Note: When you select User Pattern, adjustments such as Keystone, E-Zoom, Aspect, and Adjust Zoom are temporarily canceled.
Page 188: Copying Menu Settings Between Projectors
Correction settings. Any saved User's Logo setting on the projector will transfer to the other projector. Caution: If the copy process fails due to a power failure, communication error, or for any other reason, Epson will not be responsible for any repair costs incurred. The following settings will not transfer between projectors: •...
Page 189 2. Insert the flash drive into the USB-A port. Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly. 3. Press and hold the Esc button on the control panel or remote control as you connect the power cord to the projector's power inlet.
Page 190: Transferring Settings From A Usb Flash Drive
Related references Projector Light Status Transferring Settings from a USB Flash Drive After saving projector settings to a USB flash drive, you can transfer them to another projector of the same model. Note: Make sure the USB flash drive contains only a single settings transfer from another projector of the same model.
Page 191: Saving Settings To A Computer
3. Press and hold the Menu button on the control panel or remote control as you connect the power cord to the projector's power inlet. 4. When all of the projector lights turn on, release the Menu button. The lights flash to indicate that settings are transferring to the projector. When the lights stop flashing, the power light turns blue and the projector enters standby mode.
Page 192 2. Connect a USB cable to your projector's USB-B port. 3. Connect the other end to any available USB port on your computer. 4. Press and hold the Esc button on the control panel or remote control as you connect the power cord to the projector's power inlet.
Page 193: Transferring Settings From A Computer
Transferring Settings from a Computer After saving projector settings to a computer, you can transfer them to another projector of the same model. Your computer must be running one of the following operating systems: • Windows 7 • Windows 8.x •...
Page 194: Scheduling Projector Events
4. Press and hold the Menu button on the control panel or remote control as you connect the power cord to the projector's power inlet. 5. When all of the projector lights turn on, release the Menu button. The projector shows up as a removable disk on your computer. 6.
Page 195: Saving A Scheduled Event
Saving a Scheduled Event Viewing Scheduled Events Editing a Scheduled Event Parent topic: Adjusting Projector Features Related tasks Setting a Password Selecting Password Security Types Saving a Scheduled Event You can select projector commands you want to perform and schedule them as an event. Note: Light Source Calibration events do not start if the projector is not used continuously for at least 20 minutes, or if the projector is regularly turned off by shutting off the power outlet.
Page 196 You see a screen like this: 6. Select Add New and press Enter.
Page 197: Viewing Scheduled Events
You see a screen like this: 7. In the Event Settings section, select the events you want to have occur. (Select No Change for events that you do not want to occur.) 8. In the Date/Time Settings section, set the date and time for the scheduled events to occur. 9.
Page 198: Editing A Scheduled Event
You see a screen like this: Colored boxes on the calendar indicate the following: One-time event Repeating event Communication is on or off Event is invalid 5. To view an event, press the left and right arrow buttons on the remote to select a day. The screen displays the details of the events scheduled for that day.
Page 199 2. Select the Management menu and press Enter. 3. Select the Schedule Settings setting and press Enter. You see a screen like this: 4. Press the left or right arrow buttons to highlight the date on the calendar containing the scheduled event you want to edit.
Page 200 Parent topic: Scheduling Projector Events...
Page 201: Adjusting The Menu Settings
Adjusting the Menu Settings Follow the instructions in these sections to access the projector menu system and change projector settings. Using the Projector's Menus Image Quality Settings - Image Menu Input Signal Settings - Signal I/O Menu Installation Settings - Installation Menu Display Settings - Display Menu Feature Settings - Operation Menu Administration Settings - Management Menu...
Page 202 You see the menu screen. 2. Press the up or down arrow button to move through the menus listed on the left. The settings for each menu are displayed on the right. Note: The available settings depend on the current input source, resolution, or other menu settings. 3.
Page 203: Image Quality Settings - Image Menu
Image Quality Settings - Image Menu Settings on the Image menu let you adjust the quality of your image for the input source you are currently using. The available settings depend on the currently selected color mode and input source. Color Mode Settings Setting Options...
Page 204 Setting Options Description Tint Varying levels available Adjusts the balance of green to magenta tones in the image Sharpness Varying levels available Adjusts the sharpness or softness of image details White Balance Color Temp. Sets the overall color tone of the image G-M Correction Color Temp.: sets the color...
Page 205 Setting Options Description Image Enhancement Image Preset Mode Selects preset Image Enhancement settings Noise Reduction Reduces flickering in analog images MPEG Noise Reduction Reduces the noise or static in MPEG video Deinterlacing Sets whether to convert interlaced- to-progressive signals for interlaced video signals (480i/576i/1080i) Off: for fast-moving video images Video: for most video images...
Page 206 Setting Options Description RGBCMY Varying levels available Adjusts the hue, saturation, and brightness for each color Reset to Defaults — Resets all settings for the Color Mode currently selected Note: The Brightness setting does not affect laser brightness. To change the laser brightness mode, use the Light Source Brightness Control setting in the Operation menu.
Page 207 Setting Options Description Analog Signal Adjustment Auto Setup Adjusts the signal when Computer is the currently selected input source Tracking Auto Setup: set to On to Sync. automatically optimize the image Position quality Tracking: adjusts the signal to eliminate vertical stripes in images Sync: adjusts signal to eliminate fuzziness or flickering in images Position: adjusts the image location...
Page 208: Input Signal Settings - Signal I/O Menu
Input Signal Settings - Signal I/O Menu Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal I/O menu. The available settings depend on the currently selected input source. To change settings for an input source, make sure the source is connected and select that source.
Page 209 Setting Options Description Source Signal Format Displays settings selected for the current input source Overscan Signal Format: sets the signal type and EDID video range for certain input sources Reset to Defaults • Video Signal: specifies the signal type from input sources connected to video ports;...
Page 210 Setting Options Description Monitor Out Port Monitor Out Selects the function of the Computer2/Monitor Out port Computer2 Monitor Out: select this option when outputting an image signal to an external monitor Computer2: select this option when inputting an image signal from a computer HDMI Link Device Connections Adjusts the HDMI Link options that allow...
Page 211: Installation Settings - Installation Menu
Setting Options Description HDMI EQ Setting 1, 2, or 3 Adjusts the HDMI input signal level depending on the devices connected to the HDMI port. Change the setting if there is a lot of interference in the image or if no image is projected.
Page 212 Setting Options Description Fixed Installation Set to On if you installed the projector in a fixed location Test Pattern — Displays a test pattern to assist in focusing and zooming the image and correcting image shape Projection Front Selects the way the projector faces the screen so the image is oriented Front/Ceiling correctly...
Page 213 Setting Options Description Screen Type Sets the aspect ratio to fit the image on the projection surface; not 16:9 available in Content Playback mode 16:10 Screen Position Varying positions available Shifts the image position on the screen (only available if the Screen Type setting is not set to the same aspect ratio as the projector's native resolution)
Page 214: Display Settings - Display Menu
Display Settings - Display Menu Settings on the Display menu let you customize various projector display features. The available settings depend on the currently selected input source and other settings. Setting Options Description Pattern Display — Displays the selected pattern type to assist in adjusting the image Pattern Type...
Page 215 Setting Options Description No-signal Screen Black Select the screen color or logo to display when no input signal is Blue detected; not available in Content Logo Playback mode Startup Screen Controls whether a logo is displayed when the projector starts up Home Screen Auto Disp.
Page 216 Setting Options Description Split Screen Setting Display Audio Output Source Adjusts the Split Screen feature; not available in Content Playback Align mode Display Audio Output Source: controls whether an icon is displayed with the source providing audio output during Split Screen projection Align: if splitting the screen between two images, determines whether the images are aligned...
Page 217: Feature Settings - Operation Menu
Feature Settings - Operation Menu Settings on the Operation menu let you customize various projector features that control its operation. The available settings depend on the currently selected input source and other settings. Setting Options Description Auto Source Search Enables the projector to automatically select an input source;...
Page 218 Setting Options Description Light Source Brightness Maintain Brightness Controls the constant brightness Control of the projector's light source Maintain Brightness Level Maintain Brightness: maintains Estimated Remains a constant brightness Light Source Mode Maintain Brightness Level: Brightness Level selects the brightness level to maintain when the Maintain Brightness setting is enabled Estimated Remains: if the...
Page 219 Setting Options Description Auto Power On HDMI1 Selects whether to automatically turn on the projector when you Computer1 connect an input signal to a USB Display specific input source Sleep Mode Automatically turns off the projector after an interval of inactivity Sleep Mode Timer 1 to 30 minutes...
Page 220 Indicators Enables or disables the status indicator lights on the projector Content Playback Enable to play back a playlist created in the Epson Projector Content Manager software Overlay Effect Overlay Effect Adds color and shape effects to the projected image; not...
Page 221: Administration Settings - Management Menu
Administration Settings - Management Menu Settings on the Management menu let you customize various projector administrative features. Note: You must disable Schedule password protection to adjust the Schedule Settings settings.
Page 222 Setting Options Description User Button Light Source Mode Assigns a menu option to the User button on the remote Information control for one-touch access Deinterlacing Closed Caption Resolution Pattern Display Display LAN Info. Content Playback Spotlight User's Logo Start Setting Creates the screen that the projector displays to identify itself Reset...
Page 223 Setting Options Description Color Uniformity Color Uniformity Adjusts the color tone balance Adjustment Level Color Uniformity: set to On to adjust the color tone balance for Start Adjustments the whole screen Reset Adjustment Level: sets the adjustment level Start Adjustments: adjusts the red, green, and blue color tones individually for the selected area Reset: resets all Color Uniformity...
Page 224 Setting Options Description Light Source Calibration Run Now Selects options to perform light source calibration to maintain the Run Periodically color balance of the projected Last Run image Run Now: Select On to start light source calibration now. Make sure the projector has been turned on for at least 30 minutes for maximum accuracy.
Page 225 Setting Options Description Wireless LAN Diagnosis Ping Displays the status of the wireless LAN communication IP Address Ping until stopped Start Log Save Destination Internal Memory Selects where you want to save projector error and operation log USB and Internal Memory files;...
Page 226 Setting Options Description Information Operation Hours Displays information about the projector and current input signal; Light Source Hours the displayed items vary Estimated Remains depending on the current input source Source The Version option displays Input Signal version numbers for the projector Resolution and other components Refresh Rate...
Page 227: Event Id Code List
Editing a Scheduled Event Adjusting Color Uniformity Event ID Code List If the Event ID option on the Information screen in the Management menu displays a code number, check this list of Event ID codes for the solution to the projector problem associated with the code. Event ID code Cause and solution 0026...
Page 228 0899 A communication error has occurred. Try restarting the network software and restarting your projector. If that does not solve the problem, contact Epson for help. 089A The EAP authentication type does not match the network. Check the wireless LAN security settings and make sure that the security certificate is installed correctly.
Page 229: Network Settings - Network Menu
Key exchange failed. Check the wireless LAN security settings and make sure that the security certificate is installed correctly. 0920 The internal battery that saves the projector's date and time settings is running low. Contact Epson for help. Parent topic: Administration Settings - Management Menu Related references...
Page 230 Note: You must disable Network password protection to adjust the network settings. Setting Options Description Wireless LAN Info. — Displays wireless network status and details The Wireless LAN option displays the following: • Projector Name • Antenna level • SSID •...
Page 231 Setting Options Description Wired LAN Info. — Displays wired network status and details The Wired LAN option displays the following: • Projector Name • DHCP • IP Address • Subnet Mask • Gateway Address • MAC Address • IPv6 Address Art-Net Channel —...
Page 232: Multiple Projector Operation Settings - Multi-Projection Menu
Multiple Projector Operation Settings - Multi-Projection Menu Settings on the Multi-Projection menu let you set up multiple projectors to project a single unified image. Setting Options Description Projector ID Assigns an ID for the projector when you use multiple projectors 1 through 9...
Page 233 Setting Options Description Geometry Correction H/V-Keystone Adjusts image shape to rectangular (horizontally and vertically) Quick Corner H/V Keystone: lets you manually Arc Correction correct horizontal and vertical sides Point Correction Quick Corner: select to correct image shape and alignment using an on-screen display Arc Correction: select to adjust the curve or arc of the horizontal and...
Page 234 Setting Options Description Color Uniformity Color Uniformity Adjusts the color tone balance Adjustment Level Color Uniformity: set to On to adjust the color tone balance for the Start Adjustments whole screen Reset Adjustment Level: sets the adjustment level Start Adjustments: adjusts the red, green, and blue color tones individually for the selected area Reset: resets all Color Uniformity...
Page 235 Setting Options Description Reset Multi-Projection Settings — Resets all settings on the Multi- Projection menu to their default values Parent topic: Adjusting the Menu Settings Related concepts Using Multiple Projectors Projector Identification System for Multiple Projector Control Related tasks Adjusting Color Uniformity Blending the Image Edges Matching the Image Colors Adjusting the Black Level...
Page 236: Setup Settings - Eco Menu
Setup Settings - ECO Menu Settings on the ECO menu let you customize projector functions to save power. Setting Options Description Light Source Mode Normal Selects the brightness mode of the projector when the Maintain Quiet Brightness setting is disabled Extended Normal: maximum brightness Custom...
Page 237 Setting Options Description Sleep Mode Automatically turns off the projector after an interval of inactivity Sleep Mode Timer 1 to 30 minutes Sets the interval for Sleep Mode A/V Mute Timer Automatically turns off the projector after 30 minutes if A/V Mute is enabled Standby Mode Communication On...
Page 238: Initial Settings And Reset Options - Initial/All Settings Menu
Initial Settings and Reset Options - Initial/All Settings Menu You can reset most of the projector settings to their default values using the Reset All option on the Intial/All Settings menu. When you select the Reset All option, you see this screen:...
Page 239 Checkmarks appear next to the menu settings that are selected to be reset. If you do not want to reset settings in some menus, deselect them. When you are ready, select Execute and press Enter. You cannot reset the following settings using the Reset All option: •...
Page 240: Maintaining And Transporting The Projector
The only parts you should replace are the air filter and remote control batteries. If any other part needs replacing, contact Epson or an authorized Epson servicer. This projector uses a sealed laser light source which does not need servicing and cannot be replaced.
Page 241: Cleaning The Projector Case
Filter maintenance intervals will depend on the environment. If regular maintenance is not performed, your Epson projector will notify you when the temperature inside the projector has reached a high level. Do not wait until this warning appears to maintain your...
Page 242: Cleaning The Air Filter And Vents
Damage due to the failure to properly maintain the projector or its filter may not be covered by the projector's Limited Warranty. Cleaning the Air Filter and Vents Replacing the Air Filter Parent topic: Maintaining and Transporting the Projector Cleaning the Air Filter and Vents Clean the projector's air filter or vents if they get dusty, or if you see a message telling you to clean them.
Page 243: Replacing The Air Filter
Replacing the Air Filter You need to replace the air filter in the following situations: • After cleaning the air filter, you see a message telling you to clean or replace it • The air filter is torn or damaged You can replace the air filter while the projector is mounted to the ceiling or placed on a table.
Page 244: Replacing The Remote Control Batteries
4. Place the new air filter in the projector as shown. 5. Close the air filter cover. Parent topic: Air Filter and Vent Maintenance Related references Optional Equipment and Replacement Parts Related tasks Turning Off the Projector Replacing the Remote Control Batteries The remote control uses two AA manganese or alkaline batteries.
Page 245 2. Remove the old batteries. Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on your hands. If it gets on your hands, wash them immediately to avoid injury. 3. Insert the batteries with the + and – ends facing as shown. Warning: Make sure the batteries are inserted in the correct positions.
Page 246: Updating The Firmware
If a firmware update file is not found, the projector enters standby mode. You can contact Epson Support or use the Epson Projector Management software to check for firmware updates for your product. For more information, contact Epson Support.
Page 247: Solving Problems
• The lights on the projector may indicate what the problem is. • The solutions in this manual can help you solve many problems. If none of these solutions help, you can contact Epson for technical support. Parent topic: Solving Problems Related references Where to Get Help (U.S.
Page 248: Projector Light Status
Projector Light Status The lights on the projector indicate the projector status and let you know when a problem occurs. Check the status and color of the lights and look for a solution in the table here. Note: If the Indicators setting in the Operation menu is Off, all lights are off under normal projection conditions.
Page 249 • Make sure the environmental temperature is not too hot. • Clean or replace the air filter. • If operating the projector at high altitude, turn on High Altitude Mode. • If the problem persists, unplug the projector and contact Epson for help.
Page 250 Status and solution Flashing blue Varies Flashing Varies Laser warning. Turn the projector off, orange unplug it, and contact Epson for help. Flashing blue Orange Laser has a problem. Turn the projector off, unplug it, and contact Epson for help. Flashing blue Flashing A fan or sensor has a problem.
Page 251: Using The Projector Menu Displays
Related tasks Cleaning the Air Filter and Vents Replacing the Air Filter Using the Projector Menu Displays The projector displays descriptions in the menu system to help you navigate the projector's settings. The descriptions appear on the right side of the screen as you scroll the menu settings. Parent topic: Solving Problems Related tasks...
Page 252 • Make sure all necessary cables are securely connected and the power is on for the projector and connected video sources. • If you connected your video source to the Monitor Out/Computer2 port, make sure you set the Monitor Out Port setting to Computer2. •...
Page 253: Solutions When Image Is Incorrect Using The Usb Display Function
• For images projected with Windows Media Center, reduce the screen size from full screen mode. • For images projected from applications using Windows DirectX, turn off DirectX functions. • If the mouse cursor flickers, select Make the movement of the mouse pointer smooth in the Epson USB Display Settings program on your computer.
Page 254: Displaying From A Pc Laptop
• Turn on the connected computer or video source, and press its play button to begin your presentation, if necessary. • Check the connection from the projector to your video sources. • If you are projecting from a laptop computer, make sure it is set up to display on an external monitor. •...
Page 255: Displaying From A Mac Laptop
3. If necessary, check your video card settings and set the multiple display option to Clone, Mirror, or Duplicate. Parent topic: Solutions When "No Signal" Message Appears Displaying From a Mac Laptop If you see the "No Signal" message when you display from a Mac laptop, you need to set up the laptop for mirrored display.
Page 256: Solutions When The Image Is Not Rectangular
• Make sure the Resolution setting in the Image menu is set correctly for the input signal. • Try adjusting the image position using the Position setting in the Image menu. • Press the Aspect button on the remote control to select a different image aspect ratio. •...
Page 257: Solutions When The Image Contains Noise Or Static
• If you connected an extension power cable, try projecting without it to see if it caused interference in the signal. • If you are using the USB Display function, turn off the Transfer layered window setting in the Epson USB Display Settings program on your computer.
Page 258: Solutions When The Image Is Fuzzy Or Blurry
Related references Input Signal Settings - Signal I/O Menu Image Quality Settings - Image Menu Supported Video Display Formats Related topics Connecting to Computer Sources Connecting to Video Sources Solutions When the Image is Fuzzy or Blurry If the projected image is fuzzy or blurry, try the following solutions: •...
Page 259: Solutions When The Image Brightness Or Colors Are Incorrect
Solutions When the Image Brightness or Colors are Incorrect If the projected image is too dark or light, or the colors are incorrect, try the following solutions: • Press the Color Mode button on the remote control to try different color modes for the image and environment.
Page 260 • If you are using the USB Display function, turn on the Output audio from the projector setting in the Epson USB Display Settings program on your computer. • If you are using a Mac and you do not hear sound from an HDMI source, make sure your Mac supports audio through the HDMI port.
Page 261: Solutions To Problems Using Content Playback
Related references Feature Settings - Operation Menu Related tasks Projecting a Playlist in Content Playback Mode Creating a Playlist Using Epson Web Control Adding Effects to the Projected Image Related topics Projecting in Content Playback Mode Solving Projector or Remote Control Operation Problems Check the solutions in these sections if you have problems operating the projector or remote control.
Page 262: Solutions To Projector Power Or Shut-Off Problems
Remote Receiver setting is turned on in the projector's menu, if available. • The power cord may be defective. Try another power cord. If that doesn't work, disconnect the cord and contact Epson. • The cooling fans may run in standby status depending on the projector settings. Also, when the projector wakes from standby status, the fans may cause an unexpected noise.
Page 263: Solutions To Remote Control Problems
• To set the remote control so it will operate any projector, hold down the ID button and press the 0/All button. • If you lose the remote control, you can purchase another from an authorized Epson reseller. Parent topic:...
Page 264: Solutions When A Battery Message Appears
• If you set a Epson Web Control password and forgot the user ID or password, try entering the following: • User ID: EPSONWEB • Default password: admin • If you set a Remote password (in Epson Web Control) and forgot the user ID or password, try entering the following: • User ID: EPSONREMOTE • Default password: guest...
Page 265: Solutions When Wireless Authentication Fails
Solutions When Wireless Authentication Fails If you cannot authenticate a wireless connection, try the following solutions: • If the wireless settings are correct, but authentication fails, you may need to update the Date & Time settings in the Management menu, if available. •...
Page 266: Solutions When Network Alert E-Mails Are Not Received
Solutions When Network Alert E-Mails are Not Received If you do not receive an e-mail alerting you to problems with a projector over the network, try the following solutions: • Make sure the projector is turned on and connected to the network correctly. (If an error shut down the projector, it cannot send an e-mail.) •...
Page 267: Solutions When The Image Or Sound Contains Static When Using Screen Mirroring
• Make sure the mobile device settings are correct and restart the device. • You may not be able to connect immediately after disconnecting from the projector. Wait a while and try connecting again. • If you have previously connected to the projector using Screen Mirroring, the device may have saved the previous connection information.
Page 268: Where To Get Help (U.s. And Canada)
FAQs and troubleshooting advice, or e-mail Epson with your questions. Speak to a Support Representative To use the Epson PrivateLine Support service, call (800) 637-7661. This service is available for the duration of your warranty period. You may also speak with a projector support specialist by dialing (562) 276-4394 (U.S.) or (905) 709-3839 (Canada).
Page 269: Where To Get Help (Latin America)
Purchase Supplies and Accessories You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com...
Page 270 Purchase Supplies and Accessories You can purchase optional accessories and replacement parts from an Epson authorized reseller. To find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as described in "Where to Get Help."...
Page 271: Technical Specifications
Technical Specifications These sections list the technical specifications of your projector. General Projector Specifications Projector Light Source Specifications Remote Control Specifications Projector Dimension Specifications Projector Electrical Specifications Projector Environmental Specifications Projector Safety and Approvals Specifications (U.S. and Canada) Supported Video Display Formats USB Display System Requirements General Projector Specifications Type of display...
Page 272: Projector Light Source Specifications
USB Type B port compatibility USB 2.0 compliant for USB Display, firmware update, or copying menu settings USB Type A port compatibility One USB 2.0 compliant port for USB memory device, Epson document camera, wireless LAN module, firmware update, or...
Page 273: Remote Control Specifications
Light source life Normal or Quiet Light Source Mode: Up to about 20,000 hours Extended Light Source Mode: Up to about 30,000 hours Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon mode selected, environmental conditions, and usage.
Page 274: Projector Environmental Specifications
Power consumption Operating: (100 to 120 V) Normal Power Consumption Mode: 265 W Extended or Quiet Power Consumption Mode: 201 W Standby: 0.5 W (Communication Off), 2.0 W (Communication On) Power consumption Operating: (220 to 240 V) Normal Power Consumption Mode: 254 W Extended or Quiet Power Consumption Mode: 193 W Standby: 0.5 W (Communication Off), 2.0 W (Communication On)
Page 275: Projector Safety And Approvals Specifications (U.s. And Canada)
For best results, your computer's monitor port or video card resolution should be set to display in the projector's native resolution. However, your projector includes Epson's SizeWise chip that supports other computer display resolutions, so your image will be resized to fit automatically.
Page 276 Display format Refresh rate (in Hz) Resolution (in pixels) SXGA+ 60/75 1400 × 1050 WSXGA+* 1680 × 1050 UXGA 1600 × 1200 1920 × 1080 50/60 1920 × 1080 WUXGA (Reduced Blanking) 1920 × 1200 QXGA 2048 × 1536 WQHD 2560 ×...
Page 277: Usb Display System Requirements
Display format Refresh rate (in Hz) Resolution (in pixels) WUXGA (Reduced Blanking) 1920 × 1080 QXGA 2048 × 1536 WQHD 2560 × 1440 WXQGA (Reduced Blanking) 2560 × 1600 SDTV (480i/480p) 59.94 720 × 480 SDTV (576i/576p) 720 × 576 HDTV (720p) 50/59.94/60 1280 ×...
Page 278 Requirement Windows Intel Core2 Duo or faster (Intel Core i3 or Intel Core2 Duo or faster (Intel Core faster recommended) i5 or faster recommended) Memory 2GB or more (4GB or more recommended) Hard disk space 20MB or more Display Resolution between 640 × 480 and 1920 × 1200, 16-bit color or greater Parent topic: Technical Specifications...
Page 279: Notices
Binding Arbitration and Class Waiver Trademarks Copyright Notice Recycling (U.S. and Canada) Epson offers a recycling program for end of life products. Please go to this site for information on how to return your products for proper disposal. Parent topic:...
Page 280 • If an error occurs in the projector, turn off the power and unplug the projector immediately. Continuing to use the projector could result in an electric shock, fire, or visual impairment. Contact Epson support. • Do not attempt to disassemble or modify the projector. The projector contains a high-power laser component.
Page 281 As with any bright source, do not stare into the beam (RG2 IEC/EN 62471-5:2015).
Page 282: Important Safety Instructions
• Inside Parent topic: Notices Important Safety Instructions Follow these safety instructions when setting up and using the projector: • Do not look into the lens when the projector is on. The bright light can damage your eyes. Avoid standing in front of the projector so the bright light does not shine into your eyes. •...
Page 283 • When installing or adjusting a ceiling or wall mount, do not use adhesives to prevent the screws from loosening and do not use oils or lubricants. This may cause the projector case to crack and the projector to fall from its ceiling mount. This could cause serious injury to anyone under the mount and could damage the projector.
Page 284 • Do not block the slots and openings in the projector case. They provide ventilation and prevent the projector from overheating. If the vents are covered, the internal temperature could rise and cause a fire. Do not place the projector in locations subject to high temperatures, such as near heating equipment.
Page 285 • Do not use the projector where flammable or explosive gases may be present. • Do not use or store the projector or remote control in a hot location, such as near a heater, in direct sunlight, or in a closed vehicle. •...
Page 286: Restriction Of Use
• Always lower the volume before turning off the projector. Turning on the projector with the volume too high can damage your ears. • When a still image is displayed for a long time, image retention may occur on the screen. Do not display images in the exact same position for long periods.
Page 287 Symbol Approved Standards Description IEC60417 Stand-by No.5009 To identify the switch or switch position by means of which part of the equipment is switched on in order to bring it into the stand-by condition. ISO7000 Caution No.0434B, To identify general caution when using the product.
Page 288 Symbol Approved Standards Description IEC60417 Battery, general No.5001B On battery powered equipment. To identify a device for instance a cover for the battery compartment, or the connector terminals. IEC60417 Positioning of cell No.5002 To identify the battery holder itself and to identify the positioning of the cell(s) inside the battery holder.
Page 289 Symbol Approved Standards Description IEC60417 Class II equipment No.5172 To identify equipment meeting the safety requirements specified for Class II equipment according to IEC 61140. ISO 3864 General prohibition To identify actions or operations that are prohibited. ISO 3864 Contact prohibition To indicate injury that could occur due to touching a specific part of the equipment.
Page 290: Fcc Compliance Statement
Symbol Approved Standards Description ISO3864 Caution, movable parts IEC60417 To indicate that you must keep away from movable parts according to No. 5057 protection standards. IEC 60417-6056 Caution (movable fan blades) To indicate that you must keep away from the blades of the movable fan according to protection standards.
Page 291: Binding Arbitration And Class Waiver
1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS 1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term "Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim,...
Page 292 1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to resolve the Dispute within the sixty (60) days), you or Epson may commence an arbitration. Notice to Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3131 Katella Ave., Los...
Page 293 Award in Your Favor. For Disputes in which you or Epson seeks $75,000 or less in damages exclusive of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you $1,000 or the amount...
Page 294: Trademarks
Dispute in arbitration. Except as agreed upon by you and Epson in writing, the arbitrator shall determine the amount of fees, costs, and expenses to be paid by Epson pursuant to this Section 1.6d).
Page 295: Copyright Notice
Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.
Page 296: A Note Concerning Responsible Use Of Copyrighted Materials
Notices A Note Concerning Responsible Use of Copyrighted Materials Epson encourages each user to be responsible and respectful of the copyright laws when using any Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume.

This manual is also suitable for:

Powerlite eb-l255f V11ha17120 V11ha17020

Epson PowerLite EB-L250F User Manual

Quick Links

Related Manuals for Epson PowerLite EB-L250F

Summary of Contents for Epson PowerLite EB-L250F
