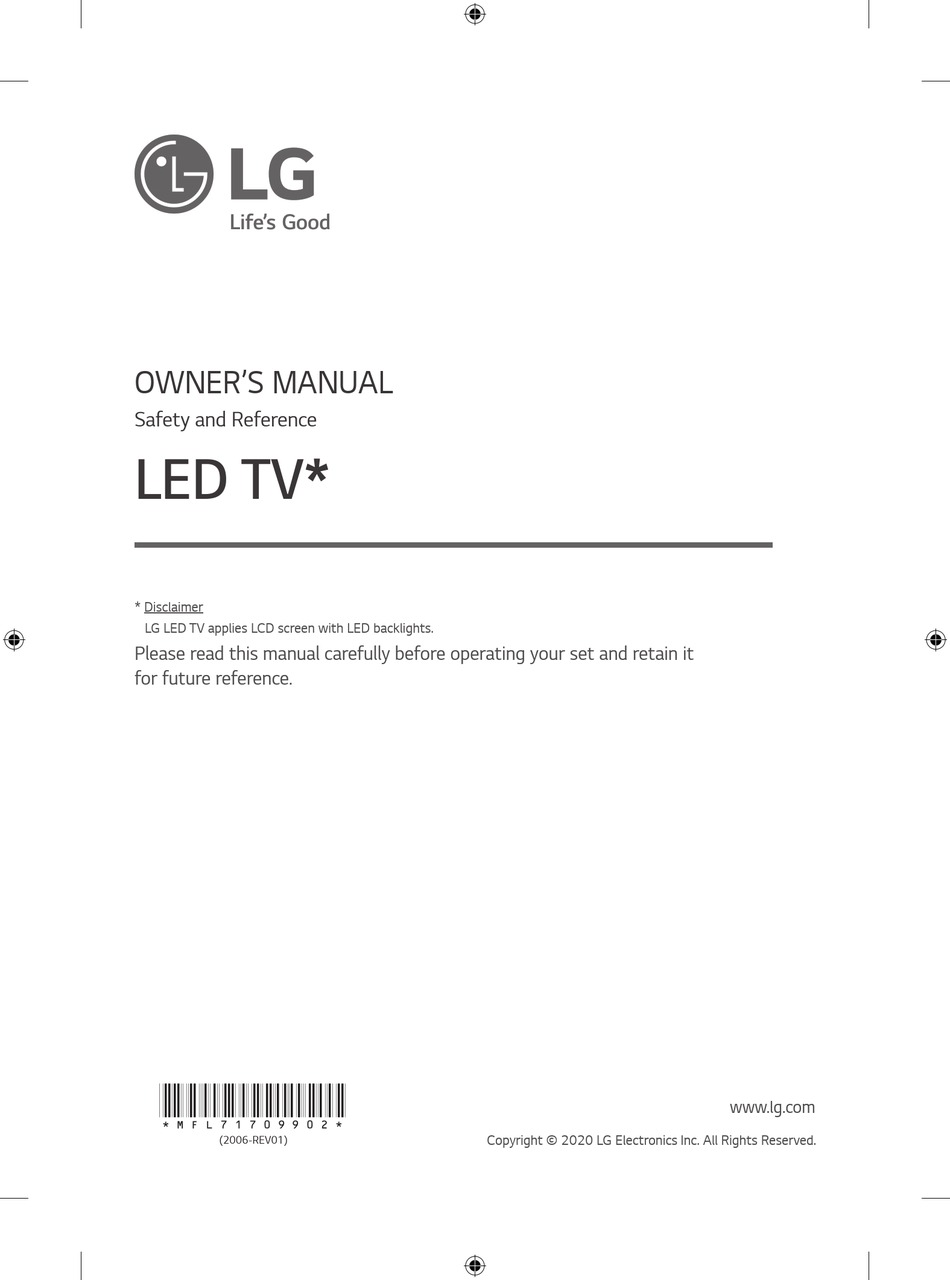

OWNER'S MANUAL
Safety and Reference
LED TV*
* Disclaimer
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it
for future reference.
*MFL71709902*
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
(2006-REV01)

Advertisement

Table of Contents
loading

Related Manuals for LG 43US66 Series

Summary of Contents for LG 43US66 Series

  • Page 1 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71709902* www.lg.com Copyright © 2020 LG Electronics Inc. All Rights Reserved.
  • Page 2 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 3 • Use only an authorized attachments / accessories approved by type of air freshener, insecticide, lubricants, wax (car, industrial), LG Electronics. Otherwise, this may result in fire, electric shock, abrasive, thinner, benzene, alcohol etc., which can damage the malfunction, or product damage.
  • Page 4 Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.
  • Page 5 Wall Mounting Bracket Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. • When transporting a large TV, there should be at least 2 people. •...
  • Page 6 Mounting on a Table • If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: (Depending on model) - Using cabinets or stands recommended by the 1 Lift and tilt the TV into its upright position on a table.
  • Page 7 Attaching the TV to a Desk Using the Kensington security system (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ (Depending on model) backward direction, potentially causing injury or damaging the product. The Kensington security system connector is located at the rear of the TV.
  • Page 8 LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 9 Connections • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model) Connect various external devices to the TV and switch input modes to select an external device.
  • Page 10 Other connections External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, Connect your TV to external devices. For the best picture and audio VCRs, audio systems, USB storage devices, PC, gaming devices, and quality, connect the external device and the TV with the HDMI cable. other external devices.
  • Page 11 External Speakers Method of volume control port (Depending on model) (Depending on model) • Cable Spec. Each up/down pins are connected to CPU with pull up resistor respectively. EXTERNAL SPEAKER OUT / UP / DOWN CPU detects STEREO transition from 3.3 V (8 ) level for volume control.
  • Page 12 Using Button Network (Depending on model) Wired network connection (Depending on model) This TV can be connected to a Pro:Centric server via the port. After You can simply operate the TV functions, using the button. making the physical connection, the TV needs to be set up for network communication.
  • Page 13 Adjusting the Angle of the Basic functions TV to suit view Power On (Press) Power Off (Press and Hold) Menu Control (Press (Depending on model) Menu Selection (Press and Hold Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.
  • Page 14 Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce The descriptions in this manual are based on the buttons on the remote energy consumption.
  • Page 15 Troubleshooting • Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. • Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal The software version can be updated for improvement in performance.
  • Page 16 Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. • This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel.
  • Page 17 Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV DVB-T/T2 PAL B/B, B/G, D/K, I Television system DVB-S/S2 SECAM B/G, D/K DVB-C NTSC-M DVB-S/S2 DVB-C DVB-T/T2 VHF III: 174 ~ 230 MHz Channel coverage UHF IV: 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950~2,150 MHz...
  • Page 18 Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MH 12 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
  • Page 19 HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical 640 x 480p Resolution 31.5 Frequency (kHz) Frequency (Hz) 31.47 59.94...
  • Page 20 Supported Photo Formats Supported Audio Formats File File Format Resolution Item Info Format Format Minimum: 64 (W) x 64 (H) Bit rate 32 Kbps - 320 Kbps Maximum (Normal Type): 15360 (W) x Sample freq. 16 kHz - 48 kHz .jpeg, .jpg, .mp3 JPEG 8640 (H) Support MPEG1, MPEG2 .jpe Maximum (Progressive Type): 1920 (W) Channels...
  • Page 21 • Some HEVC encoded ULTRA HD videos other than the content VC-1 Advanced Profile (except for Video officially provided by LG Electronics may not be played. WMVA), VC-1 Simple and Main Profiles .asf • Some codecs can be supported after a software upgrade.
  • Page 22 In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM The terms HDMI, HDMI High-Definition Multimedia Interface, and for a charge covering the cost of performing such distribution (such...
  • Page 23 IR CODES • This feature is not available for all models. Code (Hexa) Function Note Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Number Key 0-9 10-19 Alphabet buttons Remote control Button (SPACE) Remote control Button Remote control Button...
  • Page 24 Code (Hexa) Function Note Remote control Button Remote control Button (BACK) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button...
  • Page 25 EXTERNAL CONTROL Phone jack Type DEVICE SETUP (Depending on model) • You need to purchase the phone-jack to RS-232C cable required for the connection between the PC and the TV, which is specified in the manual. RS-232C Setup * For other models, connect to the USB port. •...
  • Page 26 RS-232C Configurations Set ID For Set ID number, see “Real Data Mapping”. 7-Wire Configurations 1 Press to access the main menus. (Standard RS-232C cable) 2 Press the Navigation buttons to scroll to [Support] and press 3 Press the Navigation buttons to scroll to [Set ID] and press 4 Scroll left or right to select a set ID number and press .

  • Page 27: Table Of Contents

    Command Reference List Transmission / Receiving Protocol (Depending on model) (Depending on Model) Data Transmission Command1 Command2 (Hexadecimal) (Command1)(Command2)( )([Set ID])( )([Data])(Cr) 1 Power 00 to 01 (Command1) : First command to control the TV. (j, k, m or x) 2 [Aspect Ratio] (See p.

  • Page 28: Aspect Ratio]

    1 Power (Command: k a) 3 Screen Mute (Command: k d) ►To control Power On/Off of the set. ►To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )([Data])(Cr) (k)(d)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Off] [Data] 00 : Screen mute off (Picture on) / Video mute off [Data] 01 : [On] [Data] 01 : Screen mute on (Picture off) [Data] 10 : Video mute on...

  • Page 29: Osd Select 00 To

    6 [Contrast] (Command: k g) 9 [Tint] (Command: k j) ►To adjust screen contrast. ►To adjust the screen tint. You can also adjust contrast in the picture settings. You can also adjust tint in the picture settings. Transmission Transmission (k)(g)( )([Set ID])( )([Data])(Cr) (k)(j)( )([Set ID])( )([Data])(Cr) [Data] Min : 00 to Max : 64 [Data] Red : 00 to Green : 64...

  • Page 30: Remote

    12 Remote Control Lock Mode (Command: k m) 15 [Energy Saving] (Command: j q) ►To lock the front panel controls on the monitor and remote control. ►To reduce the power consumption of the TV. You can also adjust Energy Saving in picture settings. Transmission Transmission (k)(m)( )([Set ID])( )([Data])(Cr)

  • Page 31: Tune

    17 [Equalizer] (Command : j v) 18 Tune Command (Command: m a) ►To adjust equalizer. ►Select channel to following physical number. Transmission Transmission (j)(v)( )([Set ID])( )([Data])(Cr) (m)(a)( )([Set ID])( )([Data] 00)( )([Data] 01)( )([Data] 02)(Cr) [Data] 00 : High channel data [Data] 01 : Low channel data ex.

  • Page 32: Programme

    19 Programme [Skip] / [Add] (Command: m b) 22 [Input] select (Command: x b) (Main Picture Input) ►To set skip status for the current Programme. ►To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )([Data])(Cr) (x)(b)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Skip] [Data] Structure...
  • Page 33 * Real data mapping 00 : Step 0 Step 10 ([Set ID] 10) Step 15 ([Set ID] 15) 10 : Step 16 ([Set ID] 16) 64 : Step 100 6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE :...
  • Page 34 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial no.
