LG 50US660H Series Owner's Manual

Hide thumbs Also See for 50US660H Series:
Table of Contents

Advertisement

Quick Links

Download this manual

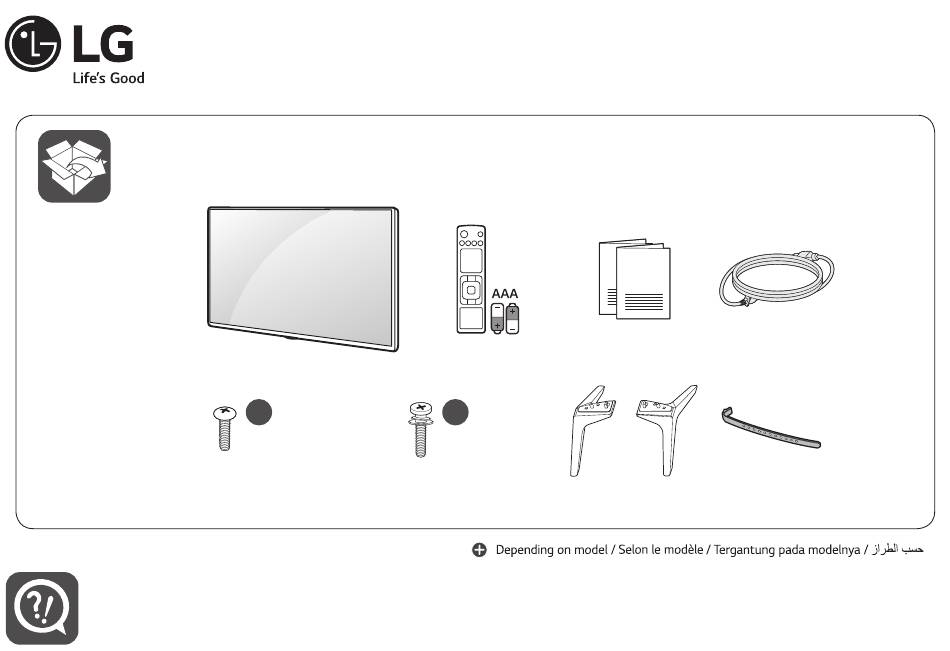

12
14
16
a
(M4 X L16)
50/55US660H*
www.lg.com
12
14
16
20
20
b
X 4
(M4 X L20)
65US660H*
X 6
:
LED TV
50/55/65US660H*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50US660H Series and is the answer not in the manual?

Questions and answers

Related Manuals for LG 50US660H Series

Summary of Contents for LG 50US660H Series

  • Page 1 LED TV 50/55/65US660H* (M4 X L16) (M4 X L20) 50/55US660H* 65US660H* www.lg.com...
  • Page 3 50/55US660H* 65US660H*...
  • Page 4 Satellite IN AUDIO LINE OUT AV IN COMPONENT IN...
  • Page 5 Satellite IN HDMI IN/ARC...
  • Page 6 H/P OUT CLOCK...
  • Page 8 50US660H0GD 50US660H0TD 1130 86.3 11.5 11.3 50US660H9GD 50US660H9TD 55US660H0GD 55US660H0TD 1244 87.1 14.5 14.3 55US660H9GD 55US660H9TD 65US660H0TD 1463 87.8 21.6 21.3 65US660H9TD AC 100-240 V ~ 50 / 60 Hz...
  • Page 9 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71709902* www.lg.com Copyright © 2020 LG Electronics Inc. All Rights Reserved.
  • Page 10 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 11 • Use only an authorised attachments / accessories approved by type of air freshener, insecticide, lubricants, wax (car, industrial), LG Electronics. Otherwise, this may result in fire, electric shock, abrasive, thinner, benzene, alcohol etc., which can damage the malfunction, or product damage.

  • Page 12: Separate Purchase

    Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.

  • Page 13: Wall Mounting Bracket

    Wall Mounting Bracket Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. • When transporting a large TV, there should be at least 2 people. •...

  • Page 14: Mounting On A Table

    Mounting on a Table • If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: (Depending on model) - Using cabinets or stands recommended by the 1 Lift and tilt the TV into its upright position on a table.

  • Page 15: Attaching The Tv To A Desk

    Attaching the TV to a Desk Using the Kensington security system (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ (Depending on model) backward direction, potentially causing injury or damaging the product. The Kensington security system connector is located at the rear of the TV.

  • Page 16: Mounting To The Wall

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

  • Page 17: Other Connections

    Connections Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Connect various external devices to the TV and switch input modes to Some separate cable is not provided. select an external device.

  • Page 18: External Devices

    External Speakers External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, (Depending on model) VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. • The external device connection may differ from the model. •...
  • Page 19 Network Method of volume control port (Depending on model) (Depending on model) • Cable Spec. Wired network connection This TV can be connected to a Pro:Centric server via the port. After Each up/down pins making the physical connection, the TV needs to be set up for network are connected to CPU communication.

  • Page 20: Using Button

    Using Button Adjusting the Angle of the TV to suit view (Depending on model) (Depending on model) You can simply operate the TV functions, using the button. Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

  • Page 21: Using Remote Control

    Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce The descriptions in this manual are based on the buttons on the remote energy consumption.

  • Page 22: Troubleshooting

    Troubleshooting • Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. • Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal The software version can be updated for improvement in performance.
  • Page 23 Abnormal display • When cleaning the product, be careful not to allow any liquid or foreign objects to enter the gap between the • If the product feels cold to the touch, there may be a small “flicker” upper, left or right side of the panel and the guide panel. when it is turned on.

  • Page 24: Specifications

    1 Only DVB-T2 support models. (Despite DVB-T2 Model, DVB-T/T2 does not apply in Philippine.) 2 Only DVB-T2/C/S2 support models. 3 Only NTSC-M support models. After Sales Service (Egypt Only) Shelf Life Time : 3 Years LG is committed to providing all spare parts of this device during the shelf life time.
  • Page 25 (Depending on country) Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz 12 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.

  • Page 26: Environment Condition

    (Only Philippines) Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz 18 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
  • Page 27 HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical 640 x 480p Resolution 31.5 Frequency (kHz) Frequency (Hz) 31.46 59.94...

  • Page 28: Supported Photo Formats

    Supported Photo Formats Supported Audio Formats File File Format Resolution Item Info Format Format Minimum: 64 (W) x 64 (H) Bit rate 32 Kbps - 320 Kbps Maximum (Normal Type): 15360 (W) x Sample freq. 16 kHz - 48 kHz .jpeg, .jpg, .mp3 JPEG 8640 (H) Support MPEG1, MPEG2 .jpe Maximum (Progressive Type): 1920 (W) Channels...

  • Page 29: Supported Video Formats

    • ULTRA HD Video: 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than the content VC-1 Advanced Profile (except for officially provided by LG Electronics may not be played. Video WMVA), VC-1 Simple and Main Profiles .asf...

  • Page 30: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM The terms HDMI, HDMI High-Definition Multimedia Interface, and for a charge covering the cost of performing such distribution (such...
  • Page 31 IR CODES • This feature is not available for all models. Code (Hexa) Function Note Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Number Key 0-9 Alphabet buttons 10-19 Remote control Button (SPACE) Remote control Button Remote control Button...
  • Page 32 Code (Hexa) Function Note Remote control Button Remote control Button (BACK) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button...

  • Page 33: External Control Device Setup

    EXTERNAL CONTROL ►B Type DEVICE SETUP RS-232C IN (CONTROL & SERVICE) RS-232C Setup (Depending on model) • Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.

  • Page 34: Communication Parameters

    RS-232C Configurations Communication Parameters • Baud rate: 9,600 bps (UART) 7-Wire Configurations • Data length: 8 bits (Standard RS-232C cable) • Parity: None • Stop bit: 1 bit • Communication code: ASCII code • Use a crossed (reverse) cable. Set ID For Set ID number, see “Real Data Mapping”.

  • Page 35: Transmission / Receiving Protocol

    Command Reference List Transmission / Receiving Protocol (Depending on model) (Depending on Model) Data Transmission Command1 Command2 (Hexadecimal) (Command1)(Command2)( )([Set ID])( )([Data])(Cr) 1 Power 00 to 01 (Command1) : First command to control the TV. (j, k, m or x) 2 [Aspect Ratio] (See p.
  • Page 36 1 Power (Command: k a) 3 Screen Mute (Command: k d) ►To control Power On/Off of the set. ►To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )([Data])(Cr) (k)(d)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Off] [Data] 00 : Screen mute off (Picture on) / Video mute off [Data] 01 : [On] [Data] 01 : Screen mute on (Picture off) [Data] 10 : Video mute on...
  • Page 37 6 [Contrast] (Command: k g) 9 [Tint] (Command: k j) ►To adjust screen contrast. ►To adjust the screen tint. You can also adjust contrast in the picture settings. You can also adjust tint in the picture settings. Transmission Transmission (k)(g)( )([Set ID])( )([Data])(Cr) (k)(j)( )([Set ID])( )([Data])(Cr) [Data] Min : 00 to Max : 64 [Data] Red : 00 to Green : 64...
  • Page 38 12 Remote Control Lock Mode (Command: k m) 15 [Energy Saving] (Command: j q) ►To lock the front panel controls on the monitor and remote control. ►To reduce the power consumption of the TV. You can also adjust Energy Saving in picture settings. Transmission Transmission (k)(m)( )([Set ID])( )([Data])(Cr)
  • Page 39 17 [Equalizer] (Command : j v) 18 Tune Command (Command: m a) ►To adjust equalizer. ►Select channel to following physical number. Transmission Transmission (j)(v)( )([Set ID])( )([Data])(Cr) (m)(a)( )([Set ID])( )([Data] 00)( )([Data] 01)( )([Data] 02)(Cr) [Data] 00 : High channel data [Data] 01 : Low channel data ex.
  • Page 40 19 Programme [Skip] / [Add] (Command: m b) 22 Input select (Command: x b) (Main Picture Input) ►To set skip status for the current Programme. ►To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )([Data])(Cr) (x)(b)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Skip] [Data] Structure...
  • Page 41 * Real data mapping 00 : Step 0 Step 10 ([Set ID] 10) Step 15 ([Set ID] 15) 10 : Step 16 ([Set ID] 16) 64 : Step 100 6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE :...
  • Page 42 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial no.
