Models/Modelos/Modèles
567LF-PP
567LF-HGM-PP
567LF-GPM-PP
567LF-MPU-PP
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Delta faucet
you will need:
・To READ ALL the instructions completely before
beginning.
・To READ ALL warnings, care and maintenance
information.
Para instalación fácil de su llave Delta
usted necesitará:
・LEER TODAS las instrucciones completamente
antes de empezar.
・LEER TODAS los avisos, cuidados, e información
de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
・LIRE TOUTES les instructions avant de débuter.
・LIRE TOUE LES les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
www.deltafaucet.com

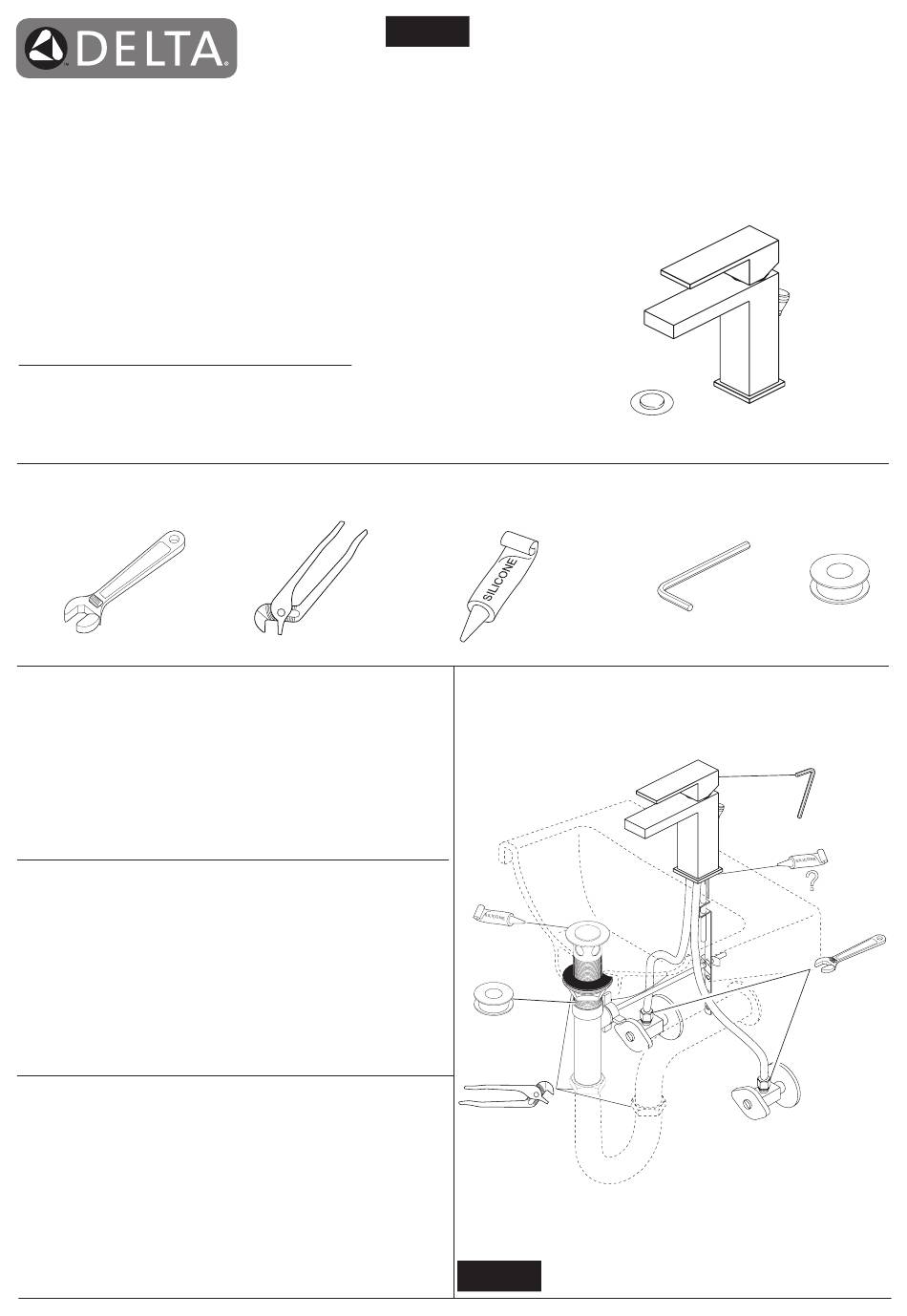

SINGLE HANDLE LAVATORY FAUCET
85830
ROBINET À UNE MANETTE POUR
LAVABO
LLAVE DE LAVABO CON MEZCLADOR
85830
1
3/32"
(2.45mm)
(Included / Incluido / Inclus)
4/25/2017 Rev. C
