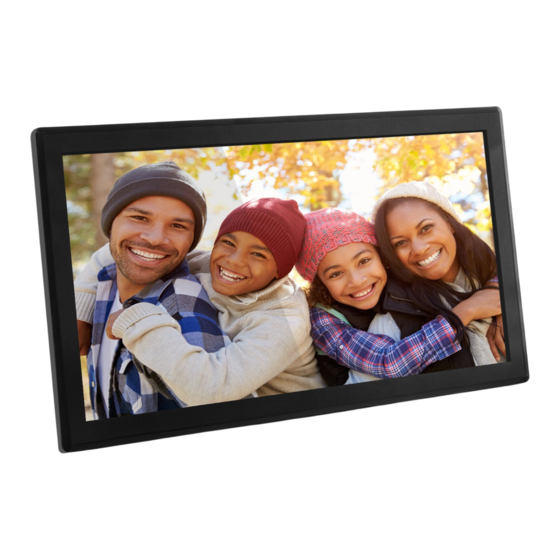

- Page 1 17.3” WiFi Digital Photo Frame with Touchscreen IPS LCD Display Instructional Manual model AWDMPF117F aluratek.com mnl M10448 Copyright © 2017 Aluratek, Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Package Contents ......................Getting Started ......................Operating Instructions Connecting to a Wireless Network................Link your frame to your Facebook, Twitter, Aluratek WiFi Frame app or Computer ..Facebook......................Twitter........................Aluratek WiFi Frame app..................Transfer Pictures Directly From Your Computer To The Frame ...... - Page 3 Table of Contents Calendar Function Calendar Slideshow Settings ..................Technical Support ......................Radio and TV Interference Statement ................Warranty ........................
- Page 4 Frame Features 17.3” IPS LCD Touchscreen SD/SDHC Card Slot Vesa Mount Black Frame Headphone Jack Security Lock Power Button Power Adapter Frame Stand Wall Mount Mini USB Port Speakers USB 2.0 Port Connect a USB hard drive, USB flash drive or SD/SDHC card to easily access and share your favorite pictures, music, or videos.
-
Page 6: Package Contents
Package Contents Your order has been carefully packaged and inspected. The following accessories should be included in your package. Please inspect the contents of the package to ensure that you have received all items and that nothing has been damaged. If you discover a problem, please contact us immediately for assistance. -
Page 7: Operating Instructions
AWDMPF117F scans for available Wi-Fi networks and displays the names of those it finds when it is powered on when it is powered on. Secured networks are indicated with a Lock icon. If AWDMPF117F finds a network that you connected to previously, it connects to it automatically. If not: 1. -
Page 8: Facebook
Operating Instructions Step 2: Link your frame to your Facebook, Twitter, Aluratek WiFi Frame app or Computer Facebook How to link the frame to you Facebook account so that pictures from your Facebook page will show automatically on the frame after you post it. - Page 9 Operating Instructions 3. Click on “Authorization and logging”. 4. Please login to your Facebook account. If you are already logged in on this computer, you will not need to login again and you will be directed to the next step directly.
- Page 10 Operating Instructions 5. Go to Settings > Device Info from the frame’s main menu. For RM Name, create a nickname for your frame to easily identify which frame is which in case you have more than one wifi frame. After you have filled out both fields, please click “TO Bind”.
- Page 11 Operating Instructions 7. You will then see the below confirmation message. You will also receive a message on the frame showing that your facebook account is linked to the frame. 8. Congratulations! Your Facebook account is now linked to the frame. From now on, every picture that you post to your Facebook will be pushed to the WiFi Frame directly without any extra...
-
Page 12: Twitter
Operating Instructions Twitter How to link the frame to your Twitter account so that you can post picture directly from your Twitter account to the frame. 1. You can either scan the QR Code on the frame or type: https://twitter.com/CloudAlbum/ in your browser 2. - Page 13 Operating Instructions 3. Please login to your Twitter account. If you are already logged in on this computer, you will not need to login again and you will be directed to the next step directly. 4. Click “Message” to send a private message to link the frame.
- Page 14 Operating Instructions 5. Type ‘bd+device serial no’ to bind. For example, if the device serial number is 1234567890, please type bd1234567890 in the message. Once the binding is successful, you will see a reply from the Cloud Frame for the confirmation. 6.
-
Page 15: Aluratek Wifi Frame App
Operating Instructions Aluratek WiFi Frame app How to link the frame to Aluratek WiFi Frame app so that you can send picture/video directly from your tablet or smart phone. 1. You can either scan the QR Code on the frame or search for “Aluratek WiFi Frame” in either Google Play or iTunes store. - Page 16 Operating Instructions 4. Please input the UN serial number. You can find the 10 digit UN serial number under Settings > Device Info in the main menu of the frame. 5. Tap on Bind. Once the process is complete, you can verify it under when you tap on “Device Manager”...
- Page 17 Operating Instructions 6. Congratulations! Aluratek WiFi Frame app is now linked to the frame.
- Page 18 Operating Instructions To post picture from the Aluratek WiFi Frame app to the frame, please follow below steps. A. Tap on “Gallery”. B. Select the picture or video that you want to send to the frame.
- Page 19 Operating Instructions C. Tap on “Confirm” on the bottom of the screen to confirm the picture selection. D. Select the Photo quality of either SD or HD. E. You can also add text to the picture by tapping on the photo and type in the text. F.
-
Page 20: Transfer Pictures Directly From Your Computer To The Frame
Transfer Pictures Directly From Your Computer To The Frame To transfer pictures from your computer to AWDMPF117F directly, the frame and the computer will need to be in the same network. Follow the steps below to transfer the pictures. 1. Go to Settings > PC Management on the frame. - Page 21 Album > Internal memory of the frame to see the pictures. Note: If the computer and the frame is not on the same network, you can send / transfer the pictures to the frame via Facebook / Twitter or Aluratek WiFi Frame app.
-
Page 22: Main Menu Function
Main Menu Function Main Menu... -
Page 23: Album Function
Album Function Album Settings 1. From the main menu, tap on “Settings”. 2. Tap on “Album Settings”. - Page 24 Album Function Photo Optimization: Set photo play in original size or to full screen. Slideshow: If enabled, the slideshow will start automatically. The slideshow will display pictures from the cloud media folder unless you are in the thumbnail page of the Internal memory or USB/SD Card folder then the slideshow will show pictures in those folders only.
-
Page 25: System Function
System Function System Settings 1. From the main menu, tap on “Settings”. 2. Tap on “System Settings”. - Page 26 System Function Sound: To adjust the media volume and notification volume, enable the touch sounds. Display: To adjust the brightness of the display. Date and time: To set the date and time for the frame. Language: To select the display language. Factory data reset: Rest all data from the device’s internal memory and the inserted SD card.
-
Page 27: Alarm Function
Alarm Function How To Set Alarm 1. From the main menu, tap on “Alarm”. 2. To edit an existing alarm, tap on “Edit alarm” or tap “Add alarm” to create a new alarm. 3. Once you have set the days, time and ringtone of the alarm, tap OK to set the alarm. -
Page 28: Calendar Function
Calendar Function Calendar Slideshow Settings 1. From the main menu, tap on calendar icon. 2. To edit the calendar slideshow, tap on on the upper right corner for options 3. Slideshow Interval: choose time option for slideshow transitions Slideshow Photo Limit: choose number of images to show on slideshow Slideshow Path: choose which storage folder to display images on slideshow... -
Page 29: Technical Support
We are committed to providing the best customer service support. If you need assistance with your Aluratek product, please contact the Aluratek Technical Support department prior to returning this device. Reach out to us in any of the following ways: E-mail: support@aluratek.com... -
Page 30: Radio And Tv Interference Statement
Radio and TV Interference Statement WARNING!!! This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not in- stalled and used in accordance with the instruction, may cause harmful interference to radio communications. -
Page 31: Warranty
Warranty Aluratek warrants this product against defect in material or workmanship for 1 Year from the date of purchase. This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has been removed or altered on the product. - Page 32 Aluratek, Inc. 15241 Barranca Pkwy. Irvine, CA 92618 sales@aluratek.com 714.586.8730 • office 714.586.8792 • fax...
- Page 33 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
