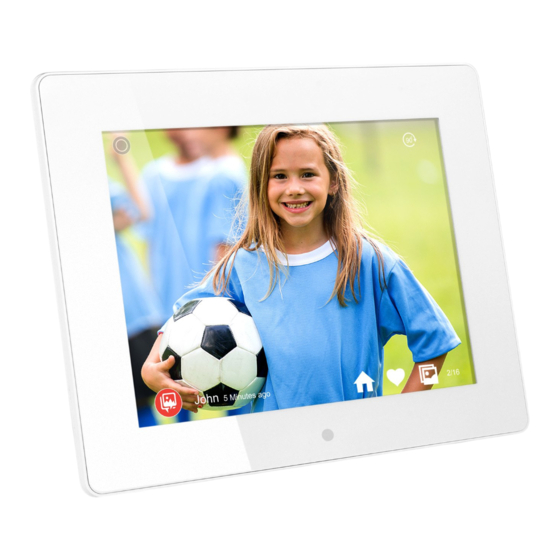

- Page 1 8” WiFi Digital Photo Frame with Touchscreen LCD Display Instructional Manual model AWDMPF8BB aluratek.com mnl M10438 Copyright © 2017 Aluratek, Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Table of Contents Frame Features ......................Frame Control Close-up ....................Package Contents ......................Getting Started ......................Operating Instructions Connecting to a Wireless Network................Link your frame to your Facebook, Twitter, Photo Partner App or Computer ....Facebook......................Twitter........................Photo Partner....................... Transfer Pictures Directly From Your Computer To The Frame ...... - Page 3 Table of Contents Technical Support ......................Radio and TV Interference Statement ................Warranty ........................
- Page 4 Frame Features 8” LCD Touchscreen Mini USB Port Security Lock White Frame Power Button Wall Mount SD/SDHC Card Slot Directional Keypad USB 2.0 Ports Menu Button Power Adapter Frame Stand Connect a USB hard drive, USB flash drive or SD/SDHC card to easily access and share your favorite pictures, music, or videos.
-
Page 6: Frame Control Close-Up
Frame Control Close-Up Power On / Off 2 - Menu (a) Press to return to previous screen (b) Press & hold to return to Main Menu 3 - ►║ Play / Pause (a) Press to select option on Main Menu (b) Press to pause slideshow, music or video 4 - |◄◄... -
Page 7: Package Contents
Package Contents Your order has been carefully packaged and inspected. The following accessories should be included in your package. Please inspect the contents of the package to ensure that you have received all items and that nothing has been damaged. If you discover a problem, please contact us immediately for assistance. -
Page 8: Operating Instructions
AWDMPF8BB scans for available Wi-Fi networks and displays the names of those it finds when it is powered on when it is powered on. Secured networks are indicated with a Lock icon. If AWDMPF8BB finds a network that you connected to previously, it connects to it automatically. If not: 1. -
Page 9: Facebook
Operating Instructions Step 2: Link your frame to your Facebook, Twitter, Photo Partner App or Computer Facebook How to link the frame to you Facebook account so that pictures from your Facebook page will show automatically on the frame after you post it. 1. - Page 10 Operating Instructions 3. Click on “Authorization and logging”. 4. Please login to your Facebook account. If you are already logged in on this computer, you will not need to login again and you will be directed to the next step directly.
- Page 11 Operating Instructions 5. Go to Settings>Device Info from the frame’s main menu. For RM Name, create a nickname for your frame to easily identify which frame is which in case you have more than one wifi frame. After you have filled out both fields, please click “TO Bind”.
- Page 12 Operating Instructions 7. You will then see the below confirmation message. You will also receive a message on the frame showing that your facebook account is linked to the frame. 8. Congratulations! Your Facebook account is now linked to the frame. From now on, every picture that you post to your Facebook will be pushed to the WiFi Frame directly without any extra...
-
Page 13: Twitter
Operating Instructions Twitter How to link the frame to your Twitter account so that you can post picture directly from your Twitter account to the frame. 1. You can either scan the QR Code on the frame or type: https://twitter.com/CloudAlbum/ in your browser 2. - Page 14 Operating Instructions 3. Please login to your Twitter account. If you are already logged in on this computer, you will not need to login again and you will be directed to the next step directly. 4. Click “Message” to send a private message to link the frame.
- Page 15 Operating Instructions 5. Type ‘bd+device serial no’ to bind. For example, if the device serial number is 1234567890, please type bd1234567890 in the message. Once the binding is successful, you will see a reply from the Cloud Frame for the confirmation. 6.
-
Page 16: Photo Partner
Operating Instructions Photo Partner How to link the frame to Photo Partner app so that you can send picture/video directly from your tablet or smart phone. 1. You can either scan the QR Code on the frame or search for “Photo Partner” in either Google Play or iTunes store. - Page 17 Operating Instructions 4. Please input the UN serial number. You can find the 10 digit UN serial number under Settings>Device Info in the main menu of the frame. 5. Tap on Bind. Once the process is complete, you can verify it under when you tap on “Device Manager”...
- Page 18 Operating Instructions 6. Congratulations! Photo Partner app is now linked to the frame.
- Page 19 Operating Instructions To post picture from the Photo Partner to the frame, please follow below steps. A. Tap on “Gallery”. B. Select the picture or video that you want to send to the frame.
- Page 20 Operating Instructions C. Tap on “Confirm” on the bottom of the screen to confirm the picture selection. D. Select the Photo quality of either SD or HD. E. You can also add text to the picture by tapping on the photo and type in the text. F.
-
Page 21: Transfer Pictures Directly From Your Computer To The Frame
Transfer Pictures Directly From Your Computer To The Frame To transfer pictures from your computer to AWDMPF8BB directly, the frame and the computer will need to be in the same network. Follow the steps below to transfer the pictures. 1. Go to Settings > PC Management on the frame. - Page 22 Operating Instructions 2. Go to your computer and open “File Explorer”. In the File Explorer, type in the exact address in the address bar. In this example, it is ftp://192.168.0.100:2121 3. The internal memory of the frame will show up like a folder on your computer. Please just drag and drop pictures that you like to transfer to this folder.
-
Page 23: Main Menu Function
Main Menu Function Main Menu... -
Page 24: Album Function
Album Function Album Settings 1. From the main menu, tap on “Settings”. 2. Tap on “Album Settings”. - Page 25 Album Function Slideshow: If enabled, the slideshow will start automatically. The slideshow will display pictures from the cloud media folder unless you are in the thumbnail page of the Internal memory or USB/SD Card folder then the slideshow will show pictures in those folders only. Set music path: Set to play music files from the internal memory or USB/SD card slot.
-
Page 26: System Function
System Function System Settings 1. From the main menu, tap on “Settings”. 2. Tap on “System Settings”. - Page 27 System Function Sound: To adjust the media volume and notification volume, enable the touch sounds. Display: To adjust the brightness of the display. Date and time: To set the date and time for the frame. Language: To select the display language. Factory data reset: Rest all data from the device’s internal memory and the inserted SD card.
-
Page 28: Alarm Function
Alarm Function How To Set Alarm 1. From the main menu, tap on “Alarm”. 2. To edit an existing alarm, tap on “Edit alarm” or tap “Add alarm” to create a new alarm. 3. Once you have set the days, time and ringtone of the alarm, tap OK to set the alarm. - Page 29 We are committed to providing the best customer service support. If you need assistance with your Aluratek product, please contact the Aluratek Technical Support department prior to returning this device. Reach out to us in any of the following ways: E-mail: support@aluratek.com...
- Page 30 Radio and TV Interference Statement WARNING!!! This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not in- stalled and used in accordance with the instruction, may cause harmful interference to radio communications.
- Page 31 Technical Support Warranty Aluratek warrants this product against defect in material or workmanship for 1 Year from the date of purchase. This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has been removed or altered on the product.
- Page 32 Aluratek, Inc. 15241 Barranca Pkwy. Irvine, CA 92618 sales@aluratek.com 714.586.8730 • office 714.586.8792 • fax...
- Page 33 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
