swisherinc.com
OWNER'S
MANUAL
MODEL NO.
LSRB115281350
STARTING SERIAL #
L113-074001
IMPORTANT
Read and follow all Safety
Precautions and Instructions
before operating this
equipment.
REV 13-074
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
17491

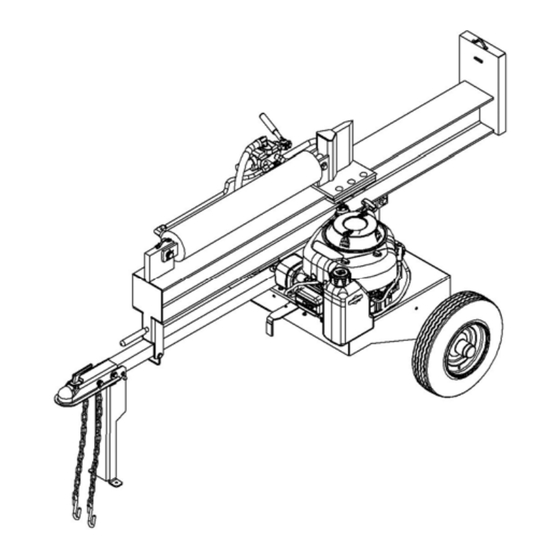

SPLITTER
Safety
Assembly
Operation
Service and Adjustment
Repair Parts
PHONE 660-747-8183 FAX 660-747-8650
LOG
Made In The
USA
Advertisement
Table of Contents
Related Manuals for Swisher L113-074001
Summary of Contents for Swisher L113-074001
- Page 1 OWNER’S MANUAL MODEL NO. LSRB115281350 STARTING SERIAL # L113-074001 SPLITTER Safety Assembly IMPORTANT Read and follow all Safety Operation Precautions and Instructions before operating this Service and Adjustment equipment. Repair Parts REV 13-074 1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093...
-
Page 2: Table Of Contents
Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the splitter will be needed before any warranty claim can be processed. - Page 3 SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects. Failure to observe the following safety instructions could result in serious injury or death.
- Page 4 • NEVER operate your splitter near a flame or spark. Hydraulic oil and gasoline are flammable and can explode. • NEVER fill gas tank while the engine is hot or running. Allow the engine to cool before refueling. • This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
-
Page 5: Safety
TOWING SAFETY Do not allow persons to ride on splitter. Do not carry any cargo or wood on your • splitter. It may fall off and endanger vehicles that are following you. Be sure support leg is in the travel position and coupling secure. This must also be •... -
Page 6: Operation
ASSEMBLY This log splitter has been partially assembled at the factory. Refer to the drawings and part lists should it become necessary to disassemble the unit for repair or replacement of parts. Inspect all components for damage. If you believe you have a damaged part please contact customer service immediately at 1-800-222-8183. - Page 7 COLD WEATHER START UP The Cold Weather Clutch enables the engine to be started without having to pull through cold, thickened hydraulic fluid. Simply push the handle in to the locked position. Start engine, let it warm up, and release Cold Weather Clutch.
-
Page 8: Maintenance
Exercise extreme caution, as some parts are very heavy and will require sufficient persons or mechanical handling equipment. Your Swisher Log Splitter has been produced with components designed specifically to this machine. Although standard springs, hardware and ect may look similar to parts used on other machinery, they may in some cases be made of a different construction and/or materials. -
Page 9: Decals
SAFETY DECALS Replace decals immediately if damaged. OD16 – FUEL SHUT OFF DECAL 17943 – COLD WEATHER DECAL 12494 – HYDRAULIC FILL PLUG 12549 – DO NOT EXCEED 45 MPH DECAL DECAL 12532 – HYDRAULIC OIL DECAL 12492 – OPERATOR INSTRUCTION DECAL 11427 –... -
Page 10: Parts Breakdown
SERVICE PARTS Please have Model and Serial Numbers ready when ordering parts. Color cannot be guaranteed upon service parts. Note: Engine removed for clarity ITEM NO. QTY. PART NO. DESCRIPTION 1 16642TK WELDMENT - MOTOR BASE 1 12441 Grommet 1 17625 TANK - 5 GALLON WITH FITTINGS 2 NB179 Washer-3/4ID X 1 1/4OD 18 GA ZY... - Page 11 FILTER DETAIL VIEW NOTE: The directional flow arrows on the filter head (LS1112) should show the direction of flow into hydraulic reservoir. ITEM NO. QTY. PART NO. DESCRIPTION 1 17627TK MOUNT - FILTER 2 NB250 1/4-20 X 3/4 GR5 ZP 2 NB135 Washer - 1/4 Split Lock, Medium Duty 2 NB596...
- Page 12 PUMP DETAIL VIEW ITEM NO. QTY . PART NO. DESCRIPTION 1 16641TK MOUNT - PUMP 1 7306 Pulley- Pump 4.25" 1 NB312 5/16-18 X 1/2 SSC Wit h Loct it e H 8 NB596 BOLT - 5/16" X 18 UNC X .75" FLANGE HEAD 1 17094 HYDRAULIC PUMP - 16GPM 8 NB170...
- Page 13 ITEM NO. QTY . PART NO. DESCRIPTION 7288TK Line - Assembly, St ationary 7291 Elbow - Hydraulic 7293 Pin - Cylinder to Beam NB642 Cot ter - Hairpin .093 X 1-13/16 7329 Fit t ing - Line Ret urn 7287TK Valve - Cont rol 7387 Fitt ing - Valve Inlet...
- Page 14 ENGINE DETAIL ITEM NO. QTY . PART NO. DESCRIPTION Engine, 11.5HP 1 NB452N Bolt - 7/16-20 X 1 1 TR150W Washer - .531I DX1 1/2OD 4 NB170 Nut - Serr Flange 5/16-18 4 NB253 Bolt - Serr Flange, 5/16-18 X1 1/4 1 9031 Key St ock - 1/4 X 1 2 699...
-
Page 15: Troubleshooting
Belt BELT ROUTING DIAGRAM (VIEWED FROM UNDERSIDE OF SPLITTER) TROUBLESHOOTING Problem Cause Remedy Engine fails to start. 1. Spark plug wire disconnected. 1. Connect wire to spark plug. 2. Fuel tank not full enough or stale fuel. 2. Fill tank full with clean, fresh gasoline. 3. -
Page 16: Maintenance Log
NOTE: For repairs beyond those listed here, contact your nearest authorized service center. * Flushing the reservoir tank and hoses with kerosene whenever service is performed on the tank, hydraulic pump or valve is recommended. Contact an authorized service center. MAINTENANCE LOG Notes Date of Service... -
Page 17: Specifications
SPECIFICATIONS 28 Tons* Splitting Force 11.5 HP Briggs and Engine Stratton Horizontal and Splitting Positions Vertical 4.5" X 24" Cylinder Size 2 Stage with Heavy Pump Duty Bearings 16 Gallons Per Pump Specs Minute Auto Return Valve Belt Drive 1:1 Ratio Drive System with Clutch for Easy Starting... - Page 18 NOTES...
- Page 19 SWISHER HISTORY Back before electricity came to rural Missouri Max Swisher was producing lawn mowers from his mother’s chicken house. Max never liked to mow grass. He installed a gearbox on his family’s lawn mower creating a self-propelled unit. By tying one end of a rope to the mower and the other end to a tree in the center of the yard the mower circled the tree, shortening the rope and guiding the mower in concentric circles.
- Page 20 The serial number for the engine will be found on the top of the blower fan housing. All Log Splitter parts listed herein may be ordered directly from Swisher, your nearest Swisher dealer, or from our MODEL NO. website.
