Swisher L113-305001 Owner's Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

swisherinc.com

OWNER'S

MANUAL

MODEL NO.

STARTING SERIAL #:

L113-305001

LSRB67522

LSRB675221350

LSRB875281350

IMPORTANT

Read and follow all Safety

Precautions and Instructions

before operating this

equipment.

Rev 13-305

1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093

PHONE 800-222-8183 FAX 660-747-8650 EMAIL CustomerCare@SwisherInc.com

Manufacturing quality lawn care equipment since 1945

18425

LOG

SPLITTER

Safety

Assembly

Operation

Service and Adjustment

Repair Parts

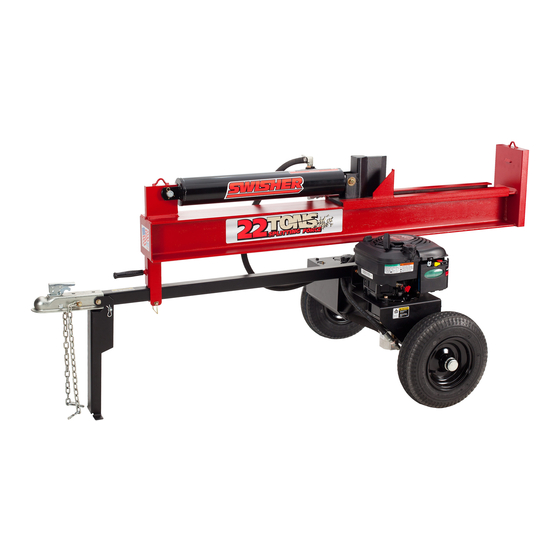

Model LSRB675221350 shown

Made In The

USA

Table of Contents

Need help?

Do you have a question about the L113-305001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Swisher L113-305001

Page 1 OWNER’S MANUAL MODEL NO. STARTING SERIAL #: L113-305001 LSRB67522 LSRB675221350 LSRB875281350 Model LSRB675221350 shown SPLITTER Safety IMPORTANT Assembly Read and follow all Safety Precautions and Instructions Operation before operating this equipment. Service and Adjustment Rev 13-305 Repair Parts 1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093 Made In The PHONE 800-222-8183 FAX 660-747-8650 EMAIL CustomerCare@SwisherInc.com...
Page 2: Table Of Contents
Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the splitter will be needed before any warranty claim can be processed.
Page 3: Warranty
SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects. Failure to observe the following safety instructions could result in serious injury or death.
Page 4 SAFETY PRECAUTIONS • NEVER operate your splitter near a flame or spark. Hydraulic oil and gasoline are flammable and can explode. • NEVER fill gas tank while the engine is hot or running. Allow the engine to cool before refueling. •...
Page 5: Safety
TOWING SAFETY • Do not allow persons to ride on splitter. Do not carry any cargo or wood on your splitter. It may fall off and endanger vehicles that are following you. • Be sure support leg is in the travel position and coupling secure. This must also be retracted so not to interfere while towing.
Page 6 ASSEMBLY This log splitter has been mostly assembled at the factory. Refer to uncrating and assembly instructions to complete the final assembly step. Refer to the drawings and part lists should it become necessary to disassemble the unit for repair or replacement of parts.
Page 7: Towing
OPERATION SPLITTER OPERATION 1. Set up the log splitter in a clear, level area and block the wheels. The suction port on the tank should always be on the lower side of the log splitter. 2. Place a log on the beam, against the foot plate. Make sure the log is securely on the foot plate and up against the beam.
Page 8: Maintenance
Your Swisher Log Splitter has been produced with components designed specifically to this machine. Although standard springs, hardware and ect may look similar to parts used on other machinery, they may in some cases be made of a different construction and/or materials.
Page 9: Decals
SAFETY DECALS Replace decals immediately if damaged. 12532 – DECAL - ADD OD16 – FUEL SHUT OFF DECAL HYDRAULIC OIL 12494 – HYDRAULIC FILL PLUG 12549 – DO NOT EXCEED 45 MPH DECAL DECAL 12492 – OPERATOR INSTRUCTION DECAL 11427 – DANGER DECAL...
Page 10: Parts Breakdown
PARTS BREAKDOWN ASSEMBLY DETAIL ITEM # QTY. PART # DESCRIPTION 18824TK WELDMENT - LS FRAME, TXT BLK 2203S WHEEL HUB BEAING SEAL FOR WT7002A 7296K WHEEL/TIRE - W/ BEARINGS AND SEAL (4 PLY) 2203DC WHEEL HUB DUST COVER FOR WT7002A 2203B WHEEL HUB BEARING FOR WT7002A 2203CN WHEEL HUB CASTLE NUT FORWT7002A...
Page 11 PARTS BREAKDOWN BEAM LATCH DETAIL ITEM # QTY. PART # DESCRIPTION 18821 PIN - BEAM LATCH 18822 SPRING - COMPRESSION 18823 WASHER - FLAT, 1/2" SAE NB126 PIN - COTTER PUMP DETAIL ITEM # QTY. PART # DESCRIPTION 14926 PUMP - HYDRAULIC, 2 STG 11 GPM CLOCKWISE 11557 ELBOW - 90 DEG.
Page 12 ENGINE DETAIL ITEM # QTY. PART # DESCRIPTION 6.75 TORQUE ENGINE 8.75 TORQUE ENGINE NB170 NUT - SERR FLANGE, 5/16-18 NB622 BOLT - SERR FLANGE 5/16-18 X 2 1/4 NB253 BOLT - SERR FLANGE, 5/16-18 X 1 1/4 16070 COUPLER - 7/8" SHAFT NB312 SCREW - SET, 5/16-18 X 1/2 9030...
Page 13 PARTS BREAKDOWN BEAM DETAIL ITEM # QTY. PART # DESCRIPTION 15202TC I-BEAM - W6X20; Txt Red (LSRB675221350) 14900TC I-BEAM - W6X20; Txt Red (LSRB875281350) 12352TK WEDGE (LSRB675221350) 14622TK WEDGE (LSRB875281350) 7284TK CYLINDER - 4" (LSRB675221350) 7354TK CYLINDER - 4.5" (LSRB875281350) 7293 PIN - CYLINDER TO BEAM NB642...
Page 14 PARTS BREAKDOWN TONGUE DETAIL ITEM # QTY. PART # DESCRIPTION 18458TK TONGUE - LOG SPLITTER, TXT BLK NB649 BOLT - 3/8-16 X 3 1/2 GR5 NB272 WASHER - 3/8 FLAT, SAE NB182 NUT - 3/8-16 NYLOC 14924TK STAND - FOLDING, TXT BLK NB606 PIN - 1/2"...
Page 15 PARTS BREAKDOWN VALVE DETAIL ITEM # QTY. PART # DESCRIPTION 7287TK VALVE - CONTROL, SPLITTTER NB522 1/4 X 1 CLEVIS PIN 7424 LINK - MATER 7423 HANDLE - VALVE 7425 GRIP - HANDLE, VALVE 18892 PIN - COTTER 3/32 X 1/2...
Page 16 TROUBLESHOOTING Problem Cause Remedy Engine fails to start. 1. Spark plug wire disconnected. 1. Connect wire to spark plug. 2. Fuel tank not full enough or stale fuel. 2. Fill tank full with clean, fresh gasoline. 3. Throttle control lever not in correct 3.
Page 17 MAINTENANCE LOG Date of Service Service Performed Notes...
Page 18: Specifications
SPECIFICATIONS MODEL LSRB875281350 MODEL LSRB67522 & LSRB675221350 28 Tons* 22 Tons* Splitting Force Splitting Force 8.75 Torque: 6.75 Torque: Engine Engine 190CC B&S 190CC B&S Splitting Horizontal and Splitting Horizontal and Vertical Positions Vertical Positions Ø4 1/2" X 24" Cylinder Size Ø4"...
Page 19 SWISHER HISTORY Back before electricity came to rural Missouri Max Swisher was producing lawn mowers from his mother’s chicken house. Max never liked to mow grass. He installed a gearbox on his family’s lawn mower creating a self-propelled unit. By tying one end of a rope to the mower and the other end to a tree in the center of the yard the mower circled the tree, shortening the rope and guiding the mower in concentric circles.
Page 20 REPAIR PARTS: Each Log Splitter has its own serial number. Each engine has its own serial number. All Log Splitter parts listed herein may be ordered directly from Swisher, your nearest Swisher dealer, or from our MODEL NO. website. LSRB67522...

This manual is also suitable for:

Lsrb675221350 Lsrb875281350 Lsrb67522
