Bauhn ATV58-615 Getting Started

58" Full High Definition LED LCD TV
Model number: ATV58-615
GETTING STARTED
1

PARTS LIST

In the box you will find:

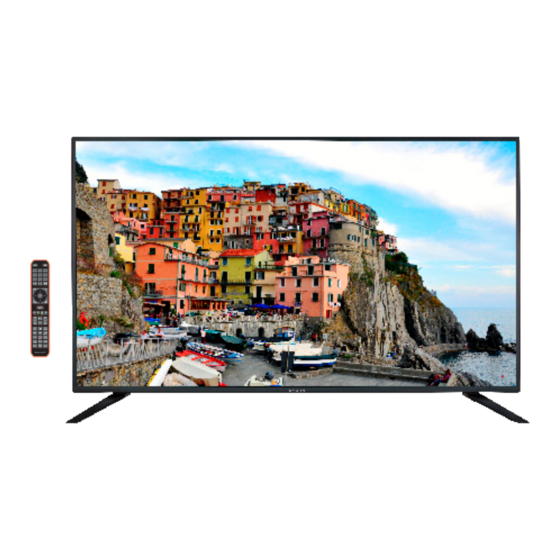

1 x 58" (146cm) Full High Definition LED LCD TV
1 x Remote Control
2 x AAA Activ Energy Batteries (not pictured)
1 x Composite AV Cable (not pictured)
2 x Stand bases (including screws)
1 x Instruction Manual
1 x Getting Started Guide

WHAT YOU WILL NEED

Phillips head screwdriver (for stand installation)
Antenna cable
2

CONNECTIONS

1 Power Input
2 Headphones Output
3 Component Video (YPbPr) Input
4 PC Audio Input
5 PC (VGA) Input
6 Coaxial S/PDIF Output
7 Antenna Input
8 HDMI Inputs
9 USB Input
10 Composite Video (CVBS) Input
11 Audio L/R Input
3

INSTALLATION AND POWER CONNECTION

1 Install the stand bases (see page 5 of the
instruction manual).
2 Connect the antenna cable to the ANT
socket of the TV.
3 Insert batteries into the remote control.
4 Connect the TV power cord into the mains
power socket and switch it on.
5 Press the
to turn on the power to the unit. The
standby light will turn blue and the TV
screen will display the initial setup.
4

EASY SETUP SCREEN

The on-screen display gives you easy instructions
for setting up the unit. Please refer to the instruction
manual for detailed information.
Select the "Start" button using the arrow
buttons and press OK on the remote. The TV will
automatically tune all the digital channels.
button on the remote control
1 2 3 4 5 6
7
8 9 10 11
8
