Bauhn ATV58UHDG-0320 Quick Start Manual

Have you got everything?

I
H
Unpack the box (be gentle) and make sure all of these items are there:

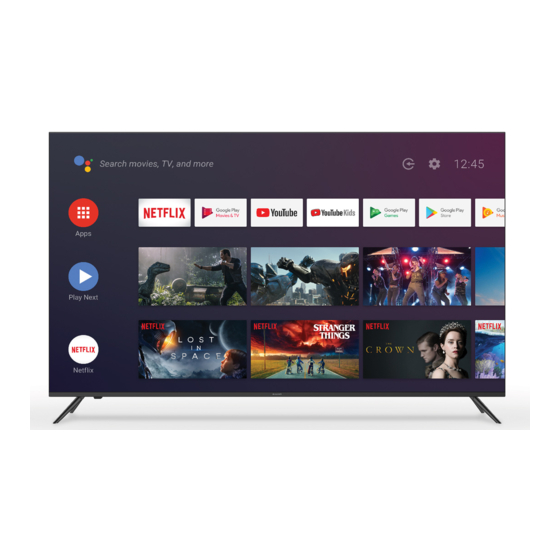

A. 58"4K QLED Android TV
B. Remote Control
C. AAA Activ Energy Batteries (2)
D. Mini AV Adaptor
E. Power Cable

Which plug goes where?

Want to hook up your new TV to the internet, a DVD player or something else?
Use the basic guide below to see what the plug and port should look like for
different connections.
You can find more of these on pages 10 - 11 of the User Manual.
(These cables do not come with your TV, however we have included a Mini AV adaptor for you.)
TOSLINK OPTICAL AUDIO
CABLE
HDMI CABLE
ANTENNA CABLE
LAN
ETHERNET CABLE
LAN
Quick Start Guide
E
J
K
F. TV Stands (2)
G. Screws for TV Stand (4)
H. Warning Sheet
I. TV Toppling Safety Message

Attach the TV stand

Unless you are wall-mounting the TV, you will need to
attach its stand/legs. If you do want to wall mount the
TV, see page 7 of the User Manual.
Use this to connect your soundbar, amplifier, digital
receiver, or other external audio equipment.
Use this connection for a DVD player, gaming console,
computer and camera. (If your device doesn't have
HDMI, you can use the Mini AV adaptor provided with
your TV.)
To watch free-to-air TV channels, you need an antenna
connection.
Use this cable to connect the TV to your modem for
internet access. This TV also has Wi-Fi connectivity.
Model: ATV58UHDG-0320
Hey!
Let's get your new TV
ready to use, fast!
D
See the box flap for how
to handle the TV without
damaging it!
G
F
L
M
You will also need:
• Phillips-head screwdriver
• Someone to help lift the TV
J. Quick Start Guide
K. Warranty Certificate
L. General Safety Warnings
M. User Manual
Lay the TV face-down on a soft,
flat surface (like the sofa, or a
towel on a table) larger than the
Match the stands to the
installation points on the back
Attach the stands to the TV at
the installation points using
the screws provided.
(Grab a screwdriver
This TV is heavy!
This TV is heavy!
We recommend asking
We recommend asking
someone to help you lift it.
someone to help you lift it.
TV itself.
of the TV.
for this bit).
