Page 1: User Manual

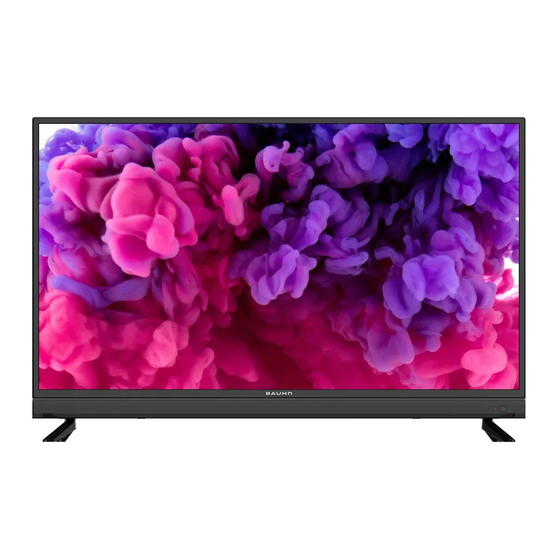

40"Full HD TV with Built-In Soundbar MODEL: ATV40FHDSB-0619 User Manual... -
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new Bauhn product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome Picture Warranty Information Repair and Refurbished Sound Unpack and Prepare Goods or Parts Notice Channel (DTV and ATV) What's in the box Lock Important Tips System Attaching the stand PVR Settings Wall-mounting the TV TV Guide Connect to power Recording Connect your antenna Recording Live TV... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before installing your new TV, check you have everything needed. See the inside flap of the box for how to handle the TV without damaging it! In the box you will find: A. Full HD TV with Built-in Soundbar B. -
Page 5: Important Tips
Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •... -
Page 6: Attaching The Stand
Attaching the stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • Only touch the frame, not the screen. • It is highly recommended to use safety straps for securing the TV. -
Page 7: Wall-Mounting The Tv
Wall-mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 200mm • VESA Mounting Bracket • 4 x M6*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included). -
Page 8: Connect To Power
Connect to power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect your antenna Free-to-air TV in HD (High Definition) High Definition (HD) channels... -
Page 9: Controls And Connections
Controls and Connections Get to know your TV On/Standby light and Remote sensor Buttons on the TV 1. VOL + : Increase the volume level or move left. VOL+ VOL- 2. VOL - : Decrease the volume level or move right. 3. -
Page 10: Ports On The Tv
Ports on the TV HDMI Use a HDMI All-digital connection between the TV and any HDMI device. cable for best Supports Full HD. Requires a HDMI cable (not included). picture and sound quality. PVR record and pause live TV » Play your stored media files (supported file codecs and »... - Page 11 Component You can use this to connect your DVD player. Supports Full High Definition (FHD) picture quality. This also requires Requires a component cable (not included). PC IN Connect your PC and its Audio to your TV. Requires VGA and AUX Cable (not included).
-
Page 12: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 13: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 5 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 14: Standard Remote
Standard Remote POWER: Switch the TV to On or Standby. GOTO: Jump to a different chapter of the DVD.* TV/RADIO / EJECT: Switch between TV or radio / Eject a disc (DVD). ANGLE: View DVD playback from different angles, if the DVD has this feature.* A-B: Repeat selected DVD scenes.* FAV: Press to display your favourite program in REPEAT: Repeat playback of a selected chapter,... - Page 15 SOURCE: Switch the input source. MUTE: Mute the sound. Press again or press V+ to restore the sound. GUIDE: Launch the TV Guide (DTV). VOL +/-: Turn the volume up/down. CH +/-: Change to the next or previous channel. DISPLAY: Display information of the current program.
-
Page 16: On-Screen Set Up
On-Screen Set Up Make sure equipment is properly connected (as shown on pages 10-11) before connecting the TV to power. Make sure the TV is plugged in at the power socket and switched on. Press the (ON) button to turn on the TV. On/Standby light is WHITE in standby mode. -
Page 17: Tv Setting Menus
TV Setting Menus Menu Navigation Buttons Press the MENU button to display the TV settings menu. See the guide below for all the other buttons you'll need Once you have programmed any to use to adjust and change your settings. settings, the unit will retain them in its memory until you change them, even after turning the TV off. - Page 18 Sound Lock • PVR Settings • Sound Mode • Enter Password • First Time Setup • Treble • Enable • Shipping Condition • Bass • Channel Locks • Reset • Balance • Parental Rating • Software Upgrade • Sound Delay •...
-
Page 19: Picture
Picture Original Images are for reference only. Picture Mode Home (default): Default picture settings for home use. Brightness Bright Room: Enhance the picture for bright home environments. Dynamic: Enhanced brightness, contrast, colour depth and edges so content stands out. Mild: Enhanced brightness with lower contrast, colour depth and edges. Contrast Adjust settings to best suit your viewing environment and content. -
Page 20: Advanced Settings
Advanced Settings Option Description Adjust the on-screen colour tone (for NTSC system only). Colour Temp NR (Noise Reduces noise to improve picture quality. Reduction) Adjust the on-screen colour temperature. Standard Normal Cool Warm MPEG NR Aspect Ratio Reduces MPEG (video) noise to improve (MPEG Noise picture quality. -
Page 21: Sound
Sound Option Description Sound Mode Standard Music Personal Movie These options are available in the Personal sound mode: Option Description Treble Adjust the levels of higher pitched sounds. Bass Adjust the levels of lower pitched sounds. Option Description Balance Adjust the audio output between the left and right speakers. Sound Delay Adjust if the sound and picture are not synchronized. - Page 22 Select the sound EQ (equalizer) to your desired mode. EQ Setting Rock Jazz User In User mode you can further personalise the sound quality by adjusting EQ frequencies. AVL (Auto Turn On to keep the volume level consistent. Volume Level) Set the digital sound output setting.
-
Page 23: Channel (Dtv And Atv)
Channel (DTV and ATV) Option Description Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for Australia). Press Auto Scan OK or to start scanning. Manual Scan See Digital Manual Scan and Analog Manual Scan below for information. Digital Manual Manually select and tune digital TV channels. -
Page 24: Channel Edit
Channel Edit Use the buttons to highlight a channel. Option Description Move the channel location on the list. Press BLUE to enter Move Mode. Use the buttons to select a Move position and press BLUE to confirm it. Delete Press RED to delete the highlighted channel. -
Page 25: Lock
Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your 4711 Master Password: password but forgot it, you can still use the master password. Option Description Enable Enable/disable the lock on the system. -
Page 26: Hotel Mode
Hotel Mode Option Description Active Hotel Mode Turn On/Off Hotel Mode. Max Vol Set a limit to the maximum volume level. Default Vol Set the default volume level. Source Lock Turn On/Off the lock on available sources. Default Source Set a default input source. Default DTV Program Set the default digital program. -
Page 27: System
System Option Description OSD Language Select your preferred On Screen Display language. Audio Languages Select your preferred audio language. (Available for digital channels, depending on the programme.) Subtitle Turn subtitles On/Off (available for digital channels, depending on the programme). Hearing Impaired Turn On or Off. -
Page 28: Time Settings
Time Settings Option Description Select the desired OSD (on screen display) menu duration. OSD Time Options: Select the desired Auto Sleep (Standby) duration. Sleep Timer Options: 5 min 15 min 30 min 60 min 90 min 120min 240min Sets the time when the TV will enter Standby mode due to inactivity. Auto Sleep Options: Time Zone... - Page 29 HDMI CEC Setup This feature allows for your TV and your connected HDMI device to be controlled by one remote. Press the SOURCE button on the unit or remote control to select the HDMI input source. Option Description HDMI CEC (Consumer Turn HDMI CEC On/Off.
-
Page 30: Pvr Settings
PVR Settings To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Scheduled Record File Manager Function Remote Button Function Remote Button GREEN Delete the highlighted file... -
Page 31: Tv Guide
TV Guide (Free to air TV) TV Guide Functions To access the TV guide, press the Function Remote Button Guide button on the remote. Switch between columns To activate the TV Channels use the buttons to select a channel in Select a Channel or Programme the left column, then press OK to confirm. -
Page 32: Recording
Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •... -
Page 33: Recording Live Tv
Recording, scheduled recording and pause Before you can record with this TV (including time-shift recording), you must live TV functions only work in DTV mode insert your USB storage device into the (free-to-air). USB port. SOURCE Recording Live TV Instant Recording YPbPr HDMI 1 Press... -
Page 34: Pause Live Tv (Time-Shift)
Pause Live TV (Time-shift) Recording, scheduled recording and pause live TV functions only work in DTV mode Temporarily pause the live TV signal, then resume (free-to-air). playback at your convenience. SOURCE Before you can record with this TV (including time-shift recording), you must YPbPr insert your USB storage device into the HDMI 1... -
Page 35: Usb Mode
USB Mode You can only play Photos in the Photo category, Music in the Music category and so on. Make sure you select the correct category for the file you wish to play. Set up Function Remote Button Insert your USB into a USB port on the TV. Choose a source or file Press the SOURCE button to select 'USB' mode. -
Page 36: Playback Functions
Playback Functions Music Function Remote Button Playback of different media types have different controls. Navigate to a folder or file Photo Play a track Function Remote Button Navigate to a folder or file Fast forward or rewind the track Skip or restart the current track Display a photo Display the Quick Menu BLUE... - Page 37 Video Text Function Remote Button Function Remote Button Navigate to a folder or file Navigate to a folder or file Play a video Open the text file Navigate to the next/previous page Pause the video Display the Quick Menu Resume playback BLUE Stop playback Return to the file list...
-
Page 38: Troubleshooting
Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Check the power outlet is turned on. If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug the No power TV’s power plug directly to a wall outlet and make sure the white indicator light on the TV is lit. - Page 39 Problem Solution Ensure all equipment is connected properly. Ensure the input setting for the TV is correct. Ensure source input and audio settings on the external device are set correctly. Ensure the volume is not muted. If it is, press the MUTE button to restore the sound. Sound issues If earphones are connected, unplug them.
- Page 40 Problems relating to your USB media storage device Problem Solution First, refer to the instructions describing how to use USB devices with this TV. If the problem still occurs, your USB device may not be compatible. My TV does not This TV has been tested with the majority of Flash memory-based devices and hard disks (media players with recognise my HDD) on the market;...
-
Page 41: Specifications
Specifications With stand: 907 x 211 x Active screen size 39.5” (100.3cm) (diagonal) 598 mm Dimensions (W x D x H) Resolution Without stand: 907 x 81 1920 x 1080 x 555 mm Refresh rate 60Hz 5.96kg HDMI version Weight Gross 8.36kg HDCP version... -
Page 42: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of. -
Page 43: Warranty Information
Warranty Information Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 44: Repair And Refurbished
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 45 This page has been intentionally left blank.
- Page 46 This page has been intentionally left blank.
- Page 47 This page has been intentionally left blank.
-
Page 48: Online Support
Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest Instruction Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
