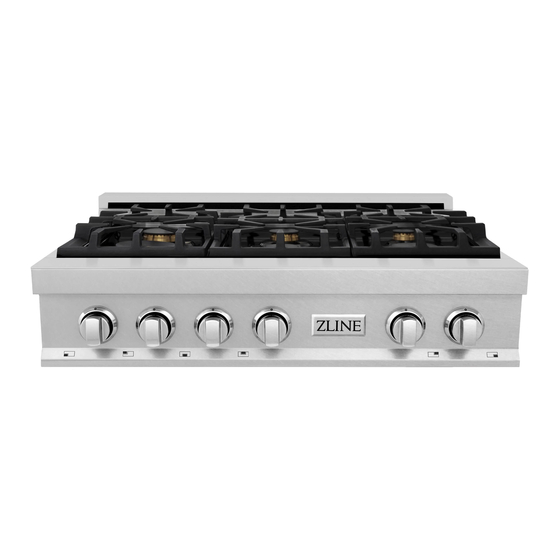

- Page 1 angetops Installation Guide and Users Manual...
- Page 2 • Warranty Service • Tracking your support inquiries ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone's the highest end luxury designs and professional features into everyone's homes.
- Page 3 Made by hand and innovatively designed - allowing exploration for the love of food. ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products,...
- Page 4 WARRANTY COVERAGE ZLINE Kitchen and Bath range products will be warrantied for one year from the original purchase date for the original purchaser of the product. This warranty covers all parts and labor for necessary repairs if any part of the product proves to be defective in materials or workmanship.
- Page 5 WARRANTY WHAT IS NOT COVERED Installation or start-up, damages or problems caused by improper installation or use. 2. Improper liquid propane conversion or damage related to improper liquid propane conversion. 3. Cook top burner flame adjustments or related complaints. 4. Service by an unauthorized service providers or damage related to unauthorized service or unauthorized parts.
-
Page 6: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS WARRANTY AND SERVICE PRODUCT DIMENSIONS BEFORE INSTALLATION POWER RATING & ELECTRICAL CONNECTION WIRING SCHEMATICS GAS CONNECTION GAS CONVERSION PROCEDURE FINAL CHECKLIST COOKTOP COOKING MAINTENANCE AND CLEANING TROUBLESHOOTING... -
Page 7: Important Safety Instructions
SAFETY INSTRUCTIONS An air curtain or other overhead range/cooktop hood which operates by blowing downward airflow onto the range, shall not be used/installed in WARNING conjunction with this gas range. • The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation, improper use of the appliance, or failure to heed the warnings listed. - Page 8 SAFETY INSTRUCTIONS • A manual gas shut-off valve must be installed in the gas supply line ahead of the oven in the gas flow for safety and ease of service. • Please read and follow these important instructions for the safety of your home and the people living in it.
-
Page 9: Warranty And Service
1-614-777-5004. The ZLINE customer service team is ready to work with you on resolving your issues and assessing if further service is needed. Service should only be conducted by an industry professional with PRIOR approval from the ZLINE customer service team. -
Page 10: Product Dimensions
BEFORE INSTALLATION SIZES 27 ” 27"7/16(695) 30“ 23 ” 23"15/16(608) 15 / 2 ” 2"3/4 (70) 8“ 27.5“ 36“ 1 ” 1"5/16 7 ” 1"3/8 (35) 1 ” 8“ 27.5“ 5 ” 5"3/8 (137 2” 1"15/15 (48.5) 48“ 8“ 27.5“ CUT OUTS 27 ”... -
Page 11: Before Installation
BEFORE INSTALLATION INSTALLING THE RANGE TOP Place the range top in the appropriate-sized cabinet base. Review cutout sizes on page 4. The range top can sit in the cabinet with or without glue. An agency-approved, properly-sized manual shut-off valve should be installed no higher than 3”... -
Page 12: Power Rating & Electrical Connection
INSTALLATION A properly grounded and horizontally-mounted electrical receptacle type NEMA 14- 50R should be installed no higher than 3” above the floor, no less than 2” and not more than 8” from the left side (facing product); refer to electrical connection section. The appliance shall be connected to a single phase electric line rated at 120Vac and 60Hz frequency. - Page 13 INSTALLATION T6NN600NCN Model: RT/RTB/RTS-36 110~120V - 60Hz WIRE CONNECTOR IGNITION ALLUMAGE GROUND WIRE Model: RT/RTB/RTS-48 T7NN700NCN 110~120V - 60Hz WIRE CONNECTOR IGNITION ALLUMAGE GROUND WIRE...
-
Page 14: Gas Connection
INSTALLATION • This appliance shall only be installed by an authorized professional. • The appliance shall be installed in accordance with the standards of the country where it will be installed. The installation of this appliance must conform to local codes and ordinances. - Page 15 INSTALLATION ROOM VENTILATION An exhaust fan may be used with the appliance; in each case it shall be installed in conformity with the appropriate national and local standards. Exhaust hood operation may affect other vented appliances; in each case it shall be installed in conformity with the appropriate national and local standards.
- Page 16 INSTALLATION • All gas connections must comply with national and local codes. The gas supply line (service) must be the same size or greater than the inlet line of the appliance. This range uses a ½˝ NPT inlet. Use appropriate sealant on all pipe joints that are resistant to gas.
- Page 17 INSTALLATION MANUAL SHUT-OFF VALVE This valve is not shipped with the appliance and must be provided by the installer. The manual shut-off valve must be installed in the gas service line between the gas hook-up on the wall and the appliance inlet, in position where it can be reached quickly in the event of an emergency.
- Page 18 INSTALLATION PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. Pressure Regulator • The pressure regulator shipped with the appliance has two female threads 34”NPT.
- Page 19 INSTALLATION The gas conversion procedure for this range includes: Pressure Regulator 2. Surface Burners 3. Flame Adjustment The conversion is not finished if all steps are not completed. Before performing the gas conversion, locate the package containing the replacement nozzles, which has a number indicating its flow diameter printed on the body.
-
Page 20: Gas Conversion Procedure
INSTALLATION STEP 1: PRESSURE REGULATOR The pressure regulator supplied with the appliance is a convertible type pressure regulator for use with Natural Gas at a nominal outlet pressure of 4˝ w.c. or LP gas at a nominal outlet pressure of 1 1” w.c. and it is pre-assembled from the factory to operate with one of these gas pressure as indicated in the labels affixed on the appliance, package and instruction booklet. - Page 21 INSTALLATION STEP 2: SURFACE BURNERS To replace the nozzles of the surface burners, lift up the burners and unscrew the nozzles shipped with the range using a 7 mm (socket wrench). Replace nozzles using the conversion set supplied with the range. Each nozzle has a number indicating its flow diameter printed on the body.
- Page 22 INSTALLATION STEP 3: Light one burner at a time and set it to the MINIMUM position (small flame). 2. Remove the knob. 3. The range is equipped with a safety valve. Using a small-size flathead screwdriver, locate the choke screw (see diagram below) and turn to the right or left until the burner flame is adjusted to desired minimum.
-
Page 23: Final Checklist
INSTALLATION Is the back guard securely connected? 2. Is the electricity properly grounded? 3. Is the gas service line connected following the directions of the manufacturer? 4. Have all the proper valves, stoppers, and gaskets been installed between the range and the service line? 5. -
Page 24: Cooktop Cooking
OPERATION COOKTOP COOKING • This product is intended for the cooking of food and must not be used for other purposes. • Unstable or deformed pans should not be placed on the burners or hot plates in order to avoid accidents caused by spill over. •... - Page 25 OPERATION SURFACE BURNER OPERATION - ELECTRIC IGNITION To activate the electric ignition, simply push the knob in to activate the spark. While still pushing the knob in, turn the control knob counter-clockwise to release the gas. The spark will be released at the metal tip of the white ceramic pin located on the side of the burner.
- Page 26 OPERATION Be sure to set all worktop/oven/broiler burner controls to the OFF position after each use of the appliance. Maximum Flame Height Minimum Flame Height Maximum temperature setting/recommended control knob position for burner ignition. The regulating knobs should be turned in anti-clockwise direction until the small flame symbol, vice- versa for the larger flame symbol.
-
Page 27: Maintenance And Cleaning
MAINTENANCE AND CLEANING CLEANING YOUR RANGE During cleaning operation never move the appliance from its original installation position. Never use abrasive cleaners! Scratches on the stainless WARNING steel surfaces are permanent. Do NOT clean the range when hot! All stainless steel body parts should be wiped with hot, soapy water and with a stainless steel cleanser. -
Page 28: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE Rangetop is not connected to electrical power. Check power circuit breaker, wiring, and fuses. If Igniters are not sparking all electrical components are properly installed, call customer support. Gas supply valve is in the “OFF” position or gas Burner does not ignite supply is interrupted. - Page 29 Three Locations: 350 Parr Circle Reno, NV 89512 916 Delaware Avenue Marysville, OH 43040 427 Rowland Mill Road Bruceton, TN 38317 www.zlinekitchen.com 1-614-777-5004 1.1.0...
