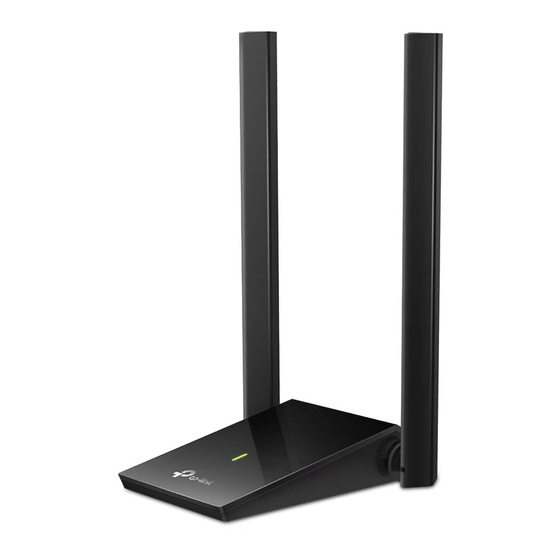

- Page 1 User Guide AC1300 Dual Antennas High Gain Wireless USB Adapter Archer T4U Plus REV1.0.0 1910012840...
-
Page 2: Table Of Contents
4. 2. 1. TP-Link Utility........ -
Page 3: About This Guide
• Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the... -
Page 4: Chapter 1 Get To Know About Your Adapter
Chapter Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status... -
Page 5: Product Overview
Chapter 1 Get to Know about Your Adapter Product Overview TP-Link Wireless USB Adapter connects your computer to a Wi-Fi network for smooth HD video, voice streaming and online gaming. • A high-gain antenna greatly enhances the reception and transmission signal strength of the USB adapter •... -
Page 6: Chapter 2 Connect To A Computer
Chapter Connect to a Computer This chapter introduces how to connect the adapter to your computer. - Page 7 Chapter 2 Connect to a Computer Before you start using your adapter, insert the adapter into a USB port on your computer via the provided USB cable. After connecting your adapter to the computer, please follow the instructions in the appropriate chapter for your operating system: Windows, Mac OS...
-
Page 8: Chapter 3 Windows
Chapter Windows This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process. -
Page 9: Install Driver
Windows operating system: Windows 8/8.1/10, Windows XP/7. • Windows 8/8 1/10 Go to Start menu to find the TP-Link application. Click Uninstall TP-Link Archer T4U Plus Driver, then follow the on-screen instructions to complete the uninstallation. • Windows XP/7 Go to Start >... -
Page 10: Chapter 4 Mac Os
Chapter Mac OS X This chapter introduces how to install your adapter’s driver and utility, use your adapter to join a wireless network, manage your adapter and uninstall your adapter in Mac OS X. This chapter includes the following sections: •... - Page 11 The CD is included in the package. If your computer has a CD drive, you can also run the included CD to install the driver and utility. Double click to unzip the downloaded folder and run the Install.pkg. Install TP-Link Wireless USB Adapter Utility and Driver Wizard window will appear. Click...
-
Page 12: Join A Wireless Network
Click Restart to finish the installation. After restarting the computer, the TP-Link Utility icon will appear on the menu bar in the upper-right corner of the screen. To use the utility to join a Wi-Fi network with your adapter, refer to Join a Wireless Network. -
Page 13: Tp-Link Utility
Join a Wireless Network There are two options of using the adapter to join a Wi-Fi network. Option 1: TP-Link Utility TP-Link Utility lets you easily connect the adapter to a Wi-Fi network and manage the adapter. Option 2: WPS (Wi-Fi Protected Setup) WPS (Wi-Fi Protected Setup) is a network security standard for easily adding computers and other devices to a home network. - Page 14 TP-Link Utility. Please refer to below. • PBC 1. Press the WPS/QSS button on your router or AP. 2. Within 2 minutes, click the TP-Link Utility icon on the menu bar, and then click at the bottom of the network list.
- Page 15 Mac OS X 3. Click PBC. 4. The following screen indicates a successful connection by WPS. Click OK. • PIN 1. Click the TP-Link Utility icon on the menu bar, and then click at the bottom of the network list.
- Page 16 Chapter 4 Mac OS X 2. Click PIN. 3. Within 2 minutes, log in to the web management page of your router or AP. Go to its page, enter the PIN of the adapter in the corresponding field and click Connect. 4.
-
Page 17: Management
Chapter 4 Mac OS X Management TP-Link Utility provides you with an easy way to manage various connection settings of your Wi-Fi network. Click the TP-Link Utility icon on the menu bar, and then click Open Wireless Utility at the bottom of the network list. -
Page 18: Uninstall Driver And Utility
Chapter 4 Mac OS X Preferred Networks displays the networks that you once connected to. The networks’ status and information are displayed in the table. • To join a Wi-Fi network If you want to join a Wi-Fi network that is listed on the profile screen, select the profile and click Apply in the bottom right corner. - Page 19 Chapter 4 Mac OS X Enter the password of you computer and when the “Uninstall Complete” message appears, the uninstallation is complete.
-
Page 20: Appendix: Troubleshooting
T2 How to check if I have installed the driver for my adapter successfully or not? On your computer, please right click Computer icon and go to Manage; Open the Device Manager and go to Network adapters, and then find the corresponding TP-Link adapter, right click it and then go to Properties;... - Page 21 If you can see “This device is working properly.” in the red box, you have already installed the driver successfully. T3 What should I do if can’t connect to the Wi-Fi after installing the driver? • Refer to to check if you have installed the driver for your adapter successfully . •...
- Page 22 There is a character string “Ver:X. Y ” (for example, Ver:2.0) in the Serial Number field, and the number X is the hardware version of the adapter. • Visit https://www.tp-link.com/faq-46.html and follow the second method to find the hardware version of the adapter. For more detailed instructions: •...
- Page 23 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.
- Page 24 Product Name: AC1300 Dual Antennas High Gain Wireless USB Adapter Model Number: Archer T4U Plus Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: sales.usa@tp-link.com...
- Page 25 5mm spacing from the body and that compliance is achieved at that distance. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15.
- Page 26 5470 MHz -5725 MHz (23dBm) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/ EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce...
- Page 27 Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1 ) This device may not cause interference. 2 ) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 28 Korea Warning Statements 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice 注意！ 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均 不得擅自變更頻率、加大功率或變更原設計之特性或功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干 擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依 電信規定作業之無線電信。低功率射頻電機需忍受合法通信或工業、科學以及醫 療用電波輻射性電機設備之干擾。 4.7.9.1應避免影響附近雷達系統之操作。 4.7.9.2高增益指向性天線只得應用於固定式點對點系統。 BSMI Notice 安全諮詢及注意事項 •請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 •清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清 潔。 •注意防潮，請勿將水或其他液體潑灑到本產品上。 •插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆 蓋開口。 •請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉 位置中。 •請不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件 鉛 鎘...
- Page 29 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
