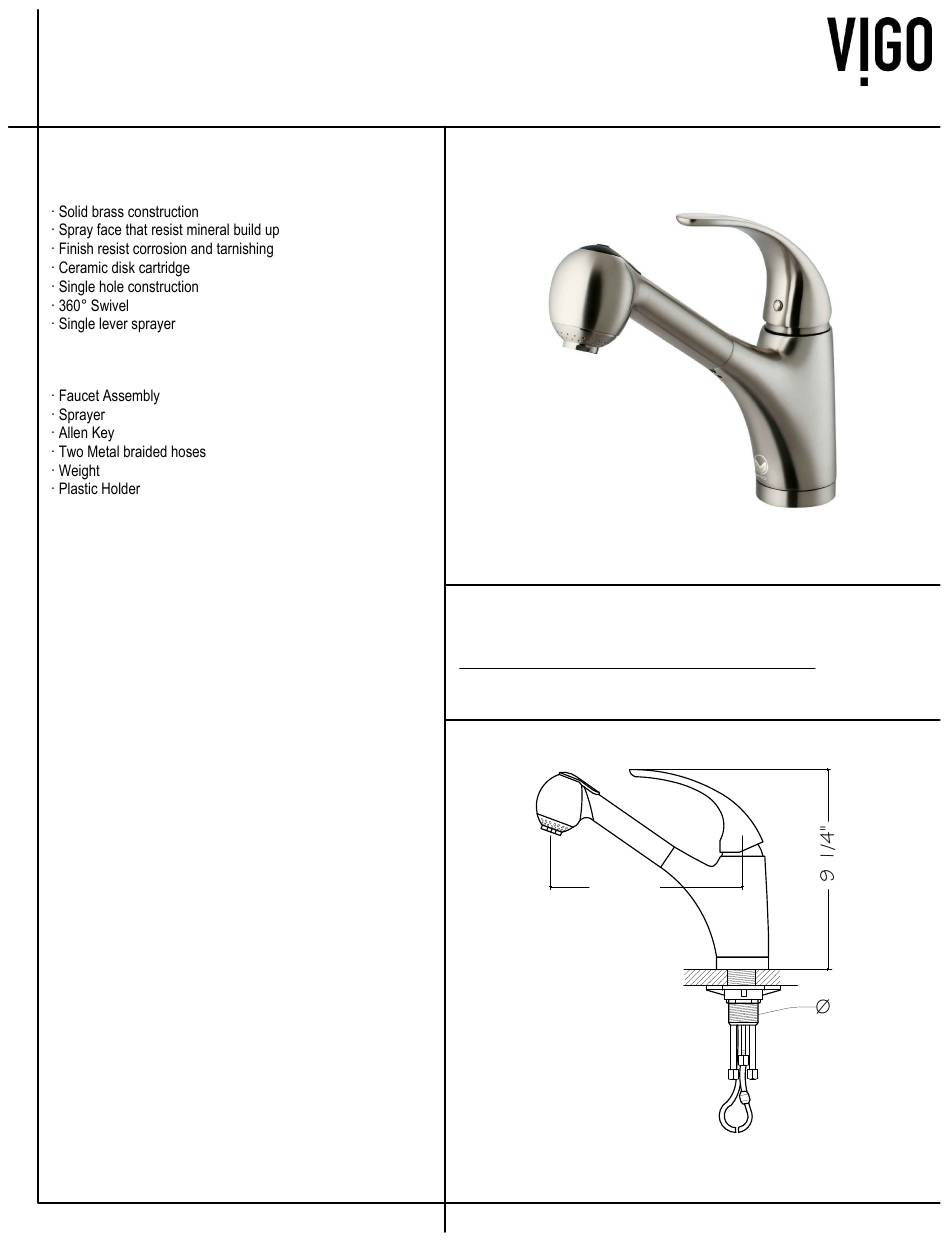

FAUCET SPECIFICATIONS
Pull-Out Spray Kitchen Faucet

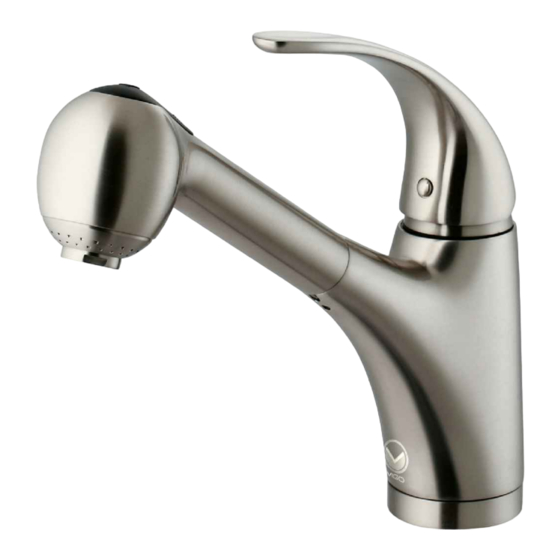

Model VG02011
MODEL VG02011
FEATURES
PACKING LIST
NOTE: All faucets are compliant to CEC 2016 regulations. If you
have inquiries about your water flow, please email
techmail@vigoindustries.com.
DIMENSIONS
MODEL #
HOLE
DIAMETER
VG02011
1 3/8"
8 1/2"
FAUCET
SPRAYER
HEIGHT
REACH
9 1/4"
8 1/2"
1 3/8"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VG02011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VIGO VG02011

  • Page 1 FAUCET SPECIFICATIONS Pull-Out Spray Kitchen Faucet Model VG02011 MODEL VG02011 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPRAYER DIAMETER HEIGHT REACH VG02011 1 3/8" 9 1/4" 8 1/2" 8 1/2" 1 3/8" NOTE: All faucets are compliant to CEC 2016 regulations. If you have inquiries about your water flow, please email techmail@vigoindustries.com.
  • Page 2: Side View

    8 1/2" 2 1/2" SIDE VIEW SPRAY HOSE VG02011 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"...
  • Page 3 Doing so will remove the ability for the product to meet certain low flow standards. Please talk to your local or statewide plumbing enforcement agency prior to modifying. Vigo is not responsible for any alterations and the affects that may come with altering the product post sale and highly advises that the client only install the product that meets the needs of their local plumbing code.
  • Page 4: Package Content

    VIEW THE CONNECTIONS AT THE MALE AND FEMALE FLEXIBLE If you have any questions please contact the Vigo Technical Support HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER BACK Department before proceeding with installation.
  • Page 5: Troubleshooting

    5.A - Remove and clean aerator. 5.B - Contact Vigo Technical Support for replacement. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support PART PART # FINISH SUPPLY DATE INDICATOR (INTERNAL USE ONLY)
  • Page 6 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
  • Page 7: Liste D'emballage

    VG02011 LISTE D'EMBALLAGE DIMENSIONS VG02011 1 3/8" 9 1/4" 8 1/2" 8 1/2" 1 3/8" de la CEC de 2016. Si vous avez des questions au sujet de votre...
  • Page 8 8 1/2" 2 1/2" 1 3/8" TUYAU DU VAPORISATEUR VG02011...
  • Page 9 responsable des modifications et de la touche qui peut venir avec la modification du poste de vente de produits et Restricteur Vous trouverez le restricteur de 1,8 gpm ici. Il suffit d'enlever le limiteur de 1,8 gpm et installer le robinet comme d'habitude.
  • Page 10: Contenu De L'emballage

    ASSEMBLAGE CONTENU DE L'EMBALLAGE 1. COUPEZ L'ALIMENTATION EN EAU. ENLEVEZ L'ANCIEN ROBINET ET LES TUYAUX FLEXIBLES. NETTOYEZ LA SURFACE CONTREPOIDS SUPPORT EN PLASTIQUE ANNEAU EN CAOUTCHOUC ANNEAU ENSEMBLE ROBINET DEUX TUYAUX EN ASSUREZ-VOUS D'UTILISER DU RUBAN POUR TUYAU ET NE SERREZ PAS D'ALIMENTATION PUISQUE CELA DU PRODUIT CE QUI POURRAIT CARTOUCHE)
  • Page 11 MESURE CORRECTIVE 1.A - Cartouche non assise avec de l'eau chaude et bien asseoir dans le logement. 1.B - Communiquer avec le Soutien technique de Vigo pour un 3 - Fuite aux points de connexion remplacement. 2.B - Encrassement dans tuyau/conduite d'alimentation 2.A - Enlever et faire tremper/nettoyer avec un agent non abrasif...
  • Page 12 VIGO INDUSTRIES, LLC ("VIGO") EN VIGUEUR LE 1er AVRIL 2013 original pour usage domestique personnel. Des restrictions additionnelles s'appliquent aux utilisations commerciales. de la vente des produits en cause. Restrictions verre qui pourrait causer des blessures corporelles ou la mort.] constructeur.
  • Page 13 ESPECIFICACIONES DEL GRIFO Grifo de cocina con rociador extensible Modelo VG02011 MODELO VG02011 LISTA DE CONTENIDO DIMENSIONES ALTURA ALCANCE ORIFICIO GRIFO ROCIADOR VG02011 1 3/8" 9 1/4" 8 1/2" 8 1/2" 1 3/8" NOTA: Todos los grifos cumplen con CEC 2016 regulaciones. Si usted tiene preguntas acerca de su flujo de agua, por favor escriba techmail@vigoindustries.com.
  • Page 14: Vista Lateral

    8 1/2" 2 1/2" 1 3/8" VISTA LATERAL MANGUERA DEL ROCIADOR VG02011...
  • Page 15 NORMAS DE CAUDAL La velocidad de flujo con limitador - 1.8 gpm Velocidad de flujo sin restrictor - 2.2 gpm Restrictor el limitador de 1,8 gpm e instalar el grifo como de costumbre. Grifo Limitador 1.8gpm...
  • Page 16: Contenido De La Caja

    MONTAJE CONTENIDO DE LA CAJA 1. CIERRE EL SUMINISTRO DE AGUA. RETIRE EL GRIFO VIEJO Y LAS MANGUERAS FLEXIBLES. LIMPIE LA SUPERFICIE DEL LAVABO CON UN LIMPIADOR NO ABRASIVO PARA COLOCAR EL CONTRAPESO SOPORTE GRIFO NUEVO. ARO DE GOMA TUERCA CONJUNTO TRENZADA EN EL GRIFO (2).
  • Page 17: Lista De Piezas

    1.B - El cartucho es defectuoso 2 - Caudal insuficiente 1.B - 2.A - Suciedad en el aireador Vigo para el reemplazo 4 - Grifo flojo 2.A - Retire y remoje o limpie con un producto no abrasivo (p. ej., vinagre) .
  • Page 18 JA PARTIR DEL 1 DE ABRIL DE 2013 de la fecha inicial de compra por parte del propietario, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO, de por vida para el propietario original o usuario final.
