Mitsubishi Electric LDT52IV Operation Manual

52" lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

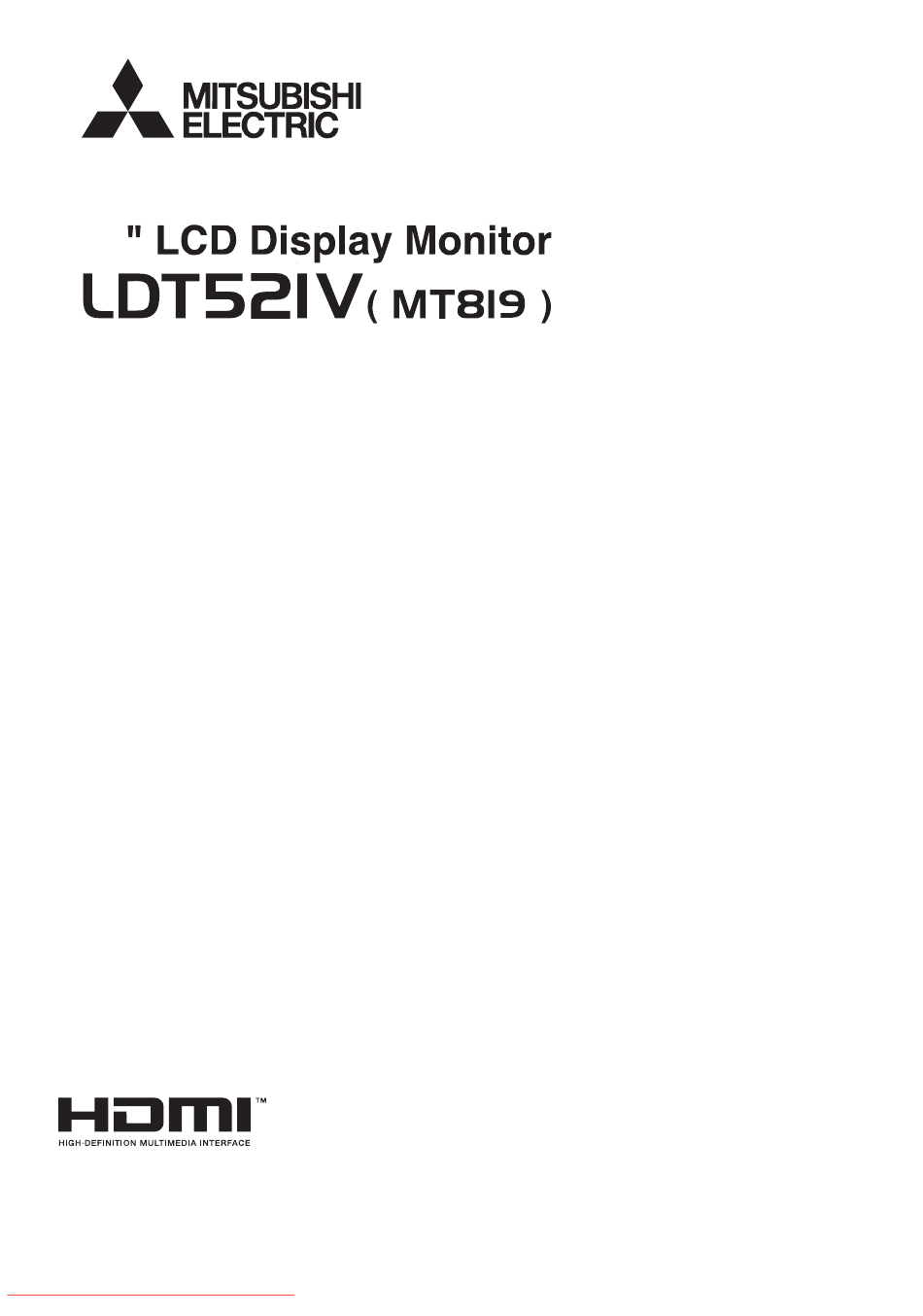

52
OPERATION GUIDE
Downloaded From TV-Manual.com Manuals

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric LDT52IV

Summary of Contents for Mitsubishi Electric LDT52IV

  • Page 1 OPERATION GUIDE Downloaded From TV-Manual.com Manuals...

  • Page 2: Table Of Contents

    Contents Basic Operation ...............3 Menu Items ...............5 Displaying the menu screen .........5 Menu item details ............6 Adjustments for PC screen display ......10 Initialization (Reset)/Functional Restriction Setting ... 11 Controlling the Monitor with a PC (RS-232C) ....12 PC connection ............12 Communication conditions .........12 Communication procedure .........12 RS-232C command table ...........16 Controlling the Monitor with a PC (LAN) .....21...

  • Page 3: Basic Operation

    Basic Operation 5. BRIGHT +/- (Backlight adjustment) Pressing displays the BRIGHT menu when the menu screen is not displayed. B R I G H T Press to adjust the brightness. * If you do not press any buttons for about 4 seconds, the BRIGHT menu automatically disappears.
  • Page 4 Basic Operation Switching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal. WIDE PC input Displays image so it fi lls the entire screen. AV input An image with a 4:3 aspect ratio is stretched to fi ll the entire screen.

  • Page 5: Menu Items

    Menu Items Displaying the menu screen Menu screen display Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu SCREEN PICTURE PC3 D-SUB items. See pages 6 to 8 for details of each menu items. PICTURE AUTO AUDIO...

  • Page 6: Menu Item Details

    Menu Items Menu item details SHARPNESS Adjusts the sharpness of the image. The menu will differ depending on the input mode. ADVANCED (AV input) SCREEN You can adjust more specifi cally. (See page 10.) COLOR MODE AUTO (PC3/PC4) Changes the color mode on the screen. The color mode on The CLOCK, PHASE, H-POS, and V-POS are automatically the screen can also be changed using a remote control unit.
  • Page 7 Menu Items SCREEN MOTION ID No. SET Residual images are reduced by moving the screen. Assigns ID numbers to monitors connected in a daisy chain (see page 13), using RS-232 cables. PATTERN 1 ..The whole screen moves vertically and The numbers 1 to 255 are available for ID numbers.
  • Page 8 Menu Items COLOR SYSTEM (AV4/AV5) TIPS Select the color system of the AV equipment which is • When WHITE BALANCE is set to THRU, BLACK LEVEL, connected to AV4 and AV5 input terminal. (AUTO / PAL / CONTRAST, TINT, COLORS and GAMMA cannot be set. PAL-60 / SECAM / NTSC3.58 / NTSC4.43) •...
  • Page 9 Menu Items Enlarge TIPS • You can align several monitors and integrate them into a • AV input signals cannot be used for the Enlarge function. single large screen to display. • To connect 6 or more monitors using PC1 signals, a splitter •...

  • Page 10: Adjustments For Pc Screen Display

    Menu Items Adjustments for PC screen display (5) INPUT Specifi es the input mode at power-on. When not specifying, Automatic adjustment the screen at the previous power-off appears. Input modes displayed on “PC1/AV1” depend on DVI When you use the PC3 input terminal or PC4 input terminals SELECT settings.

  • Page 11: Initialization (Reset)/Functional Restriction Setting

    Initialization (Reset)/Functional Restriction Setting You can return the settings to their factory-preset values and TEMPERATURE ALERT restrict operations. Selects the notifi cation method for an abnormal temperature. SIZE 1. After pressing for about 5 seconds, press OFF ....Do not notify about an abnormal , and in that order.

  • Page 12: Controlling The Monitor With A Pc (Rs-232C)

    Controlling the Monitor with a PC (RS-232C) You can control this monitor from a PC via RS-232C (COM Communication conditions port) on the PC. You can also connect multiple monitors via a daisy chain by Set the RS-232C communication settings on the PC to match using a PC.
  • Page 13 Controlling the Monitor with a PC (RS-232C) Response code format Communication interval When a command has been executed correctly • After OK or ERR is returned, you must send the following commands. To set a timeout for the command response, specify 10 Return code , 0A seconds or longer.
  • Page 14 Controlling the Monitor with a PC (RS-232C) Commands for ID control IDLK ..The parameter of this command sets the ID number of the monitor. The monitor is subject to all The command examples shown on this page assume the subsequent commands. following connection and ID number set up.
  • Page 15 Controlling the Monitor with a PC (RS-232C) Repeater control This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use Repeater control function without assigning ID numbers. [Example] Set 1 Set 2...

  • Page 16: Rs-232C Command Table

    Controlling the Monitor with a PC (RS-232C) RS-232C command table How to read the command table Command: Command fi eld (See page 12.) Direction: W When the “Parameter” is set in the parameter fi eld (see page 12), the command functions as described under “Control/Response Contents”.
  • Page 17 Controlling the Monitor with a PC (RS-232C) PICTURE menu Function Command Direction Parameter Reply Control/Response contents AUTO AGIN When the input mode is PC3, PC4. CONTRAST CONT 0-60 0-60 0-127 on PC3/PC4. BLACK LEVEL BLVL 0-60 0-60 0-127 on PC3/PC4. TINT TINT 0-60...
  • Page 18 Controlling the Monitor with a PC (RS-232C) SETUP menu Function Command Direction Parameter Reply Control/Response contents OSD H-POSITION OSDH 0-100 0-100 OSD V-POSITION OSDV 0-100 0-100 SCREEN MOTION SCSV 0: OFF, 1-4: PATTERN1-4 MOTION TIME 1 MTIM 0-20 0-20 MOTION TIME 2 PATTERN1 MINT 10-990...
  • Page 19 Controlling the Monitor with a PC (RS-232C) ENLARGE menu (When the input mode is PC) Function Command Direction Parameter Reply Control/Response contents ENLARGE MODE EMAG 0-4 0: OFF, 1: 2 x 2, 2: 3 x 3, 3: 4 x 4, 4: 5 x 5 EMHV 11-55 11-55 1 x 1 (OFF) to 5 x 5 (“m x n”...
  • Page 20 Controlling the Monitor with a PC (RS-232C) PIP/PbyP menu Function Command Direction Parameter Reply Control/Response contents PIP MODES MWIN 0-3 0: OFF, 1: PIP, 2: PbyP, 3: PbyP2 PIP SIZE MPSZ 1-12 1-12 PIP POS THE LONGEST MHPS 0-100 DIRECTION 0-100 THE SHORTEST MVPS...

  • Page 21: Controlling The Monitor With A Pc (Lan)

    Controlling the Monitor with a PC (LAN) Your monitor can be connected to a LAN allowing you to Settings to connect to a LAN control it from a PC on the LAN. You can also confi gure the monitor to send e-mail notifi cation Set the monitor’s IP address and subnet mask to match the when it has a problem.
  • Page 22 Controlling the Monitor with a PC (LAN) To set from a PC 7. Temporarily change the IP address and subnet mask. To access the monitor as it is shipped from the factory, set When the monitor is connected to a PC, LAN settings can be as follows.

  • Page 23: Controlling With A Pc

    Controlling the Monitor with a PC (LAN) 5. Click on “LAN SETUP” under NETWORK. Controlling with a PC Basic operation You use Internet Explorer on a PC on the LAN to control the monitor. 1. Launch Internet Explorer on the PC. 2.
  • Page 24 Controlling the Monitor with a PC (LAN) INFORMATION ADJUSTMENT Information about this monitor appears. You can adjust these settings which are also available on the monitor’s menu. • SCREEN (See page 6.) • PICTURE (See Page 6.) • PICTURE (ADVANCED) (See Page 6.) •...
  • Page 25 Controlling the Monitor with a PC (LAN) NETWORK (LAN SETUP) NETWORK (SECURITY) This screen allows you to set the settings necessary when the This screen allows you to specify the security-related settings. monitor is connected to a LAN. USER NAME / PASSWORD DHCP CLIENT Sets up a user name and password to restrict access to this If your LAN has a DHCP server and you wish to obtain an...
  • Page 26 Controlling the Monitor with a PC (LAN) NETWORK (GENERAL) MAIL (ORIGINATOR) This screen allows you to specify the general LAN settings. This screen allows you to confi gure the e-mail sent periodically or when the monitor has an error. The settings depend on the confi guration of your LAN. Ask your LAN administrator for details.
  • Page 27 Controlling the Monitor with a PC (LAN) MAIL (RECIPIENT) MAIL (PERIODICAL) This screen allows you to specify the recipients of the e-mail When PERIODICAL for CONDITION of MAIL (RECIPIENT) is sent periodically or when the monitor has an error. checked, set the date and time to send the mail. RECIPIENT E-MAIL ADDRESSES DAY OF THE WEEK Specify the e-mail addresses to send error notifi...
  • Page 28 Controlling the Monitor with a PC (LAN) SERVICE & SUPPORT (URL INFORMATION) You can display a specifi c URL in the URL INFORMATION fi eld on the INFORMATION screen when an error occurs in the monitor. (See page 24.) URL INFORMATION Enter a URL to display when an error occurs on the monitor.
  • Page 29 M E M O Downloaded From TV-Manual.com Manuals...
  • Page 30 :projector.info@meuk.mee.com Technical Phone :+44 (870) 606 5008 :+44 (1506) 431927 E-mail :projector.info@meuk.mee.com Russia (Mitsubishi Electric Europe B.V Moscow Representative Office) 52, bldg.5, Kosmodamianskaya Nab, 113054, Moscow, Russian Federation Sales Phone :+7 (095) 721 2070 :+7 (095) 721 2071 Technical Phone...
