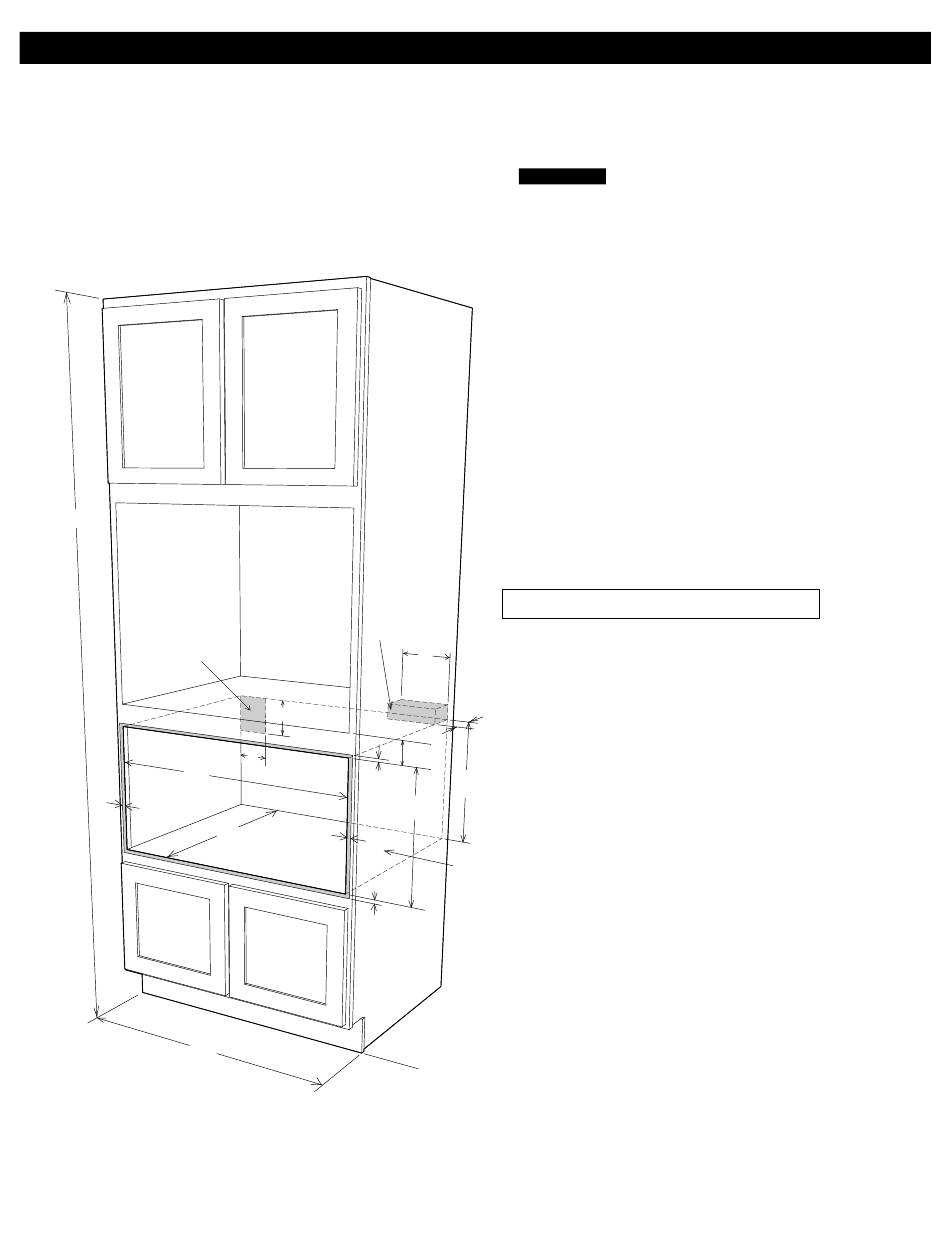

30" mICRoWAvE dRAWER mEASUREmENtS
Figures 4, 5 and 6 contain many Microwave Drawer measurements
for reference when planning the drawer's location.
This Microwave Drawer can be installed below any electric or
gas wall oven.
A
C
J
M
Figure 4
B
E
G
H
K
N
M
R
* Can also be installed using an electrical outlet in an adjacent
cabinet within the area where the provided electrical cord can
reach. Power cord access hole in cabinet should be a minimum
1 / " diameter hole and deburred of all sharp edges.
1
2
IMPORTANT
electrical outlet to prevent tension.
Always check electrical codes for requirements.
Cutout Dimension 28
D A. 84" wall cabinet
B. Optional wall oven cutout illustrated in sketch
C. Suggested electrical outlet location*
F
D. 6"
E. Anti-Tip block
I
F. 3-1/2"
G. 5"
L
H. 4"
O
I. 2" minimum
J. 28-7/16" opening
K. Allow 3/16" overlap
Q
L. 14-13/16" to bottom of Anti-Tip block
P
M. Allow 23/32" overlap
N. 23-1/2" minimum depth
O. 15-9/16" opening
P. Allow 1/8" overlap
Q. Floor must support 100 lb
R. 30" cabinet minimum
4
Always allow sufficient power cord length to the
7 / " x 15 9 / "
16 16
