Door Swing

For models that are installed adjacent to a wall, 1/2"
(13 mm) clearance is recommended from wall on hinge
side to allow the door to open 90°. Allow for additional
space for any knobs or pulls installed on the integrated
panel/frame.
Units have a zero clearance when installed adjacent to
cabinets.

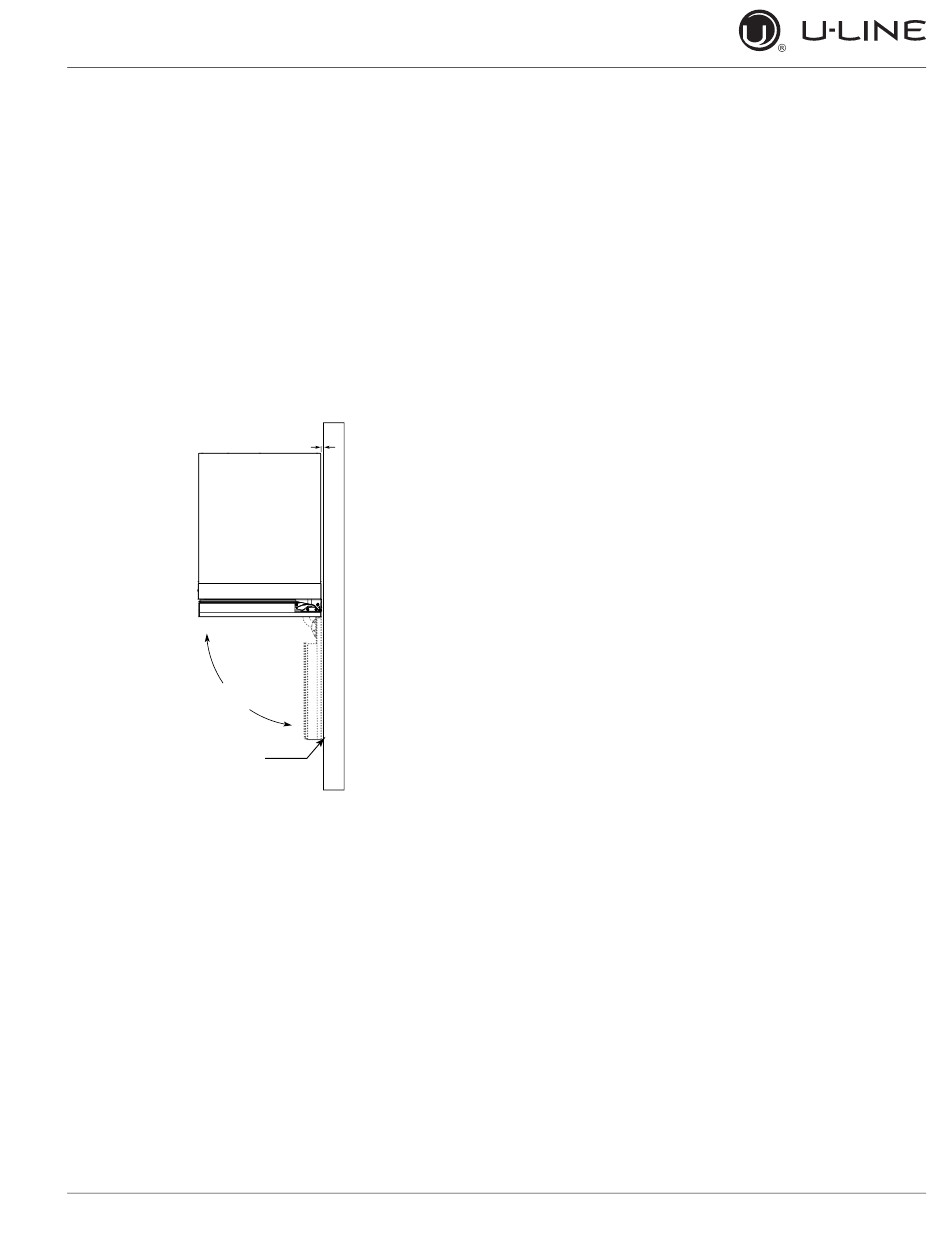

Wall
1/2" (13 mm)
90°
Door Swing
Space Required
For any Knobs or Pulls
Door Swing 1
