Contec FXA3000-US Setup Manual

IEEE802.11n/a/b/g Wireless LAN
(Access point / Station)

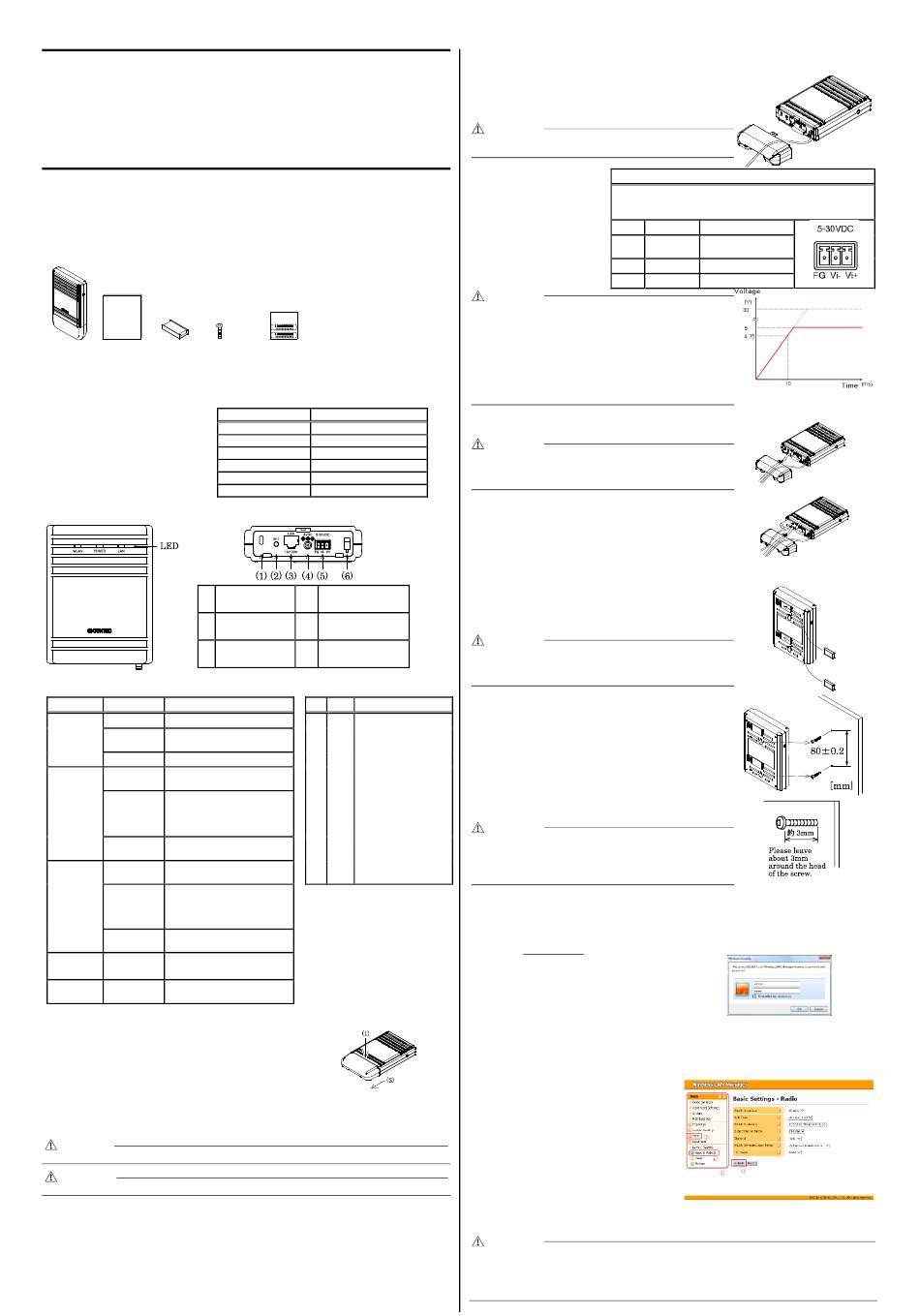

FXA3000-US Setup Guide
CONTEC CO., LTD.
The FXA3000-US is an access point that conforms to IEEE 802.11n/a/b/g wireless networking standards and that
supports a wide range of input power (5 to 30 VDC) and PoE.

Packing List

- Main unit (FXA3000-US)...1
- Setup Guide (English)...1
- Connector cover (Installed in unit)...1
x2
SetupGuide Magnet Tapping Screws
FXA3000 Series
* You are free to download the manual of this product from the CONTEC's website (https://www.contec.com/).

Default setting

This product is set up via a network using a Web
browser. Connect this product to the PC with a
LAN cable using the wired LAN connection and
then access the default IP address in a web
browser. This product' s default settings are shown
in the table to the right.

Component Locations

(1) Security slot
(3) LAN port
(5) Power connector

LED display

LED name Status Indicator
Indicates that the device is operating.
ON
Indicates that the device is being
Flashing
POWER
started (This device turned on)
Indicates that the device is power off.
OFF
Indicates that a wired LAN has been
ON
connected.
Indicates that the product is
transmitting/receiving data to/from the
Flashing
LAN
connected terminal through wired
LAN.
Indicates that a wired LAN not logged-
OFF
in.
Indicates that the device has been
ON
connected.
Indicates data is being transmitted to
Flashing or received from the device connected
WLAN
through wireless LAN.
Indicates that the device has been no
OFF
connected.
POWER/ LAN/ Flashing Indicates that firmware has been
(simultaneously) reprogrammed. *1
WLAN
Blinking twice /
POWER/LAN
DHCP error
On
*1 Not include LogFile
Removing the connector cover
While lightly pushing vertically on the center of the connector cover [(1) in the
diagram], slide the entire cover [(2) in the diagram], and remove the connector
cover.

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of
equipment and resources. Understand the meanings of these labels to operate the equipment safely.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage.
About the speed mark
The link speed shown for the transmission rate in this manual, the setup screens, and elsewhere is the theoretical maximum value based on the wireless
LAN standard and does not represent the actual data transfer rate.
- Tapping screws...2 - Magnet...2
- Serial Number Label...1
x2
Serial Number Label
Setting Item Default setting
IP Address 192.168.0.1
Subnet Mask 255.255.255.0
ESSID LocalGroup
Security (No input)
User name admin
Password pass
(2) INIT Switch
(4) DC JACK
Power disconnection
(6)
prevention hook
INIT Switch
No. Name Operation / function
INIT Used to initialize this product
1
(reset to factory default
settings). When this switch is
pressed, the POWER,
WLAN, and LAN LEDs
start to flash. If this switch is
released during the period
from when the LEDs start to
flash and until they turn on
(approximately 3 seconds), all
of the access point' s settings
will be reset to the factory
default when next started.
* When initializing the product by turning the INIT
signal on and off, the LEDs will continue flashing
for a short time after the signal is turned off. This
indicates the internal memory files are being
deleted. If the power is turned off while the LEDs
are flashing, the internal memory files may be
damaged and the product may no longer be able to
start properly. Always restart the product after the
LEDs stop flashing.

Power Supply

When using the AC adapter (FX-AC053)
Pass the DC plug through the connector cover opening and connect the AC
adapter' s DC plug to the product' s DC jack. You can prevent the DC plug from
being pulled out by hooking the cord on the power disconnection prevention
hook located on the connector section.
CAUTION
When supplying power via PoE, do not use the power supplied from the power connector or
the AC adapter.
When supplying power from the power
connector
Power connector: MC1,5/3-ST-3,5(PHOENIX CONTACT),
Power can be externally supplied using
Cable: AWG28-16(on the condition that the cable length satisfies the power
the power connector. Use the
specifications)
components indicated to the right for the
Pin No.
power cable or use equivalent
components.
1
2
3
CAUTION
- Carefully manufacture the power cable taking care not to mistake the wiring. In particular, if
the power cable is used with mistaken housing pin numbers, there is a risk of malfunction or
accidents.
- Input voltage range: 5 to 30 VDC ± 5%. Use a power supply that rises to 4.75 VDC or higher
in the input voltage range within 10 ms. There is a risk of damage to the device or accident if a
power supply outside this range is used.
- When supplying power with the AC adapter, do not use power supplied from the power
connector.
- For PoE wire route only in the same building
LAN Port
Connect a LAN cable to this product's LAN port.
CAUTION
- Ensure that the cable length between this product and a PC or hub is 100 m or shorter.
- When supplying power via PoE or when using 100BASE-TX, use a Category 5 or better
cable. When using 10BASE-T, use a Category 3 or better cable.
Attaching the security wire
A commercially available security wire can be attached to the security slot
located on the connector section.
Recommended security wires:
- KOKUYO EAS-L41, Buffalo BSL4DS, SANWA SUPPLY SL-31S
Attaching the connector cover
Attach the connector cover to the product.
Using magnets for installation
Attach the included magnets to the two magnet attachment locations on the
back of the access point. To attach the magnets, push them in the direction of
the arrow to insert them entirely into the attachment holes.
CAUTION
- Do not place the magnets near items that are susceptible to magnetic fields.
- If the product is moved while attached to a steel desk or other object, it may damage the
painted surface.
Using the included screws for installation
Referring to the diagram to the right, drive the two included screws into a
sturdy, vertical wall surface while leaving around 3 mm of the screws sticking
out from the wall surface.
Hook the attachment holes on the back of the access point to the heads of the
screws to attach it.
Due to the characteristics of wireless networks, the signal will spread in a wider
area when the access point is installed in a highly-visible location, so we
recommend you install it in a location as high as possible.
Note that the placing the product near metal or concrete walls (including steel
beams) may cause the signal quality to degrade.
CAUTION
- The access point cannot be installed on the ceiling using the screws due to the danger of falling.
If a ceiling installation is required, use the optional installation bracket.
- Caution: If the product's ventilation holes are blocked, the product may malfunction due to a
rise in internal temperature.

Connecting to This Product Using Web Browser

Start up a Web browser and enter the IP address of this product after "http: //" in the address bar. If connecting for the first
time, enter the default IP address. When the default setting IP address is 192.168.0.1, enter as follows.
http://192.168.0.1/
Connecting to this product displays the "Wireless LAN
Manager" login screen/ If the login screen is not displayed, the
IP address setting for PC, browser settings, or the URL entered
in the address bar of the browser may be incorrect.
Enter a password on the login screen and then click "Login" to log in.
When connecting for the first time, Default setting is Username="admin" & Password="pass" and just click "OK" .
If the login is successful, the following setup screen will be displayed after a little while.

Setup Using Web Browser

Select the desired setting items from the opened menu (1).
Information such as setting items will be displayed in the right-
hand frame.
For more information about a setting item, please refer to
"help" (2).
Click "Submit" (3) after changing settings on each page to
temporarily save the settings in this product.
The settings become enabled when the product is restarted
after all the setup procedure is completed and the settings are
stored. Click "Save & Reboot" (4) on the left-hand menu.
There will be no problem if you just save the settings now but reboot the product later when necessary. In this case, saving
the settings does not actually change the settings of the product. Therefore, make sure to reboot the product later
CAUTION
It takes approximately 5 - 10 seconds to save settings (writing to internal flash memory). During that period, the LEDs for POWER, LAN and
WLAN at the front part of the main unit blink simultaneously. Do not reboot or turn off the product until the screen indicates the completion of the
saving process. The setup file data and firmware data may be damaged and the product may not operate properly if it is rebooted or switched off
during the saving process.

Function

Signal name Meaning
Power supply
Vi+
(5 to 30 VDC ±5%)
Vi- Power supply (GND)
FG Frame ground
