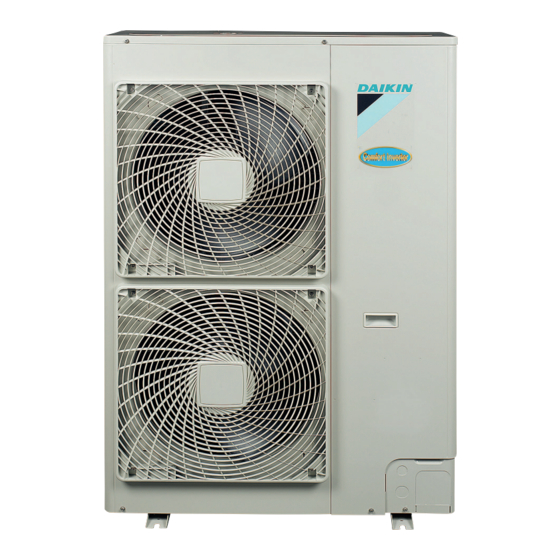

Daikin RZQ100C7V1B Installation Manual
Hide thumbs Also See for RZQ100C7V1B:

Advertisement

Quick Links

INSTALLATION MANUAL
Split System air conditioners
RZQ71B9V3B
RZQ100C7V1B
RZQ125C7V1B
RZQ140C7V1B
RZQ100B8W1B
RZQ125B8W1B
RZQ140B8W1B
