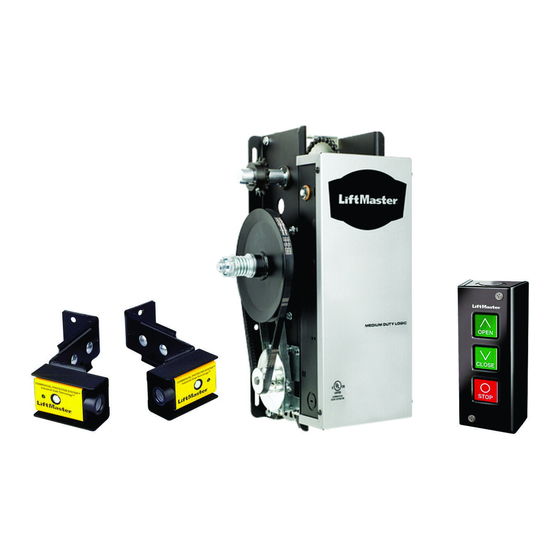

MEDIUM DUTY DOOR OPERATOR
MODELS MJ5011U, MH5011U, MHS5011U, & MGJ5011U
INSTALLATION MANUAL
2 YEAR WARRANTY
Serial #
(located on electrical box cover)
Installation Date
For more information, please visit www.devancocanada.com or call toll free at 855-931-3334
Your model may look different than the model illustrated in this manual.
NOT FOR RESIDENTIAL USE
THIS PRODUCT IS TO BE
INSTALLED AND SERVICED BY A
TRAINED DOOR SYSTEMS
TECHNICIAN ONLY.
Visit www.liftmaster.com to locate a
professional installing dealer in your area.
OPERATOR RATING: 12 cycles per hour,
50 cycles per day; maximum
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chamberlain MH5011U-RH
Summary of Contents for Chamberlain MH5011U-RH
- Page 1 MEDIUM DUTY DOOR OPERATOR MODELS MJ5011U, MH5011U, MHS5011U, & MGJ5011U INSTALLATION MANUAL Your model may look different than the model illustrated in this manual. 2 YEAR WARRANTY THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A Serial # TRAINED DOOR SYSTEMS (located on electrical box cover) TECHNICIAN ONLY.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION APPLICATION OPERATOR SPECIFICATIONS Weights and Dimensions ....5 Motor ......6 Mechanical. -
Page 3: Safety Information
WARNING SAFETY INFORMATION WARNING WARNING CAUTION CAUTION WARNING Mechanical When you see this Signal Word on the following pages, it will CAUTION WARNING alert you to the possibility of damage to your door and/or the door WARNING WARNING operator if you do not comply with the cautionary statements that accompany it. -
Page 4: Application
APPLICATION This operator includes a number of features that will provide years of reliable and safe operation. FEATURES: • Supports both monitored and non-monitored entrapment protection devices: Entrapment protection devices detect obstructions in the door's path and automatically reverse a closing door. -
Page 5: Operator Specifications
OPERATOR SPECIFICATIONS WEIGHTS AND DIMENSIONS MODELS MH, MJ, AND MHS Hanging Weight: 60-70 LBS. (27.22-31.75 kg) 12.69" 6.13" (32.23 cm) (15.57 cm) 6.34" 6.34" MOUNTING DIMENSIONS 3.25" (16.1 cm) (16.1 cm) (8.26 cm) A - Wall Mounting B - Bracket Mounting (rolling door) 3.1"... -
Page 6: Motor
(-20˚ C to + 50˚ C) FINISH: ... . . Powder coated, Corrosion Resistant Steel UL Listed to 40˚ C: Chamberlain tested to 50˚ C CARTON INVENTORY Before beginning your installation check that all components were provided. Your model may look different than the model illustrated. -
Page 7: Preparation
PREPARATION PREPARING YOUR DOOR The manufacturer recommends 3 feet (91.4 cm) of clearance in front of operator for serviceability. Before you begin: • Disable locks. • Remove any ropes connected to door. • Before the operator is installed, be sure the door has been properly aligned and is working smoothly. Although each installation will vary due to particular building characteristics, refer to the following general procedures to install the operator. -
Page 8: Typical Installation
TYPICAL INSTALLATION NOTE: The illustrations may not depict your installation. DETERMINE MOUNTING LOCATION FOR OPERATOR The operator may be mounted on the wall, shelf or bracket (not provided, see accessories or door manufacturer). The optimum distance between the door shaft and operator drive shaft is 12-15 inches. WALL MOUNT SHELF OR BRACKET MOUNTING Door Shaft... - Page 9 TYPICAL INSTALLATION INSTALL THE OPERATOR Wrap drive chain around door sprocket. Wrap drive chain around operator sprocket. Door Sprocket Drive Chain Electrical Box Door Sprocket Operator Drive Sprocket Drive Chain Master Link Position the operator until chain is taut (not tight). If chain is too tight, it may Door Sprocket cause damage to operator.
-
Page 10: Install Emergency Disconnect System
TYPICAL INSTALLATION INSTALL EMERGENCY DISCONNECT SYSTEM MODELS MH AND MHS ONLY MODELS MJ AND MGJ ONLY The MHS operator includes both a floor level disconnect sash Secure keyhole bracket to wall 4 feet above the floor. chain to disconnect the door from the door operator that allows manual push up operation and an additional sash chain to engage the manual chain hoist that also electrically disables the operator controls. -
Page 11: Power And Ground Wiring Connections
TYPICAL INSTALLATION WARNING POWER AND GROUND WIRING CONNECTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: • ANY maintenance to the operator or in the area near the • ALL electrical connections MUST be made by a qualifi ed operator MUST NOT be performed until disconnecting the individual. -
Page 12: Install 3-Button Control Station
TYPICAL INSTALLATION POWER AND GROUND WIRING CONNECTIONS Attach power and ground wires to terminals. Power Control Line Power 115 Vac Single Phase WARNING INSTALL 3-BUTTON CONTROL STATION WARNING WARNING To prevent possible SERIOUS INJURY or DEATH from electrocution: • Install the entrapment warning placard on wall next to the •... -
Page 13: Setup Radio Antenna
TYPICAL INSTALLATION INSTALL 3-BUTTON CONTROL STATION Fasten the entrapment warning placard next to the control Connect wires to the control station and replace the control station cover. station. Power AUX ANT ^^^^ AUX ANT AUX ANT LEARN STOP CLOSE OPEN Entrapment LMEP1 LMEP2 COM INTRLK STOP... - Page 14 TYPICAL INSTALLATION SETUP RADIO ANTENNA OPTION B Locate the wire antenna on the outside of the electrical box. Attach the antenna to the electrical box using the wire tie Cut wire ties and discard standoff. holes. Bend antenna across the front of the electrical box, ensuring that the antenna is 4 inches away from the front of the electrical box.
-
Page 15: Adjustment
ADJUSTMENT WARNING ADJUST THE LIMITS WARNING WARNING To avoid SERIOUS personal INJURY or DEATH from • Disconnect electric power BEFORE performing ANY electrocution: adjustments or maintenance. Depress retaining plate. Adjust OPEN limit. Adjust CLOSE limit. Retaining Plate OPEN Limit Nut Decrease OPEN Limit Switch Increase... -
Page 16: Entrapment Protection
ENTRAPMENT PROTECTION WARNING WARNING LIFTMASTER MONITORED ENTRAPMENT CAUTION WARNING WARNING PROTECTION (LMEP) To prevent possible SERIOUS INJURY or DEATH from a closing IMPORTANT INFORMATION ABOUT THE LIFTMASTER door: MONITORED ENTRAPMENT PROTECTION DEVICES • Be sure power is NOT connected to the door operator A LiftMaster Monitored Entrapment Protection (LMEP) device is BEFORE installing the photoelectric sensor. -
Page 17: Install The Photoelectric Sensors
ENTRAPMENT PROTECTION INSTALL THE PHOTOELECTRIC SENSORS The following instructions show recommended assembly of the bracket(s) and “C” wrap based on the wall installation of the photoelectric sensors on each side of the door or on the door tracks themselves. There are also alternate mounting methods which may fi... -
Page 18: Mount The Photoelectric Sensors
ENTRAPMENT PROTECTION MOUNT THE PHOTOELECTRIC SENSORS Center each sensor in the bracket with the lenses pointing toward each other across the door. Wing Nut Wire “C” Wrap Attach the sensors to the brackets with the provided hardware. Finger tighten the receiving sensor wing nut. Indicator Light Securely tighten the sending sensor wing nut. -
Page 19: Logic Board Layout
ENTRAPMENT PROTECTION ENTRAPMENT PROTECTION WIRING OPTIONS ALTERNATE INSTALLATIONS: CPS-U PHOTOELECTRIC SENSOR WITH 2-WIRE SENSING EDGE 2-wire electric or pneumatic sensing edge (White) (White/Black) CPS-U PHOTOELECTRIC SENSOR WITH 4-WIRE SENSING EDGE 4-wire electric sensing edge (White/Black) (White) 2-WIRE ELECTRIC OR PNEUMATIC SENSING EDGE (B2 NOT AVAILABLE) 2-wire electric or pneumatic sensing edge (White/Black) (White) -
Page 20: Basic Programming
BASIC PROGRAMMING DETERMINE THE WIRING TYPE The functionality of this operator is based on the wiring type. The operator is shipped from the factory in standard C2 wiring type (factory default). LIFTMASTER MONITORED ENTRAPMENT PROTECTION (LMEP) DEVICE IS RECOMMENDED. A LiftMaster Entrapment Protection (LMEP) device is required for any momentary contact to close mode of operation including B2, TTC and remote controls. -
Page 21: Remote Controls
BASIC PROGRAMMING DETERMINE THE WIRING TYPE ALTERNATE INSTALLATION: C2 WIRING TYPE WITH MONITORED ALTERNATE INSTALLATION: C2 WIRING TYPE WITHOUT ENTRAPMENT PROTECTION DEVICE MONITORED ENTRAPMENT PROTECTION DEVICE (FACTORY DEFAULT) • Momentary contact to open and stop with constant pressure to • Momentary contact to open and stop with constant pressure to close. -
Page 22: Timer-To-Close (Ttc)
BASIC PROGRAMMING REMOTE CONTROLS WARNING WARNING To prevent possible SEVERE INJURY or DEATH: • Install a LiftMaster Monitored Entrapment Protection (LMEP) • Activate door ONLY when it can be seen clearly, is properly CAUTION device. adjusted and there are no obstructions to door travel. •... -
Page 23: Testing
BASIC PROGRAMMING TIMER-TO-CLOSE (TTC) CLEAR THE TIMER-TO-CLOSE (TTC) TIMER DEFEAT The TTC can be temporarily Release the Press and hold disabled by pressing a STOP button. TTC button the TTC button (LED will go for 6 seconds. TTC will become enabled after the Press and out). -
Page 24: Emergency Disconnect
WARNING EMERGENCY DISCONNECT WARNING WARNING To prevent possible SERIOUS INJURY from a moving chain: • DISCONNECT electric power to the operator BEFORE manually • NEVER use emergency disconnect unless doorway is clear of operating your door. persons and obstructions. • If possible, use emergency disconnect ONLY when door is CLOSED. -
Page 25: Troubleshooting
TROUBLESHOOTING Technical Support 1-800-528-2806 CONDITION POSSIBLE CAUSE ➤ Verify primary line voltage (120 Vac, 60 Hz) is present at terminals L1 & OPERATOR WILL NOT RESPOND TO ANY A) No power COMMANDS The LED will fl ash when power is present. ➤... -
Page 26: Diagram
TROUBLESHOOTING The status of the operator can be determined by counting the number of flashes of the LED on the logic board. DIAGNOSTIC LED TABLE # OF LED FLASHES STATUS System OK. Operating in C2 mode None System OK. Operating in B2 mode None Stuck CLOSE button Check for stuck close button or shorted close wire... -
Page 27: Accessories
ACCESSORIES ENTRAPMENT PROTECTION DEVICES REMOTE CONTROLS 315 MHZ CPS-UN4 ® LiftMaster offers a variety of SECURITY✚ Remote Controls for your application needs. Single to 4-Button, Commercial Protector System: visor or key chain. Contact your authorized dealer. LiftMaster Monitored Entrapment Protection (LMEP) 371LM provides protection on doors up to 45' wide. -
Page 28: Control Connection Diagram
DEVICE TO REVERSE EXTERNAL INTERLOCK Note: For photoelectric sensors connection options see Remove Factory Installed Jumper ENTRAPMENT PROTECTION section. When Interlock is Used Sensing Device 2 OR MORE All Wiring Types © 2011, The Chamberlain Group, Inc. 01-34213E All Rights Reserved... - Page 29 HOW TO ORDER REPAIR PARTS DEVANCO CANADA 19192 HAY ROAD, UNIT Q SUMMERSTOWN, ON K0C 2E0 TOLL FREE: 855-931-3334 www.devancocanada.com WHEN ORDERING REPAIR PARTS PLEASE SUPPLY THE FOLLOWING INFORMATION: 3 PART NUMBER 3 DESCRIPTION 3 MODEL NUMBER...
