Aston Global Moselle SDR976 Installation And Owner's Manual

Shower door with tray
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MOSELLE (SDR976)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Moselle SDR976 and is the answer not in the manual?

Questions and answers

Related Manuals for Aston Global Moselle SDR976

Summary of Contents for Aston Global Moselle SDR976

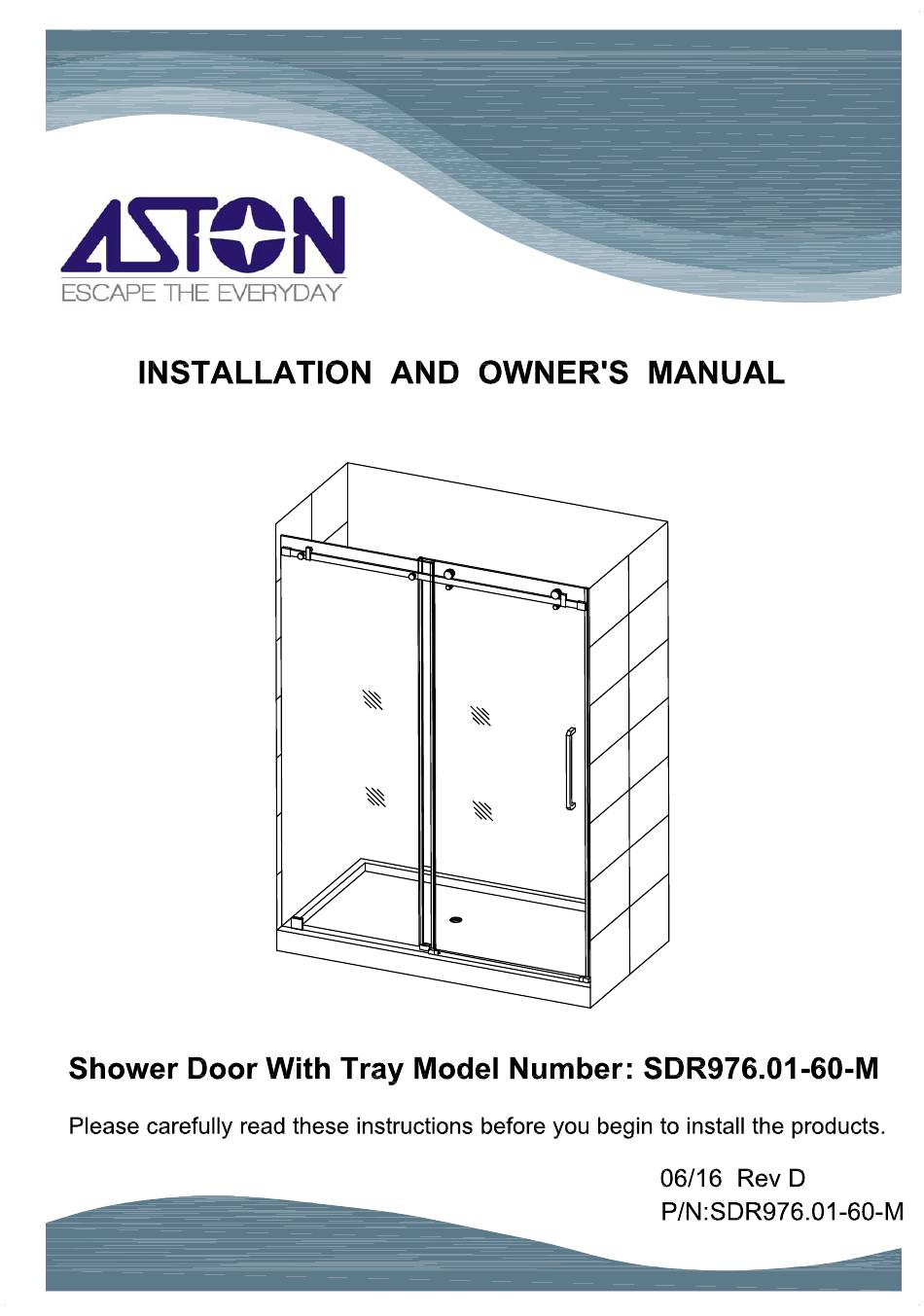

  • Page 1 MOSELLE (SDR976)

  • Page 2: Before You Start

    Before you start Thank you for purchasing your Aston shower door. We hope that it will provide you with years of satisfying use and enjoyment. Please read this manual carefully because it contains information and instructions about the proper installation of the unit. If you do not follow certain conditions of installation and maintenance, your warranty may be affected.
  • Page 3 Detailed Diagram of Shower Door Components � lllJ � � Number Description Number Description Door Stopper Door Threahold End Cap Door Seal Top Rail Fixed Glass Door Seal Sliding Door Door Seal Rail End Door Handle Wall Mount Fixed Glass Bolt Assembly 2 Screw Pack 1 Glass Clamp Screw Pack 2...

  • Page 4: Supplied Hardware

    SUPPLIED HARDWARE M4x40 SCREW PACK � Anchor [©Ee::3 M4x40 SCREW PACK � ( 2 ) Anchor C@Ec::3 -Snmsuus1>- M4x40 SCREW PACK Anchor [ w=z:=3 SUPPLIED PARTS 60" 30" 03_,k '1''...
  • Page 5 Installation Guide Please read and follow the installation instructions and guidelines in this section. Failure to follow the recommended instructions and installation techniques may lead to possible damage to the unit or the surrounding area. This can affect warranty claims. ATTENTION: This unit requires assembly.
  • Page 6 Preparation of base for installation of shower tray Tile or Finished Surfa e Stud--­ Dry Wall Or Wall Board WARNING: THE Aston shower door and tray are designed to be used with tile walls. If you are using a pre-made Acrylic/ABS/FRP shower stall that will be thicker than average wall board plus tile then you must consider the offset of the pre-made panel.
  • Page 7 This can be accomplished by leveling the subfloor by use of Shims, Leveling compound or placing the shower tray into a mortar base The shower tray must be installed so that the tile lip is against the wall studs. It is recommended that the tray is attached to the studs using screws.

  • Page 8: Sliding Door

    Reverse Door opening This shower door can be assembled so that the sliding door opens from Left to Right, or Right to Left. The drawings below illustrate the shower door opening from Right to Left. Note the location of the fixed glass panel for the shower door opening from Right to Left.
  • Page 9 Shower Door Installation 1. Install all of the wall material or materials you intend to use before measuring the width of the opening. This includes all moisture resistant wall board, rock board, tile, stone or other wall covering. 2. Measure the width of the shower opening at the top between the 2 walls. Note this is dimension "X".
  • Page 10 Mark the Top Rail Location ATTENTION: A minimum of two people are required for the next assembly steps. Preassembly the top rail onto the fixed glass to locate the mounting points on the wall relative to your desired location. Painters tape or masking tape in the general location of the of the final installation will aid in marking the wall and floor.
  • Page 11 Slide the door stoppers (1) onto each end of the the top rail (2). The bumpers on door stoppers (1) should face inward and be on top for final installation. See figure 1. Assemble top rail (2) to fixed glass (3) following the assembly sequence shown in figure 2.
  • Page 12 Mounting the Top Rail mounts Brackets D mm 14mm 12mm 1. Remove the rail ends (5) from the top rail (2). Install the wall mounts (6) into one of the rail ends (5), using the set screw to locate the Wall Mount (6) within the rail end (5).
  • Page 13 NOTE: If your surface is prone to cracking or chipping then it is recommended that you pilot drill first using a smaller drill bit, and then step up to the final size. 2. Using the appropriate drill bit for your wall surface drill the hole locations with a 5/16"...
  • Page 14 Install Wheel Rollers onto the Door � Assemble the upper roller assemblies (9) onto sliding door (4) as seen in figure1 Note: The door handle mounting holes should be positioned to left. The upper roller assemblies (9) will be on the outside of sliding door (4). The sliding door should be to the inside of shower area.
  • Page 15 Hanging the Door Bottom Roller Guide UPPER ROLLER CAM Assembies ADJUSTMENT Rotate the outer edge of roller assembly usin- g ---�� the small hex, � � while holding the large hex wrench ---­ in place. End View upper roller assembly (9) -- top rail (2) bottom roller -guide...
  • Page 16 Install the Door Threshold 0½" M4X40 The Door Threshold is used to prevent water from seeping out while bathing. Install the threshold according to these instructions. 1. Measure the distance between the fixed glass (3) and the shower wall. See figure 1 2.
  • Page 17 NOTE: If your surface is prone to cracking or chipping then it is recommended that you pilot drill first using a smaller drill bit, and then step up to the final size. 4. Using the appropriate drill bit for your tray surface drill the hole locations with a 1 /8"...

  • Page 19: Installing The Door Handle

    Installing the door handle Install the door handle (16) using hardware provided. Follow the assembly sequence seen in drawing.
  • Page 20 Final sealing Using Bath & Kitchen silicone sealant, seal the fixed glass (3) along bottom edge on shower base, and side edge along shower wall. Next seal around sliding door track divider (7).

  • Page 21: Care And Maintenance

    Care and Maintenance As with any other luxury item, maintenance and care are critical to the long lasting quality and enjoyment of your shower door and tray. The proper care and maintenance outlined in this section are necessary to ensure the longevity of the unit.

  • Page 22: Warranty

    Product shall be replaced, or in the alternative, repaired, shall be made solely by Aston Global. If a Product is determined to be covered by the above Warranty, Aston Global will ship the replacement part(s) to Customer by either ground shipping or US postal service.

  • Page 23: Legal Disclaimers

    Aston Global and it representatives shall not be liable for any injury, loss, cost or other damages, whether incidental or consequential, arising out of any defect covered by this...
  • Page 24 FAILURE TO ENFORCE ANY TERMS OR CONDITIONS STATED HEREIN SHALL NOT BE CONSTRUED TO BE A WAIVER OF SUCH PROVISION. For prompt service, notify the original installer who, in turn, will notify the Aston Global distributor who supplied the Product. If this does not result in prompt service, contact Aston Global, Inc.
  • Page 25 Notes...
  • Page 26 Notes...
  • Page 27 ESCAPE THE EVERYDAY Customer Service 877-424-9699 If further assistance is required, you have a question or need additional product information, please visit our website: www.astonbath.com...
