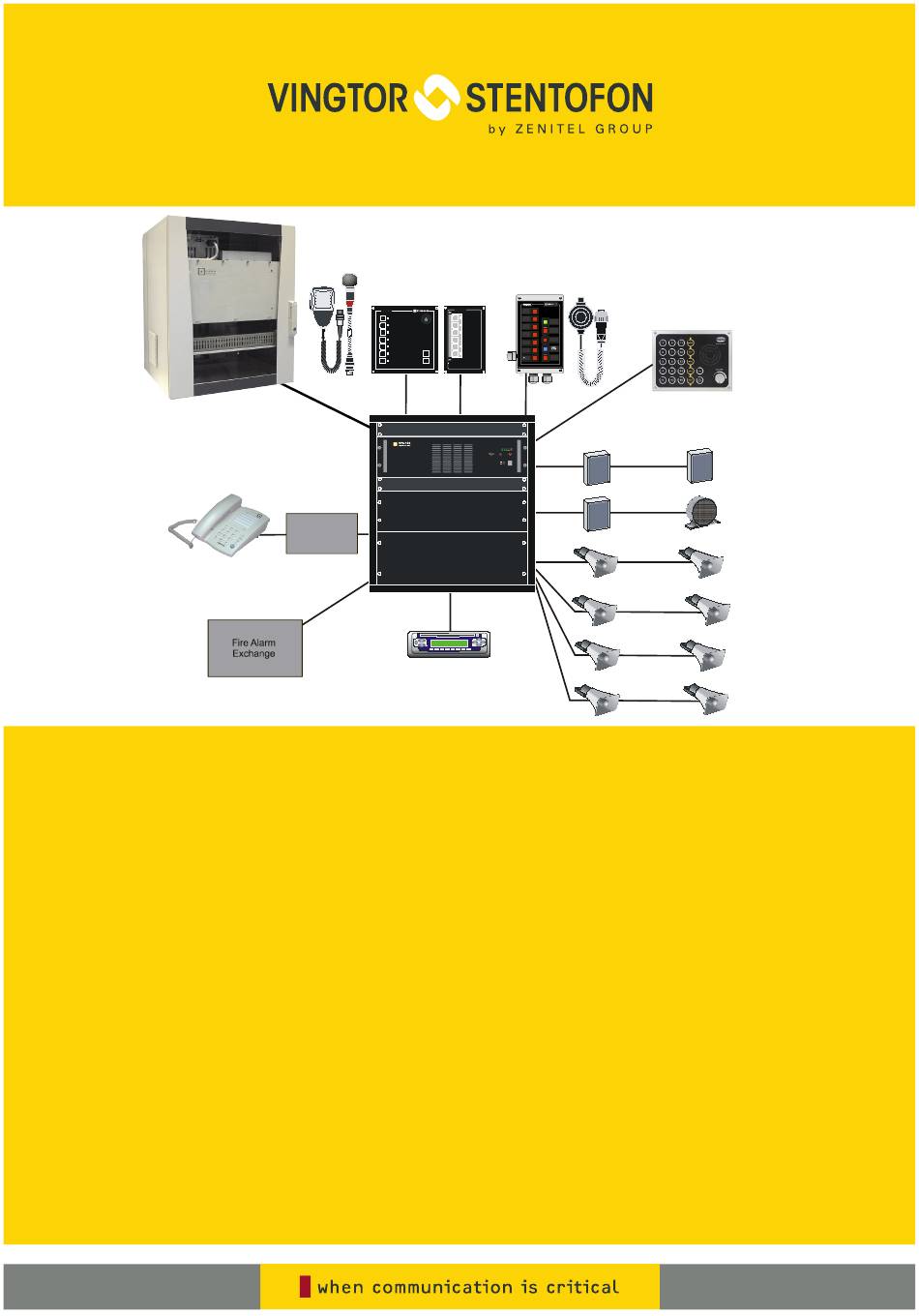

ACM Integrated System
Telephone
User Manual
PUBLIC ADDRESS & GENERAL
ALARM SYSTEM
SPA-V2
TECHNICAL MANUAL
PA microphone panel
SPA-M6D
1
2
3
4
5
6
ALL
ACM Telephone System
PABX
Weatherproof
PA microphone & Alarm panel
Alarm panel
SPA-A6CD
ZONE 1
GENERAL
ZONE 2
GENERAL
ALARM
ABANDON
ZONE 3
ABANDON
ALARM
MANUAL
ZONE 4
MANUAL
RESET
ALARM
ZONE 5
SPARE
ZONE 6
DIM.
EMS
EMERGENCY
PA
TALK
Entertainment
Talk-Back
LS zone 1
Cabins
LS zone 2
Accommodations
LS zone 3
Lifeboat area
LS zone 4
Engine
area
LS zone 5
Open deck
LS zone 6
Open deck
A100K10371
Advertisement
Table of Contents
Related Manuals for Vingtor Stentofon SPA-M6H-D
Summary of Contents for Vingtor Stentofon SPA-M6H-D
- Page 1 Weatherproof PA microphone panel PA microphone & Alarm panel Alarm panel SPA-A6CD SPA-M6D ZONE 1 Talk-Back GENERAL ZONE 2 GENERAL ALARM ABANDON ZONE 3 ABANDON ALARM MANUAL ZONE 4 MANUAL RESET ALARM ZONE 5 SPARE ZONE 6 DIM. EMERGENCY TALK ACM Integrated System LS zone 1 Cabins...
-
Page 2: Table Of Contents
Contents Introduction........................3 1.1 About this Document ....................3 1.2 Publication Log......................3 1.3 Related Documents ....................3 1.4 Rules and Regulations ....................3 User Instructions .......................4 2.1 General Description ....................4 2.2 Make an ALL CALL with SPA-M1-V2 / SPA-M1-D ............4 2.3 Broadcast a PA Message with SPA-M6-V2 and SPA-M6-D ........5 2.4 Alarm Start with SPA-AC6 and SPA-AC6-D ..............6 2.5 Broadcast a PA Message with SPA-W1-V2 &... -
Page 3: Introduction
Introduction 1.1 About this Document The scope of this document is to provide relevant information on how to use the VINGTOR SPA-V2 Public Address & General Alarm System. The information in this document is aimed at System Administrators, System Installers and End Users. 1.2 Publication Log Rev. -
Page 4: User Instructions
User Instructions 2.1 General Description This section contains descriptions on how to use the SPA Public Address System with all its equipment. It is recommended to read this section thoroughly before using the system for the first time. Some equipment models, especially entertainment units, can be changed from one project to another and separate user manuals will be delivered for these models. -
Page 5: Broadcast A Pa Message With Spa-M6-V2 And Spa-M6-D
2.3 Broadcast a PA Message with SPA-M6-V2 and SPA-M6-D This PA panel can operate all six public address zones. SPA-M6-V2 covers single systems while SPA-M6-D covers dual SPA-M6 systems. Single or dual systems are connected according to project specifications at delivery. Usage is similar for both panels. Replaceable text can be used for each push button. -
Page 6: Alarm Start With Spa-Ac6 And Spa-Ac6-D
2.4 Alarm Start with SPA-AC6 and SPA-AC6-D This Alarm panel can start three alarms and Emergency PA. SPA-AC6 L The alarm generator may contain custom alarm configurations according to GENERAL ALARM project specifications. ABANDON ALARM SPA-AC6 covers a single system while SPA-AC6-D covers a dual system. -
Page 7: Alarm Start / Pa Message With Spa-W1Ar-V2 & Spa-W1Ar-D
2.6 Alarm Start / PA Message with SPA-W1AR-V2 & SPA-W1AR-D This unit is a combined panel for GENERAL ALARM and EMERGENCY PA message, meaning that it covers ALL zones for PA messages and Operation will also activate the chime unit if it is installed. Any ongoing alarm message will be muted. -
Page 8: Alarm Start From The Fire Alarm Exchange
● Press the button labeled MANUAL ALARM to activate the Manual alarm. - Indicated by a steady red LED. ● Press the button labeled EMERGENCY PA to activate the Emergency PA message. L This function overrides priorities in the system and should be used with caution. -
Page 9: Broadcast A Pa Message From A Pabx Telephone
2.9 Broadcast a PA Message from a PABX Telephone The zones that should receive messages are set according to project specifications at delivery. The telephone model used depends on the delivered model or customer requirements. Refer to the user manual for the telephone if necessary. 1. -
Page 10: Volume Control Vcor-15 & Vcor-60
2.11 Volume Control VCOR-15 & VCOR-60 5.2.3 VM50-R This is a Volume Control with 24V override for PA message in a single Volume control 50W single PA system system. For entertainment system with 24V override Entertainment loudspeaker zones covered by the volume control are set Technical data according to project specification. - Page 11 www.zenitel.com Zenitel Norway AS The WEEE Directive does not legislate that Zenitel, as a ‘producer’, shall collect ‘end of life’ WEEE. This ‘end of life’ WEEE should be recycled appropriately by the owner who should use proper treatment and recycling measures. It should not be disposed to landfill. Many electrical items that we throw away can be repaired or recycled.
