- Page 1 Exigo Public Address & General Alarm System User Guide for Access Panels User Manual A100K11471...
- Page 2 ● IACS: UI SC145(1998): “International Association of Classifications Societies, Unified Interpretation of SOLAS” Type Approvals The Exigo system has the following type approval certificates: ● DNV GL - Certificate number: A-13830 A100K11471 Exigo Public Address & General Alarm System User Manual...
-
Page 3: Table Of Contents
3 General Alarm Broadcast ............9 4 Manual Alarm Broadcast ............10 5 Abandon Alarm Broadcast ............11 6 PA Broadcast with Zone Selection .........12 7 PA Broadcast with Recall ............13 8 Prerecorded Message Broadcast ...........14 A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 4: Exigo Access Panels
This document contains descriptions on how to use the access panels for the Exigo Public Address & General Alarm System. Access Panel Outdoor Access Panel EMERGENCY PA GENERAL ALARM ABANDON ALARM Power Fault Call A100K11471 Exigo Public Address & General Alarm System User Manual... - Page 5 The protection covers are for preventing accidental use of the function keys. When keys are used for alarms, protection covers are required so as to force a 2-step action for activating the alarms. A100K11471 Exigo Public Address & General Alarm System User Manual...
-
Page 6: Indoor Panel Models

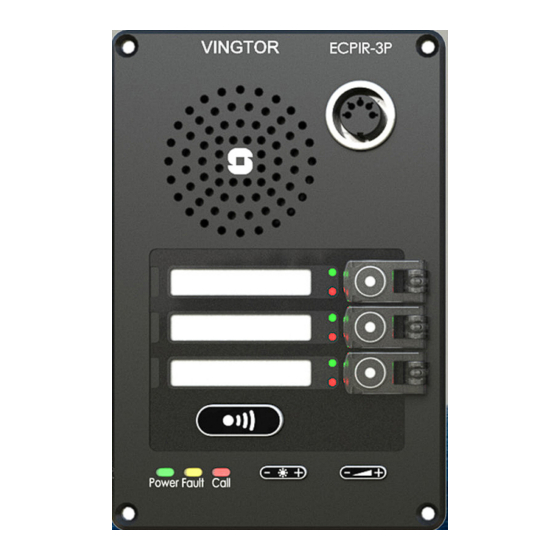

Item Name 1023200033 ECPIR-P Access Panel, PTT + 3 Buttons, Pluggable Mic 1023200030 ECPIR-3P Access Panel, PTT Button, Pluggable Mic 1023201008 EAPIR-8 Access Panel, 8 Buttons 1023253008 EBMDR-8 8-Button Expansion Module A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 7: Outdoor Panel Models
1023533312 EMMAI-2H Handheld Compact Mic Outdoor Industrial Access Panels 1023533511 EMMAX-1H Handheld Compact Mic Outdoor Ex Access Panels PTT (Push-To-Talk) EMMAR-G EMMAR-1H PTT (Push-To-Talk) PTT (Push-To-Talk) EMMAI-1H EMMAX-1H / EMMAI-2H A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 8: Emergency Pa Broadcast
5. Release the PTT key to terminate the PA broadcast. - If an alarm, PA message with lower priority, entertainment broadcast have been muted, they will automatically resume. A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 9: General Alarm Broadcast
L A General Alarm started from the bridge cannot be ter- minated from panels in other locations on the vessel. However, it is possible to terminate any General Alarm in the system from the bridge alarm panel. A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 10: Manual Alarm Broadcast
- Ongoing entertainment broadcast will be muted. - When the key is not pressed within a period of 10 seconds (or less depending on the programming), the alarm is terminated and entertainment broadcast will resume. A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 11: Abandon Alarm Broadcast
MUSTER ALARM lower priority will be muted. MANUAL ALARM 3. Press the ABANDON ALARM key again to terminate the alarm. - Entertainment broadcast and other activities with lower priority will resume. A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 12: Pa Broadcast With Zone Selection
4. Speak close to and clearly into the microphone to broadcast the message. - Ongoing entertainment broadcast will be muted. 5. Release the PTT key to terminate the PA broadcast. - Entertainment broadcast will resume. A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 13: Pa Broadcast With Recall
5. Release the RECORD key to play back the recorded message. - If the message is not satisfactory, press the RECORD key to record the message again 6. Press the DISPATCH key to broadcast the message. A100K11471 Exigo Public Address & General Alarm System User Manual... -
Page 14: Prerecorded Message Broadcast
- When the zone is selected, the green LED by the ZONE key is lit. - To deselect the zone, press the function key again. 3. Press the MESSAGE 1 key to broadcast the prerecorded message. A100K11471 Exigo Public Address & General Alarm System User Manual... - Page 15 A100K11471 Exigo Public Address & General Alarm System User Manual...
- Page 16 DOC NO. A100K11471 Zenitel and its subsidiaries assume no responsibility for any errors that may appear in this publication, or for damages arising from the information therein. Vingtor-Stentofon products are developed and marketed by Zenitel. The company’s Quality Assurance System is certified to meet the requirements in NS-EN ISO 9001.
