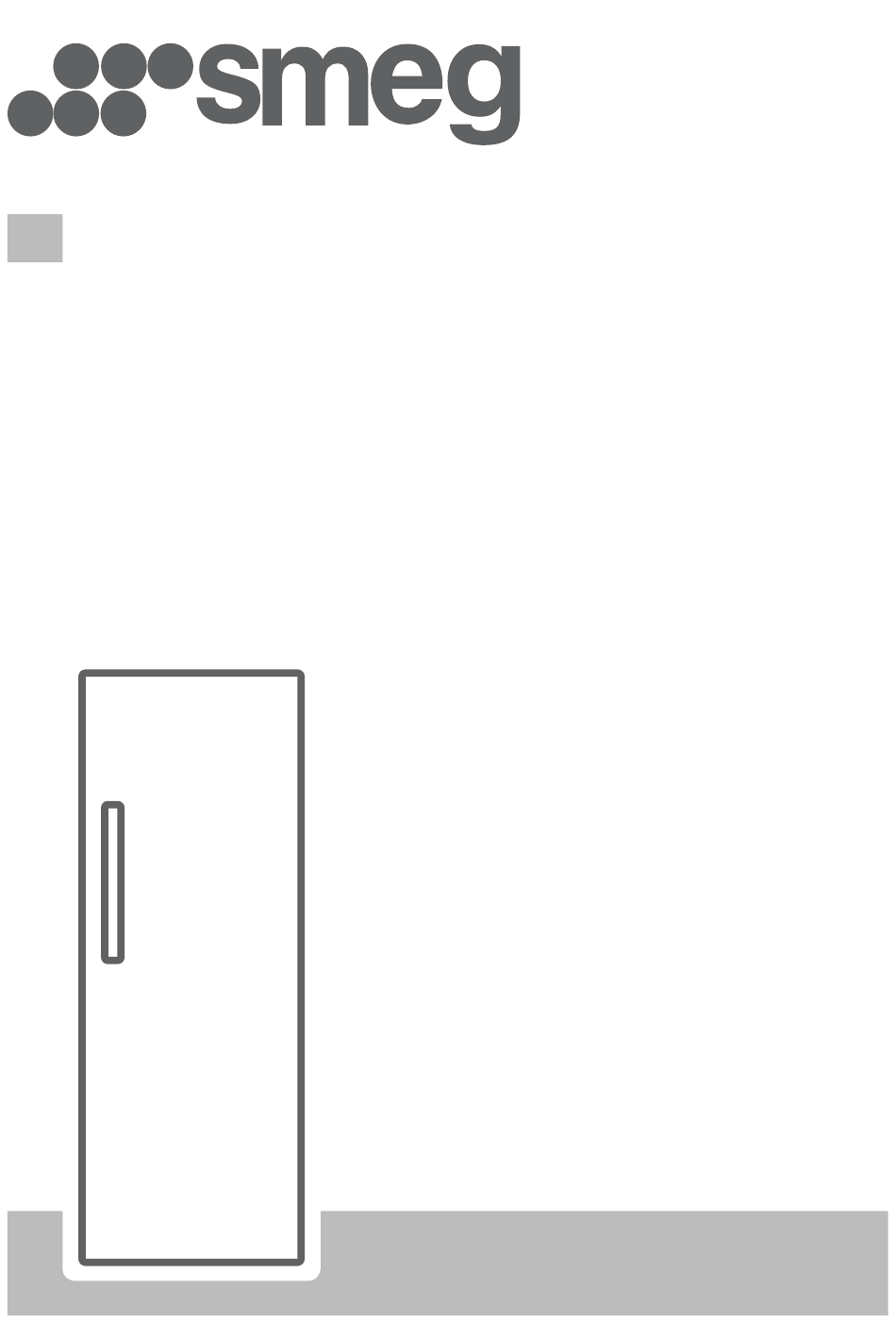

- Page 1 Freezer / User Manual UKFF18EN2HB UKFF18EN2HX...
- Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................. 4 1.1 General Safety Warnings ....................4 1.2 Installation warnings .......................8 1.3 Electrical information (For UK type plug) ................8 1.4 During Usage........................9 2 DESCRIPTION OF THE APPLIANCE ............. 10 2.1 Dimensions ........................11 3 USING THE APPLIANCE ................12 3.1 Information on No-Frost technology ................12 3.2 Display and Control Panel ....................13 3.3 Operating your Freezer ....................13... -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. - Page 5 natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
- Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...
-
Page 8: Installation Warnings
1.2 Installation warnings • Clearance of at least 150 mm is required at the top of your appliance. Do not place Before using your freezer for the first time, anything on top of your appliance. please pay attention to the following points: •... -
Page 9: During Usage
When the door of the freezer is closed, a vacuum seal will form. Wait for 1 minute before reopening it. This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it. -
Page 10: Description Of The Appliance
2 DESCRIPTION OF THE Packaging and the Environment Packaging materials protect APPLIANCE your machine from damage that may occur during transportation. This appliance is not intended to be used The packaging materials are as a built-in appliance. environmentally friendly as they are recyclable. -
Page 11: Dimensions
2.1 Dimensions Overall dimensions 1860 712,5 Space required in use 2010 752,5 Overall space required in use 710,6 1243,5 EN - 11... -
Page 12: Using The Appliance
3 USING THE APPLIANCE 3.1 Information on No-Frost technology No-frost freezers differ from other static freezers in their operating principle. In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. -
Page 13: Display And Control Panel
3.2 Display and Control Panel freezer. After 54 hours, it returns to the Using the Control Panel normal set value. 1. Freezer temperature set button During This Mode: 2. Super freeze symbol (Super freeze LED) If you press temperature set button, the 3. -
Page 14: Accessories
• Temperature adjustments should be freezer will not defrost even if the ambient made according to the frequency of door temperature falls as low as -15 °C. So openings, the quantity of food kept inside you may then install your appliance in an the freezer and the ambient temperature unheated room without having to worry in the location of your freezer. -
Page 15: Food Storage
4 FOOD STORAGE • The maximum amount of fresh food (in kg) that can be frozen in 24 hours is • The freezer is used for storing frozen indicated on the appliance label. food, freezing fresh food, and making ice •... - Page 16 Important note: • Never refreeze thawed frozen food. • The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time.
- Page 17 Maximum storage time Meat and fish Preparation (months) NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Maximum storage time Vegetables and Fruits Preparation (months) String beans and beans Wash, cut into small pieces and boil in water 10 - 13 Hull, wash and boil in water...
-
Page 18: Cleaning And Maintenance
5 CLEANING AND 5.1 Defrosting MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. -
Page 19: Shipment And Repositioning
6 SHIPMENT AND REPOSITIONING 6.1 Transportation and Changing Positioning • The original packaging and foam may be kept for re-transportation (optional). • Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging. •... -
Page 20: Before Calling After-Sales Service
7 BEFORE CALLING AFTER-SALES SERVICE Errors Your freezer will warn you if the temperatures for the freezer is at improper levels or if a problem occurs with the appliance. In case of a problem within the freezer, the alarm led will release red light. -
Page 21: Tips For Saving Energy
8 TIPS FOR SAVING ENERGY Important Notes: • In the case of a power failure, or if the 1. Install the appliance in a cool, well- appliance is unplugged and plugged in ventilated room, but not in direct sunlight again, the gas in the cooling system of and not near a heat source (such as a your freezer will destabilise, causing the radiator or oven) otherwise an insulating... -
Page 22: Technical Data
9 TECHNICAL DATA 10 INFORMATION FOR TEST INSTITUTES The technical information is situated in the rating plate on the internal side of the Appliance for any EcoDesign verification appliance and on the energy label. shall be compliant with EN 62552. The QR code on the energy label supplied Ventilation requirements, recess with the appliance provides a web link to... -
Page 23: Customer Care And Service
7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. Visit our website to: Get User manuals: https://www.smeg.com/info/download-manuals Get Service information: https://www.smeg.com/services/customer-service EN - 23... - Page 24 52311600...
