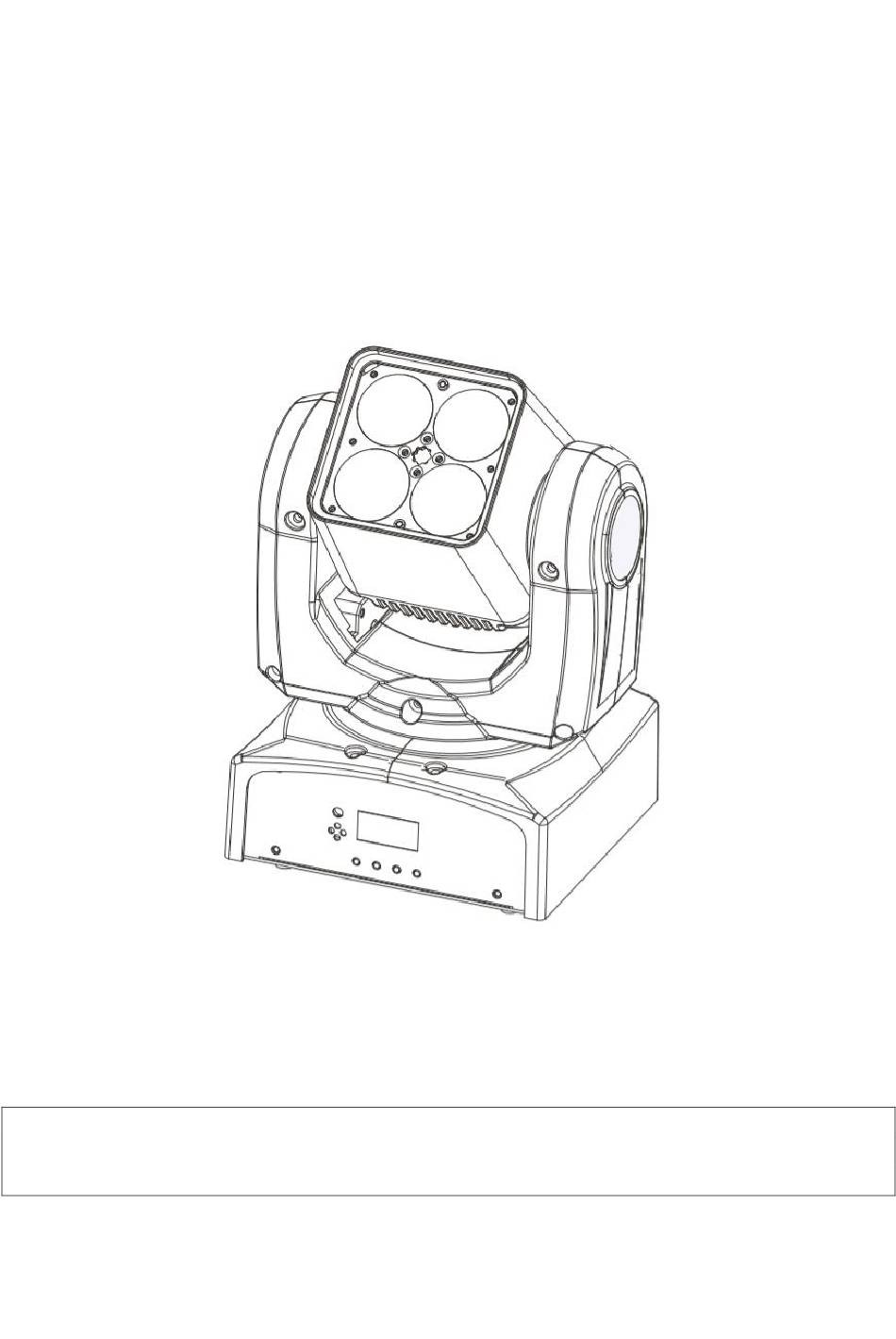

MINI ZOOM MOVING HEAD LIGHT
Inno Pocket Zoom 4
MJ-1038
INSTRUCTION MANUAL
======
========
PROFESSIONAL LED LIGHTING
Thank you for choosing our LED mini zoom moving head light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a safe place for
future reference.
Advertisement
Table of Contents
Related Manuals for MJ LED LIGHTNING Inno Pocket Zoom 4
Summary of Contents for MJ LED LIGHTNING Inno Pocket Zoom 4
- Page 1 MINI ZOOM MOVING HEAD LIGHT Inno Pocket Zoom 4 MJ-1038 INSTRUCTION MANUAL ====== ======== PROFESSIONAL LED LIGHTING Thank you for choosing our LED mini zoom moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for...
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 DMX Set Up ------------------------------------------------------------------------------------------------------ ------5 System Menu ------------------------------------------------------------------------------------------------------------7 Home Adjustment Menu --------------------------------------------------------------------------------------------11 Operation Menu -------------------------------------------------------------------------------------------------------11 Master-Slave Set Up --------------------------------------------------------------------------------------------------12 DMX Channel Mode -------------------------------------------------------------------------------------------------12 Photometric Chart -----------------------------------------------------------------------------------------------------15 Dimmer Curve Chart -------------------------------------------------------------------------------------------------15 Fuse Replacement -----------------------------------------------------------------------------------------------------16... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
The installation should be checked by a skilled person once a year. The Inno Pocket Zoom 4 is fully operational in three different mounting positions, hanging upside-down from a ceiling, set on a flat level surface, or on its side attached to trussing. Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). -
Page 5: Dmx Set
DMX Set Up Power Supply: The MJ Inno Pocket Zoom 4 contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere. - Page 6 Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): The Inno Pocket Zoom 4 can be controlled via DMX-512 protocol. The Inno Pocket Zoom 4 three DMX channel modes; 10 channel mode , 12 channel mode & 15 channel mode. The DMX address is set electronically using the controls on the front panel of the unit.
-
Page 7: System Menu
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. - Page 8 Sound Sense Time-out Mode LED Display ON/OFF Display Inversion/ Normal Pan Inverse Tilt Inverse White balance set Menu test Auto Test Rest Mode System Menu: When making MJ adjustments press ENTER to confirm your setup then press and hold the MENU button for at least 5 seconds. To exit without making any adjustments press the MENU button.
- Page 9 ADDR - DMX Address Setting. 1. Press the either the MENU, UP, or DOWN buttons until “ADDR” is displayed, press ENTER. 2. The current address will now be displayed and flashing. Press the UP or DOWN buttons to find your desired address.
- Page 10 BLND- In this mode you can time-out the light. 1. Press the MENU button until “BLND” is displayed, press ENTER. 2. The display will show either “No” or “Yes”. Press the UP or DOWN buttons to select “Yes” to activate sound active mode, or “No”...
-
Page 11: Home Adjustment Menu
A DMX controller allows you to create unique programs tailored to your individual needs. 1. The Inno Pocket Zoom 4 has 3 DMX channel modes; 10 channel mode,12channel mode or 11 channel mode. See pages 12-14 for detailed description of the DMX values and traits. -
Page 12: Master-Slave Set
Sound Active Mode: This mode allows either single unit or several units linked together, to run to the beat of the music. 1. Press the MENU button until “SOUN” is displayed, and press ENTER. Press the UP or DOWN buttons so that “ON”... - Page 13 9 CH 9 CH 10 CH Shutter 000-007 Close 008-015 Open 016-131 Strobe Slow->Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open 10 CH 11 CH Macro Color 000-007 No function 008-011...
- Page 14 160-163 Color Macro 9 164-167 Color Macro 10 168-171 Color Macro 11 172-175 Color Macro 12 176-179 Color Macro 13 180-183 Color Macro 14 184-187 Color Macro 15 188-191 Color Macro 16 192-195 Color Fade Macro 1 196-199 Color Fade Macro 2 200-203 Color Fade Macro 3 204-207...
-
Page 15: Photometric Chart
Photometric Chart Dimmer Curve Chart... -
Page 16: Fuse Replacement
Fuse Replacement Locate and remove the unit’s power cord. Once the cord has been removed located the fuse holder located inside the power socket. Insert a flat-head screw driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new one. The fuse holder has a built-in socket for a spare fuse be sure not to confuse the spare fuse with active fuse.
