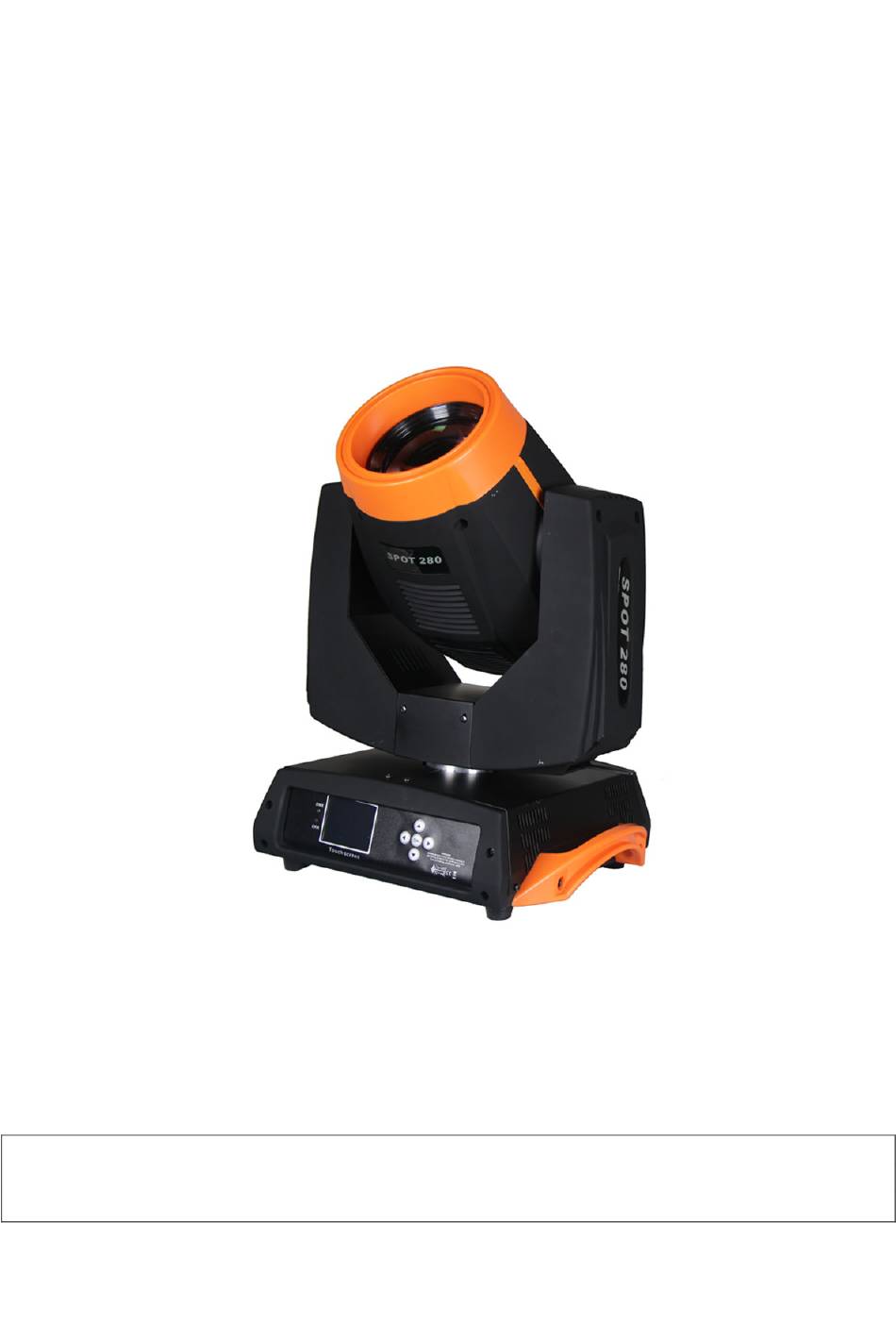

- Page 1 280W 10R BEAM SPOT WASH 3IN1 MOVING HEAD LIGHT MJ-1230 User Manual Thank you for choosing our beam spot Wash moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for...
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product ------------------------------------------------------------------------------------------3 Install The Equipment -------------------------------------------------------------------------------------------------4 Fitting The Lamp --------------------------------------------------------------------------------------------------------4 Power Code Connection ----------------------------------------------------------------------------------------------5 DMX Connection -------------------------------------------------------------------------------------------------------5 DMX Terminator --------------------------------------------------------------------------------------------------------6 Function Set ---------------------------------------------------------------------------------------------------------------6 Operation Menu ----------------------------------------------------------------------------------------------------------7 Maintenance ---------------------------------------------------------------------------------------------------------------8 Keeping The Product Clean -------------------------------------------------------------------------------------------9 Trouble Shooting ----------------------------------------------------------------------------------------------------------9 Equipment and Appendix... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 2pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Power Code Connection
Power Code Connection: Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Operation Menu
2. Button Operation DOWN ENTER Use button switch and LCD display, can set the address code and function code easily. Check or modify lighting function settings, Press the ENTER or MENU button. LCD display panel will display main menus. Function operation menu all have corresponding submenu . Each menu all represent the specific functions of lamps, specific see below "operation menu"... -
Page 8: Maintenance
Back Auto Mode Sound Mode Perform Custom 1 Custom 2 Custom 3 Custom 4 Back System Reset Default setting DMX mode X inversion Y inversion Effect of wheel model DMX signal Screensaver Switch on light bulbs Bulb started state DMX reset Aiming screen Parameters Adj X adjustment... -
Page 9: Keeping The Product Clean
Keeping The Product Clean: To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output. Do NOT use any type of solvent on dichroic colour filters. -
Page 10: Channel List
Channel List: 20CH DMX Value Function 0－255 0－255 Tilt 0－255 Pan fine 0－255 Tilt fine 0－255 Pan/Tilt speed No Function 1－50 Strobe Open Strobe 51－240 Strobe from slow to fast 241－255 Open 0－255 Dimmer 0－8 Open 8－15 Color 1 16－23 Color 2 24－31 Color 3... - Page 11 77－83 Gobo 11 84－90 Gobo 12 91－97 Gobo 13 98－104 Gobo 14 105－111 Gobo 15 112－127 Gobo 16 128－191 Gobo rainbow positive rotation from slow to fast 192－255 Gobo rainbow reverse rotation from fast to slow 0－63 Rot. Gobo shake CH11 64－127 Fix Gobo shake...
-
Page 12: Technical Parameters
Technical Parameters: Voltage : 100~240V/50-60Hz Power consumption:470W@(220V) Bulb: HRI 280W 10R projection lamp Lamp : 280W ,Color temperature : 8500K Color: 14 color + White Gobo1: 7 rotating gobo + White Gobo2: 16 fixed gobo + White Prism : 1pcs rotation 16-face prism rotating in both directions at different speeds 1pcs rotation 6-facet linear prism rotating in both directions at different speeds Dimmer : 0-100% linear adjustment ,Strobe(0.5-9 times/ second) Beam angle : parallel beam angel 2.5 –...
