MATRIX 2510
MJ-1027
User Manual

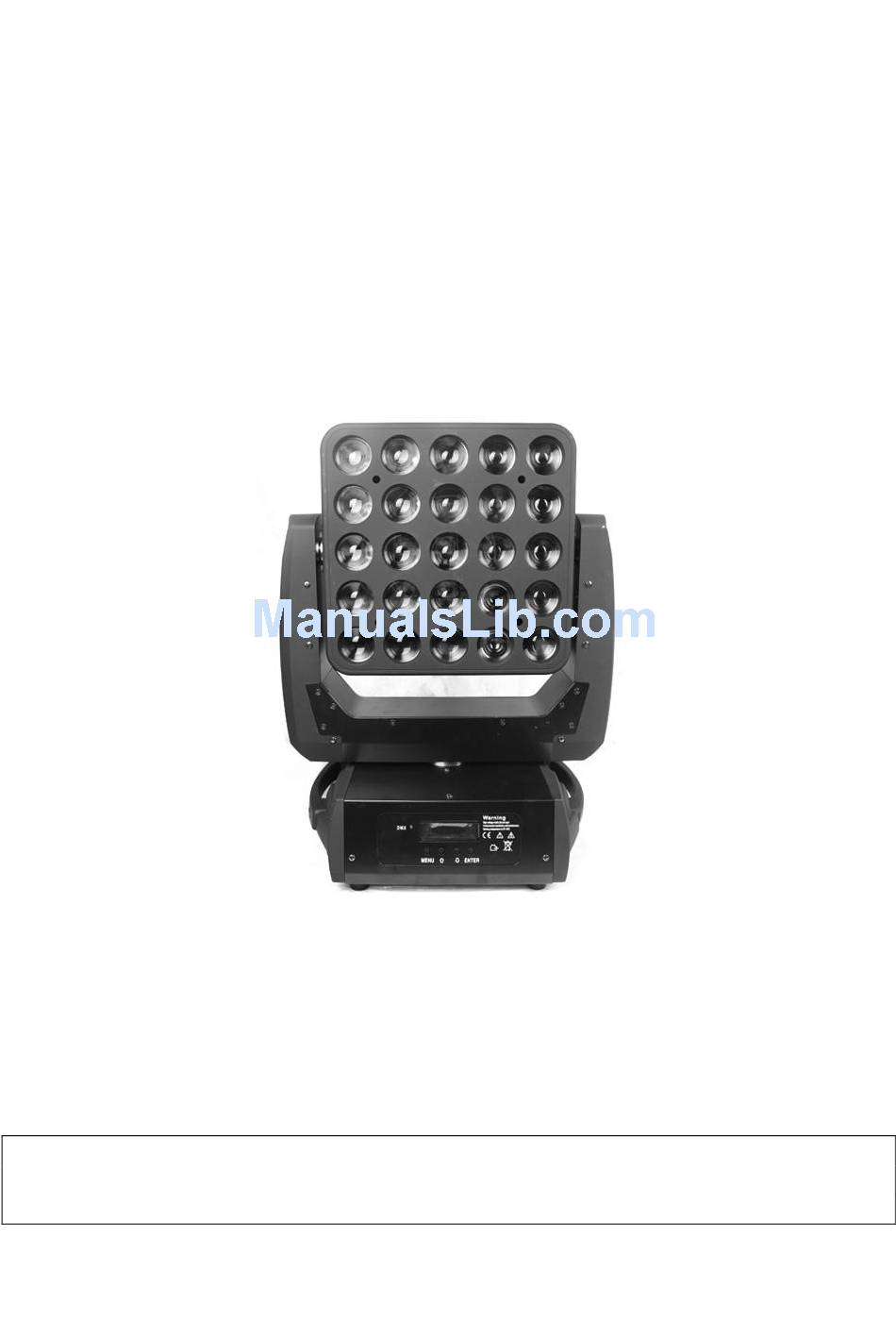

Thank you for choosing our 25eyes beam LED moving head light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a safe place for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRIX 2510 and is the answer not in the manual?

Questions and answers

Related Manuals for Mega LED Lighting MATRIX 2510

Summary of Contents for Mega LED Lighting MATRIX 2510

  • Page 1 MATRIX 2510 MJ-1027 User Manual Thank you for choosing our 25eyes beam LED moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    MATRIX 2510 MJ-1027 User Manual ver1.0 Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 Power Code Connection ---------------------------------------------------------------------------------------------4 DMX Connection ------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------5 Function Set --------------------------------------------------------------------------------------------------------------6 Operation Menu ---------------------------------------------------------------------------------------------------------6 Maintenance --------------------------------------------------------------------------------------------------------------7 Keeping The Product Clean...

  • Page 3: Safe Usage Of The Product

    MATRIX 2510 MJ-1027 User Manual ver1.0 SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.

  • Page 4: Install The Equipment

    MATRIX 2510 MJ-1027 User Manual ver1.0 Install The Equipment: Use 2pcs clamp and safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp.

  • Page 5: Dmx Connection

    MATRIX 2510 MJ-1027 User Manual ver1.0 DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets.

  • Page 6: Function Set

    MATRIX 2510 MJ-1027 User Manual ver1.0 Function Set: Menu DOWN Enter Use button switch and LED display, can set the address code and function code easily. Check or modify lighting function settings, Press the MENU button. LED display panel will display 8kinds different function menu of lighting.

  • Page 7: Maintenance

    MATRIX 2510 MJ-1027 User Manual ver1.0 Slave Slave mode 25Eye Slave Restore Factory Restore the factory Settings Yes ? Maintenance: To prolong the life of the projector, some maintenance work has to be done to ensure the LED optical system in good condition. If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification.

  • Page 8: Equipment And Appendix

    MATRIX 2510 MJ-1027 User Manual ver1.0 Equipment and Appendix: The packing list of this light as follows: ☆ Led moving head light 1pcs ☆ Power Cable 1pcs ☆ XLR connector 1unit ☆ Light Hook 2pcs ☆ The Product of Instruction...
  • Page 9 MATRIX 2510 MJ-1027 User Manual ver1.0 CH10 Function speed 1 Function speed，from slow to quick Function speed 2 0--31： fixed figure direction 1； 32--63： fixed direction 2； 64--95： fixed direction 3； 96--126： fixed direction 4； 127--195：figure clockwise rotation, from slow to quick；...
  • Page 10 MATRIX 2510 MJ-1027 User Manual ver1.0 0--5： DMX 35 channel control； CH 9 Function slection 2 6--130： Fixed 126pcs figures slection（motor controlled by DMX 512 controller） ； 131--255：Fixed 125pcs figures slection（motor running the built-in program） ； CH 10 Function speed 1 Function speed，from slow to quick...
  • Page 11 MATRIX 2510 MJ-1027 User Manual ver1.0 133--138： sound control （ motor controlled by DMX 512 controller） ； 139--144：color slection（motor running the built-in program） ； 145--150：jump change（motor running the built-in program） ； 151--156：fading，pulse（motor running the built-in program） ； 157--160：running figure 1（motor running the built-in program） ；...

  • Page 12: Technical Parameters

    MATRIX 2510 MJ-1027 User Manual ver1.0 Technical Parameters: Construction: Composite plastic, die-casting aluminum, Voltage: AC90V-240V; 50/60Hz Power Consumption:300W (220V) LED Bulbs: 4IN1*25LEDs Beam Angle: 5° LED Current: 650mA LED Lifetime: 50000Hours Colors: RGBW color mixing Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the...
