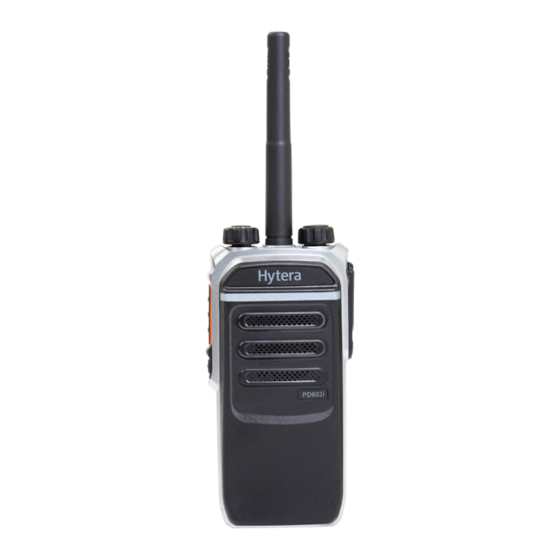

DIGITAL PORTABLE RADIO
PD602i OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD602i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hytera PD602i

Summary of Contents for Hytera PD602i

  • Page 1 DIGITAL PORTABLE RADIO PD602i OWNER’S MANUAL...
  • Page 2 Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. It also includes a troubleshooting guide. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
  • Page 3 Company. Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) We do not guarantee, for any particular purpose, the accuracy, validity, and/or other countries or areas.
  • Page 4 l Connect the equipment into an outlet on a different circuit to that of the RF Exposure Compliance and Control receiver's outlet. Guidelines and Operating Instructions l Consult the dealer or an experienced radio/TV technician for help. To control your exposure and ensure compliance with the Operation is subject to the following two conditions: occupational/controlled environmental exposure limits, always adhere to the l This device may not cause harmful interference.
  • Page 5 l When worn on the body, always place the radio in an approved holder, Le présent appareil est conforme aux CNR d'Industrie Canada applicables holster, case, or body harness or by use of the correct clip for this aux appareils radio exempts de licence. L'exploitation est autorisée aux product.

  • Page 6: Table Of Contents

    Contents Checking LED Indications Documentation Conventions Call Services Packing List Group Call Product Overview Private Call Product Controls All Call Programmable Key Broadcast Call (Trunking Only) Before Use Include Call (Trunking Only) Charging the Battery Call on Analog Channel (Conventional Only) Attaching the Battery Supplementary Features Attaching the Antenna...
  • Page 7 Analog Services Personal Safety Services Communication Security Services Troubleshooting Care and Cleaning Product Care Product Cleaning Optional Accessories Abbreviations...

  • Page 8: Documentation Conventions

    Documentation Conventions Item Description Example The screen displays "Invalid Icon Conventions Denotes messages, Battery!". Icon Description directories, file names, Open "PDT_PSS.exe". " " folder names, and Indicates references that can further describe the related Go to "D:/opt/local". parameter values. topics. In the Port text box, enter "22".

  • Page 9: Packing List

    Packing List Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Antenna Battery Belt Clip Charger Strap Power Adapter Documentation Kit Check whether the frequency band marked on the antenna label matches that on the radio label.

  • Page 10: Product Overview

    Product Overview Product Controls Programmable Key SK1 is programmed as a shortcut to emergency feature in digital trunking mode by default (short press: Emergency On; long press: Emergency Off). You can request your dealer to program SK1 as a shortcut to other features. Please consult your dealer for assignable radio features.

  • Page 11: Before Use

    Before Use LED Indicator Charging Status charger. In this case, take the battery out of the Charging the Battery charger, and then place it into the charger for proper contact. The battery fails to be charged. In this case, please l Use the approved charger to charge the battery.

  • Page 12: Attaching The Antenna

    To remove the battery, make sure that the radio is turned off, and then slide the battery latch upwards to unlock the battery. Attaching the Antenna Attaching the Audio Accessory For optimal waterproof and dustproof performance, do close the accessory connector cover and fasten the screw when no accessory is attached.

  • Page 13: Basic Operations

    Loosen the screw fixing the accessory connector cover as shown below, and open the cover. Basic Operations Turning the Radio On or Off 2. Align the accessory plug with the accessory connector, and then tighten the screw on the accessory plug as shown below. Adjusting the Volume...

  • Page 14: Checking The Battery Power

    To allow the radio to automatically switch to conventional mode based on Checking the Battery Power signal strength in trunking mode, press the preprogrammed Mode To check the battery power, press and hold the preprogrammed Battery Automatic Switch key. Power Indicator key. The following table lists the battery power indications.
  • Page 15 LED Indicator Radio Status Glows green Receiving. Glows red Transmitting. Establishing a call in trunking mode. This indication Flashes red is applicable to the calling radio. Flashes orange slowly Scanning, hunting, or roaming. l Conventional mode: Working in emergency mode. Flashes orange rapidly l Trunking mode: Establishing a Full Off Air Call Set-Up (FOACSU) call.

  • Page 16: Call Services

    To initiate a call to another group contact, rotate the Channel Selector knob Call Services to select the channel associated with the group contact, and then press and hold the PTT key. When you are speaking during a call, keep the microphone about 2.5 to 5 cm away from your mouth.

  • Page 17: Private Call

    l A preemptive or emergency call interrupts the call. Receiving a Private Call l The base station signal is lost. Conventional Mode Private Call You can listen to a received private call without any operation. A private call is a call from an individual user to another individual user. Trunking Mode Initiating a Private Call When receiving an Off Air Call Set-Up (OACSU) private call, you can...

  • Page 18: All Call

    Receiving an All Call All Call You can listen to a received all call without any operation. Conventional Mode An all call is a call from an individual user to all other users on the current Ending an All Call channel.

  • Page 19: Include Call (Trunking Only)

    Receiving a Broadcast Call 2. Press and hold the PTT key, and speak into the microphone. You can listen to a received broadcast call without any operation. Ending a Broadcast Call Supplementary Features A broadcast call ends in any of the following cases: l The calling party ends the call.

  • Page 20: Audio Optimization

    Audio Optimization Conventional Feature Trunking Digital Analog Turning the LQO Feature On or Off Talk Around √ √ × The LQO feature allows the radio to automatically adjust the volume and Time-out Timer √ √ √ improve the quality of received voice in different environments. √...

  • Page 21: One Touch Call/Menu

    l External First: When an audio accessory is connected, the radio uses Service Type Description the external microphone; otherwise, it uses the internal microphone. l To initiate a private call, radio check, remote monitor, radio enable, or radio disable to the private contact. Selecting the Speaker l To initiate an all call to the all call contact.

  • Page 22: Hunt

    Turning the Scan Feature On or Off Turning the Background Hunt Feature On or To turn the Scan feature on or off, press the preprogrammed Scan key. The Background Hunt feature allows the radio in standby mode to keep With the Scan feature enabled, the LED indicator slowly flashes orange. detecting the signal strength of the current BS.

  • Page 23: Roam

    Turning the Handover Feature On or Off Time-out Timer The Handover feature allows the radio to automatically switch to another The Time-out Timer (TOT) feature allows the radio to automatically stop BS with higher signal strength if the signal strength of the current BS drops transmission and keep beeping when the period preset by your dealer below the preset threshold during a call.

  • Page 24: Personal Safety Services

    To turn this feature on, press the preprogrammed Monitor key or press and Emergency Description hold the preprogrammed Monitor Momentary key. Type To turn this feature off, press the preprogrammed Monitor key again or Siren Only The radio sounds shrill alarm tones with visible indications. release the preprogrammed Monitor Momentary key.

  • Page 25: Communication Security Services

    The three emergency modes can be combined with any of the following Turning the Lone Worker Feature On or Off emergency types: Regular, Silent, and Siren w/ Voice. The Lone Worker feature allows the radio to enter the emergency mode when no operation is detected for a preset period.
  • Page 26 setting can restore the audio signals. This prevents eavesdropping and ensures communication privacy. To enable or disable this feature, press the preprogrammed Scrambler/Encrypt key. Erasing Data in Emergency In case of emergency, you can erase encryption data from the radio to prevent the data from unauthorized access.

  • Page 27: Troubleshooting

    Troubleshooting Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The battery power may run out. Recharge or replace the battery. You cannot turn on the radio. The battery may suffer from poor contact caused by dirty or Clean the battery contacts or replace the battery.
  • Page 28 Phenomena Analysis Solution You may be too far away from other members. Move towards other members. You may be in an unfavourable position. For example, your You are unable to hear anyone Move to an open and flat area, restart the radio, and try communication may be blocked by high buildings or blocked because of too much noise and again.

  • Page 29: Care And Cleaning

    Care and Cleaning Optional Accessories To guarantee optimal performance as well as a long service life of the Contact your local dealer for the optional accessories used with the product. product, please follow these tips. Product Care Use the approved accessories only; otherwise, we will not be liable for l Do not pierce or scrape the product.
