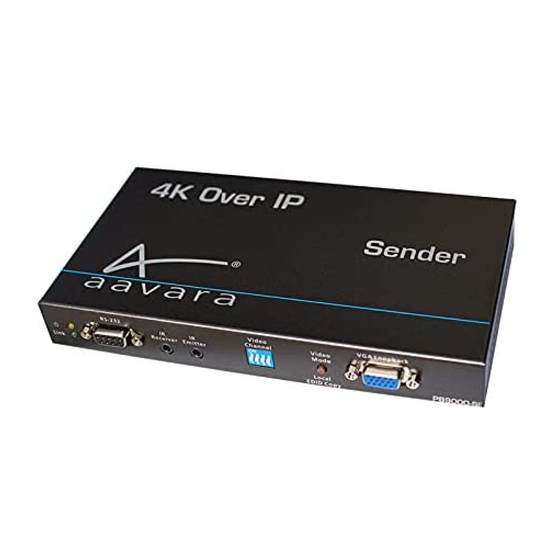

AAVARA PB9000W User Manual

4k over ip av matrix/videowall/ip kvm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PB9000 4K Over IP
AV Matrix/VideoWall/IP KVM
User Guide
WWW.AAVARA.COM
AAVARA INNOVATION CORP.
ALL RIGHTS RESERVED
Rev 2.0.6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB9000W and is the answer not in the manual?

Questions and answers

Related Manuals for AAVARA PB9000W

Summary of Contents for AAVARA PB9000W

  • Page 1 PB9000 4K Over IP AV Matrix/VideoWall/IP KVM User Guide WWW.AAVARA.COM AAVARA INNOVATION CORP. ALL RIGHTS RESERVED Rev 2.0.6...

  • Page 2: Table Of Contents

    Reproduction in any manner whatsoever without the written permission of Aavara Innovation Corp. is strictly forbidden. Trademarks used in this text: Aavara, the Aavara logo and Aavara AV Master are trademarks of Aavara Innovation Corp. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

  • Page 3: Pb9000 Models

    USB Type A x 4 II. Ethernet Switch Setting Please select Layer 2/3 managed/smart switch to work with Aavara 4K Over IP. Enable IGMPSnooping (Version 2) and have all senders/receivers in same VLAN group. Enable JumobFrame (at least 8Kb) on all ethernet switches.

  • Page 4: Integrate With 3Rd Party Controller

    - Control 4, AMX, Crestron, Extron, RTI, Elan g!, Neets and more. Aavara provides controller driver that allows 3 part controller to control Aavara HDMI Over IP sender and receiver by IP command directly. Please check Aavara representative or your distributor for 3...

  • Page 5: User Scenario - Use Ir Remote/Dip Switch To Switch Video Channel

    V. User Scenario - Use IR Remote/Dip Switch to Switch Video Channel Use Aavara 16 channel IR remote (Optional accessory) /Dip Switch control to control PB9000-RE receiver and switch video channel. User can also use a 3 party universal IR remote to learn from Aavara IR remote’s IR code and video source IR remote code for controlling both devices by one remote.

  • Page 6: Ip Setting, Web Configuration & Control

    To Know IP address of Aavara HDMI Over IP Sender and Receiver VI.A. Aavara HDMI Over IP sender and receiver have factory default IP within 169.254.xxx.xxx C class range, and netmask 255.255.0.0, IP address of each HDMI Over IP unit can be found by following way: Unit IP Show On Screen OSD: 1.

  • Page 7: Vi.c. Change Ip Address Of Sender And Receiver

    Change IP address of Sender and Receiver VI.C. Aavara HDMI Over IP sender and receiver got factory default IP within 169.254.xxx.xxx C class range, and netmask 255.255.0.0. Recommend to set static IP to each box to know which one is which one on network.

  • Page 8: Aavara Av Master Web Interface

    Aavara AV Master Web interface, built-in in every Aavara HDMI Over IP unit, is a one web page setup and control entire HDMI Over IP AV Matrix and Video Wall. It will only need to configure and operate Aavara AV Master Web Interface on One unit then that unit will become master control unit of entire system, usually recommend that use first sender, then all rest of units just take order.
  • Page 9 User with Administrator authorization will see both AV Matrix/VideoWall/Control Operation and All Setup functions. User with Operator authorization will see AV Matrix/VideoWall Operation functions only. Only User with Administrator Authorization allow to access unit configuration cfg.html Access other units’ web page other than master control unit, will redirect web page/URL to master control unit’s web page.

  • Page 10: Vii.b. Setup Within Av Master Web Interface

    Setup within AV Master Web Interface VII.B. Click on Setup Tab at first time of installation and then configuration will change accordingly, wait few seconds, AV Master will scan and list all Senders and Receivers. Please configure all parameters for Senders and Receivers based on your requirements of installation &...
  • Page 11 Video Source/Sender: Field Description Channel Range 1 ~ 9999, Auto assign or manual change, each sender must have Unique Channel Number assigned. No two or more Senders got same channel number. IP Address (Auto assign, or go Unit cfg.html for static IP assign) Group Sender’s Group name for further management requirement.
  • Page 12 If any of HDMI device connected to Sender or Receiver does not support 3D or Multichannel audio, recommend that keep 3D Video & Surround option off to speed up video channel switching and maximum EDID compatibility.

  • Page 13: Vii.c. Setup & Backup By Csv Files

    Setup & Backup by CSV files VII.C. Setup by CSV Files Please set static IP on every each unites, at each units’ cfg.html, refer IP setting section for more detail. Login user with Administrator authorization. Refer following CSV files detail to plan and edit in Spreadsheet application. Then, save at CSV file format (divide field by a comma.) Upload CSV files one by one.
  • Page 14 Sender CSV File Format & Parameter Description Don’t change field sequence. First row field name can be changed. Use comma to divide field when saving CSV file. Field / Parameter Description Parameter Value Sender IP ie. 169.254.8.105 192.168.1.25 Channel Assign unique channel number, don’t 1 ~ 9999 duplicate.
  • Page 15 Receiver CSV File Format & Parameter Description Don’t change field sequence. First row field name can be changed. Use comma to divide field when saving CSV file. Field / Parameter Description Parameter Value Receiver IP ie. 169.254.8.105 192.168.1.25 Receiver ID, No duplicate Number only, start form 1 Group Receiver Group name...
  • Page 16 600/4800/2400/1200/600/300 Video Rotate/Stretch Video Rotate, Mirror & whether need to Parameter value options: stretch when rotate at 90 /270 0 : Not Rotate 1 : Horizontal Mirror 2 : Vertical Mirror 3 : 180 Rotate 4 : 90 Rotate, Vertical Mirror, No Stretch 5 : 90 Rotate, No Stretch 6 : 270...
  • Page 17 Device Control CSV File Format & Parameter Description Don’t change field sequence. First row field name can be changed. Use comma to divide field when saving CSV file. Field / Parameter Description Parameter Value Device Control ID Device Control ID for match with Number Only, start from 1 Device Control ID in Sender/Receiver CSV file or Setup Tab in AV Master.
  • Page 18 command code. cmd8_name Command 8 codename English, German, French, Latin, Chinese, and Japanese. cmd8_cmd Command 8 command code Base on the way to control, and input control command code. cmd9_name Command 9 codename English, German, French, Latin, Chinese, and Japanese. cmd9_cmd Command 9 command code Base on the way to control, and input control...
  • Page 19 CEC Preset Commands and Commands in CEC Frame format Preset CEC Command List: Video Source TV/Display Command Description Command Description wake_up Video Source Device Wake UP power_on_tv Display Power On standby Video Source Device Standby power_off_tv Display Power Off down Down left Left...

  • Page 20: Vii.d. Device Ir Command Learning

    Device IR Command Learning VII.D. Aavara AV Master Web control can learn Device IR command code, so it can copy n paste into Device Control CSV file. Step 1: Ensure IR Receiver cable had plug into AV Master Master Control unit’s IR Receiver jack. And, have Device IR remote on hand ready for IR code learning.

  • Page 21: Vii.e. Multicast

    Multicast VII.E. Select a video source/sender. Select Service want to switch (Audio, Video, IR, RS232, USB. Multiple choices). Select Display/Receiver want to switch (Multiple choices). Click Apply Button Matrix VII.F. - Select Service that you’d like to switch (Audio, Video, IR, RS232, or USB). Once Select Service to switch, Matrix will refresh to show current routing status.

  • Page 22: Vii.g. Multicast Group

    Multicast Group VII.G. Select a video source/sender. Select Service want to switch (Audio, Video, IR, RS232, USB. Multiple choices). Select Receiver Group want to switch (Multiple choices).

  • Page 23: Vii.h. Click Apply Buttonvideowall Setup

    Click Apply Button VideoWall Setup VII.H. Step 1 VideoWall Layout / Bezel & Gap Compensation 1. Select VideoWall layout from 2x2, 3x3, 3x4, 4x4, ..., 9x9. 2. Input Outer and Viewable area dimension of display for Bezel & Gap compensation. Unit: mm. Step 2 Display Position at VideoWall Matching Once Click on Apply Button of VideoWall layout configuration, a table will show up as VideoWall layout, select right receiver in every cell of table which matched row and column display actual position.

  • Page 24: Videowall

    VideoWall VII.I. Once ViewWall Setup completed in VW Setup Tab, VideoWall Tab will show right VideoWall layout selection. 1. Select one of VideoWall Zone Layout selection at left column. Left cell of Table will show the VideoWall Zone Layout selected. 2.

  • Page 25: Vii.j. Control

    Control VII.J. Aavara AV Master Web can control external devices like TV/Display/Projector & Video Source Device by CEC(via HDMI connection), RS232 and IR. Please edit and upload Device Control CSV file and set Device Control ID to each sender and receiver, AV Master will bring in all control command buttons of that device.

  • Page 26: Vii.k. Edid Manager (Only Available On Sender)

    EDID Manager (Only Available on Sender) VII.K. Copy Display EDID to Sender Ensure that target display/receiver has HDMI connection between display and receiver, network connection between sender and receiver, and sender/receiver at same video channel, before Copy Display EDID to sender action.
  • Page 27 Assign Specific Resolution/Timing EDID to Sender Select and assign Specific Resolution/Timing EDID to Sender for handshake with Video Source device for solving EDID compatible issue or allow video source output video/audio format as assigned. 1. Select Video Format 2. Click Apply Button 3.

  • Page 28: Vii.l. User Management

    User Management VII.L. User Management Tab Add User Press Add User button to add more user info. Field Description Status 3 User Status: 1. Active this user can login and use. 2. Suspend this user can’t login and use, but user info will keep in system. 3.
