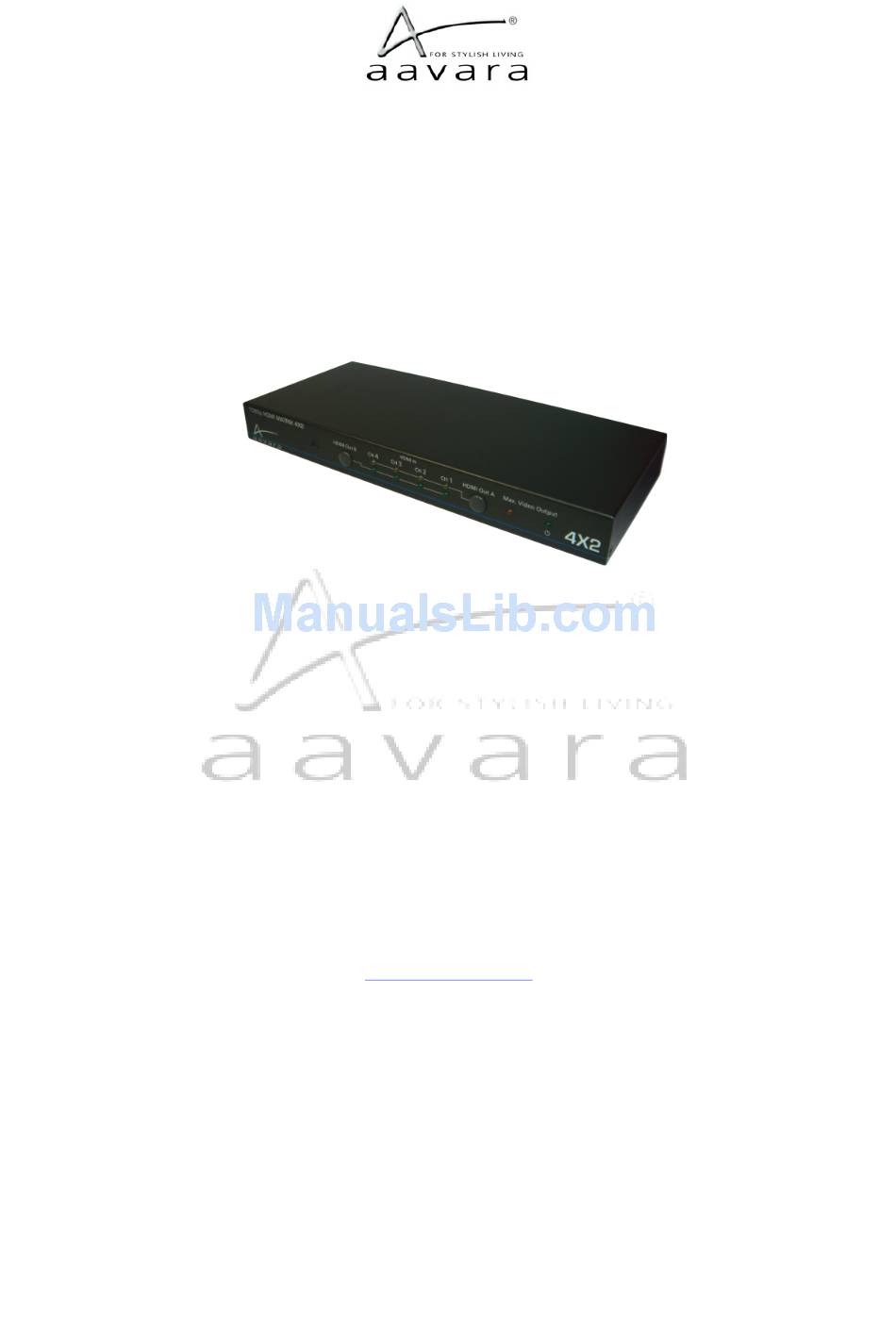

- Page 1 Aavara Innovation Corp. PM4X2 1080p HDMI 1.3b MATRIX 4X2 Installation Guide WWW.AAVARA.COM AAVARA INNOVATION CORP. ALL RIGHTS RESERVED Rev 1.0...
- Page 2 TABLE OF CONTENTS Chapter 1 .............3 Introduction ..........3 1.1 Features ..........3 1.2 Technical Specifications......4 Chapter 2 .............5 Installation ...........5 Chapter 3 .............6 Troubleshooting...........6 Features Index….………………………………… 6...
- Page 3 Blu-ray DVD players and satellite set top boxes to any HDMI compatible display. Sources are accessible at any time to any display when operating with the IR remote. PM4X2 4x2 matrix switching allows maximum versatility for integrated systems.
- Page 4 1.2 Technical Specifications Model No. PM4X2 HDMI Single Link, TMDS. HDMI Source Input Port Display Device Output HDMI Single Link, TMDS. Port Interface Power on x 1 (C) Led Display HDMI input index for Output A x 4 HDMI input index for Output B x 4 Operation temperature +5ºC to +35ºC...
- Page 5 Installation 1. Connect the HDMI cable from the HDMI device into the HDMI Matrix Input port. 2. Connect the HDMI cable from the HDMI display or Amplifier into the PM4X2 Matrix HDMI Output port. 3. Plug 5VDC power supply into the HDMI Matrix’s power DC jack.
-
Page 6: Troubleshooting
Chapter 3 Troubleshooting Problem Solution 1. Make sure the 5V power is plugged in the HDMI MATRIX 4X2. HDMI MATRIX 4X2 does 2. Check if the power LED light is on. not work 1. Make sure your video display is HDCP compliant. 2. - Page 8 • F/W Upgradable: ALL RIGHTS RESERVED. 2008 AAVARA INNOVATION CORP.
