Summary of Contents for Philips 220V8

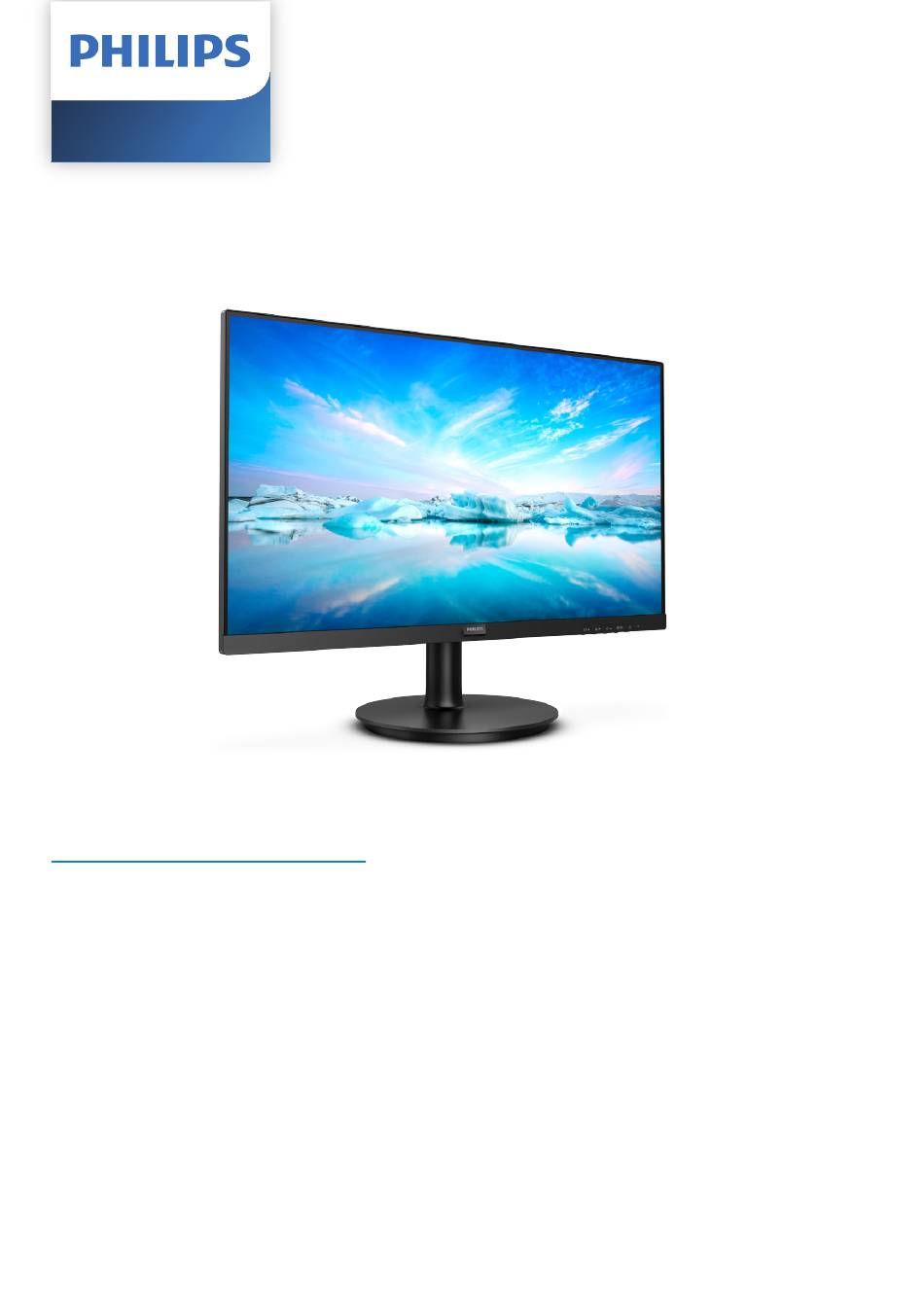

- Page 1 V Line 220V8/221V8/222V8 www.philips.com/welcome EN User manual Customer care and warranty 24 Troubleshooting & FAQs...
-
Page 2: Table Of Contents
5.1 Resolution & Preset Modes ..21 6. Power Management ....22 7. Customer care and warranty . 24 7.1 Philips’ Flat Panel Monitors Pixel Defect Policy ....24 7.2 Customer Care & Warranty ..27 8. Troubleshooting & FAQs ..28 8.1 Troubleshooting ......28... -
Page 3: Important
• Please use approved power cord provided by Philips at all times. If your power cord is missing, please 1.1 Safety precautions and contact your local service center. - Page 4 1. Important • Do not knock or drop the monitor • Unplug the monitor if you need to during operation or transportation. clean it with a slightly damp cloth. The screen may be wiped with a • Excessive usage of monitor can dry cloth when the power is off.
-
Page 5: Notational Descriptions
1. Important • “Burn-in”, “after-imaging”, or 1.2 Notational Descriptions “ghost imaging” is a well-known The following subsections describe phenomenon in LCD panel notational conventions used in this technology. In most cases, the document. “burn-in” or “after-imaging” or “ghost imaging” will disappear Notes, Cautions and Warnings gradually over a period of time after Throughout this guide, blocks of text... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end- of-life management primarily entails This marking on the product or on participation in national take-back... -
Page 7: Setting Up The Monitor
Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. - Page 8 AC power input HDMI input AC power input VGA input VGA input Audio output Kensington anti-theft lock Kensington anti-theft lock 220V8 221V8LD 2 3 4 5 AC power input AC power input DVI input HDMI input VGA input DVI input...
- Page 9 2. Setting up the monitor 221V8A Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug its power cable. 2 3 4 5 3. Connect the monitor signal cable to the video connector on the back of your computer.
-
Page 10: Operating The Monitor
2. Setting up the monitor 220V8/221V8/221V8LD/221V8LS/ 2.2 Operating the monitor 221V8L Description of the control buttons 220V8L Switch monitor’s power ON and OFF. Switch monitor’s power Access the OSD menu. ON and OFF. Confirm the OSD Access the OSD menu. - Page 11 Description of the On Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
- Page 12 On, O Mute Audio In, HDMI, DisplayPort Audio Source(222V8LA) Input (220V8/221V8 HDMI 1.4 (221V8/221V8A) Native, 5000K, 6500K, Color Temperature /221V8A) 7500K, 8200K, 9300K, DVI (220V8) 11500K sRGB Picture Picture Format Wide Screen, 4:3 Color Brightness 0~100 Red: 0~100 Contrast 0~100...
- Page 13 2. Setting up the monitor Resolution notification This monitor is designed for optimal performance at its native resolution, 1920 × 1080. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920 × 1080 for best results. Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu.
-
Page 14: Remove The Base Assembly For Vesa Mounting
2. Setting up the monitor Note 2.3 Remove the Base Assembly This monitor accepts a 100mm x 100mm for VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the VESA Mounting Screw M4. Always monitor base, please follow the contact manufacturer for wall-mount instructions below to avoid any possible installation. -
Page 15: Image Optimization
SmartImage is an exclusive, leading This mode significantly enhances edge Philips technology that analyzes readability and productivity when the content displayed on your screen. you're working with spreadsheets, Based on a scenario you select,... -
Page 16: Smartcontrast
Developed for wellbeing, content. SmartContrast dynamically Philips LowBlue Mode setting uses controls contrast and adjusts a smart software technology to backlighting for clear, crisp, bright reduce harmful shortwave blue gaming and video images or displays light. -
Page 17: Adaptive Sync (221V8/222V8)
4. Adaptive Sync • AMD Radeon R9 290X 4. Adaptive Sync • AMD Radeon R9 290 (221V8/222V8) • AMD Radeon R9 285 • AMD Radeon R7 260X • AMD Radeon R7 260 ■ Processor A-Series Desktop and Adaptive Sync Mobility APUs •... -
Page 18: Technical Specifications
Adaptive Sync YES(221V8/222V8) Connectivity 220V8L: VGA x 1 220V8: VGA x 1, DVI x 1 Signal Input/Output 221V8/221V8A/221V8L/221V8LS: VGA x 1, HDMI x 1 221V8LD: VGA x 1, HDMI x 1, DVI x 1 222V8LA: VGA x 1, HDMI x 1, DisplayPort x 1... - Page 19 Japanese, Korean Other Convenience VESA mount (100x100mm), Kensington Lock Plug & Play Compatibility DDC/CI, sRGB, Windows 10/8.1/8/7, Mac OS X Stand Tilt -5 / +20 degree Power(220V8/220V8L) AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at...
- Page 20 5.Technical Specifications Power(221V8A) AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 60Hz 115VAC , 60Hz 230VAC, 50Hz Normal Operation 18.8 W (typ.) 18.9 W (typ.) 19.0 W (typ.) Sleep (Standby mode) 0.5 W 0.5 W 0.5 W Off mode...
- Page 21 On mode: White, Standby/Sleep mode: White Power LED indicator (blinking) Power Supply Built-in, 100-240V AC, 50-60Hz Dimensions 220V8/220V8L/221V8/221V8A: 492 x 376 x 220 mm Product with stand 221V8L/221V8LS/221V8LD/222V8LA: 540 x 416 x 220 (WxHxD) 220V8/220V8L/221V8/221V8A: 492 x 295 x 45 mm Product without stand...
- Page 22 500 to 1060hPa (Non-operation) Environmental and energy ROHS Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color White/Black Finish Texture Note This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 23: Resolution & Preset Modes
5.Technical Specifications 5.1 Resolution & Preset Modes Maximum Resolution 1920 x 1080 @ 60 Hz (VGA) 1920 x 1080 @ 75 Hz (HDMI/DP) Recommended Resolution 1920 x 1080 @ 60 Hz (VGA/HDMI/ H. freq Resolution V. freq (Hz) (kHz) 31.47 720x400 70.09 31.47... -
Page 24: Power Management
(Standby 0.5 W shows the power consumption and (blink) mode) signaling of this automatic power saving Off mode 0.3 W feature: 221V8L/221V8LS 220V8/220V8L Power Management Definition Power Management Definition VESA Power VESA Power Video H-sync V-sync Video H-sync V-sync Mode... - Page 25 6.Power Management 222V8LA Power Management Definition VESA Power Video H-sync V-sync Mode Used Color 16.3 W (typ.) Active White 27.6 W (Max.) Sleep White (Standby 0.5 W (blink) mode) Off mode 0.3 W The following setup is used to measure power consumption on this monitor.
-
Page 26: Customer Care And Warranty
Pixel Defect Policy sub pixels together appear as a single white pixel. When all are dark, the three Philips strives to deliver the highest colored sub pixels together appear as a quality products. We use some single black pixel. Other combinations... - Page 27 TFT Monitor bright dot is 30 percent brighter than panel in a Philips flat panel monitor neighboring dots. must have pixel or sub pixel defects exceeding the tolerances listed in the Black Dot Defects following tables.
- Page 28 7.Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...
-
Page 29: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 30: Troubleshooting & Faqs
• Contact with Philips customer • First, ensure that the power button service representative immediately. on the front of the monitor is in the... - Page 31 "burn-in", also Service contact information listed in known as "after-imaging" or "ghost Important information manual and imaging", on your screen. "Burn-in", contact Philips customer service "after-imaging", or "ghost imaging" representative. is a well-known phenomenon in * Functionality different according to LCD panel technology.
-
Page 32: General Faqs
• Shut down your computer, that the panel surface is not disconnect your old monitor and subjected to excessive shocks reconnect your Philips LCD monitor. and is protected from sharp or • Turn on your monitor and then turn blunt objects. When handling the on your PC. - Page 33 “ghost image” symptoms any PC, workstation or Mac? that will not disappear and cannot be repaired. The damage mentioned above Ans.: Yes. All Philips LCD monitors are is not covered under your warranty. fully compatible with standard PCs, Macs and workstations.
- Page 34 “Attention” to show the unlock/lock status as shown below illustrators. Q14: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
- Page 35 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
