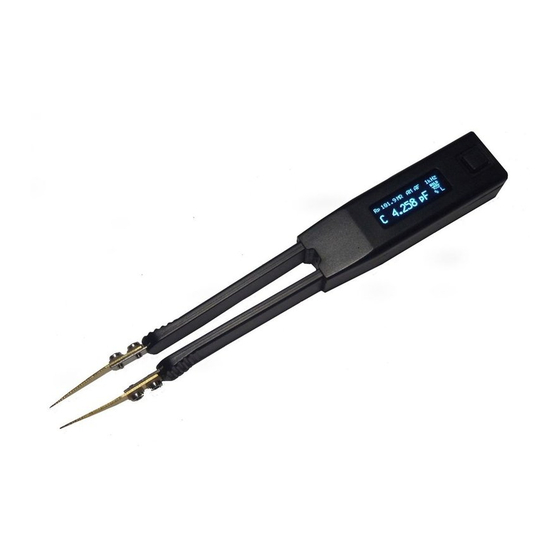

Smart Tweezers ST5-AS User Manual

Smart tweezers r-c-l meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2
3
SmartTweezers_Manual_03.8.indd 2-3
10/14/2011 2:04:07 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST5-AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smart Tweezers ST5-AS

Summary of Contents for Smart Tweezers ST5-AS

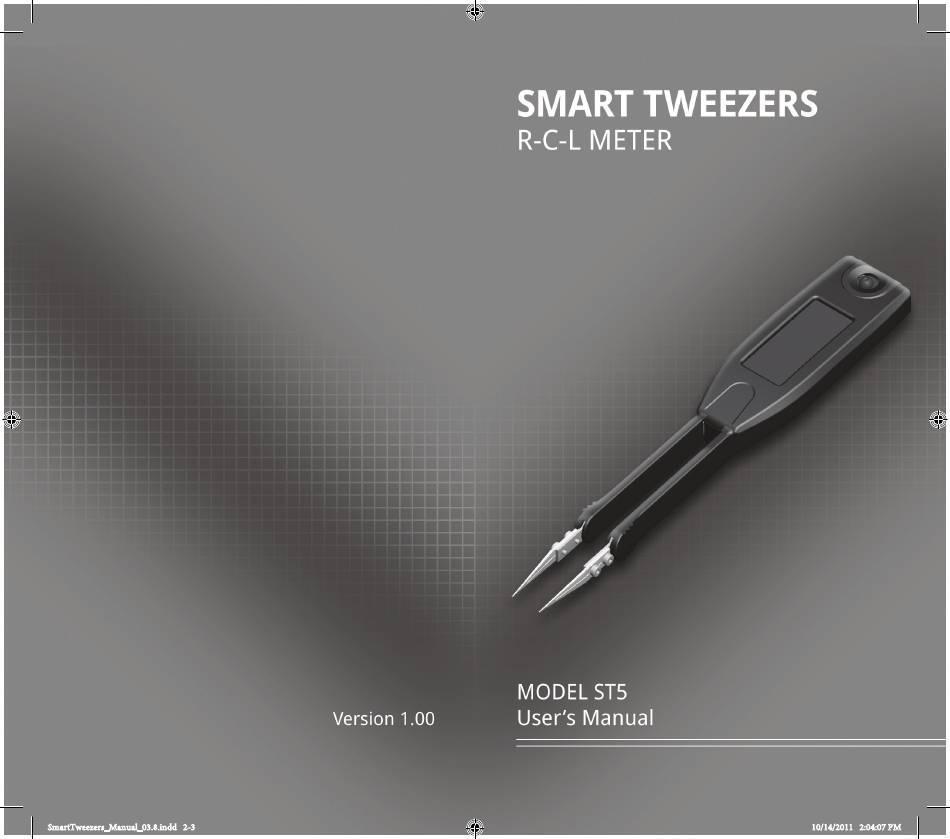

  • Page 1 SmartTweezers_Manual_03.8.indd 2-3 10/14/2011 2:04:07 PM...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Notice Warranty Safety Precautions Getting Started Overview Controls Power On Menu Structures And Functions Measurement Features Measuring Resistance Measuring Capacitance Measuring Inductance Maintenance Labelling & Verification Requirements Appendix A. Specifications Appendix B. Default Settings Appendix C. Accuracy Specification SmartTweezers_Manual_03.8.indd 5 10/14/2011 2:04:07 PM...

  • Page 3: Notice

    To The Jog dial buTTon, slide swiTch and reseT swiTch; elecTrical damage of The producT due To high volTage or improper baTTery Type. To avoid possible damage to Smart Tweezers or to the equipment under test, follow these guidelines: The design and implemenTaTion of any circuiT based on This producT is The sole responsibiliTy of The cusTomer.

  • Page 4: Getting Started

    SMT components with size down to 0201. output of AI provides a signal proportional to the current, I*Ri. In actual use Smart Tweezers provides more accurate results than Voltage across the DUT is measured by a separate signal path most of the benchtop LCR meters due to small and very predictable (amplifier AU), thus providing a pseudo 4-wire Kelvin connection.

  • Page 5: Controls

    62.5Ω (R1), 1kΩ (R2) and 16 kΩ (R3). The controller is used to select a function or to change a setting of Smart Tweezers. The controller can be moved The source impedance is selected as a function of the measurement (rocked) in 4 directions (UP, DOWN, LEFT, RIGHT).

  • Page 6: Power On

    PRImARY dISPLAY: The Primary Display is located in the middle of the screen and uses the largest font. It shows the dominant impedance parameter reading typically with 5 digits displayed. POwER-ON - To turn the Smart Tweezers ON, press the Navigation Controller. SECONdARY dISPLAY: The Secondary Display is located just above the Primary Display.

  • Page 7: Menu Structures And Functions

    This section describes menu structure and device parameters Main menu is used to access System menu, Measurement menu or to setting. Smart Tweezers menu system contains restore measurement parameters to the default state using Autoset. • Main menu — main menu items •...
  • Page 8 SYSTEm mENU The mode could be used for locating shorted part of a circuit e.g. on a PCB. System menu is used to access system settings and functions. dISPLAY mENU SOUNd mENU Display menu is used to change display’s settings • Select RIGHT to set the “Right Handed” display mode •...
  • Page 9 bATTERY The Mode menu is used to set the measurement mode. Select RES, IND, CAP, IMP or ESR menu items to measure desirable component or parameter as Resistance, Inductance, Capacitance, Impedance and ESR accordingly. For automatic measurement select AUTO (default).. AUTO mOdE: Select AUTO mode (AM sign appears at the left bottom corner of display) for automatic measurement of inductance, capacitance or resistance.
  • Page 10 SETTING mENU RANGE mENU Use this menu to set desirable source impedance range. Default value is auto-ranging (AUTO). Note: Auto-ranging procedure starts from R2 (1kOhm) LEVEL mENU Use this menu to set specific measurement parameter. TEST FREQUENCY mENU Use this menu to set desired test frequency. Use this menu to set desirable test signal level.
  • Page 11 • Enter the NULL menu and select SET Example 1: Nulling test leads for small resistance measurement Smart Tweezers will display difference in percent from the reference value and the beeper will beep • 1 time when the component is within the setting tolerance.

  • Page 12: Measurement Features

    Equivalent circuit diagram Parallel (C < 500 pF), Serial( C > 500 pF) In AUTO mode the Smart Tweezers first tries to perform measurement at 1kHz and then automatically selects the best test frequency. The device is capable of measuring capacitance PERIOd mENU from aproximately 3 pF to 199 μF in AUTO mode.

  • Page 13: Measuring Inductance

    Optimal test frequency ESR mEASUREmENTS 10 kHz Use the ESR measurement to measure the equivalent series <10000pF resistance of a capacitor independent of its capacitance. 1 kHz 10001pF- 1μF Test frequency 0.1kHz/1 kHz/10kHz There is some small capacitance offset due to capacitance of the tips. The offset depends on the distance between the tips (i.e.

  • Page 14: Labelling & Verification Requirements

    < 9999 pF 10 kHz (requires front lead removal). 10000 pF to 1 μF 1 kHz CAUTION: Smart Tweezers repairs should only be performed by an Authorized Service Center or by qualified service personnel. > 1 uF 100 Hz Inductance 0.5 μH to 99 μH...

  • Page 15: Appendix B. Default Settings

    mAXImUm mEASUREmENT RANGES PHYSICAL SPECIFICATIONS Resistance R: 0.05 Ω to 9.9 MΩ Size 14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in) Capacitance C: 0.5 pF to 4999 μF Weight 53 grams (0.11 lb) Inductance L: 0.5 uH to 999 mH Quality factor Q: 0.001 to 1000 * ENVIRONmENTAL CONdITIONS...

  • Page 16: Appendix C. Accuracy Specification

    default settings after AUTOSET command CAPACITANCE SOUND mode: Range Resolution100 Hz 120 Hz 1 kHz 10 kHz DISPAY mode: No change 10 mF 0.001 mF 2.0% + 8 2.0% + 8 Contrast: No change 1000 µF 0.1 µF 0.5% + 5 0.5% + 5 Readings PERIOD: 1 sec 100 µF...
