Rotate JogDial Left/Right to select menu items
Push JogDial to set selected parameters or exit
AUTOSET
SOUND
DISPLAY
SYSTEM
PERIOD
EXIT
MODE
MEASURE
FREQ.
VOLTAGE
EXIT
EXIT

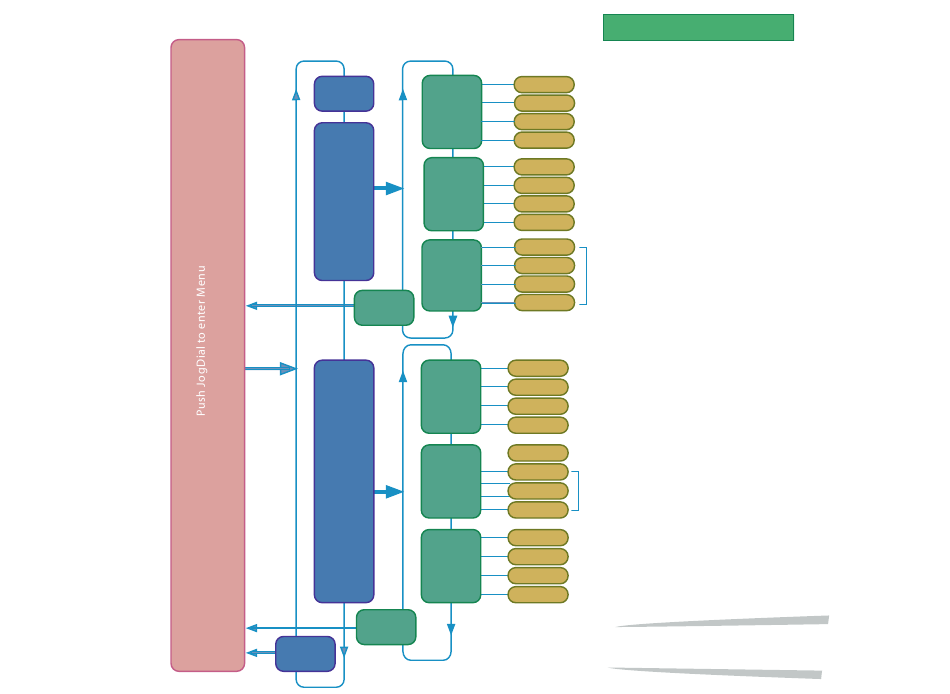

MENU HIERARCHY
Sound ON
ON
Sound OFF (except MENU mode)
OFF
TONE mode (resistance < 1 Ohm)
TONE
BEEP mode (resistance < 40 Ohm)
<40
Right-Hand Display Indication mode
RIGHT
Left-Hand Display Indication mode
LEFT
Display Contrast adjustment
CONTR
Auto-Shutdown Time-Out (10 to 250 sec)
TIME-OUT
2.0 SEC
1.0 SEC
Reading Intervals
0.5 SEC
0.25 SEC
Automatic measurement mode ( R,L or C)
AUTO
Resistance measurement mode
RES
Inductance measurement mode
IND
Capacitance measurement mode
CAP
Auto frequency mode
AUTO
10 kHz
Fixed frequency mode setting
for specific measurements
1 kHz
(large or small capacitance or inductance)
0.1 kHz
Measure DC Voltage (up to 8V)
AUTO
Oscilloscope like Picture (real time trace)
TRACE
Offset adjustment for DC Voltage measurement
CALIBR
Measure Battery Voltage
S
M
A
R
T
T
W
E E
Z
E
R
S
Advertisement
Table of Contents
Related Manuals for Smart Tweezers ST1
Summary of Contents for Smart Tweezers ST1
- Page 1 Rotate JogDial Left/Right to select menu items MENU HIERARCHY Push JogDial to set selected parameters or exit Sound ON AUTOSET Sound OFF (except MENU mode) SOUND TONE mode (resistance < 1 Ohm) TONE BEEP mode (resistance < 40 Ohm) <40 Right-Hand Display Indication mode RIGHT Left-Hand Display Indication mode...
- Page 2 Manual mode settings Manual test frequences settings GETTING STARTED To turn Smart Tweezers ON push or rotate the Jog Dial The symbol in the lower left corner will indicate that device is ON and ready to take measurements. The letters A,R,L or C indicate measurement modes: AUTO, RESISTANCE, INDUCTANCE or CAPACITANCE respectively.
