Vosonic VP2160 Manual

Vosonic xs drive ii model vp2160
Hide thumbs

Advertisement

Table of Contents

+
X's-Drive II
VP2160
( VP2160 )
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP2160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vosonic VP2160

Summary of Contents for Vosonic VP2160

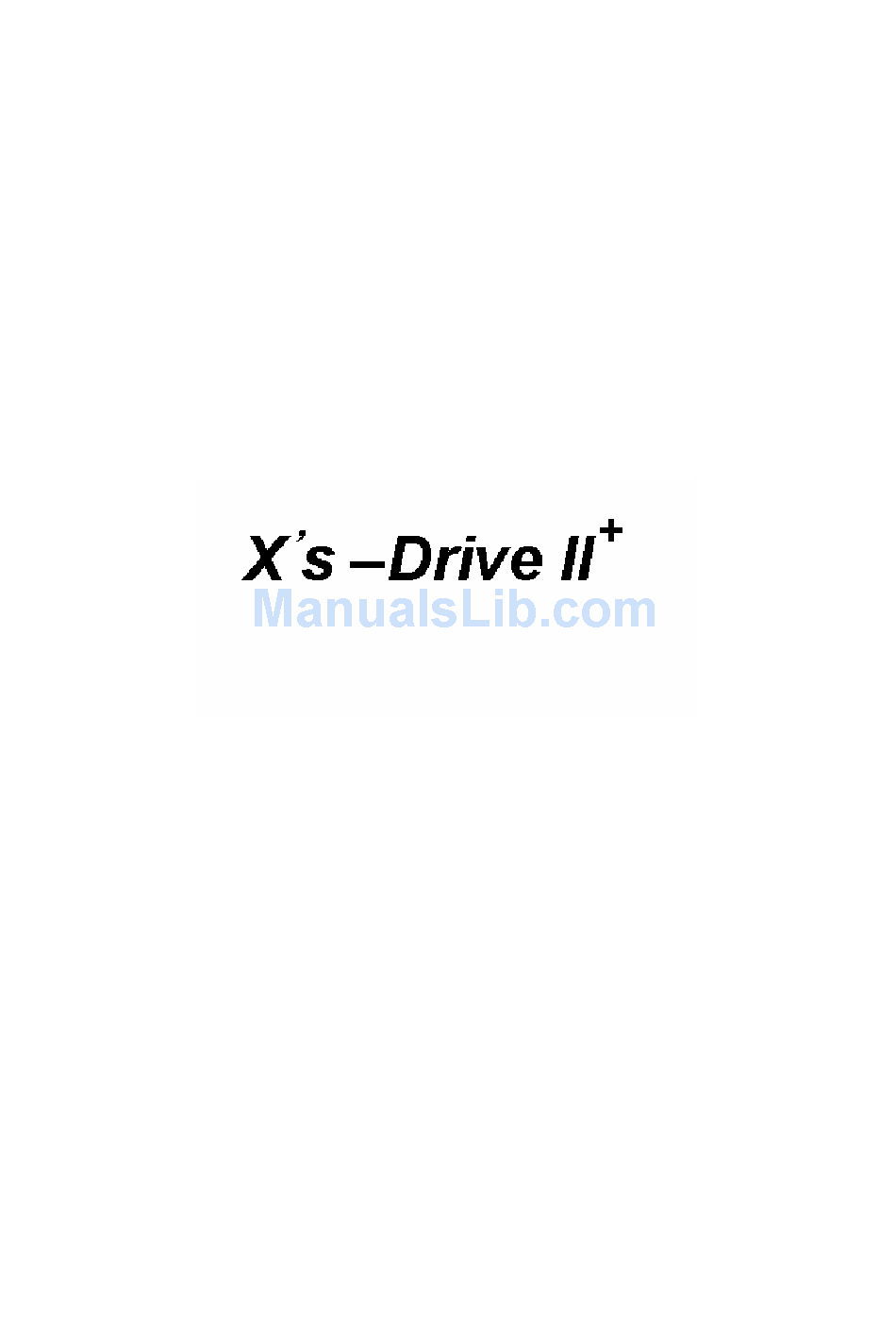

  • Page 1 X’s-Drive II VP2160 ( VP2160 )

  • Page 2: Table Of Contents

    6. Downloading or Editing the files on PC 6. Data Transfer from Memory Card 7. Auto Power off Function 8. Battery Recharge 9. If an erroneous display / operation occurs 10. Care for the Hard Drive and unit 11. Troubleshooting X’s-Drive II VP2160...
  • Page 3 X’s-Drive II VP2160...

  • Page 4: Important Warranty Information

    To reduce the risk of fire or shock hazard, do not expose this equipment to rain , any liquid or moisture. Vosonic shall have no obligation to repair ,replace or refund until the customer returns the defective product to Vosonic.

  • Page 5: Package Checklist

    Back up all kinds of files as the 2.5" external HDD , USB card reader/ writer. Convenient charged by a generic AC/DC adapter. Package Checklist : Main unit USB cable Pouch Warranty Card English user's guide Setup CD-ROM Power Adapter (100-240V auto switched ) X’s-Drive II VP2160...
  • Page 6 Win 2000 SP3 above without driver Linux Kernel version 2.4 or above without driver Mac OS 10.01 above without driver Note: VP2160 doesn’t support Windows SP1 , SP2 , please upgrade to SP3 or above. Power Adapter / USB Cable / User's Guide / Driver Disc/Carrying Bag 。...

  • Page 7: Ports Connection And Buttons

    CF card slot : For the CF card / Micro Drive insertion SM ,Memory Stick, MMC/SD card slot: USB Port: Insert USB cord mini jack DC IN: Insert Ac adapter Jack Power on /off Copy / Stop Copying X’s-Drive II VP2160 RESET...

  • Page 8: Driver Installation

    3. Driver installation Windows Me and Windows XP Home Edition and Professional Edition ,Win2000 Professional SP 3 above . Note: Please partition the Hard Disk first , then the Windows 98 Can recognize the Hard Disk . X’s-Drive II VP2160...

  • Page 9: Usb Connection

    4. USB CONNECTION: When VP2160 begins connecting to the computer, the " HD TRANSFER " message will appear on the screen. During file transfer in the PC mode DO NOT : 1. Plug out the USB cable 2. Remove memory card(s) from the card slot, otherwise, there may be a chance of lost or corrupt data.

  • Page 10: Downloading Or Editing The Files On Pc

    6 .Downloading or Editing the files on PC: Power on the VP2160 Connect the VP2160 and PC with the provided USB cable Double Click the " My computer" icon , the operating system will display 4 icons identifying the media types orrespondingly.

  • Page 11: Auto Power Off Function

    All files transfered from each memory card are stored onto the Hard Disk in folders numerically, under the name " CF0001 " , " MS0001" , "SM0001" , "SD0001". When the same card was inserted and copied twice, two different folders were created, VP2160 won't overwrite the folder.
  • Page 12 11. Care for the Hard Drive and unit : _________________________________________________________________ 1) If the computer or VP2160 can not detect the Hard Drive, check the suggested solutions: Check the flat connector is plugged securely or not Driver is not install -then reinstall...
  • Page 13 X’s-Drive II VP2160 6) Do not drop, jar , bump , shock the unit , or expose to severe vibration while data is being transmitted . 7) To reduce the risk of electronic shock , do not remove cover (or back ) 8) To reduce the risk of fire or shock hazard, do not expose this equipment to rain , any liquid or moisture.

  • Page 14: Troubleshooting

    If using a laptop computer and a docking station, try connecting without the docking station. If you cannot see the files on the device after copied files to VP2160 via USB from computer , You must properly remove ( un-mount) your VP2160 from the computer before disconnecting the USB cable to avoid loss of data or freezing the computer and VP2160.
  • Page 15 X’s-Drive II VP2160 Hard Disk Assembly Chart 1. Remove the screws1~4. 2. To avoid bending the pins, carefully slide the HDD into the chassis, 3.Inside the accessories pack , you will see the spongy rubbers , stick the spongy rubbers underneath the back case to secure the assembly .
  • Page 16 X’s-Drive II VP2160 Battery Installation Chart 2. Remove the screws1~4. 2. To avoid bending the pins, carefully slide the battery into the chassis.
  • Page 17 X’s-Drive II VP2160 Thank you for choosing this product. If you experience problems with the VP2160 And cannot find answer in the previous troubleshooting sections , please contact your dealer. or check the updated firmware at www.vosonic.com.tw or mail to...

This manual is also suitable for:

X's drive ii+ vp2160
