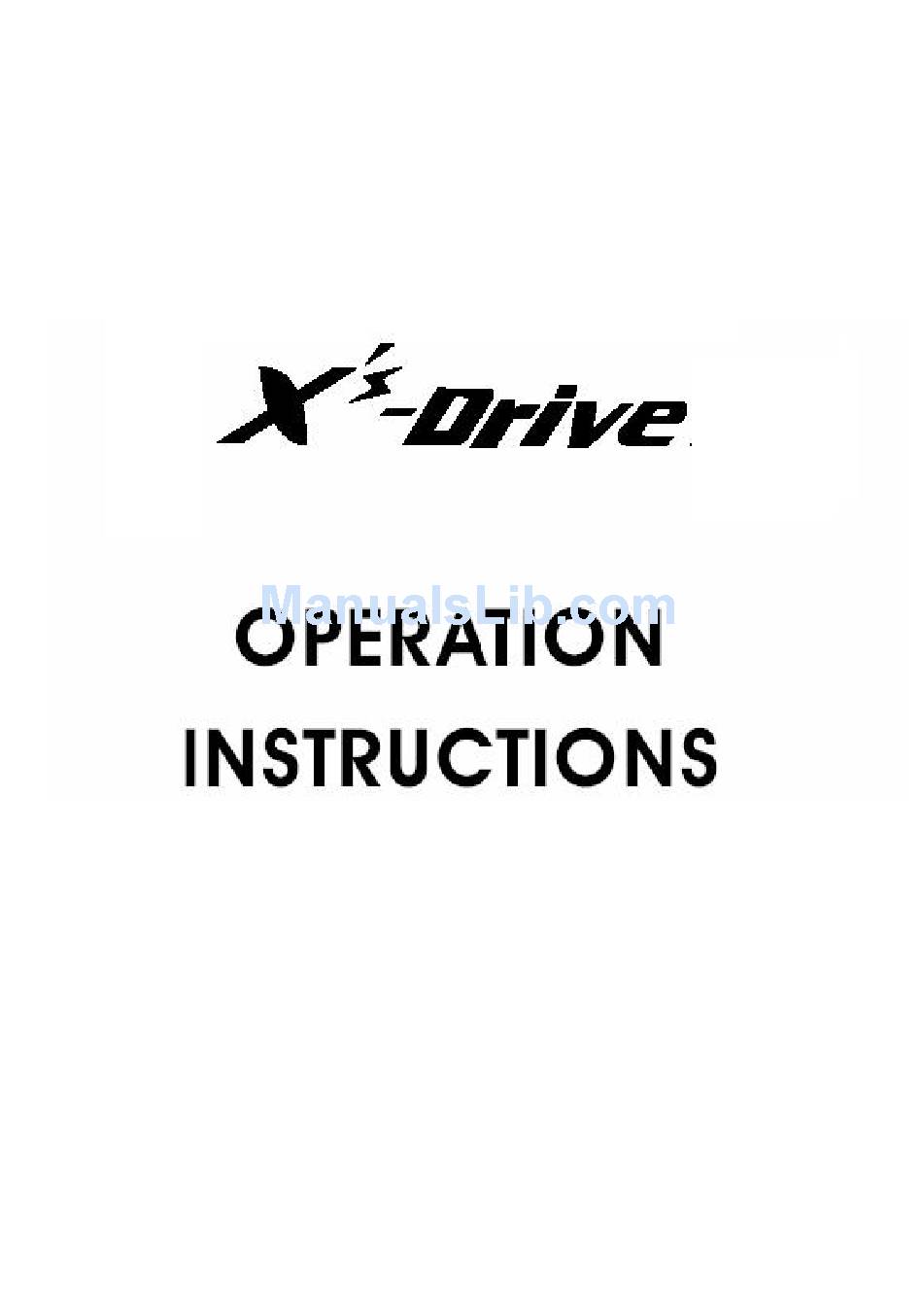

Vosonic X's-Drive Operation Instructions Manual

Portable storage device
Hide thumbs
Table of Contents

Advertisement

Quick Links

(VP6230)
Rev. A
_______________________________________________________________________
ⓒ 2005 Vosonic Technology Corporation. All right reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X's-Drive and is the answer not in the manual?

Questions and answers

Related Manuals for Vosonic X's-Drive

Summary of Contents for Vosonic X's-Drive

  • Page 1 (VP6230) Rev. A _______________________________________________________________________ ⓒ 2005 Vosonic Technology Corporation. All right reserved.
  • Page 2 FAT system.(Refer to 2-4 ,2-5 Format Hard Disk under Windows 2000/ XP) 4 Keep Xs-Drive plugged into the AC adapter/charge while connected to your computer. 5. Check www.vosonic.com to download the update firmware that we offer new features . Wishing you all the best The Vosonic Team...

  • Page 3: Fcc Certifications

    FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 To reduce the risk of fire or shock hazard, do not expose this equipment to rain , any liquid or moisture. Vosonic shall have no obligation to repair ,replace or refund until the customer returns the defective product to Vosonic.
  • Page 5 Specifications : Motion-JPEG in AVI format, 320x240@15fps with APCM Video playback audio MOV: Motion-JPEG in MOV format, 320x240@15fps with APCM audio MPEG-1 Resolution :352X288@30fps Bit Rate :1.5Mbps Audio :MPEG-1 Layer II/III Format :.MPG/.DAT ,VCD MPEG-4 Resolution : 720x480@25fps 640x480@30fps Bit Rate : 4Mbps Video resolution Audio : AAC Format :.MP4 ,Simple Profile without 4MV...
  • Page 6 TIFF: 1 and 8 bits grayscale, 8 bits indexed-color, 8 and 16 bits true color BMP: Monochrome, 8 bits indexed-color, RGB, RLE8 RAW: Please check the web site for updated camera supported list Zoom IN/Out Rotate by 90 degree EXIF data Slideshow with background music Compact Flash Card type I/type II (CF)

  • Page 7: Overview Of Panels & Keys

    1. Overview of Panels & Keys : Here is a look at the features which also available on the IR remote control included in the box . Top panel keypad Function Description Enter : takes you to execute the current selection Rotate: This function will effect under Photo Playback Mode.
  • Page 8 Right Panel : Compact Flash Type I/II IBM MicroDrive Slot LINE IN : Use the line-in cable for recording LINE OUT : Stereo audio output (use the Earphone ) Composite video output Battery Compartment Left Panel : Smartmedia Card Slot Scroll upward/increase volume Memory Stick / Memory Stick Pro ,MMC/SD card slot IR sensor...

  • Page 9: Using The X's-Drive

    2. Using the X’s-drive 2-1. Starting up _________________________________________________________________ 1) Charge the batteries Before using for the first time, charge the batteries for a full 4 hours. Power On /Off Long press the Power button for 2 seconds. The green light will go on and the operating system will boot up. To shut off the unit, long press the power button for 2 seconds.
  • Page 10 2- 3. Downloading or Editing the files on PC: Power on the X’s- Drive Connect the X's-Drive and PC with the provided USB cable Double Click the " My computer" icon , the operating system will display 4 icons identifying the media types correspondingly.

  • Page 11: Format Hard Disk Under Win 2K/ Win Xp

    2-4 Format Hard Disk under Win 2K/ Win XP Due to Windows 2000 / Windows XP can not support Format Disk for 30G above Hard Drive. Please find the Application Program on the included CD-ROM. This program is a “ FDisk AP” for Format Application Program . It has a simple interface which you can use it to format the Hard Disk .
  • Page 12 2-5 Format Hard Disk without PC (1). Scroll to [ OPTIONS ] and press [ OK ] button (2). Scroll down to [ Format Hard Disk ] option and press [Ok] button , then the format function will be performed. Attention: If the hard disk already contain data, please backup the data first , because when you partition and format a hard disk, all the data on that partition is permanently deleted.
  • Page 13 3)Copy Speed (HD): Use “ “ and “ ” to adjust the setting , this setting can be changed from NORMAL ,HIGH to ULTRA . Note: For the Fujitsu HDD users, it is recommend not to set the copy speed at High to avoid any shut down.
  • Page 14 this setting by using “ ” and “ ” . This setting can be changed from 0 to 180 seconds. 3 ) LCD Backlight : Use “ “ and ” ”, you can change the LCD backlight Scroll down to decrease setting value, scroll up to increase setting value. 4) TV Standward : - NTSC (Taiwan ,US, Japan , etc ) - PAL (European countries )
  • Page 15 Icon View / List View : The screen will display all the Icon View : The screen will display thumbnail of all List View JPEG the JPEG pictures in group of 8. Copy Use the OK button to high-light the file you want to copy. Press “...
  • Page 16 Delete Use the Ok button to find the file you want to delete. Press “ MENU “ to select “ Delete “mode, then press “ Ok” button It will ask “Delete File ? “ , Use the “Ok” button to reply Yes or No.. Other Functions Click the specific JPG file you want to view and press “...

  • Page 17: Video Play Mode

    5. Video Play Mode Push up the “ Ok “ button to fast forward the videos Hold and push “Ok” button to the left to rewind and find the specific part of movie you want to play. Hold and push “Ok” button to the right to fast forward and find the specific part of movie you want to play.
  • Page 18 Playlist Playlist is a list of songs that the VP6230 will automatically play one after the other. To create Playlists, you can simply copy , delete , paste the files to the folder you want. Repeat Single ON /OFF Press “ MENU “ button to select the Repeat Mode. Press “...
  • Page 19 7.Recording: - You can use the “Record” function anytime . However, you are not able to record voice streams and listen to music at the same time. - Adjusting the volume to the right values is very important for usable recordings, it is better to choose a middle-way so the signal is not too loud and gets clipped but not too silent to get lost in the noise of the hardware.

  • Page 20: Recording From Line-In

    : MIC IN LINE IN Push up or down the “ OK “ Button to change the setting. Recording from built-in microphone 1. Scroll to [AudioRec ] and press [Ok ]button 2. Use the [ Ok ] button to select the Input options . 3.

  • Page 21: File And Folder Operations

    8. File and Folder Operations Copying , Pasting and Deleting Files and Folders Under the screen Browser mode, you can copy, paste or delete files from one location in the file structure to another. Simply Press “ MENU “ to select the modes .As you finish the selection , just press " OK " button. Using a memory card to transfer photos to Xs-Drive 1) Full Backup Under the main screen browser mode, you can backup the whole folder...

  • Page 22: Battery Recharge

    2) Photo Backup The Photo Backup allows you to quickly search the digital images by saving the subfolder only. Under the main screen browser mode, you can backup the your subfolder from memory card(s) to internal storage (HDD). Insert your memory card , the operating system will display the icons identifying the media types correspondingly.

  • Page 23: If An Erroneous Display /Operation Occurs

    10. If an erroneous display /operation occurs : 1) When the device error message pop on screen , there may be a chance of corrupt data or the memory card is damaged , you can change another memory card . 2) If any shut dowm caused by erroneous operation , you can depress the [ reset] button located on the bottom to switch off the main unit .

  • Page 24: Troubleshooting

    12.Troubleshooting. WARNING Under no circumstances should you try to repair the system yourself, as this will Invalidate the warranty. Do not open the system as there is a risk of electronic shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints ,consult Your dealer or service center.
  • Page 25 - Point the remote control directly toward IR sensor on the front of the system. How can I get a battery If the unit is within the warranty , it needs to be sent to Vosonic replacement for my VP6230 for replacement with your warranty card.
  • Page 26 • VISIT VOSONIC ON THE WEB Go to http://www.vosonic.com/ to download the latest firmware The latest version of this manual may be available on Vosonic's Web site • CONTACT VOSONIC To help Vosonic promptly answer your questions, please have your product’s...
  • Page 27 Hard Disk Assembly Chart Remove the 4 screws on the rear cover. To avoid bending the pins, carefully slide the HDD into the chassis.
  • Page 28 ---------------------------------------------------------------- VOSONIC TECHNOLOGY CORPORATION To process a request for RMA Service, the following information must be provided. Model No :______________ S/N NO:____________ User Name : TEL:__________________ ______________________________ E-mail:_______________________________________________ Return Address:________________________________________ Problem Description : ( For User) Returned Product Detail: ( For Manufacturer)
  • Page 29 Thank you for choosing this product. If you experience problems with X's-drive And cannot find answer in the previous troubleshooting sections , please contact your dealer. or check the updated firmware at www.vosonic.com.tw or mail to service@vosonic.com.tw...
