- Page 1 Leonton ET5-0802-M Series (ET5-0802-M / ET5-0802-M-T) User Manual...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Software Features ....................1 Hardware Features ....................2 Package Contents ....................3 Safety Precaution ....................3 Hardware Description ....................4 Physical Dimensions ....................4 Front Panel ......................5 Top View........................ 5 LED Indicators......................6 Ethernet Ports ....................... 7 Cabling ........................ -
Page 5: Overview

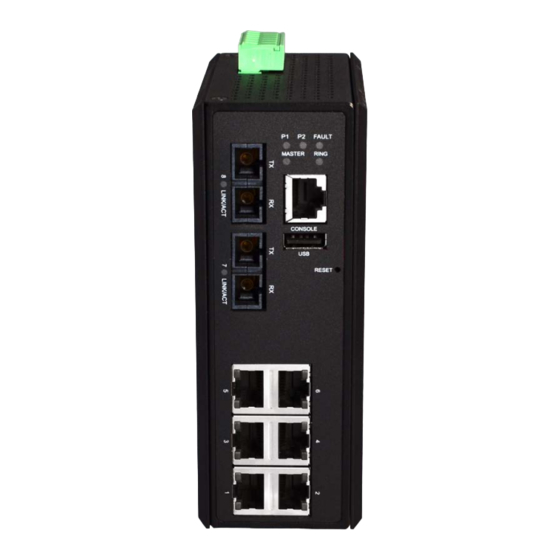

Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial managed Ethernet switch series has 6*10/100Tx Fast Ethernet ports and 2 ports 100Fx of SC or ST type connector and support Multi-mode or Single-mode, suitable for applications that require high bandwidth and long distance communication. -
Page 6: Hardware Features
Auto powered device (PD) detection • • Auto reset (cycle power to unresponsive PD) PoE ports weekly power scheduling • Port Configuration • Port Status, Statistics, Monitoring, Mirroring, Security, and Rate Limiting Event Handling • Event notification by Email/Syslog: System Cold Start, port link-up/down •... -
Page 7: Package Contents
DIN-Rail and wall mount design • Package Contents • 1 - ET5-0802-M(-T): 8-port industrial managed Ethernet switch, with 6*10/100Tx Fast Ethernet, and 2*100Fx SC/ST type connector (Multi/Single mode) • 1 - CD manual • 2 - Wall mounting brackets and screws 1 - RJ45 to DB9 Serial Console cable •... -
Page 8: Hardware Description

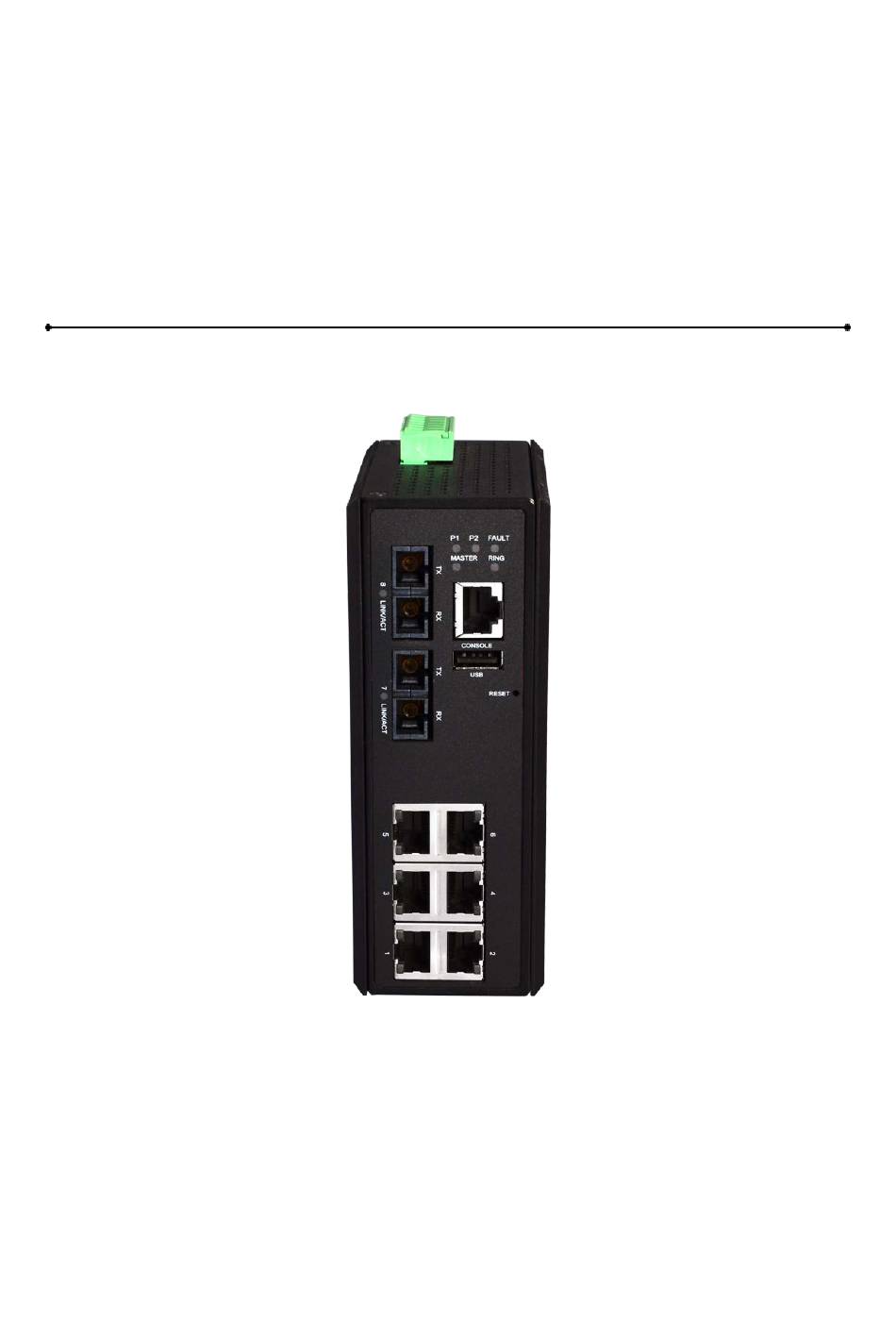

Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of ET5-0802-M series: 8-port industrial managed Ethernet switch, with 6*10/100Tx Fast Ethernet, and 2*100Fx SC/ST type connector (Multi/Single mode). (W x D x H) is 54mm x 99mm x 142mm... -
Page 9: Front Panel
Figure 2.2: The Front Panel of ET5-0802-M Series Top View Figure 2.3, below, shows the top panel of the ET5-0802-M series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC). Figure 2.3: Top Panel View of ET5-0802-M Series... -
Page 10: Led Indicators
Not connected to network Green Connected to network, 10Mbps Flashing Networking is active (LAN Port 1-6) Not connected to network Table 2.4: LED Indictors for ET5-0802-M Series Caution: "P" is the abbreviation for "Power", "L" is for "Link", and "A" is for "Activity". -
Page 11: Ethernet Ports
Ethernet Ports RJ-45 Ports(Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 12: Cabling
Fiber Port The fiber port of SC type connector can work in multi-mode or single-mode. When connecting the fiber port to another one, please follow the figure below to connect accordingly. Wrong connection will cause the port works abnormally. Figure 2.7: SC Connector Caution This is a Class 1 Laser/LED product. -
Page 13: Wiring The Power Inputs
Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.8. Figure 2.8: Power Terminal Block Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.9. -
Page 14: Grounding Note
Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.10. Figure 2.10: Grounding screw Caution: Using a shielded cable achieves better electromagnetic compatibility. -
Page 15: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.41. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. An application example for the fault alarm contact is shown below in Figure 2.41. -
Page 16: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 17 Figure 3.2: Insert the Switch on the DIN-Rail Step 4 Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Switch on DIN-Rail Step 5 Check if the bracket is mounted tightly on the rail. Step 6 To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
-
Page 18: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall. Step 1 Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. - Page 19 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 20: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install ET5-0802-M series: 8-port industrial managed Ethernet switch, with 6*10/100Tx Fast Ethernet, and 2*100Fx SC/ST type connector (Multi/Single mode). Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 21: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it • from its mounting. The initial installation should be done in a way that makes this as convenient as possible. Voltage/Power lines should be properly insulated as well as other cables. -
Page 22: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. If the industrial switch LED indicators are normal and the connected cables are correct but •...
