Owner's Manual
for Assembly, Operating & Maintenance of

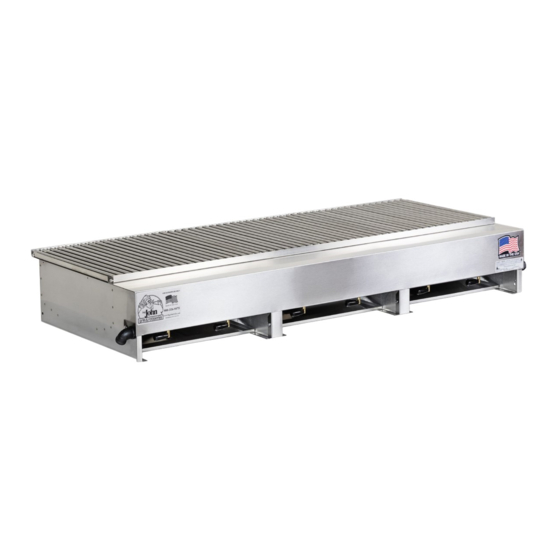

Model A3TS Built-In Gas Grill
YOU MUST READ THIS OWNER'S MANUAL
BEFORE OPERATING YOUR GAS GRILL.
DANGER
IF YOU SMELL GAS:
1. SHUT OFF GAS TO APPLIANCE
2. EXTINGUISH OPEN FLAMES
3. OPEN LID (IF APPLICABLE)
4. IF ODOR CONTINUES, KEEP AWAY FROM THE
APPLIANCE AND IMMEDIATELY CALL YOUR
GAS SUPPLIER OR FIRE DEPARTMENT.
LEAKING GAS MAY CAUSE FIRE, EXPLOSION,
PERSONAL INJURY, DAMAGE TO PROPERTY, AND
DEATH.
THIS GAS GRILL IS DESIGNED FOR OUTDOOR USE ONLY.
P: 814-359-2755
Copyright 2019 Big John Grills & Rotisseries
526 EAST ROLLING RIDGE DRIVE, BELLEFONTE, PA 16823
F: 814-359-2621
WARNING: Follow all leak-check
procedures listed in this manual carefully
prior to operation of this unit. Do this
even if the grill was assembled by a
professional.
WARNING: Do not ignite this grill without
reading the LIGHTING INSTRUCTIONS
first.
WARNING: DO NOT store or use
gasoline or other flammable liquids/
vapors in the vicinity of this grill.
An LP Cylinder not connected for use
should not be stored in the vicinity of this
unit.
sales@bigjohngrills.com
www.bigjohngrills.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A3TS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BIG JOHN A3TS

  • Page 1 DEATH. unit. THIS GAS GRILL IS DESIGNED FOR OUTDOOR USE ONLY. 526 EAST ROLLING RIDGE DRIVE, BELLEFONTE, PA 16823 P: 814-359-2755 F: 814-359-2621 sales@bigjohngrills.com Copyright 2019 Big John Grills & Rotisseries...
  • Page 2: Table Of Contents

    Page 10 & 11 9. ACCESSORY LIST Page 12 10. TROUBLESHOOTING GUIDE Page 13 11. WARRANTY Page 14 12. WARNINGS Page 15 13. HOW TO CHANGE A BURNER TUBE Page 16 - 19 Copyright 2019 Big John Grills & Rotisseries...
  • Page 3: Propane Safety - General

    All tanks used on Big John Grills equipment must be a minimum of 30 lb. size.  Tanks larger than 100 lbs. in size may require a POL for connection. Please call a Big John  Customer Service Representative if you are using a 100 lb. propane tank.
  • Page 4: Propane Safety - Cylinder

    Always store propane cylinders in a secure, cool/dry place in the upright position.  Never store propane cylinders in a vehicle of any kind and or anywhere the temperatures can reach  125° F. Copyright 2019 Big John Grills & Rotisseries...
  • Page 5: General Information

    GENERAL INFORMATION Thank you for purchasing a Big John Commercial Built-In Gas Grill! We take pride in producing and selling equipment made right here in America and are pleased that you recognized the quality and durability of our products. Your new grill is a commercial grade, outdoor piece of cooking equipment.
  • Page 6: Assembly Instructions

    4. Screw thermometer into the mounting plate to center the logo and print prior to installing on hood. 5. Replace Insert Pans, Burner Tubes, Insert Pan Caps, Lava Rock and Cooking Grates. 6. Install hood handle brackets and hood handle. Attach Handle Using Supplied Hardware Copyright 2019 Big John Grills & Rotisseries...
  • Page 7: Set-Up Instructions

    5. TO TURN OFF GRILL: Simply turn all of the control knobs to the OFF position (parallel to the work shelf with all knob ends turned to the left) and turn off gas source. Copyright 2019 Big John Grills & Rotisseries...
  • Page 8: Operating Instructions

    9. Wait approximately 10-15 minutes before attempting to clean or coat grates with vegetable oil. You want to give the lava rock enough time to cool down otherwise flare-ups may occur. Copyright 2019 Big John Grills & Rotisseries...
  • Page 9: Cleaning & Care Instructions

    3. How to clean the control valve orifice: a. Turn off gas and completely disconnect grill from gas source. b. Use small wire, needle or pipe cleaner to gently wipe away any debris from orifice. Copyright 2019 Big John Grills & Rotisseries...
  • Page 10: Parts List

    301045 Set of 4 Drip Tray Locks If you are in need of additional parts not found on this list, please call Big John Grills Customer Service at 800-326-9575 or 814-359-2755 or visit our website. http://www.bigjohngrills.com/categories/a3parts Copyright 2019 Big John Grills & Rotisseries...
  • Page 11 Copyright 2019 Big John Grills & Rotisseries...
  • Page 12 SG-2; 15” x 30” Steel Griddle with 2 Handles (Sits Directly on Cooking Grates) 301106 SG-1; 15” x 16” Steel Griddle with 1 Stay-Cool Handle (Sits Directly on Cooking Grates) 302205V Stainless Steel Vegetable Grate http://www.bigjohngrills.com/pages/gasgrillaccessories Copyright 2019 Big John Grills & Rotisseries...
  • Page 13: Troubleshooting Guide

    At any point in time, if you are experiencing problems with your grill call your local Gas Service or Appliance Service and have them inspect and clean your equipment. You can also call Big John Grills & Rotisseries Customer Service for minor parts questions.
  • Page 14 WARRANTY INFORMATION Big John Corporation provides a warranty, to the original purchaser, for all Big John finished units for a period of 1 year from the date of sale. Any unit, or part thereof returned, freight prepaid, to our Sales &...
  • Page 15: Warnings

    If you wish to change your unit from LP to NG or vice versa,  Do not store extra liquid propane cylinders within the vicinity please call a Big John Customer Service Agent to obtain of this product. required parts.
  • Page 16 Change a Burner Tube 1. Remove lava rock and set large chunks (1”-2” pieces) aside. Throw away any pebble size pieces. 2. Gently pull open the bracket holding the burner tube in place. Copyright 2019 Big John Grills & Rotisseries...
  • Page 17 3. Pick up the burner just in front of the opened bracket and gently lift at an angle - carefully sliding the front portion out of the hole in the front wall 4. Remove the burner once clear of hole in the front wall. Copyright 2019 Big John Grills & Rotisseries...
  • Page 18 6. Insert tube into hole in front of wall carefully pushing down on back of tube. 7. Place back of tube into open bracket with crimped edge resting on the burner insert pan. 8. Close bracket as best you can. It will not close perfectly Copyright 2019 Big John Grills & Rotisseries...
  • Page 19 9. Repeat for each burner you are replacing. 9. Replace lava rock in single layer over burners (about 6-7 lbs. per section) completely covering the bottom of the section. 10. Replace grill grate and use as normal. Copyright 2019 Big John Grills & Rotisseries...
