5. There are two locks securing the lid, one on each side. To properly open the lid, press down on the lid above the side lock and unlock the latch.
Repeat for the other side. If pressure is not applied from the top, the lid may appear stuck. NOTE: Always verify that the side locks are
unlocked before attempting to lift the lid.
6. Once the lid is open, remove the front access panel by lifting it up and out. Also remove the black panel over top of the customer connection
area.
7. Perform a visual inspection for any hidden freight damage.

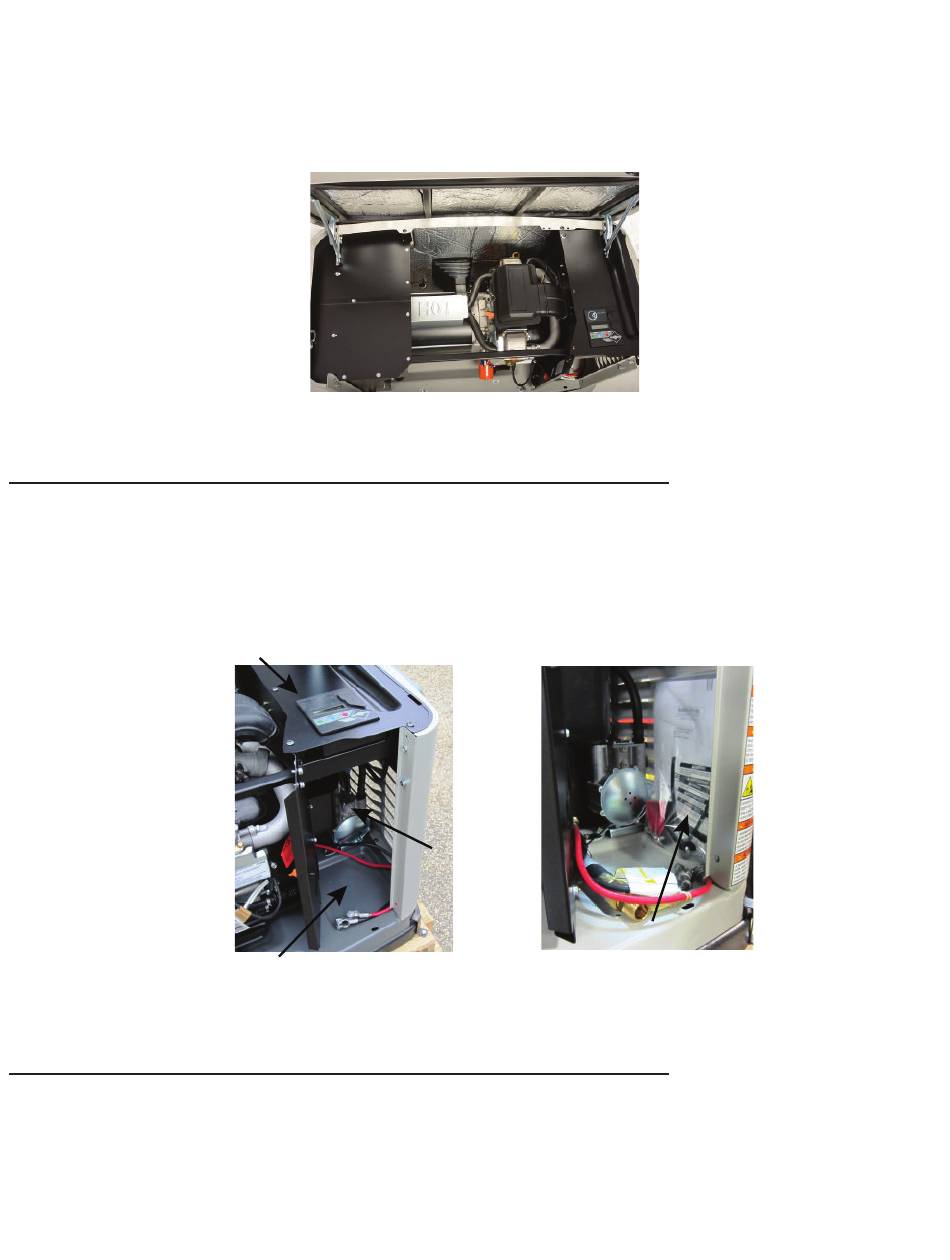

Figure 2.4 — Inspecting for damage
8. Figure 2.5 illustrates the following:
– Customer connection area (underneath and behind the control panel)
– Fuel regulator
– Battery compartment
– Location of "Loose Shipped Parts"
Figure 2.5 — Customer Connection Area/Loose Parts Location
8
CONNECTION AREA (UNDER CONTROL PANEL)
BATTERY COMPARTMENT
FUEL REGULATOR
LOOSE PARTS
