Summary of Contents for Browan TBWL100-915

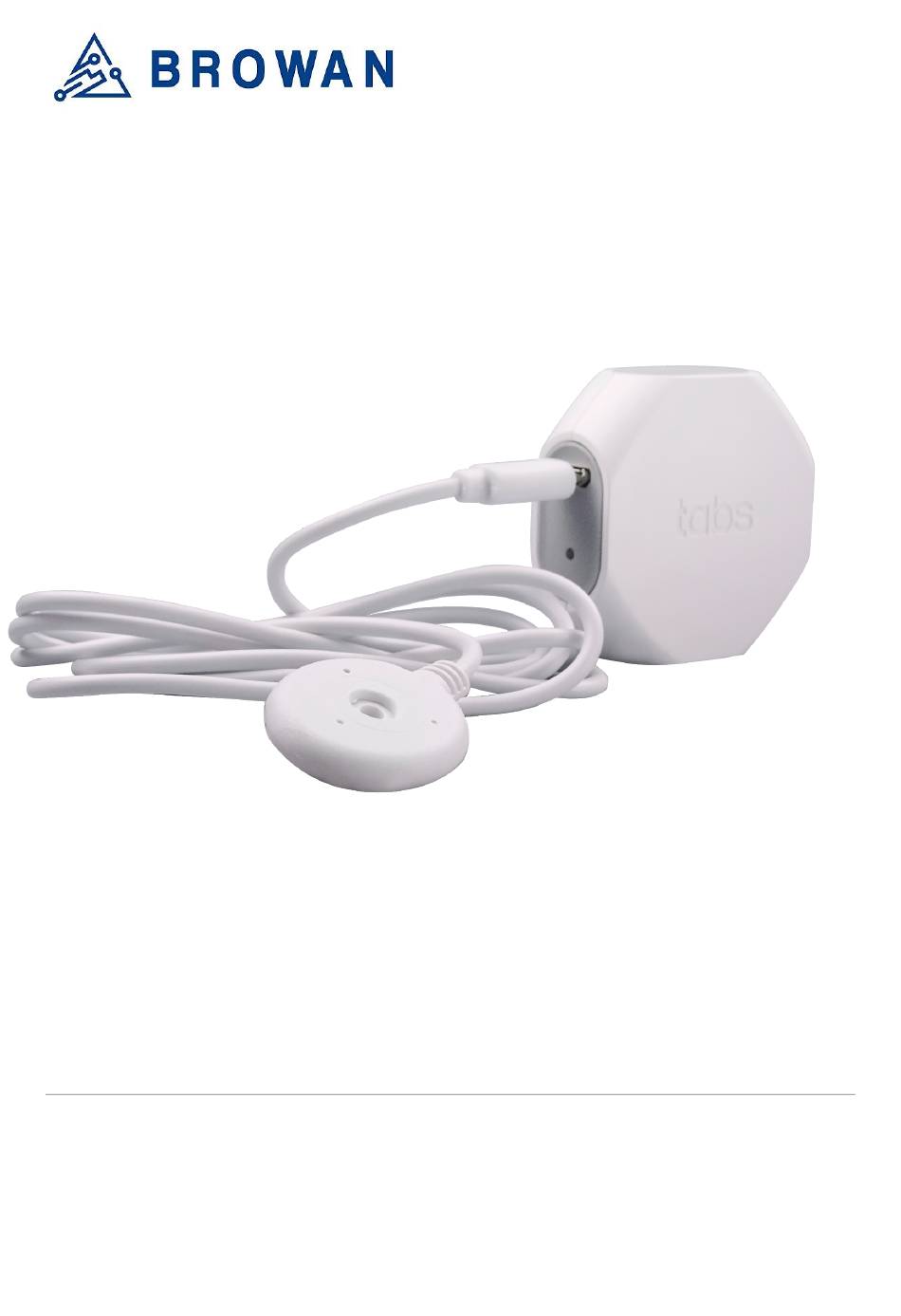

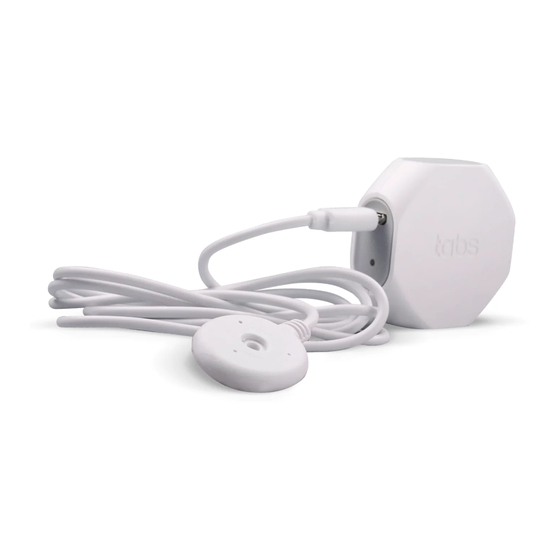

- Page 1 Water Leak Sensor TBWL100-915 Reference Manual TBWL100-868...
-
Page 2: Table Of Contents
6.1.5 Factory check code 6.1.6 Model Name 6.2 PE Bag & Back Label Label Barcode 7. Important Product & Safety Instructions 8. Warnings 9. Notices 10. Cautions 11. Regulatory 12. Accessories handling © 2019 Browan Communications Inc. All rights reserved. -
Page 3: Specifications
One blue LED Rx Sensitivity -135dBm Water Lekage Sensor One Water Lekage Sensor Antenna Gain -2dBi Peak, -5dBi Avg 2.7 Additional Features 2.4 Certifications and Conformity Battery Monitoring FCC ID: pending ROHS REACH © 2019 Browan Communications Inc. All rights reserved. -
Page 4: Operation
4.1.1 Triggers Packet Triggers: 60-minute inactivity, ±2 °C delta, ±5 %RH Delta, water leakage detection per 5 minutes 4.1.2 Payload Port Payload Length 5 bytes Bytes Field Status Battery Temp Temp (PCB) (Environment) © 2019 Browan Communications Inc. All rights reserved. -
Page 5: Payload (Continue)
The temperature is measured by the temp. sensor (Environment) unsigned value τ, range 0 – 127; Bits [6:0] temperature in °C = τ - 32. Bit [7] measurement range -32 to 95°C © 2019 Browan Communications Inc. All rights reserved. -
Page 6: Battery
Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. © 2019 Browan Communications Inc. All rights reserved. -
Page 7: Label Format Information
Uses a hexadecimal representation resulting in 16 characters. 6.1.3 DevEUI 58A0CBFFFFFEFFFF. Uses a hexadecimal representation resulting in 16 characters 6.1.4 Model number Non-reserved characters(except ":" and space) with a maximum length of 20 characters. © 2019 Browan Communications Inc. All rights reserved. -
Page 8: Factory Check Code
● The GS1 Application Identifier (21) indicates that the GS1 Application Identifier data field contains a serial number. ● The GS1 Application Identifier (92) assigned to the company’s internal information is DevEUI. © 2019 Browan Communications Inc. All rights reserved. -
Page 9: Important Product & Safety Instructions
(whether integrated or removable) can cause an explosion or fire. ● Do not dry the sensors or battery with an external heat source such as a microwave oven or hairdryer. © 2019 Browan Communications Inc. All rights reserved. -
Page 10: Warnings
If contact has been made, wash the affected area with copious amounts of water and seek medical advice. ● Do not use any charger other than that specifically provided for use with the equipment. © 2019 Browan Communications Inc. All rights reserved. -
Page 11: Notices
E XPLOSION Incorrect Type. Dispose of Used Batteries or leakage of flammable liquid or gas. According to the Instructions. Discard used batteries according to the manufacturer's instructions. © 2019 Browan Communications Inc. All rights reserved. -
Page 12: Regulatory
11. Regulatory Hereby, Browan Communications Inc. declares that the radio equipment for Tabs products is in compliance with Directive 2014/53/EU. This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
