Browan TBSL100 Series Reference Manual
  1. Manuals
  2. Brands
  3. Browan Manuals
  4. Accessories
  5. TBSL100 Series
  6. Reference manual

Browan TBSL100 Series Reference Manual

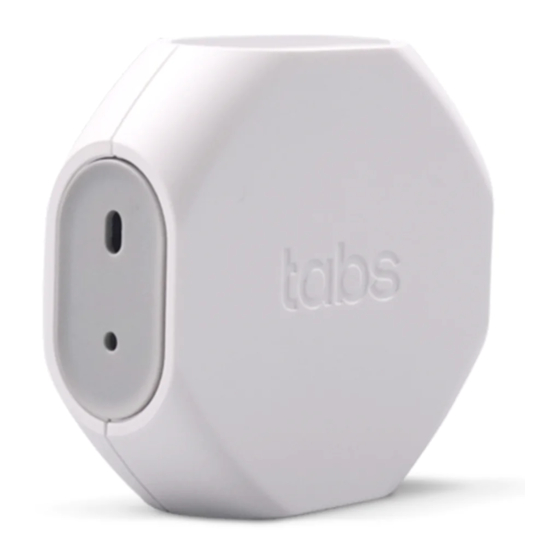

Sound level sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Sound Level Sensor
Reference Manual
Model Name: TBSL100
TBSL100-915
TBSL100-868
DOC ver.: BQW_02_0011.001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBSL100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Browan TBSL100 Series

Summary of Contents for Browan TBSL100 Series

  • Page 1 Sound Level Sensor TBSL100-915 Reference Manual TBSL100-868 Model Name: TBSL100 DOC ver.: BQW_02_0011.001...

  • Page 2: Table Of Contents

    9. Notices 10. Cautions 11. Regulatory 11.1 Federal Communication Commission Interference Statement 11.2 Industry Canada statement: Appendix. Configuration Downlink Command Appx. 1 Payload Appx. 2 Response Content Appx. 3 Frame Count 0 Content © 2019 Browan Communications Inc. All rights reserved.

  • Page 3: Specifications

    US: +19dBm EU: +17dBm LEDs One blue LED Rx Sensitivity -135dBm 2.7 Additional Features Antenna Gain -2dBi Peak, -5dBi Avg PCB Temperature Battery Monitoring 2.4 Certifications and Conformity FCC ID: pending ROHS REACH © 2019 Browan Communications Inc. All rights reserved.

  • Page 4: Operation

    4.1.1 Triggers Packet Triggers: detect decibel value per 5 minutes or the decibel value is more than the threshold. 4.1.2 Payload Port Payload Length 4 bytes Bytes Field Status Battery Temp Decibel © 2019 Browan Communications Inc. All rights reserved.

  • Page 5: Payload

    °C = τ - 32. Bit [7] measurement range -32 to 95°C Decibel Decibel​ value unsigned value τ, range 40 ~ 100 (dBA). Bits [7:0] 255(0xFF) => Sensor cound not measure decibel value. © 2019 Browan Communications Inc. All rights reserved.

  • Page 6: Battery

    Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. © 2019 Browan Communications Inc. All rights reserved.

  • Page 7: Label Format Information

    Uses a hexadecimal representation resulting in 16 characters. 6.1.3 DevEUI 58A0CBFFFFFEFFFF. Uses a hexadecimal representation resulting in 16 characters 6.1.4 Model number Non-reserved characters(except ":" and space) with a maximum length of 20 characters. © 2019 Browan Communications Inc. All rights reserved.

  • Page 8: Factory Check Code

    ● The GS1 Application Identifier (92) assigned to the company’s internal information is DevEUI. : Caution! For more information please refer to chapter 5.2 and chapter 10. © 2019 Browan Communications Inc. All rights reserved.

  • Page 9: Important Product & Safety Instructions

    (whether integrated or removable) can cause an explosion or fire. ● Do not dry the sensors or battery with an external heat source such as a microwave oven or hairdryer. © 2019 Browan Communications Inc. All rights reserved.

  • Page 10: Warnings

    If contact has been made, wash the affected area with copious amounts of water and seek medical advice. ● Do not use any charger other than that specifically provided for use with the equipment. © 2019 Browan Communications Inc. All rights reserved.

  • Page 11: Notices

    ​ E XPLOSION Incorrect Type. Dispose of Used Batteries or leakage of flammable liquid or gas. According to the Instructions. Discard used batteries according to the manufacturer's instructions. © 2019 Browan Communications Inc. All rights reserved.

  • Page 12: Regulatory

    11. Regulatory Hereby, Browan Communications Inc. declares that the radio equipment for Tabs products is in compliance with Directive 2014/53/EU. This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 13: Industry Canada Statement

    Cet équipement doit être installé et utilisé avec un minimum de 0 cm de distance entre le radiateur et votre corps. © 2019 Browan Communications Inc. All rights reserved.

  • Page 14: Appendix. Configuration Downlink Command

    Set keep-alive interval 2 bytes *Note: little-endian format. 0x01 Set sensor detection interval 2 bytes *Note: little-endian format. Set sensor’s ​ d ecibel ​ t hreshold to trigger event 0x02 1 byte © 2019 Browan Communications Inc. All rights reserved.

  • Page 15: Appx. 2 Response Content

    => HW ID : 0x00001600 ​ ( ​ 00160000​ little-endian format​ => ​ F W CRC : 0x02f1f17f ​ ( ​ 7ff1f102​ little-endian format​ ​ = > PubKey ID : 0xeef6d4e2 ​ ( ​ e2d4f6ee little-endian format​ © 2019 Browan Communications Inc. All rights reserved.
