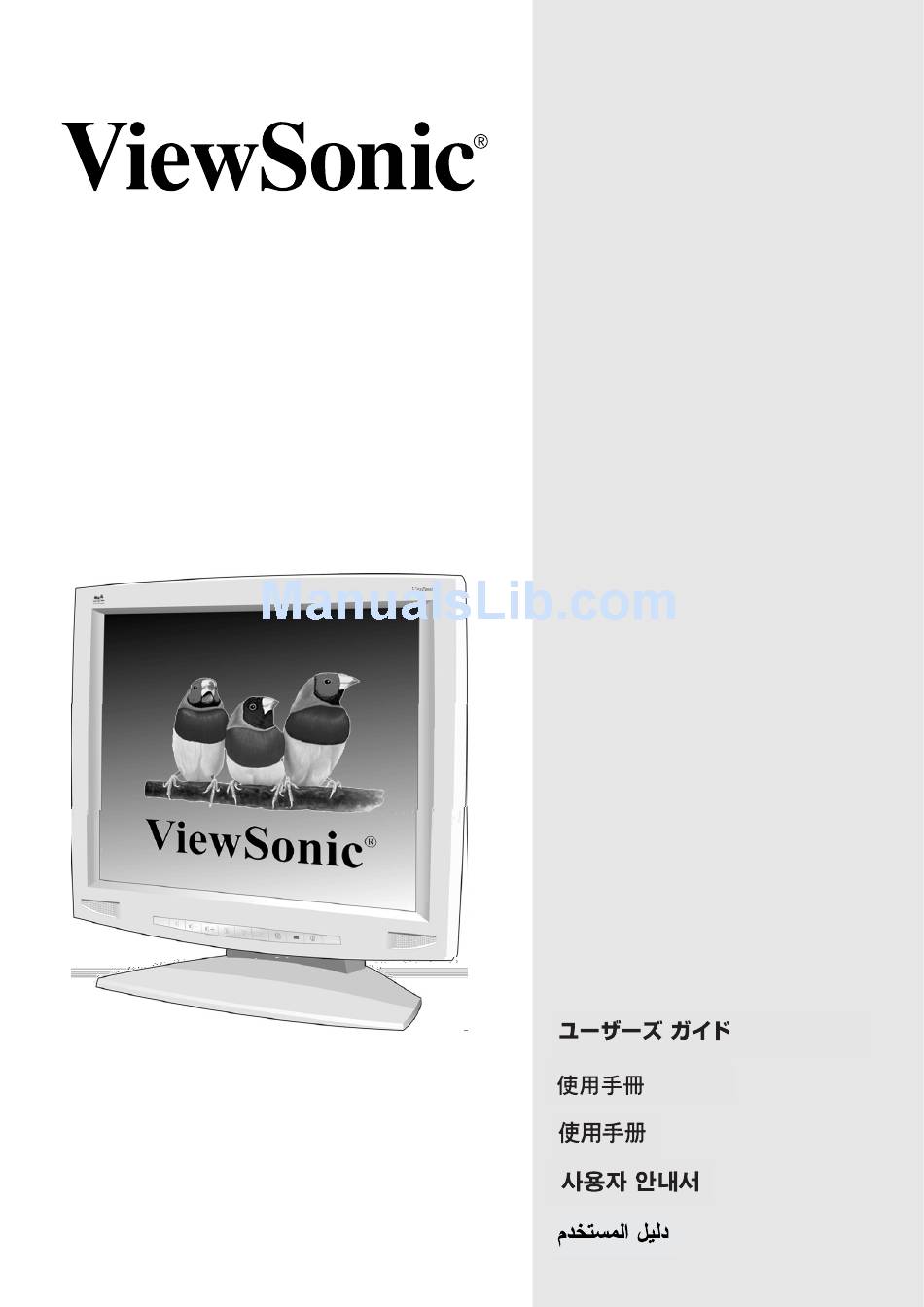

- Page 1 LCD Display VE170m/VE170mb User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell’utente Guia do usuário Användarhandbok Käyttöopas Руководство пользователя Podręcznik użytkownika Full 17.0" Diagonal Viewable Screen...
-
Page 2: Table Of Contents
OSD and Power Lock Settings...5 Adjusting the Screen Image ...6 Main Menu Controls ...8 Specifications ...11 Troubleshooting...12 Customer Support ...13 Cleaning the LCD display ...14 Limited Warranty ...15 Appendix Safety Guidelines ...16 Compliance Information ...17 CE Conformity ...17 ViewSonic VE170m/VE170mb... -
Page 3: Product Registration
Internet at: www.viewsonic.com. The ViewSonic Wizard CD-ROM also provides an opportunity for you to print the registration form which you may mail or fax to ViewSonic. Note: The Serial Number may be displayed from an on-screen display menu. -
Page 4: Getting Started
Getting Started Congratulations on your purchase of a VE170m/VE170mb color LCD display. Important! Save the original box and all packing material for future shipping needs. The word “Windows” in this user guide refers to the following Microsoft NOTE: operating systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000 and Windows Me (Millennium). -
Page 5: Quick Installation
ViewSonic VE170m/VE170mb 4 Install display optimization files (INF and ICM files) (1) Insert the ViewSonic Wizard CD-ROM into your computer’s CD-ROM drive. NOTE: If your computer does not have a CD-ROM drive, see “Customer Support” on page 13. (2) Wait for the CD-ROM to auto-start. -
Page 6: Using The Lcd Display
• Power Button Unlock: Press and hold [1] and the down arrow 10 seconds. ® controls (pages 8 - 10) to desktop > Properties > ® for 10 seconds. If any again for 10 seconds. ViewSonic VE170m/VE170mb for 10 again for... -
Page 7: Adjusting The Screen Image
"Main Menu Controls" on page 8. Mutes Decreases Sound or Increases (on/off) Volume ViewSonic VE170m/VE170mb Displays the Main Menu or exits control screen and saves settings. Scrolls through options and also increases or decreases a value. Front Control Panel controls which ®... - Page 8 The following tips may help you optimize your display: • Adjust your computer's graphic card so that it outputs a video signal 1280 x 1024 @ 60Hz to the VE170m/VE170mb. (Look for instructions on "changing the refresh rate" in your graphic card's user guide.) •...
-
Page 9: Main Menu Controls
When you are finished making all color adjustments, press button [10027 are fw[(arr6.3s)6.3( b711940 200.6Tc[twi0)-12ce ViewSonic VE170m/VE170mb automatically sizes, centers, auto-contrasts Contrast adjusts the difference between the displays the Color Adjust Menu explained below. provides four color adjustment modes. - Page 10 Fine Tune banding, out-of-phase, etc.) Note: Try Auto Image Adjust first. adjusts the clarity and focus of the screen image. Sharpness displays an information menu showing technical displays the Image Adjust menu. adjusts horizontal and vertical position of the ViewSonic VE170m/VE170mb...
- Page 11 Language Select menus and control screens. displays the Resolution Notice menu shown Resolution Notifier below. Resolution Notice advises the optimal resolution to use. allows you to move the on-screen display menus OSD Position and control screens. OSct ViewSonic VE170m/VE170mb...
-
Page 12: Specifications
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic contact ViewSonic “Customer Support” on page 13. -
Page 13: Troubleshooting
• If any colors (red, green, or blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. ViewSonic VE170m/VE170mb... -
Page 14: Customer Support
F: +61 2 9929 8393 viewsonic.com T: 65 273 4018 service.sg@ F: 65 273 1566 viewsonic.com T: 886 2 2246 3456 service.ap@ F: 886 2 8242 3668 viewsonic.com T: 886 2 2246 3456 service.ap@ F: 886 2 8242 3668 viewsonic.com ViewSonic VE170m/VE170mb... -
Page 15: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 16: Limited Warranty
How long the warranty is effective: ViewSonic LCD displays are warranted for three (3) years for all parts including the light source and three (3) years for all labor from the date of the first consumer purchase. -
Page 17: Appendix
Use the following guidelines if it is necessary to replace the original cord set, or if the cord set is not enclosed. The female receptacle of the cord set mu4(rd)-2-20.4( )20.4(86(u4m.4(86(uE(T)16.4(C)-14.1(-)-4(6(u4(rd)0320(e)-20.4( q(e)-20.8(ui)-10.4e(pm ViewSonic VE170m/VE170mb Figure A1 Figure A2... -
Page 18: Compliance Information
Install and use the equipment according to the instruction manual. CE Conformity The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility," and 73/ 23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety." ViewSonic VE170m/VE170mb... - Page 19 ViewSonic Corporation...
