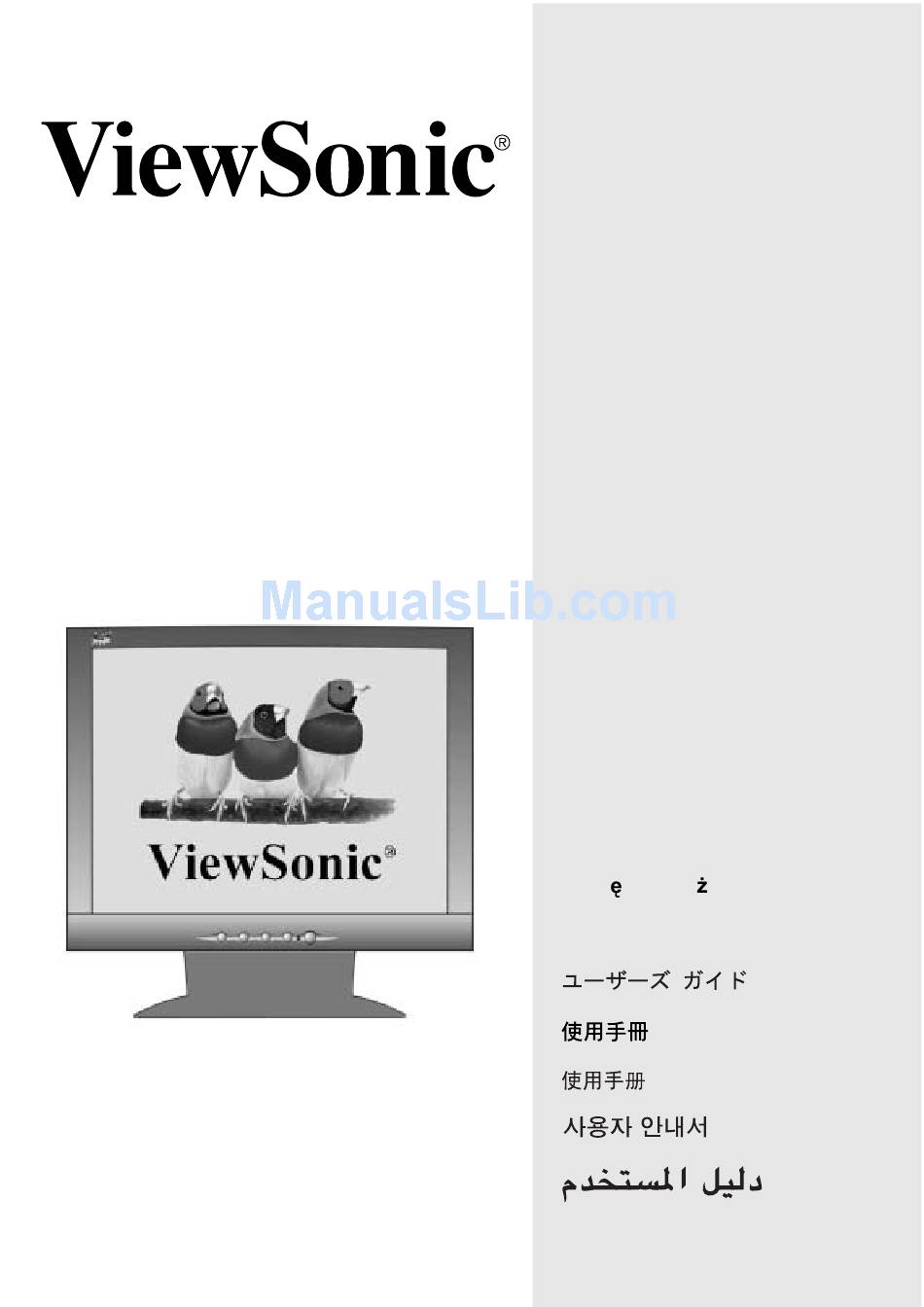

- Page 1 VE175 LCD Display User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell'utente Guia do usuário Användarhandbok Käyttöopas Jmdh\h^kl\hihevah\Zl_ey Podr cznik u ytkownika Uživatelská píruka Full 17.0" Diagonal Viewable Screen...
-
Page 2: Table Of Contents
Adjusting the Screen Image ...7 Main Menu Controls ...9 Other Information Specifications ...12 Troubleshooting...13 Customer Support ...14 Cleaning the LCD Display ...15 Limited Warranty ...16 Appendix Safety Guidelines ...17 Compliance Information for U.S.A...18 CE Conformity for Europe ...18 05/30/04 ViewSonic VE175... -
Page 3: Product Registration
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 4: Getting Started
NOTE: Guide PDF files and INF/ICM display optimization files. The INF files ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. Precautions • Sit at least 18" from your LCD display display. -
Page 5: Quick Installation
Macintosh users: Models older than G3 require a Macintosh adapter. Attach the adapter to the computer and plug the video cable into the adapter. To order a ViewSonic Macintosh adapter , contact ViewSonic Customer Support. 3 Turn ON LCD display and computer Turn ON the LCD display, then turn ON the computer. -
Page 6: Installation Of Wall Mount (Optional)
Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following:... -
Page 7: Using The Lcd Display
LCD dislay’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow 10 seconds. controls ® for 10 seconds. If any again for 10 seconds. for 10 again for ViewSonic VE175... -
Page 8: Adjusting The Screen Image
Main Menu. Scroll through menu options and adjust the displayed control. Main Menu with OnView controls Power light Power On/Off Selects a highlighted control. Also, displays the control screen for the selected control and toggles between control pairs. ViewSonic VE175 ®... - Page 9 The line at the bottom of the screen tells you what you can do next - in this example, either EXIT or select the BRIGHTNESS control. or down buttons. . (The black border around the ViewSonic VE175...
-
Page 10: Main Menu Controls
To adjust selected color, press When you are finished making all color adjustments, press button [1] twice. automatically sizes, centers, and fine tunes the adjusts background black level of the screen image. provides several color options: preset color and down buttons. ViewSonic VE175... - Page 11 Try the Auto Adjust (see page 9) before using the Fine NOTE: Tune control. Sharpness displays the timing mode (video signal input) adjusts horizontal and vertical position of the adjusts the clarity and focus of the screen image. ViewSonic VE175...
- Page 12 Mode listed in this user guide. displays the menu shown below. advises the optimal resolution to use. After allows you to move the on-screen display menus sets the length of time an on-screen display returns adjustments to the original factory ViewSonic VE175...
-
Page 13: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD dislay. Macintosh computers older than G3 require a ViewSonic contact ViewSonic. 17" (full 17" viewable diagonal area),... -
Page 14: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD dislay to another computer. • If you have an older graphics card, contact ViewSonic adapter. Control buttons do not work •... -
Page 15: Customer Support
F: +61 2 9906 6377 viewsonic.com T: 65 273 4018 service@sg. F: 65 273 1566 viewsonic.com T: 886 2 2246 3456 service@sd. F: 886 2 8242 3668 viewsonic.com T: 886 2 2246 3456 service@hk. F: 886 2 8242 3668 viewsonic.com ViewSonic VE175... -
Page 16: Cleaning The Lcd Display
LCD dislay screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD dislay. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 17: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 18: Appendix
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. Switzerland ... SEV Britain ... BASE/BS Japan ... Electric Appliance Control Act Figure A2 Maximum Current Rating of Unit 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps ViewSonic VE175... -
Page 19: Compliance Information For U.s.a
CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/ 23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” ViewSonic VE175... - Page 20 ViewSonic Corporation...
