Summary of Contents for Summit Professional DW18SS2 Series

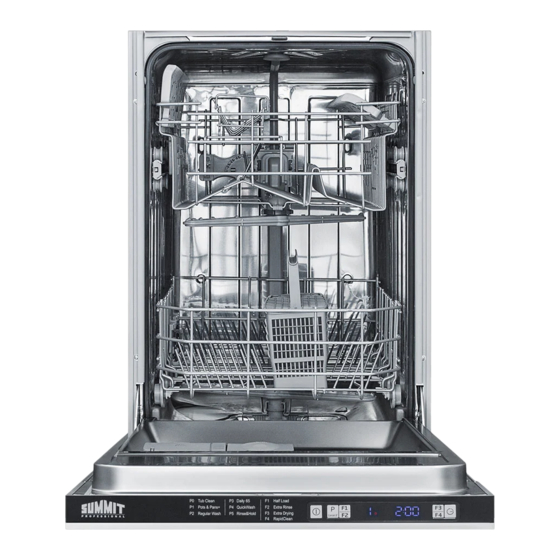

- Page 1 Dishwasher Use and Care Manual FOR MODELS DW18SS2* Write Serial Number (on label on side of door) here:...
-
Page 2: Table Of Contents
To prevent accidents, which could cause serious injury or death, as well as machine damage read these instructions before installation and / or use. CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS 2. INSTALLATION 3. GETTING TO KNOW YOUR DISHWASHER 4. LOADING THE DISHWASHER 4.1 UPPER RACK 4.2 LOWER RACK 4.3 PROPER AND IMPROPER LOADING OF DISHWARE... -
Page 3: Important Safety Instructions
1. IMPORTANT SAFETY INTRODUCTION Please read this user manual and INSTRUCTIONS particularly the safety instructions completely and carefully. They will save you WARNING:When using time and effort and help to ensure optimum the dishwasher, follow basic dishwasher performance. precautions, including the following: Be sure to observe all listed warnings Read all instructions before... - Page 4 Check that the detergent dispenser more people are needed to move a is empty after the completion of each dishwasher. wash program. Before cleaning or carrying out • Dishwasher detergents are alkaline. maintenance, switch off the appliance, • They can be dangerous if inhaled or disconnect the power plug and turn swallowed.
- Page 5 especially for the infirmed, elderly and WARNING:Improper children. connection of the equipment- It is the legal responsibility of parents/ • grounding conductor can result legal guardians to supervise or instruct in a risk of electric shock. Check concerning use of the machine when with a qualified electrician or the children become old enough to service representative if you are...
-
Page 6: Installation
2. INSTALLATION shall be a minimum of # 16 AWG copper wire rated at 75 °C (167 °F) or WARNING:When installing higher. These requirements must be the dishwasher, follow basic met to prevent injury and machine precautions, including the damage. Consult a qualified electrician following: if in doubt. -
Page 7: Getting To Know Your Dishwasher
3. GETTING TO KNOW YOUR DISHWASHER 1. Upper rack 2. Upper spray arm 3. Cutlery basket 4. Detergent dispenser 5. Door 6. Control panel 7. Guiding track for the upper rack 8. Lower spray arm 9. Filters 10. Lower rack 11. -
Page 8: Loading The Dishwasher
4. LOADING THE Lower rack ( MODEL DEPENDING) DISHWASHER Pull the handle to open the door. If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will continue. Upper rack ( MODEL DEPENDING) Bottom rack load pattern for 8 place settings... -
Page 9: Upper Rack
4.1 UPPER RACK CAUTION:The cup racks are designed to support cups, Load the upper rack with dessert plates, glasses and kitchen utensils. cups, glasses etc. When the cup racks are in the dishwasher do not lean on or use the cup racks to support your body weight. - Page 10 FOLDING TINES (MODEL DEPENDING) There are “folding tines” in the upper rack to allow you more space to accommodate glasses or cups. Simply pull in the first front folding tine, move it to left A and right B to place in another positon.
-
Page 11: Lower Rack
HEIGHT SETTING (MODEL DEPENDING) In certain models, the height setting of the upper rack may be changed using the wheels which are present at two height levels. CAUTION:Make sure that the rack is empty. Changing the height setting while the rack contains tableware could Push the latches back into the correct cause the contents to dislodge,... - Page 12 COLLAPSABLE LOWER BASKET WIRES (2 & 4 PIECES) (MODEL DEPENDING) The foldable wires (A) located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. You can create larger spaces by folding each wire individually or all them at once.
- Page 13 COLLAPSABLE LOWER BASKET CUTLERY BASKET WIRES (2 PIECES) (MODEL DEPENDING) (MODEL DEPENDING) The two piece foldable wires located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. (1, 2). You can create larger spaces by folding each wire individually or all of them at once.
- Page 14 UPPER RACK CUP HOLDER (MODEL DEPENDING) You can use the upper rack cup holder for your small cups and similar small glasses. When you don’t use the upper rack cup holder you can remove it to create a bigger space. To attach the upper rack cup holder, place it in the way shown in (A).
-
Page 15: Proper And Improper Loading Of Dishware
4.3 PROPER AND IMPROPER LOADING OF DISHWARE Sliding Cutlery Basket load pattern for 8 1: Salad Fork place settings 2: Teaspoon 3: Dinner fork 4: Knife-solid handle 5: Serving spoon 6: Serving fork Place all large and very dirty items in the lower rack. •... -
Page 16: What Should Not Be Washed In Your Dishwasher
5. WHAT SHOULD NOT Do not wash sponges or dish cloths in • dishwasher. BE WASHED IN YOUR Do not wash art and craft articles in • DISHWASHER dishwasher. Rust-sensitive steel parts like iron Disposable plastics and disposable • • and cast iron that can rust and stain aluminum cannot withstand high other utensils and damage the interior... -
Page 17: Operating The Product
6. OPERATING THE PRODUCT NOTICE: If you do not perform any operation after switching on the machine, it will be automatically switched off within 5 seconds. Cancel 3” On/Off key Not in use 2. Programme Selection / Programme 7. Start / Cancel indicator Cancel (3 seconds) key 8. -
Page 18: Preparing The Machine
6.3 PROGRAMME Programme Selection / Programme Cancel key SELECTION Press this key until the desired programme Press the On/Off button to turn on appears in the programme indicator. your machine. 2. Check the Salt and Rinse Aid indicators To cancel the running programme open and add salt and/or rinse aid if needed. -
Page 20: Auxiliary Functions
6.4 AUXILIARY FUNCTIONS Extra Rinse function Depending on the type of the detergent Washing programmes of your dishwasher used, if a detergent dissolving issue is are designed to obtain the best cleaning encountered it will remove the resulting effect, considering the type of the soiling, stains from the dishes and enables the soiling degree and properties of the dishes optimum rinsing performance. - Page 21 Automatic Detergent Detection Changing Warning Sound Volume Feature After turning on the machine, The product has a feature to automatically press Time Delay and P / P+ keys detect the type of the detergent and simultaneously. Keep them pressed adjust the washing programme and drying until the countdown 3, 2, 1 is completed system to the best performance.
-
Page 22: Scheduling The Washing Time
6.5 SCHEDULING THE 2 - 1 countdown, 0:01 is displayed, close the door of the product and wait for the WASHING TIME draining process complete. Draining is Time Delay completed in 2 minutes and the machine If an economical electricity tariff is applied gives an audible warning when it is in your region, you can use the Time completed. -
Page 23: Cancelling The Programme
6.8 SALT INDICATOR ( ) After the door has been opened, if any button is pressed within (MODEL DEPENDING) 5 seconds and the door is Please check the salt indicator on the closed, the selected programme display to see whether there is adequate resumes;... -
Page 24: Water Cut-Off Warning
Tub Clean Leave your dishes in the This programme is recommended to be machine for about 15 minutes operated on each 1-2 months for machine to allow them cool down after cleaning and necessary hygiene. The they are washed. Your dishes programme should be operated while the will dry in a shorter time if you machine is empty. -
Page 25: Detergent & Rinse Aid Dispenser
7. DETERGENT & RINSE AID DISPENSER 7.1 FILLING THE DETERGENT DISPENSER WARNING:Always store your detergent in locations which are cool, dry and out of the reach of children. • Check that the detergent If you do not know the hardness of your dispenser is empty after the water supply, use 15 ml / 3 tsp detergent. -
Page 26: Filling Rinse Aid Dispenser
7.2 FILLING RINSE AID dishes are less dirty, it is generally sufficient to fill the detergent up to DISPENSER the 15 ml / 3 tsp mark. WARNING:Keep your rinse aids out of the reach of children. Ingestion or inhalation of rinse aid may cause serious injury. -
Page 27: Set The Dose Of Rinse Aid
Close the lid until it clicks in 3. Carefully wipe off spilled rinse aid. Excessive rinse aid causes excessive foam formation, which may hinder cleaning. 7.3 SET THE DOSE OF RINSE AID The dose of rinse aid to be used can be set by means of the dispenser regulator 4 between levels 1 and 6. -
Page 28: Setting The Water Softener
8. SETTING THE WATER SOFTENER (MODEL DEPENDING) WATER HARDNESS & REGENERATION SETTINGS The dishwasher requires lime free water. Hard water leaves watermarks on your dishes. Your dishwasher has a special water softening system to remove the hardness of the tap water. -
Page 29: Filling The Dishwasher Salt Dispenser
9. FILLING THE If the hardness level of the water that you use is above 90°dF (French standard for DISHWASHER SALT water hardness) or if you are using well DISPENSER water, than it is recommended to use filter and water purification devices. (MODEL DEPENDING) If the hardness level of the water CAUTION :Never use culinary... -
Page 30: Care And Maintenance
10. CARE AND Open the screw-in cap of the salt container by turning it counter MAINTENANCE clockwise (Fig. A, B). WARNING:Before cleaning or carrying out maintenance, switch off the appliance, disconnect the mains plug and turn off the water tap. WARNING:Do not repair or replace any part of the dishwasher or attempt any... -
Page 31: Caring For Your Dishwasher Exterior
Cleaning the colored doors: Use only CAUTION :To avoid the soft cloth that is lightly dampened with mild possibility of slipping, keep the detergent. floor around the dishwasher clean and dry. Cleaning the stainless steel doors: Keep your appliance free from Use a soft cloth with a cleaner made for the accumulation of combustible cleaning stainless steel. -
Page 32: Cleaning The Filters
10.3 CLEANING THE FILTERS Clean the filters at least once a week in order for the machine operates efficiently. Check if food residues are left on the filters. If there are food residues on filters, take them out and clean well under running water. -
Page 33: Cleaning The Hose Filter
10.4 CLEANING THE HOSE 10.5 CLEANING THE FILTER IMPELLERS Damages on the machine that may be Clean the impellers at least once a week in caused by impurities coming from the order for the machine operates efficiently. urban supply water or your own water LOWER IMPELLER installation (such as sand, dirt, rust, etc.) Check if the holes on the lower impeller (1) - Page 34 UPPER IMPELLER Check if the holes on the upper impeller (1) are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to remove the upper impeller (A, B). Make sure that the nut is tightened well when installing the upper impeller.
-
Page 35: Troubleshooting
11. TROUBLESHOOTING Machine does not start. Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 36 Machine is unloaded right after the programme is over. >>> Do not unload your • machine right after washing process is completed. Slightly open the door and wait for evacuation of the steam inside for a while. Unload the dishes after the pieces cool down to a touchable level.
- Page 37 There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washing. Filters are clogged. >>> Check if the filter system is clean. Clean the filter system • regularly as illustrated in section “Cleaning and Care”.
- Page 38 Detergent remains in detergent dispenser. Detergent dispenser was damp when adding detergent. >>> Make sure that the • detergent dispenser is dried well prior to filling it with detergent. Detergent is added long before the washing process. >>> Pay attention to add •...
- Page 39 A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid •...
-
Page 40: Technical Features
12. TECHNICAL FEATURES 8 place settings Load capacity Permissible water 4.35 - 145 psi (0.3 - 10 bars) pressure 120 V (volts), 12 A (amps), 60Hz (hertz) Electrical connection 1400 W (watts) Total power 1100 W (watts) Heater power NOTICE: Because we continually strive to improve our products, we may change our specifications and design...
