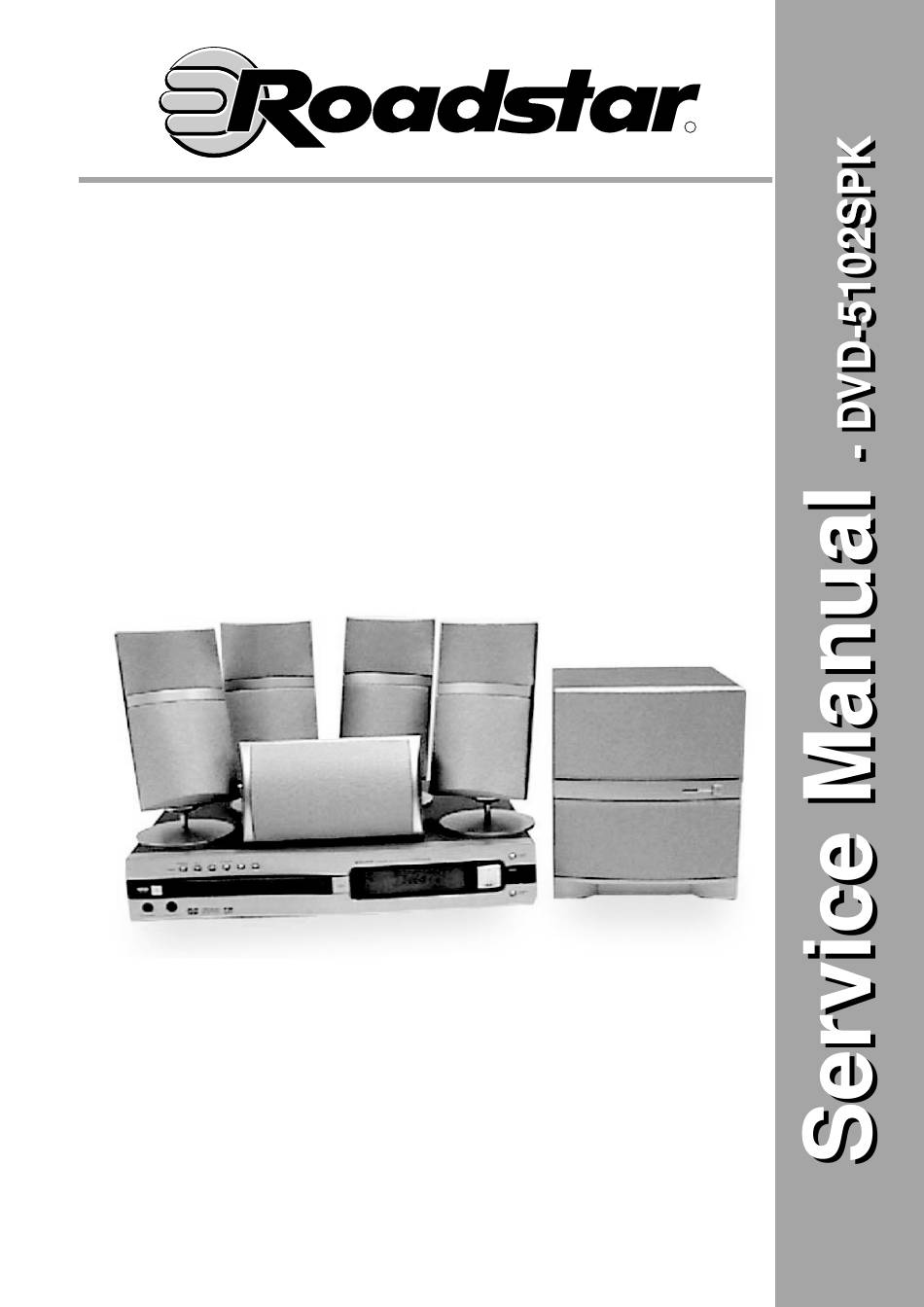

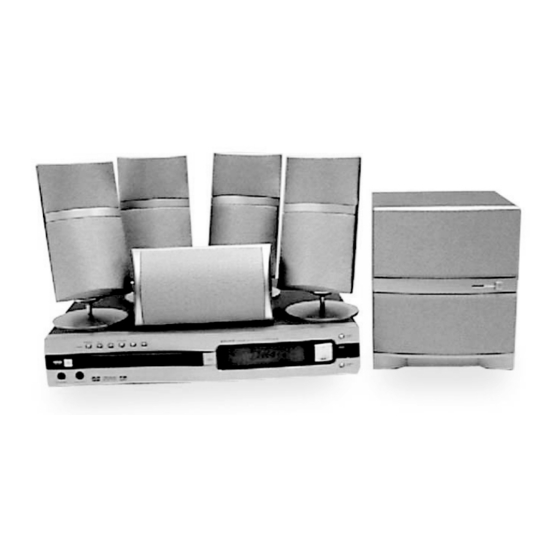

- Page 1 DVD-5102SPK...
- Page 2 MODEL NO: DVD-5102PSPK SERVICE MANUAL Technical specification......................1 Safety & Warning........................2 Troubleshooting......................3 Block Diagram..........................4 Main Board view ....................5~10 Control Board view.........................11~12 Power Board view.........................13~14 Electric Parts List........................15~19 Machine Parts List........................20~21 Exploded View./View list.......................22~24...
-
Page 3: Tuner Section
Technical Specifications DVD setction Laser type ....................Semiconductor laser, Wavelength 650 nm Signal system ..................PAL / NTSC Video format ................... 16 : 9 Video output level ...................1 Vp-p (75 ohm) Video Y output level .................1 Vp-p (75 ohm) Video C output level ................ - Page 4 WARNING CAUTION To prevent fire or shock hazard, do not expose the unit to rain or The use of optical instrument with this product will increse moisture. eyes hazard. As the laser beam used in this CD/DVD player is To avoid electrical shock, do not open the cabinet. harmful to eyes, do not attempt to disassemble the cabinet.
- Page 5 T T T T T r r r r r oub leshooting leshooting oubleshooting leshooting leshooting Severe hum or noise is heard If you experience any of the following difficulties while using the Check that the speakers and components are connected system, use this troubleshooting guide to help you remedy the prob- securely.
- Page 6 BLOCK DIAGRAM SET...
- Page 7 CIRCUIT DIAGRAM - MAIN BOARD (MEPG)
- Page 8 CIRCUIT DIAGRAM - MAIN BOARD (AMPLIFIER SECTION)
- Page 9 CIRCUIT DIAGRAM - MAIN BOARD (TUNER SECTION)
- Page 10 CIRCUIT DIAGRAM - MAIN BOARD (SCART SECTION)
- Page 11 COMPONENT LAYOUT-MAIN BOARD(TOP VIEW)
- Page 12 COMPONENT LAYOUT-MAIN BOARD(BOTTOM VIEW)
- Page 13 CIRCUIT DIAGRAM - CONTROL BOARD R207 R 229 R 230 ZD201 R213 R212 R211 R208 100K C209 15P R209 C210 15P C208 15P GR 6 R224 GR 7 R225 GR 8 R226 SG20/GR 9 DOUT SG19/GR10 TA208 TA209 C LK SG18/GR11 SG17/GR12 TA210...
- Page 14 COMPONENT LAYOUT - CONTROL BOARD (TOP VIEW) COMPONENT LAYOUT - CONTROL BOARD (BOTTOM VIEW)
- Page 15 CIRCUIT DIAGRAM - POWER BOARD...
- Page 16 COMPONENT LAYOUT - POWER BOARD (TOP VIEW) (BOTTOM VIEW) ELECTRICAL PARTS LIST POWER BOARD MISCELLANEOUS CN904 CCN396021-0104 CONNECTOR 4 PIN P=3.96mm CN905 CCN396021-0104 CONNECTOR 4 PIN P=3.96mm F904 CFC011000-1001 FUSE CLIP DIA5xL20mm FUSE F904 KSA020315-0030 FUSE 3.15A 250V SLOW Q901 RAN200945-0001 XISTR NPN 2SC945P Q902...
- Page 17 E.LECTRIC PARTS LIST PART PDESC SPECA SPECB UM USQTY WHUS JRN002001-0010 RESONATOR MURATA CSB 455EB 1.00 LHI100094-0001 PCB 94HB L165.25xW151xT0.8mm REMOTE PCB DR3.2 1.00 PVE939530-1010 COND ELECT uF 10V 20% 5X7MM P=2.0MM 1.00 PYL410370-2210 CHIP CAP 220 pF 50V 5% 0805 TYPE NPO 2.00 C2 C3...
- Page 18 PART PDESC SPECA SPECB UM USQTY WHUS QCF015020-1530 CHIP RES. 15K OHM 1/10W 5% 0805 SMT TYPE 6.00 R464 R466 R468 R470 R472 R4115 PYL410370-5090 CHIP CAP 5 pF 50V 5% 0805 TYPE NPO 3.00 C003 C005 C048 PYL410370-5610 CHIP CAP 560 pF 50V 5% 0805 TYPE NPO 5.00...
- Page 19 PART PDESC SPECA SPECB UM USQTY WHUS RCI062446-0002 IC 42 PIN SSOP M6244AFP 1.00 IC410 RCI000809-0003 IC 3 PIN IMP809 SOT23 RESETVOL 2.93V MICROCNTL DR620 DR401 D PC 1.00 IC120 QCF015020-3920 CHIP RES. 3.9K OHM 1/10W 5% 0805 SMT TYPE 1.00 R020 RCD104148-0010 CHIP DIODE...
- Page 20 PART PDESC SPECA SPECB UM USQTY WHUS CCN200000-0105 CONNECTOR 5 PIN PITCH=2.0mm B5B-PH-K TOP BASE 1.00 CN107 CCN200000-0112 CONNECTOR 12 PIN PITCH=2.0mm B12B-PH-K TOP BASE 1.00 CN108 CCN200000-0113 CONNECTOR 13 PIN PITCH=2.0mm B13B-PH-K TOP BASE 1.00 CN201 CCN250000-0102 CONNECTOR B2B-XH-A 2 PIN POST BASE TOP P=2.5 1.00 CN908...
- Page 21 PART PDESC SPECA SPECB UM USQTY WHUS RAZ005006-0020 DIODE ZENR 5.6-5.9V 0.5W HITACHI HZ6B-2 1.00 ZD201 LVC100154-0001 PCB 94V0 CNTL PCB DR400 1.00 MAW060001-0010AI TACT SW SKHVBE3520 5.0 MM 160 GF 9.00 TA201 TA202 TA203 TA204 TA208 TA209 TA210TA205 TA206 PRE939560-1010 COND ELECT 100uF 35V 20% 85'C SMALL TYPE...
- Page 22 BPD101038-0001 DOOR COVER ABS DVD DOOR COVER DR400 BPD101010-0001 TRIM PART AS DR401 BPF104013-0AY2 FRONT CAB DR401 ROADSTAR GSE100169-0003 BACK CAB SECC T=0.8mm W/SCART 6 CHANNELDR401 ROADSTAR BNP100074-0001 PVC PLATE L13.5xW8xT1mm MX3600 IVE100180-0001 SPONGE SHORT YLB002000-0007 LASER LABEL LASER LABEL...
- Page 23 PARTS PDESC SPECA SPECB UM USQTY WHUS IVA000001-0061 POLY BAG L610xW540mm W/RECYCLE ESD10A001-0304 SPK BOX AY ROADSTAR DR401 IVA007006-0010 SOFT BAG L420xW160xT0.5mm W/RECYCLE RED ICC100019-0038 CARTON L524xW464xH436mm DR401 ROADSTAR YOM100143-0002 OWN MANUAL ROADSTAR DR401 DR403 SUBWOOFER CLATRON PC YLB107000-0157 BAR CODE...
- Page 24 EXPOLDED VIEW OF MECHANISM...
- Page 25 MECHANICAL&ACCESSORY PARTS LIST-MAIN UNIT BPK106026-0AY0 POWER KNOB ABS SPRAYING OIL BPK102057-0AY0 FUNCTION KNOB ABS SPRAYING OIL BPK108055-0AY0 OPEN KNOB ABS SPRAYING OIL BPF104013-0AY1 FRONT CAB HIPS SPRAYING OIL/PRINTING BPD101037-0AY DVD DOOR AS/PRINTING BPD101010-0001 TRIM PART ABS SPRAYING OIL BPD101038-0001 DOOR COVER AS/PRINGTING BPN100078-0001 DISPLAYS LENS...
- Page 26 PACKAGE EXPOLDED VIEW OF MECHANISM AIR150009-0028 REMO TE ITF100182-0001 LEFT ENDCAP ICF1 00006-0001 AFL0DR401-0701 POLYFOAM IVA000001-0003 MAIN UNITE POLY BAG MECHANICAL&ACCESSORY PARTS LIST-MAIN UNIT YOM100169-0001 AFL0DR401-6501 MAIN UNIT GUIDE MANU SET UP GUIDE MANUAL AIR150009-0002 REMOTE FBY064015-0003 BATTERY ASL100034-0006 ANT ASS'Y YOM100143-0001 IVA007006-0010 OWN MANUAL...
