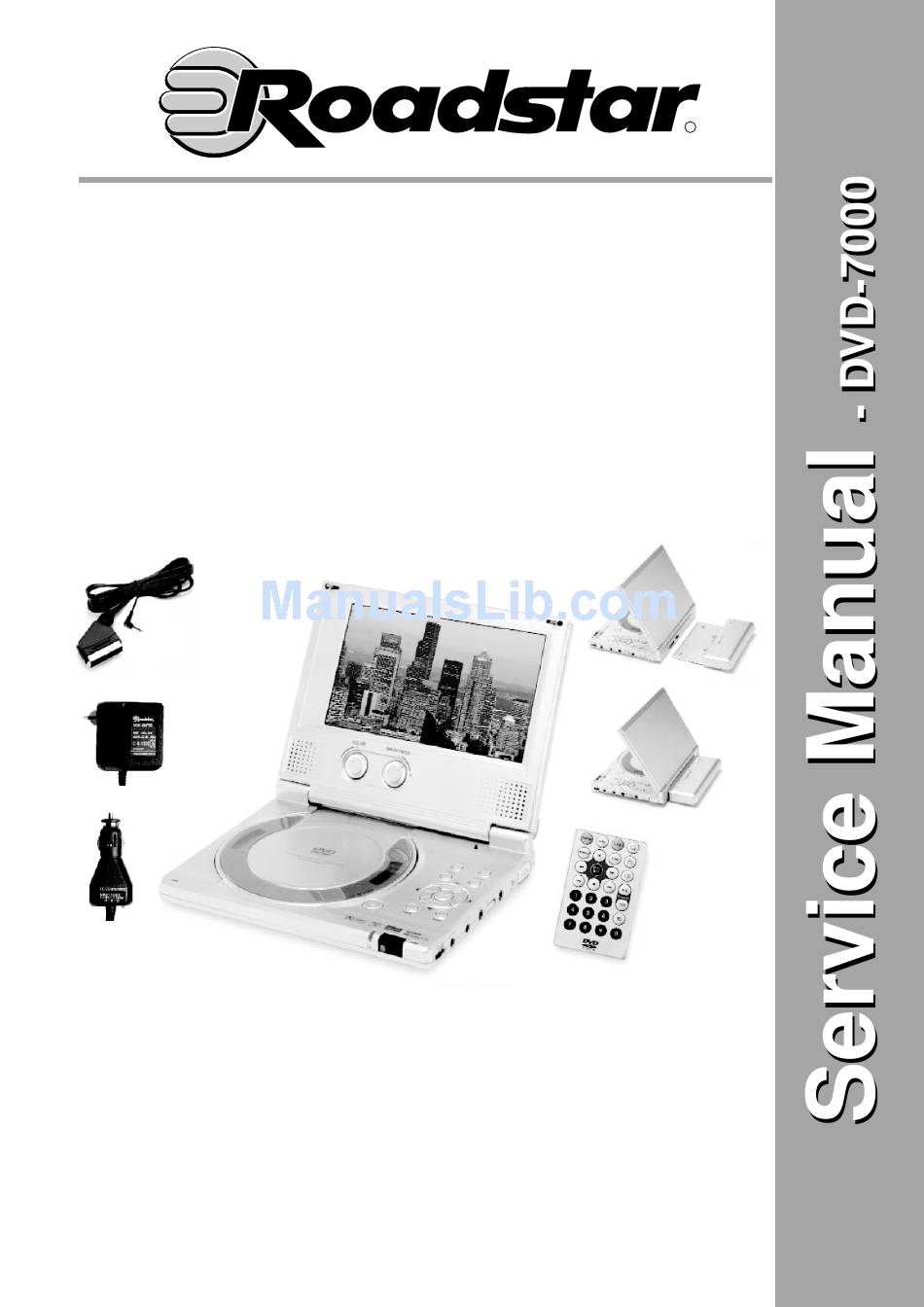

  • Page 1 DVD-7000...
  • Page 2 I、 Test Environment and Equipment Name Spec. Q’ty Note Dual spec.TV (NTSC/PAL) PVM-14N6E European spec. Schneider STV 365 230V~50Hz 50Watt Transformer 12V/1.66A Oscilloscope OS-9100D 100MHZ Video/Audio Cable PL200 CABLE S-video Cable PL200 CABLE CBS Test Disc TCD-731RA Test Disc Vertical Deviation 0.54~1.0mm SBC444A Test Disc Philips Test Disc...
  • Page 3 II、 DVD Player Error Code CODE Description of defects Note Power Test No power no action Power Led indicator is not on or insufficient brightness Loading time too long Remote control bad sensing or not functional System stays in the Run In condition after power on, can’t be tested System down at power on System down during playing F/W version not match or can’t change the version...
  • Page 4 Audio / left sound channel (AOL) does not have waveform (sound) or waveform (sound) abnormal Audio / right sound channel (AOR) does not have waveform (sound) or waveform (sound) abnormal AC3 no waveform (sound) or waveform (sound) abnormal TCD-731RA abnormal sound SBC444A abnormal sound CBS no waveform (sound) or waveform (sound) abnormal (Please indicate the abnormal condition)

  • Page 5: Other Test

    Inferior material Wrong parts Foreign objects inside the system Other Test Others...

  • Page 6: Main Board

    III. Troubleshooting of abnormal conditions ★Make sure that PCBA does not have any missing parts, cold soldering, and hollow soldering. No Power 、 1. Main Board Remove the top cover to check whether the devices on the main board are burned.
  • Page 7 Check the 7pin cable connecting the main board and the key board to see if it is correctly plugged at the fixed positions, or re-plug it. If the above actions are not working, replace the front board or the main board. 3.
  • Page 8 version that is being used at present and test again. T09 Machine base temperature too high 1. F/W Check the F/W on the main board to see if the polarity is reversed, if so, replace it or place it at the correct position. 2.
  • Page 9 Pin89-132 or IC to see if there is any hollow soldering or cold soldering. Check the resistors or capacitors of J903, U901, U701, or U702, or those adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part, or misplaced soldering.
  • Page 10 symptom will disappear. If the above actions are not working, replace the Main Board. T17 Head does not work Main Board Remove the top cover, check the 30-pin flat cable in the system to see if they are correctly plugged to the fixed positions, or re-plug them. Check the resistors or capacitors of J903, U901, or U701 on the main board, or those adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part, or misplaced soldering.
  • Page 11 T21 Video no video / abnormal 1. Main Board Remove the cover. Check J502 on the main board to see if there is any cold or hollow soldering and rule out the problem. Remove the top cover, check all flat cables in the system to see if they are correctly plugged to the fixed positions, or re-plug them.
  • Page 12 Main Board Check U101 and U102 to see if there is any cold or hollow soldering and short circuit problem and rule out the problem. Check the resistors or capacitors of J903, U901, U701, or U702, or those adjacent to IC to see if there is any hollow soldering, cold soldering, wrong part, or misplaced soldering.
  • Page 13 Remove the cover. Check J501 on the I/O board to see if there is any cold soldering, hollow soldering, or damage. Rule out the problem. Check all parts following AOL to see if there is any cold or hollow soldering, short circuit, broken circuit, parts missing, wrong parts and rule out the problem.
  • Page 14 T34 SBC444A abnormal sound Main Board Remove the top cover, check flat cables connecting to the power board to see if they are correctly plugged to the fixed positions, or re-plug them and test again. Check U404-pin2 and U101-pin63 on the main board to see if the frequency is 16.9344MHz.
  • Page 15 Check the resistors or capacitors of J801, U801, U802, or U701 on the main board, or those adjacent to IC to see if there is any hollow soldering or cold soldering. - If the above actions are not working, replace the main board. If it is still not working, replace the loader.
  • Page 16 If the above action does not work after the inspection, replace the main board. T40 Earphone no sound or the sound has pause, abnormal sound, noise, echo Main Board Remove the top cover, check flat cables connecting to the main board to see if they are correctly plugged to the fixed positions, or re-plug them and test again.
  • Page 17 Key Board Check to see if U2 is damaged, and check all parts following U2 to see if there is any cold or hollow soldering, short circuit, broken circuit, broken parts, parts missing and rule out the problem. If the above actions are not working, replace the Key Board. T52 Can’t execute fast forward or rewind Main Board Check to see if U101 is damaged, and check all parts following U1 to see if there is...
  • Page 18 F/W is bad. Replace the main board or re-burn the F/W (U201). T62 System can’t play or system down after setting Main Board Check U101 to see if there is any cold or hollow soldering and reverse soldering of IC or parts missing. If the above actions do not work after the inspection, it means the main board or F/W is bad.
  • Page 19 soldering of IC or parts missing. Check the devices surrounding X301 and X302 to see if there is any cold or hollow soldering and reverse soldering of IC or parts missing. Check L201 to see if there is any cold or hollow soldering and reverse soldering of IC or parts missing.
  • Page 20 T75 TFT ripple Main Board Check the 4-pin and 12-pin cables connected to the driver board to see if there is any problem of plugging. Rule out the problem. Check the 12-pin cable connected to the inverter board to see if there is any problem of plugging.
  • Page 21 REVISION TABLE SCHEMATIC LAYOUT CONFIDENTIAL...
  • Page 22 +2.5V +2.5VV Close W9928AF's power pin. L104 FB600 +3.3DV +3.3V L105 FB80 EC101 C124 C122 C123 EC103 C125 100u/16V 100n 100n 100n L106 FB80 MD[0..15] 47u/16V 100n /PSEN R120 FB600 MA[0..11] /PSEN EC102 VSSPLL2 U102 R119 FB600 C126 MA11 MD15 DQ15 MA10 MD14...
  • Page 23 4.7u/16V EC405 R402 R404 IN1+ R_IN IN1- R403 R405 R406 C407 C406 4.3K 5.6K 330p 330p EC401 EC402 C403 C404 10u/16V 10u/16V 100n 100n 4.7u/16V EC406 R407 R409 IN2+ L_IN IN2- R408 R410 R411 C409 C408 4.3K 5.6K 330p 330p U404 AVCC EC403...
  • Page 24 EC504 4.7u/16V R505 AOR_O EC503 4.7u/16V R506 AOL_O +12VA R503 R504 D502 RLS4148 Q502 Q503 MUTE_A MUTE_A SI2302 SI2302 D501 R501 RLS4148 J501 EC501 Q501 EC502 R534 AOL-E BC858B HP_IN1 R502 4.7K R507 R536 AOR-E 2.4K C518 C519 AVCC PHONOJACK STEREO-14 D503 RLS4148 MUTE_A...
  • Page 25 +12V +12V C641 C640 EC619 10u/16V EC613 10u/16V U604 J601 10u/16V 100n 100n EC615 1206 8-SIOC CBOOT1 C631 CBOOT2 DNS9956 Q603B C629 EMI Solution Q602A 1000P DNS9956 C628 C623 1000P +3.3VP +3.3V HDRV1 HDRV2 8-SIOC L604 100n R603 L611 C613 C614 L602 27uH...
  • Page 26 IMPAD[0..7] U704 U703 IMPAD0 IMPAD0 LDRRDY IMPAD1 IMPAD1 SDATA IMPAD2 IMPAD2 IMPSEN X701 CD_DVDCT IMPAD3 IMPAD3 IMPALE 33.8688MHz IMPAD4 IMPAD4 IMPAD5 IMPAD5 RFVCC RFVC IMPAD6 IMPAD6 LDON +3.3VS PLL3.3V R750 IMPAD7 IMPAD7 LDON IMPA8 L701 IMPA9 C718 C717 IMPA10 UD[0..7] UD[0..7] IMPA11 74LS373...
  • Page 27 R812 R813 470K (SFODAC) Q801 SFOCUS R811 SSPDON C801 220p R801 BC848B R802 R804 U801 MVREF16 MOTORON VINFC STBY R803 (SSLDAC) SSLEG CFCERR1 BIAS (STRDAC) STRACK CFCERR2 VINTK R805 R810 C807 220p VINSL+ CTKERR1 C802 VINSL- CTKERR2 C803 4700p VOSL VINLD 100n VNFFC...
  • Page 28 RFVCC EC903 C925 150u/6V 100n C922 100n C913 100n RFVCC FOR EMI MVREF21 C923 100n C912 100n C929 EC904 100n 100u/16V C903 C926 C928 RFVCC 100n 100n 100n MEI- 4.7K R922 R921 R903 R904 C927 8.2K/1% 3.3p R901 R920 R919 J903 EMI Soulation FOCUS+...
  • Page 29 +5VI CVBS/Y_O_2 +3.3VP +3.3VTFT +5VD TFT_Power_C CON3 AOL- AOL+_P 22UH(0805) 100n TFT_Power_C 2 2 3 TFT_Power_C AOR- AOR+_P CON4 SW KEY-SPST 100n 100n CON12 For TFT Driver Power For Inverter Power C012 C013 C014 C015 CVBS/Y_O_2 EMI Solution Near J01 C011 EMI Solution EC016...
  • Page 30 R201 R204 R203 R202 AD[0..7] AD[0..7] AD[0..7] W27E040 SHORT SHORT REMOVE REMOVE L201 W29C040 REMOVE REMOVE SHORT SHORT U204 U201 PIN1 R201 NC/0 PIN31 R204 NC/0 SA18 R203 0/NC SA10 SA11 R202 0/NC SA12 74LS373 SA13 (20,10) SA14 SA15 SA16 /PSEN /PSEN SA17...
  • Page 31 R307 R305 R306 4.7K 1.3K 4.7K C304 100n RMCTRL_DETECT IR_IN1 U301 U302A IR_INT IR_IN2 74HC08/SO Pin14 : +5V Pin7 : GND BACK_LIGHT U302B 74HC08/SO D107 R101 D301 5.1K RLS4148 L301 FB80 MUTLI-LED R301 EC301 U302D /RESET IR_IN1 74HC08/SO 10u/16V U302C EC104 C302 100N...
  • Page 33 +3.3V VCCT R105 NC/0 R106 0/NC L103 2.2uH J101 C112 C103 C111 EC104 EC101 100u/16V 0.1u +3.3V 0.1u 100u/16V 0.1u C110 EC103 EC102 0.1u 100u/16V CON4 100u/16V +3.3V +7.5V D102 L101 22uH C106 C107 L102 MBRM120 0.68u 0.68u 10uH R103 C116 C118 D104...
  • Page 34 +17V VCCT J201 U202 VCCT C209 47p R249 R251 OSCI C206 R250 R247 D201 C211 C212 C213 C222 C224 STVD 0.1u R248 STVU VR201 C207 GNDE MA335 6800p 0.1u 0.1u L201 C214 R231 360p 4.8uH GNDE OSCO C210 150p GNDE C208 VCOM BU4S81...
  • Page 35 J301 R351 R350 R349 R348 R347 R345 R344 R343 R342 CVBS/Y_O 5.6K R346 6.8K MODE1 5.6K MODE2 MODE3 TFT_POWER_C VR309 AOL- AOL- AOL+ AOL+ AOR- AOR- AOR+ AOR+ C325 R331 C326 R332 C327 R333 C328 R334 C329 R335 C330 R336 C331 R337 C332...
