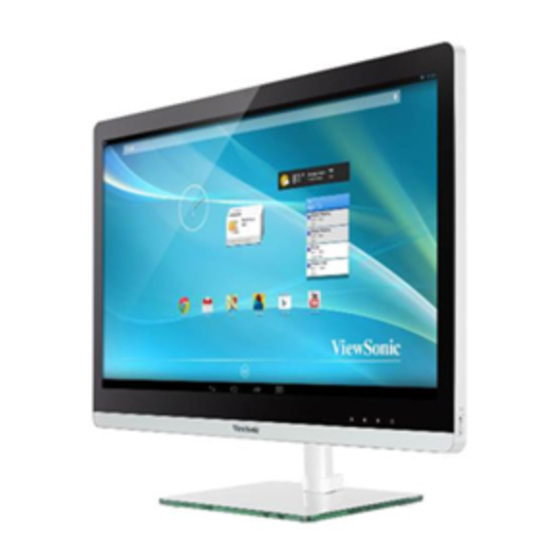

- Page 1 VSD222C/VSD223 Smart Display User Guide Model No. VS16155...
- Page 2 With over 25 years as a world leading provider of visual solutions, ViewSonic is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic product you have chosen will serve you well.
- Page 3 Compliance Information Please read before proceeding • Use only the batteries and power adapter provided by the manufacturer. The use of unauthorized accessories may void your warranty. • Do not store your device in temperatures higher than 50°C (122°F). • The operating temperature for this device is from 0°C (32°F) to 35°C (95°F). Following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).
- Page 4 Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/ EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum...
- Page 5 ® Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice.
- Page 6 ______________________________________ Product disposal at end of product life ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/...
- Page 7 Important Safety Instructions DO NOT place objects on top of the device, as objects may scratch the screen. DO NOT expose the device to dirty or dusty environments. DO NOT place the device on an uneven or unstable surface. DO NOT insert any foreign objects into the device. DO NOT expose the device to strong magnetic or electrical field.
-
Page 8: Table Of Contents
Table of Contents Table of Contents 1 VSD222C/VSD223 Smart Display Features 2 Set Up Your VSD222C/VSD223 Smart Display 2.1 Connection ................. 4 2.2 Get Your Smart Display Ready for Use ......4 2.3 Power on Your Device ............5 2.4 Power Off Your Device ............6 3 About Your VSD222C/VSD223 Smart Display 3.1 Touch Screen (For VSD223 only) ........ - Page 9 6.5.2 Functions items ........... 29 6.5.3 OSD Notice ............31 6.5.4 OSD and Hot keys setting ........31 7 Protecting Your VSD222C/VSD223 Smart Display 7.1 Protect Your Device Data with a Screen Unlock Pattern .. 32 7.1.1 Create a screen unlock pattern ......33 7.1.2 Change unlock pattern settings ......
- Page 10 Table of Contents 9 Appendix Specification ................38 viii viii...
-
Page 11: Vsd222C/Vsd223 Smart Display Features
If you have any Window operation system problem, please contact Microsoft Corporation directly. • For multi-touch feature is for VSD223 only, VSD222C must connected with USB mouse, keyboard for operation. 1 VSD222C/VSD223 Smart Display Features This section introduces you to the features of your Smart Display. - Page 12 VSD222C/VSD223 Smart Display Features No. Components Descriptions Built-in Webcam - Used for taking a front picture just the same as a self-portrait. - Used for making video calls with supportive web applications, such as Hangouts. Built-in microphone Used for receiving audio or audio input.
- Page 13 VSD222C/VSD223 Smart Display Features Back View 6 7 8 No. Components Descriptions USB Port 2.0 x 4 Used for keyboard, mouse, flash disk ( supports FAT32 format only) or printer connections. USB B-Type Port Connect to windows computer for data transferring.
-
Page 14: Set Up Your Vsd222C/Vsd223 Smart Display
Set Up Your VSD222C/VSD223 Smart Display 2 Set Up Your VSD222C/VSD223 Smart Display 2.1 Connection SD card Keyboard Printer USB B-Type LAN Earphone Audio in Power D-Sub Mouse USB Storage Earphone Outlet Notebook External Computer Wi-Fi Devices 2.2 Get Your Smart Display Ready for Use... -
Page 15: Power On Your Device
Set Up Your VSD222C/VSD223 Smart Display Connect the Power Cord Connect the included power cord to the power jack. Connect the other end of the power cord to a suitable power outlet. 2.3 Power on Your Device Touch the power button gently to power on your device... -
Page 16: Power Off Your Device
Set Up Your VSD222C/VSD223 Smart Display 2.4 Power Off Your Device Touch and hold the power button for about 3 seconds. When the power off menu appears, touch OK. -
Page 17: About Your Vsd222C/Vsd223 Smart Display
About Your VSD222C/VSD223 Smart Display 3 About Your VSD222C/VSD223 Smart Display 3.1 Touch Screen (For VSD223 only) The main way to control the device is using your finger to touch the sensitive surface of the screen directly. You can manipulate icons, buttons, menu... -
Page 18: Applications, Widgets And Shortcuts
About Your VSD222C/VSD223 Smart Display 3.2 Applications, Widgets and Shortcuts The soft buttons or icons offer a variety of functions and shortcuts. On the Home screen, it is your starting point to access all the features on your device. It displays application icons, widgets, shortcuts and so on. - Page 19 About Your VSD222C/VSD223 Smart Display Items Descriptions Google Use the Google Search application to search Google Search the web faster and easier from Google. Navigation Flick and drag the screen horizontally until Area the desired Home screen is displayed. Back Return to the previous screen or option.
-
Page 20: Navigation Buttons
About Your VSD222C/VSD223 Smart Display 3.4 Navigation buttons On the bottom of the screen (system bar), you can find the navigation buttons described as below: Buttons Descriptions - Touch this button to go back to the previous screen or option. -
Page 21: Status Bar
About Your VSD222C/VSD223 Smart Display 3.5 Status Bar The upper right corner of the screen displays current time, and specified icon (status bar). Items Descriptions Time Displays the current time. Specified Icon Show you the enabled icon. Show you the current state of your device just like Owner, Status Menu Brightness, Settings, and WIFI Settings. -
Page 22: Customizing Your Home Screen
About Your VSD222C/VSD223 Smart Display 3.6 Customizing Your Home Screen 3.6.1 Add an Item (Shortcut) • Touch the Home button to go back the central Home screen. • Drag on the screen horizontally to select a Home screen where you want to add the item. -
Page 23: Navigating The Applications
About Your VSD222C/VSD223 Smart Display • Some wallpaper allows you to change the wallpaper color, ex. Magic Smoke. If “Settings…” displays during the changing wallpaper. Touch it , and on the top of screen will display “Tap to change”, touch the screen to configure the wallpaper color. -
Page 24: Recent Applications
About Your VSD222C/VSD223 Smart Display Use the shortcut to open an application Touch the Home button on the system bar. If the desired application shortcut displays on the Home screen, touch the shortcut to launch the application. 3.7.3 Recent Applications... -
Page 25: Using Your Vsd222C/Vsd223 Smart Display
Follow the on screen instruction to create your contact. NOTE • VSD222C supports you fully customized tablet with multiple users. Each person has their own Home screen, background, widgets, apps, games and so on. Multiple users can use one table to talk simultaneously without having to log in and out. -
Page 26: E-Mail Or Send A Message To A Contact
Using Your VSD222C/VSD223 Smart Display 4.1.3 E-mail or send a message to a contact On the contacts list, find a desired contact. Touch the contact entry to view the contact details, and then touch to send e-mail using the e-mail accounts you have set up on your device, or touch it to send a message. - Page 27 Using Your VSD222C/VSD223 Smart Display Join contacts Since your device can synchronize with a variety of accounts, when synchronizing contacts from these accounts with your device, you may have multiple contacts for the same person. Joining contacts allows you to view all the contact’s numbers, addresses, and so on, in one single contact entry.
-
Page 28: Pop-Up Menu
Using Your VSD222C/VSD223 Smart Display In People, touch the Menu button on the device or the Menu button on the screen. Settings Descriptions Accounts Contacts stored on your device can be synchronized NOTE: If you want to with a computer using Mobile Sync; contacts stored... -
Page 29: Managing Your Device Settings
Using Your VSD222C/VSD223 Smart Display 4.3 Managing Your Device Settings 4.3.1 Check storage spaces Touch the Home button │ Apps button │ Settings │ Storage. The screen displays the total and available space on the device, USB storage and SD card. -
Page 30: Remove The Sd Card Safely
Using Your VSD222C/VSD223 Smart Display 4.3.2 Remove the SD card safely Touch the Home button │ Apps button │ Settings │ Storage. Touch Unmount SD card under the SD Card section. Press and hold the Power button until the Power off menu appears. -
Page 31: Devices Connection
Using Your VSD222C/VSD223 Smart Display 4.4 Devices Connection 4.4.1 Connecting to VGA Input The detachable signal cable of the monitor shall be black. The video cable shall be high quality, shielded, which has a molded-over, triple row, 15 position, and subminiature D connector. The connector over-mold shall be blue in color with the WHQL monitor symbol molded into the over-mold. -
Page 32: Internet
5.1 Connecting to the Internet To browse the web and access web-based utilities such as instant messaging, you can connect VSD222C to a LAN network via RJ45 cable on LAN connector or set up a Wi- Fi connection. 5.1.1 Wi-Fi connection Touch the Home button │... -
Page 33: Check The Current Wi-Fi Network Connection
Internet 5.1.2 Check the current Wi-Fi network connection From the status area of the system bar: When your device is connected to a wireless network, the Wi-Fi icon in the status area of the system bar indicates the signal strength (number of bands that light up). If Settings│ Wi-Fi│... -
Page 34: Customizing Your Vsd222C/Vsd223 Smart Display
Customizing Your VSD222C/VSD223 Smart Display 6 Customizing Your VSD222C/VSD223 Smart Display You can customize your device using the options available in the Settings application. 6.1 Display Settings Change the display settings: Touch the Home button │ Apps button │ Settings │ Display. -
Page 35: Sound Settings
Customizing Your VSD222C/VSD223 Smart Display 6.2 Sound Settings Change the sound and ringtone settings: Touch the Home button │ Apps button │ Settings │ Sound. Select the list to locate and touch a desired option. To enable a setting, touch the setting option to select the check box; to disable a setting, touch the setting option to clear the check box. -
Page 36: Date, Time, And Time Zone
Customizing Your VSD222C/VSD223 Smart Display 6.3 Date, Time, and Time Zone New function added: The clock has been totally redesigned with an all new look which includes both a digital and analog clock style. You can also resize the digital clock widget to display the time in other cities around the world. - Page 37 Customizing Your VSD222C/VSD223 Smart Display Items Descriptions Automatic date & Use network-provide date and time automatically. time Automatic time zone Use network-provide time zone automatically. Set date 1. Touch Set date item to adjust the day, month, and year; you can also touch the day, month, or year to flick to the desired value.
-
Page 38: Language & Input Settings
Customizing Your VSD222C/VSD223 Smart Display 6.4 Language & Input Settings Set the language of the display text: Touch the Home button │ Apps button │ Settings │Language & input │ Language. By default, the Language is set to English. Select a language of your choice from the list that appears. -
Page 39: Osd Menu
C O N T R A S T B R I G H T N E S S Touch the Menu/Exit button on side of your VSD222C/VSD223 to launch OSD configuration screen. The OSD configuration screen can be used to configure the Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu and Memory Recall. - Page 40 Customizing Your VSD222C/VSD223 Smart Display Information: Select this item to show you the information about your VSD222C including the Resolution, H.Frequency, V.Frequency, Pixel Clock, Model Number, Serial Number and Website. Manual Image Adjust: Include Sharpness, Dynamic Contrast, Aspect Ratio, Overscan, ECO Mode, ViewMode and Blue Light Filter.
-
Page 41: Osd Notice
Customizing Your VSD222C/VSD223 Smart Display 6.5.3 OSD Notice idling: The OSD menu will close and go back to the original processing screen automatically during your OSD menu is idling that reached to the OSD time out value. No signal: • The connection for your D-Sub is not ready. -
Page 42: Protecting Your Vsd222C/Vsd223 Smart Display
Protecting Your VSD222C/VSD223 Smart Display 7 Protecting Your VSD222C/VSD223 Smart Display 7.1 Protect Your Device Data with a Screen Unlock Pattern You can protect your device data against unauthorized access by locking the touch screen with a screen unlock pattern. Once the unlock pattern is enabled and the screen is locked, you need to draw the correct unlock pattern to unlock the screen. -
Page 43: Create A Screen Unlock Pattern
Protecting Your VSD222C/VSD223 Smart Display 7.1.1 Create a screen unlock pattern Touch the Home button │ Apps button │ Settings │ Security. Touch Screen Lock section → Pattern. Read the instructions on the screen and study the animated example of how to draw a pattern. Then, touch Next when you are ready to draw your own pattern. -
Page 44: Disable The Screen Unlock Security
Protecting Your VSD222C/VSD223 Smart Display 7.2 Disable the screen unlock security Touch the Home button │ Apps button │ Settings │ Security. Select None to disable screen unlock security. 7.3 Protect Your Device Data with a PIN Touch the Home button │ Apps button │ Settings │ Security. -
Page 45: Protect Your Device Data With A Password
Protecting Your VSD222C/VSD223 Smart Display 7.4 Protect Your Device Data with a Password Touch the Home button │ Apps button │ Settings │ Security. Touch Screen Lock section → Password. On the Choose your password screen appears, enter a password in the text box. -
Page 46: Power Saving Feature
Protecting Your VSD222C/VSD223 Smart Display 7.5 Power Saving Feature In order to save energy, this device supports power saving mode (sleeping mode). The device will enter power saving mode when you idle without processing. Then, the screen will go off. You can set the duration of screen to remain on before entering sleeping mode, touch the Home button │... -
Page 47: Troubleshooting
- Ensure that the DC connector is fully inserted into the correct socket on the rear of the VSD222C located under the cover - Check the power socket with another device (i.e. table lamp) - If there is still no power then contact ViewSonic support or... - Page 48 Appendix 9 Appendix Specification LCD Spec. Size 54.61cm (21.5”) Resolution 1920x1080 Brightness 250 cd/m Backlight Thickness 10.5 mm Touch screen Capacitor Touch type, with glass Hardware Buttons Power button *1 Control keys *4 Power LED Indicator Blue (on) / Amber (saving) I/O ports D-Sub *1 USB type A x 4, USB type B x 1...
- Page 49 Appendix Android 4.4 Kit kat Support multi-language System ® CPU/SoC Intel Bay Trail CR Z3735F Speed 1.33GHz Cores Quad-core Graphic Embedded Memory DDR3 2GB, Speed to 800Mbps Storage eMMC (NAND), 32G WLAN 802.11 b/g/n Environment Temperature & Operation: 20%~90% @ 35 C Non-condensing Humidity Storage: 90% R.H.
- Page 50 C= http://www.viewsonic.com/la/ Latin America (Mexico) www.viewsonic.com/la/ soporte@viewsonic.com soporte/servicio-tecnico Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F. Tel: 55) 6547-6454 55)6547-6484 Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico C= http://www.viewsonic.com/la/ Latin America (Peru) www.viewsonic.com/la/ soporte@viewsonic.com soporte/servicio-tecnico Macau www.hk.viewsonic.com...
- Page 51 ® What the warranty covers: ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product.
- Page 52 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based...
