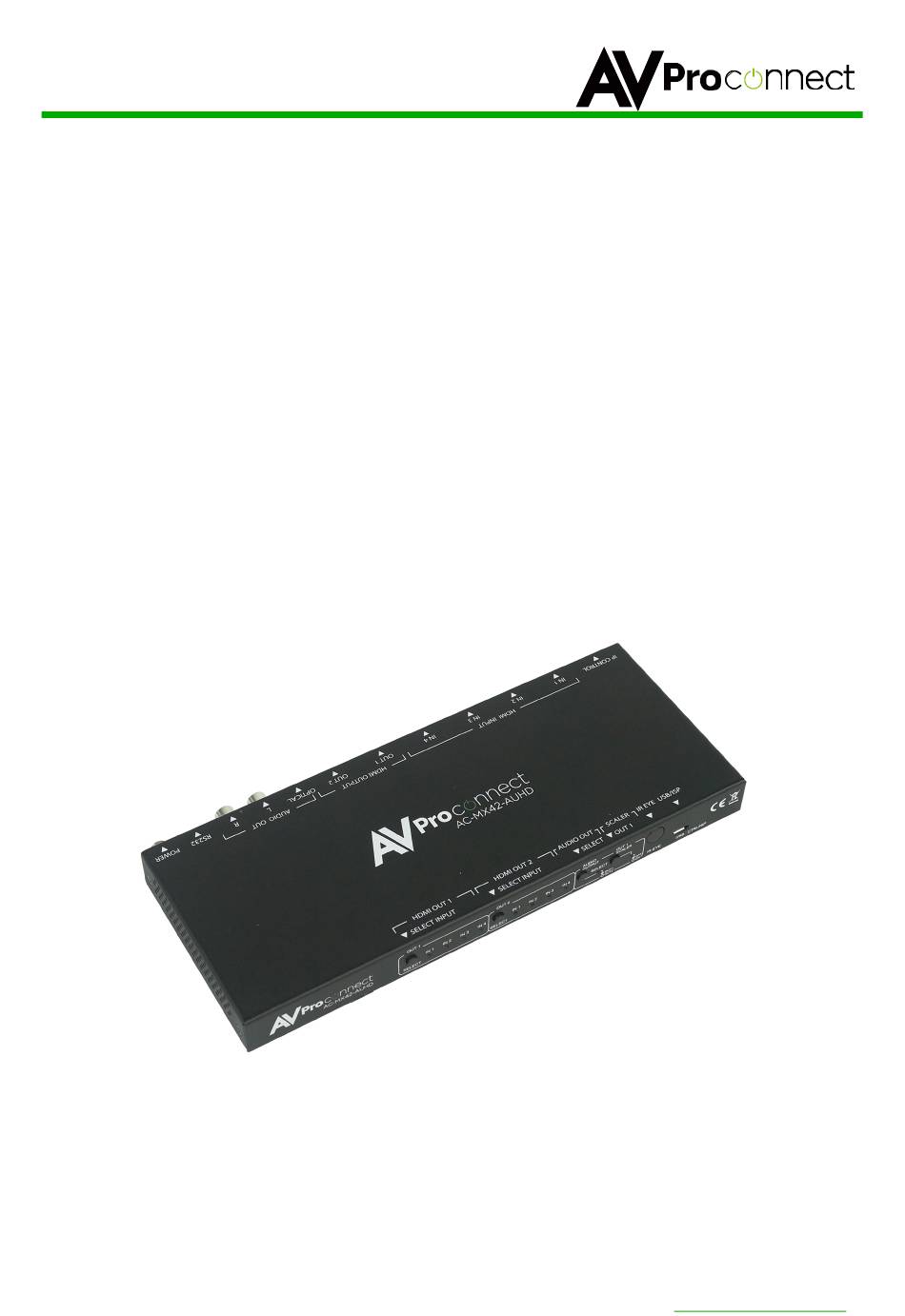

- Page 1 AC-MX42-AUHD User Manual AC-MX42-AUHD 18 Gbps True 4K60 4:4:4 8 x8 HDMI Matrix w/ Dual Audio De-Embedding, Scaling, and Auto-Switching pg. 1 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 2: Easy To Use
AC-MX42-AUHD The AC-MX42-AUHD is a true 4x2 HDMI matrix switch. Supporting HDMI 2.0(a/b), HDCP 2.2, up to 4K video resolution, and up to 18 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc ... ) to be shown on any of the connected displays. - Page 3 AC-MX42-AUHD Rear Panel Overview: pg. 3 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 4: Device Overview
Master Audio o Analog supports only 2CH PCM. If a higher codec is coming in, it will be silent (Only Toslink will work) pg. 4 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com... - Page 5 AC-MX42-AUHD pg. 5 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 6: Factory Reset
Auto Switching Logic: When the AC-MX42-AUHD is in "Auto" mode the logic is to switch to the most recently plugged in device based on a Hot Plug Event. You can have either HDMI OUTPUT set on auto individually or they can both be on together. - Page 7 AC-MX42-AUHD Audio Wiring Diagram: pg. 7 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 8: Edid Management
NOTE 2: We have a video available online or upon request if desired. Contact us or request at support.avproconnect.com Use the chart below to pick your EDID: pg. 8 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com... - Page 9 • OUT1 = Extracted audio will follow OUTPUT 1 (Default) • OUT 2= Extracted audio will follow OUTPUT 2 pg. 9 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 10 EDID from the display and apply it to the selected input. This new EDID will be stored as "USER EDID 1". pg. 10 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 11: Web Interface: System Settings
• TCP Port • Enable DHCP Port Alias Settings: Rename inputs and outputs for easy management. Each custom name is limited to eight (8) characters. pg. 11 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com... -
Page 12: Ir Remote Control
AC-MX42-AUHD IR Control: For IR Control there is an IR Window on the front face of the device. IR EYE IR Remote Control: pg. 12 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com... -
Page 13: Rs-232 And Tcp/Ip Commands
AC-MX42-AUHD RS-232 and TCP/IP Commands: The AC-MX42-AUHD can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine. - Page 14 AC-MX42-AUHD RS-232 Wiring Diagram: pg. 14 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
-
Page 15: Maintenance
• The unit does not operate normally or exhibits a marked change in performance • The unit has been dropped or the housing damaged pg. 15 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com... -
Page 16: Warranty
Please direct any questions or issues you may have to your local dealer before contacting AVPro. pg. 16 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com... - Page 17 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ pg. 17 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 18 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ pg. 18 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 19 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ pg. 19 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
- Page 20 @ a v p r o c o n n e c t . c o m pg. 20 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
