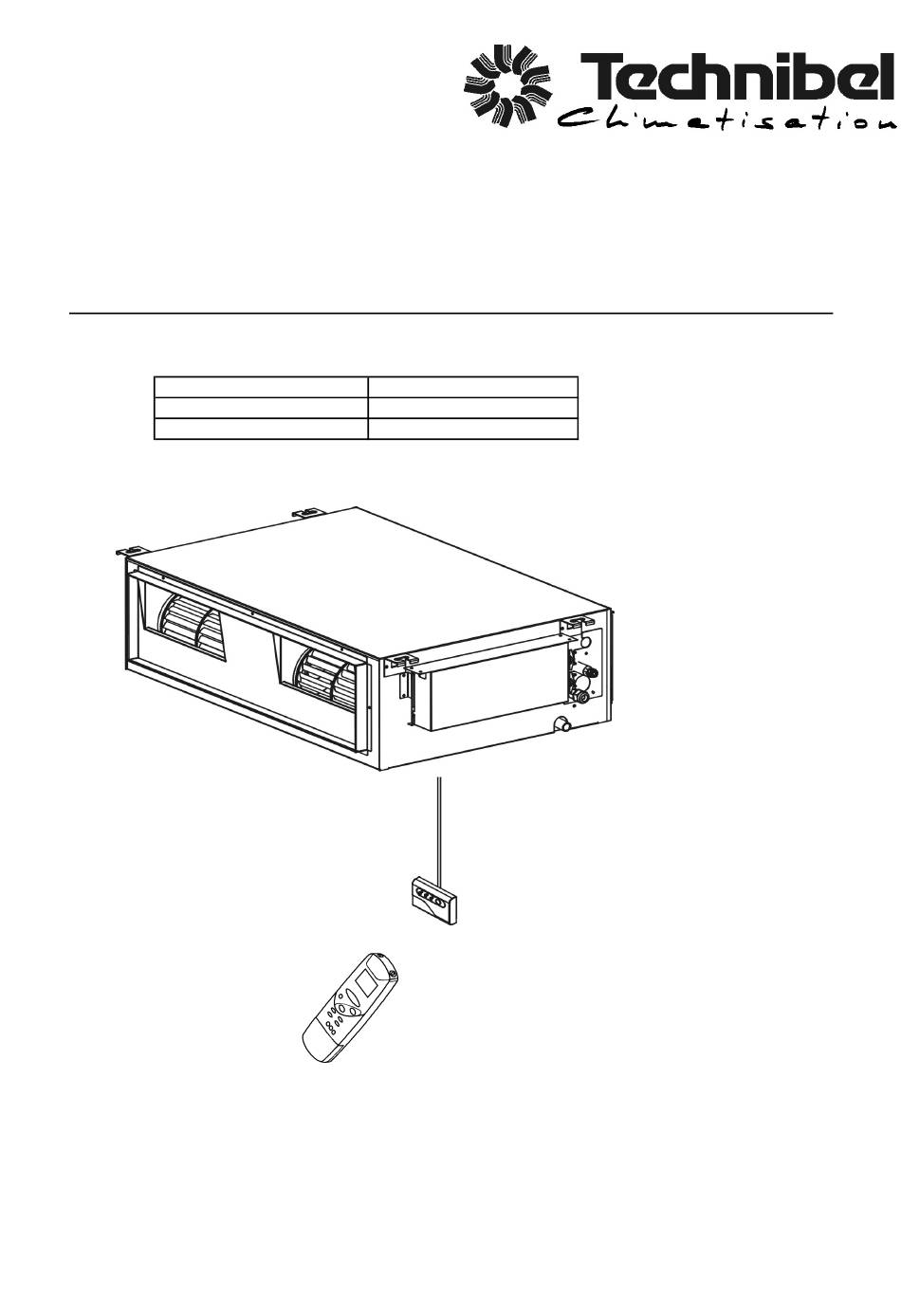

- Page 1 TECHNICAL DATA & SERVICE MANUAL INDOOR UNIT: DSAV92C5TAA DSAV122C5TAA SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. DSAV92C5TAA 387106945 DSAV122C5TAA 387106946 0.8180.310.1 12/2003...
- Page 2 IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. SPECIFICATIONS 1-1 Unit specifications 1-2 Major Component specifications 1-3 Other Component specifications 1-4 Indoor Fan performance 2. DIMENSIONAL DATA 3. ELECTRICAL DATA 3-1 Electric Wiring Diagrams 4. FUNCTION 4-1 Room Temperature Control 4-2 Dry Operation (Dehumidification) 4-3 Freeze Prevention (Cooling and Dry) 4-4 Drain Pump and Float Switch 5. -
Page 4: Specifications
1. SPECIFICATIONS 1-1 Unit Specifications DSAV92C5TAA 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance See catalogue with the requested matching Capacity 600/510/440 Air circulation (High/Med./Low) m³/h 49(5) at shipment - 69 (7) with booster cable External static pressure (High) Pa (mm W.G.) - Page 5 DSAV122C5TAA 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance See catalogue with the requested matching Capacity 600/510/440 Air circulation (High/Med./Low) m³/h 49(5) at shipment - 69 (7) with booster cable External static pressure (High) Pa (mm W.G.) Features Controls/Temperature controls Microprocessor/ I.C.
-
Page 6: Major Component Specifications
1-2 Major Component Specifications DSAV92C5TAA Controller PCB XR99/129E Part No. Controls Microprocessor Control circuit fuse 250 V - 3,15 A RCS-6PN4E-G Remote Control Unit Fan & Fan Motor Centrifugal fan Type 2…. Ø 160 / L 240 Q'ty ……. Dia. and lenght 3RGB-CO-45-30 5V/1….1... - Page 7 DSAV122C5TAA Controller PCB XR99/129E Part No. Controls Microprocessor Control circuit fuse 250 V - 3,15 A RCS-6PN4E-G Remote Control Unit Fan & Fan Motor Centrifugal fan Type 2…. Ø 160 / L 240 Q'ty ……. Dia. and lenght 3RGB-CO-45-30 5V/1….1 Fan motor model…Q'ty 4 …...
-
Page 8: Other Component Specifications
1-3 Other Component Specifications DSAV92C5TAA DSAV122C5TAA ATR-J105 Trasformer AC 230V, 50/60Hz Rating Primary 19V - 0.526A Secondary Capacity 10 VA Coil resistance Ω (at 21°C) Primary (WHT-WHT): 205 ± 10% Secondary (BRN-BRN): 2,0 ± 10% 150°C Thermal cut-off temp. Thermistor ( Coil sensor TH1) PBC-41E-S14 0 °C 15,3 ±... -
Page 10: Dimensional Data
2. DIMENSIONAL DATA Units: mm... -
Page 11: Electrical Data
3. ELECTRICAL DATA 3-1 Electric Wiring Diagrams... -
Page 12: Function
4. FUNCTION 4-1. Room Temperature Control I Cooling G Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. G The room temperature (and other information) is transmitted every 5 minutes by the remote control unit to the controller in the indoor unit. -
Page 13: Dry Operation (Dehumidification)
4-2. Dry Operation (Dehumidification) G Dry operation uses the ability of the cooling cycle to remove moisture from the air, but by running at low level to dehumidify without greatly reducing the room temperature. The air conditioner repeats the ON/OFF cycle automatically as shown in the chart below according to the room temperature. -
Page 14: Drain Pump And Float Switch
4-4 Drain Pump and Float Switch 3'min Compressor 20'min. 20'min. Drain Pump Float Switch NOTE: Either in Heating or another mode or the unit is stopped, when the float switch is turned ON, the drain pump operates for 20 minutes minimum... -
Page 15: Troubleshooting
6. TROUBLESHOOTING 5-1. 6-1. Check before and after troubleshooting WARNING Hazardous voltage can cause ELECTRIC SHOCK or DEATH. Disconnect power or turn off circuit breaker before you start checking or servicing. 5-1-1. 6-1-1. Check power supply wiring. G Check that power supply wires are correctly connected to terminals L and N on the terminal plate in the indoor unit. - Page 16 B. Circuit breaker trips in several minutes after turning the air conditioner on. G There is a possibility of short circuit. • Check capacity of circuit breaker. Replace with suitable one (larger capacity). Capacity of circuit breaker is suitable. Measure resistance of outdoor fan •...
- Page 17 C. Check remote control unit. • Try to run with another remote control unit. First remote control unit is defective. • Check for residue buildup on Clean transmitter. transmitter of remote control unit. • Check for residue buildup on remote Clean receiver.
- Page 18 5-2-3. 6-2-3. Only outdoor unit does not run. A. Check setting temperature. COOL Is room temperature too low ? Try to lower setting temperature by temperature setting button ( button). Outdoor unit still does not run. • Try to run using another remote control unit.
-
Page 19: Some Part Of Air Conditioner Does Not Operate
5-3. Some part of air conditioner does not operate. 5-3-1. Only indoor fan does not run. • Check fan casing Remove foreign foreign matter on matter or repair. Fan cannot inside. be turned. • Check fan rotation. Turn fan gently once or twice by hand. - Page 20 5-3-3. Only compressor does not run Check compressor motor Overload relay is working capacitor C1 (either OLR T or OLR A) Measure resistance of Temperature of compressor compressor motor winding is abnormally high Refrigerant gas shortage Charge refrigerant gas Measure power supply voltage Rotor may be locked up The voltage is too low 5-3-4.
-
Page 21: Air Conditioner Operates, But Abnormalities Are Observed
5-4. 6-4. Air conditioner operates, but abnormalities are observed. 5-4-1. 6-4-1. Poor cooling. • Check position of remote control unit. Change position of remote • Cool air from air conditioner control unit. reaches position directly. • Wide and narrow tubes between Insulate both wide and narrow indoor unit and outdoor unit are tubes separately and then... -
Page 22: If A Sensor Is Defective
5-5. If a sensor is defective. 5-5-1. Thermistor (TH1 or TH2) is defective. • Operation lamp on front side of • Indoor coil thermistor (TH1 ) or room indoor unit is blinking. (*) air thermistor (TH2 ) is defective. • Replace the thermistor. Alarm Signal (*) NOTE Operation lamp on the front side of the indoor unit will blink when either indoor coil thermistor or room... -
Page 23: Checking Electrical Components
6. CHECKING ELECTRICAL COMPONENTS 6-1. Measurement of Insulation power plug (Local supply) Resistance G The insulation is in good condition if the resistance Ground exceeds 2MΩ. probe 6-1-1. Power Supply Wires Insulation tester Clamp the grounding terminal of the power plug with a NOTE lead clip of the insulation resistance tester and The shape of the power plug may differ from that... -
Page 24: Checking Continuity Of Fuse On Pcb Ass'y
6-2. 7-2. Checking Continuity of Fuse Fuse on PCB Ass'y G Remove the PCB Ass’y from the electrical component box. Then pull out the fuse from the PCB Ass’y. (Fig. 5) PCB Ass’y G Check for continuity using a multimeter as shown in Fig. -
Page 25: Maintenance
7. MAINTENANCE 7-1 Changing Address of Remote Control Unit in Indoor Unit If you are installing more than 1 indoor unit (up to 2) in the same room, it is necessary for you to assign each unit its own address, so each can be operated by its own separate remote control unit. You assign the addresses by matching the remocon address on the PCB of each indoor unit with the switch positions of its remote control unit. - Page 26 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
